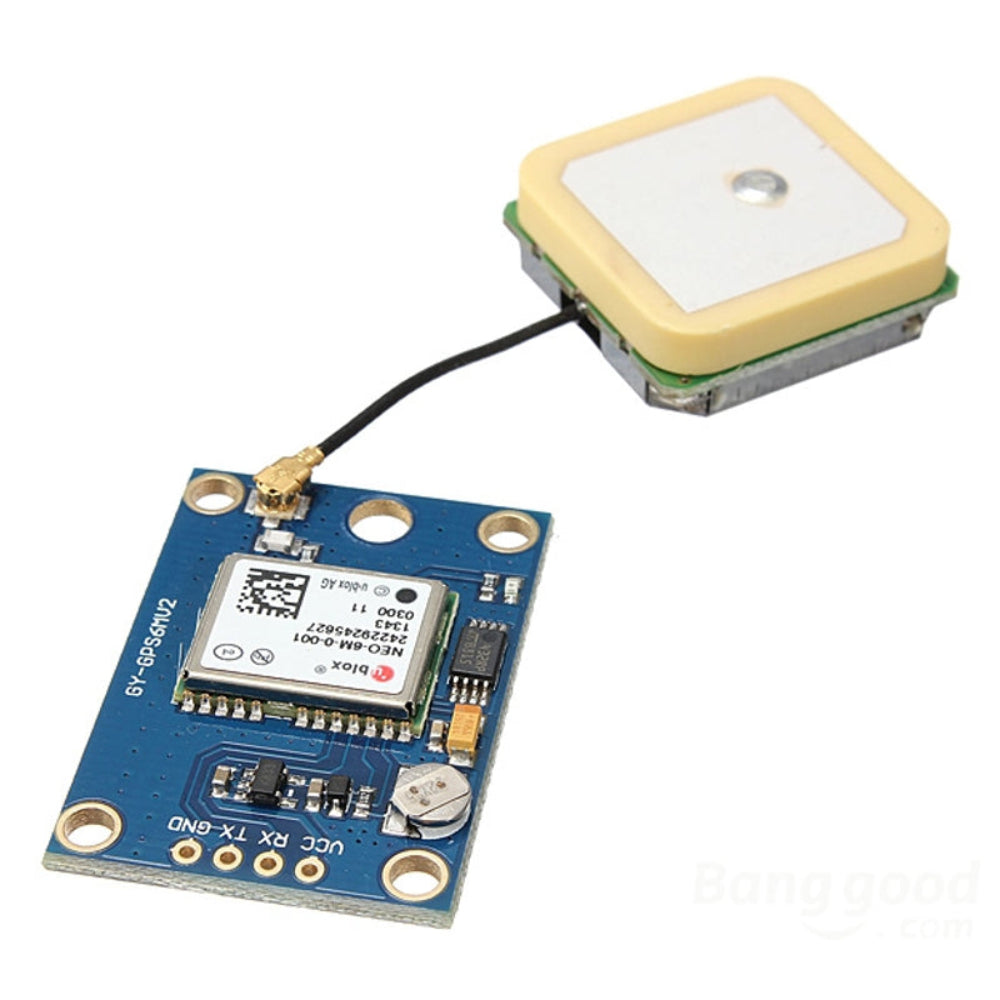

Ublox NEO-6M V2 GPS Flight Control Module

NEO-6M GPS Module with EPROM

Name: NEO-6M GPS Module with EPROM
Availability: OutOfStock
Rating: 4.91 (11 reviews)

Available:Out of Stock

Product SKU: KG047

Wishlist

₹ 324 ~~₹ 849~~

Pre-order

Specification

Description

The NEO-6M GPS Module with EPROM is a compact and versatile Global Positioning System (GPS) module that integrates a GPS receiver and non-volatile memory (EPROM) for storing configuration settings or other data. This module is commonly used in various applications, including navigation, geolocation, tracking, and outdoor positioning.

Here are the key details about the NEO-6M GPS Module with EPROM:

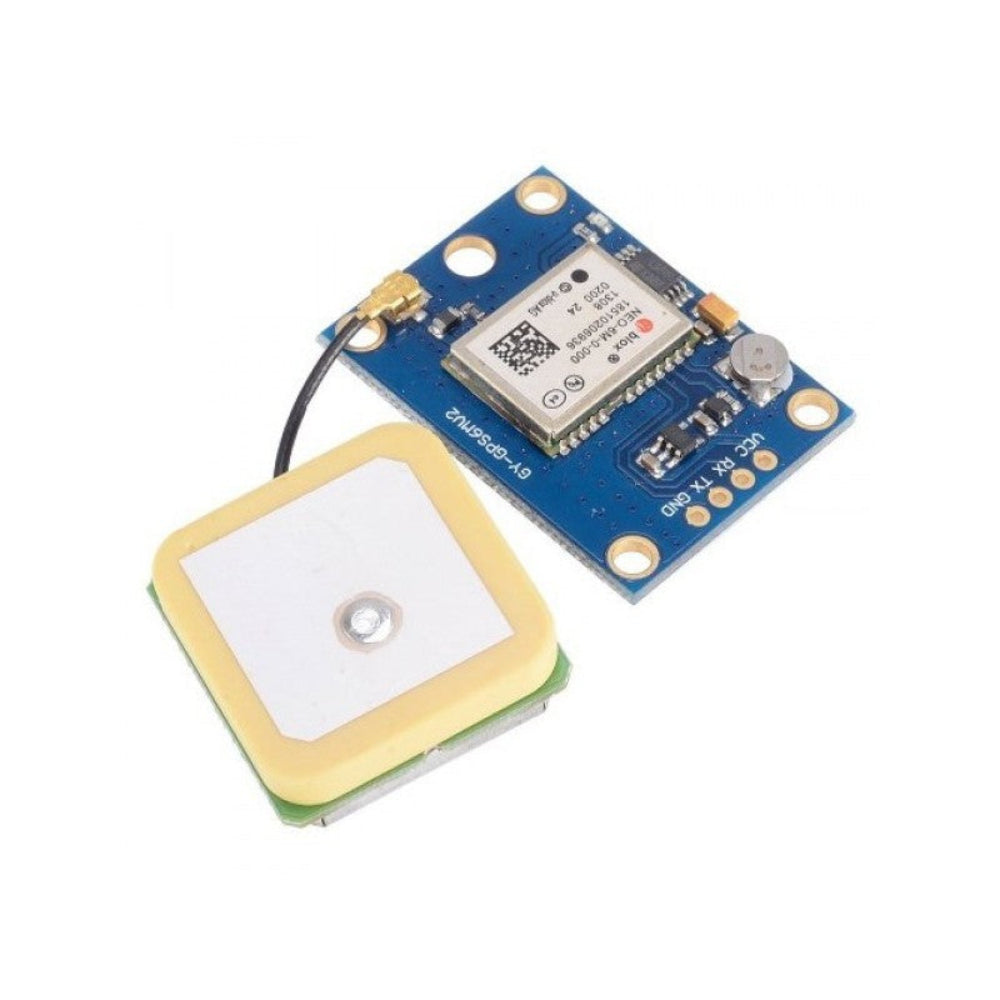

GPS Receiver: The module features a GPS receiver chipset, such as the u-blox NEO-6M, which is capable of receiving signals from multiple satellites to determine the module's precise position, time, and velocity.

Compact Design: The module is designed to be compact and easy to integrate into various projects. It often comes with pins or connectors for easy connection to microcontrollers, development boards, or other devices.

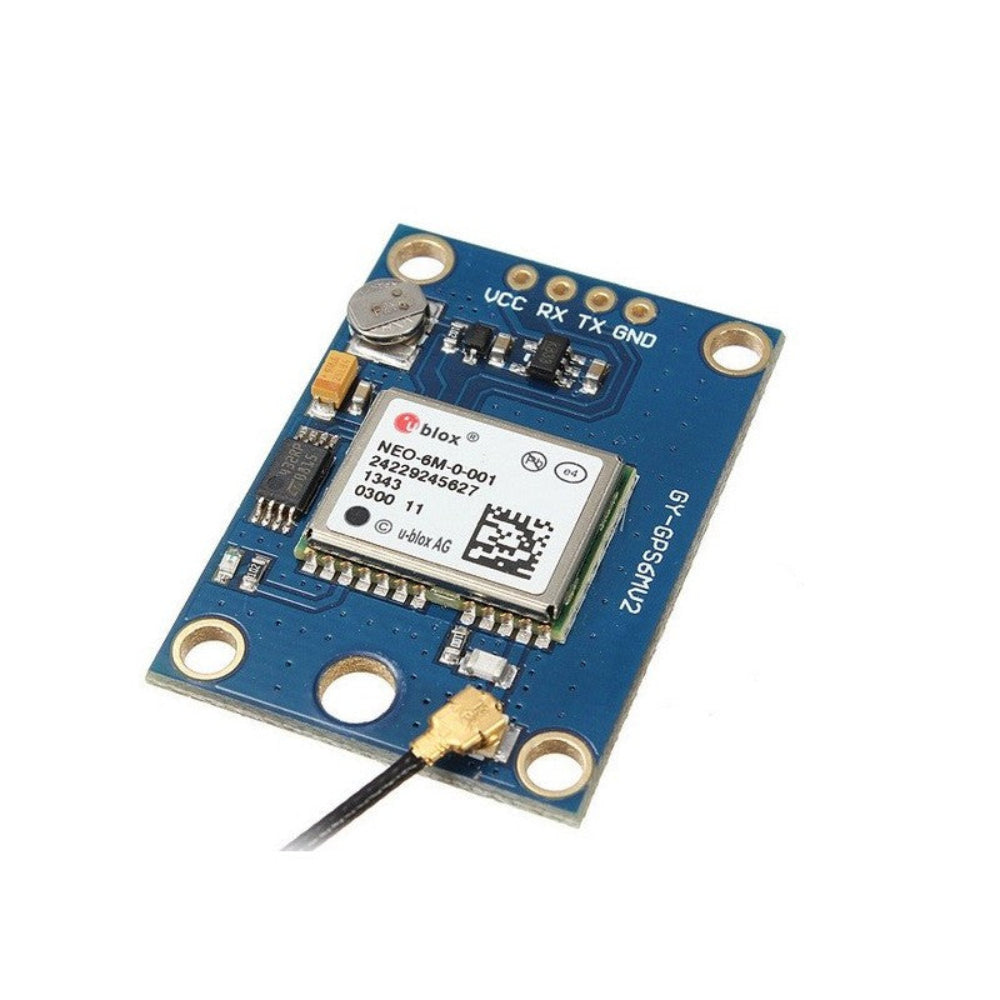

Serial Communication: The module communicates with your host device (like a microcontroller) using serial communication, usually through UART (Universal Asynchronous Receiver-Transmitter) protocol.

GPS Data: The module provides accurate latitude, longitude, altitude, time, speed, and other GPS-related data, allowing you to track the module's location and movement.

EPROM Storage: The addition of EPROM (Electrically Programmable Read-Only Memory) allows you to store configuration settings or other user-defined data in a non-volatile manner. This data persists even when the module loses power.

Configuration: You can configure the module's behavior, update the settings, and control various parameters using specific AT commands through the serial interface. These commands enable customization based on your project's requirements.

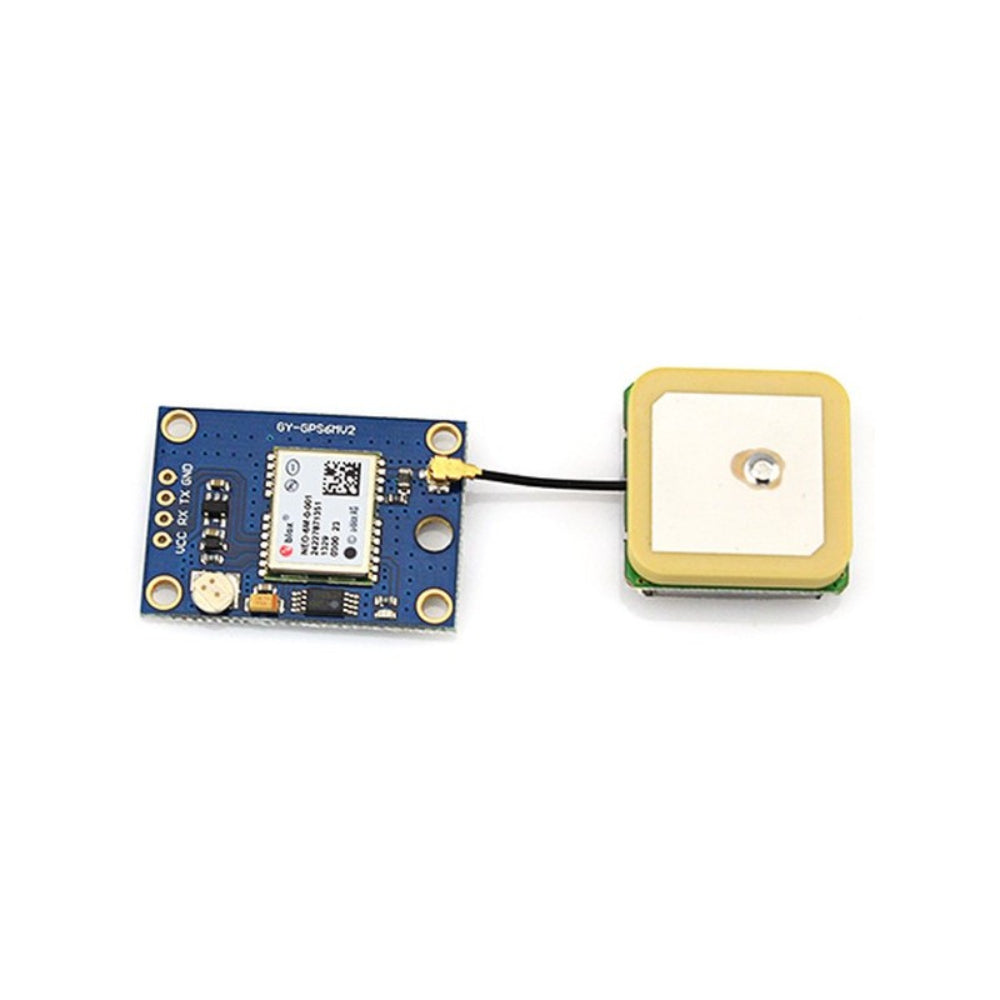

External Antenna: Some versions of the module might include a connector for an external GPS antenna, which can improve signal reception, especially in environments with limited sky view.

Backup Battery: In some setups, a backup battery might be required to maintain the EPROM data when the module is powered off.

Applications of NEO 6m GPS Module with Eprom:

The NEO-6M GPS Module with EPROM is commonly used in applications such as vehicle tracking, navigation systems, geocaching, drone flight control, outdoor sports monitoring, and any project that requires accurate location data.

Documentation to use the module effectively, it's essential to refer to the manufacturer's documentation, datasheet, and user manual. These resources will provide detailed information about pinouts, electrical connections, AT commands, and other important considerations.

When working with the NEO-6M GPS Module with EPROM, keep in mind that accurate positioning requires a clear view of the sky, as obstructions can hinder satellite signal reception. Additionally, ensure that you properly integrate the module with your chosen microcontroller or development board and follow best practices for GPS antenna placement and module configuration.

Technical Details of NEO 6m GPS Module with Eprom

Model: Ublox NEO-6M
Receiver Type: 50 Channels
Input Supply Voltage (VDC): 2.7 ~ 6
Main Chip: NEO-6
Sensitivity (dBm): -160
Navigation Update Rate: 5Hz
Position Accuracy (Meter): 2
Operating Temperature Range (°C): -24 to 84
Tracking Sensitivity (dBm): -161 dBm
Avg Cold Start Time (s): 27
Warm Start Time (s): 27
Maximum Speed: 500 M/s
Cold Start (without aiding): -147 dBm Tracking Navigation: -161 dBm

Physical Attributes of NEO 6m GPS Module with Eprom

Length × Width × Height(mm) : Antenna – 25 x 25 x 9, GPS Board – 36 x 25 x 4
Weight (gm): 16
Cable Length (cm): 11.5

Integration with Arduino of NEO 6m GPS Module with Eprom

Sample Code

Integration with Raspberry Pi

Sample Code

Additional Details

5Hz position update rate
Operating temperature range: -40 TO 85°CUART TTL socket
EEPROM to save configuration settings
Rechargeable battery for Backup
The cold start time of 38 s and the Hot start time of 1 s
Supply voltage: 3.3 V
Configurable from 4800 Baud to 115200 Baud rates. (default 9600)
SuperSense ® Indoor GPS: -162 dBm tracking sensitivity
Support SBAS (WAAS, EGNOS, MSAS, GAGAN)
Separated 18X18mm GPS antenna

Product Video

Useful Links

For Arduino code Click here
Onboard M24C32-R (432RP marking) EEPROM datasheet
Onboard voltage regulator MIC5205 (marked KB33) datasheet
Arduino NEO-6MArduino NEO-6m Arduino NEO-6M library
To connect the Neo GPS module with Raspberry Pi Click here

Package Includes

1 x NEO-6M GPS Module with EPROM
