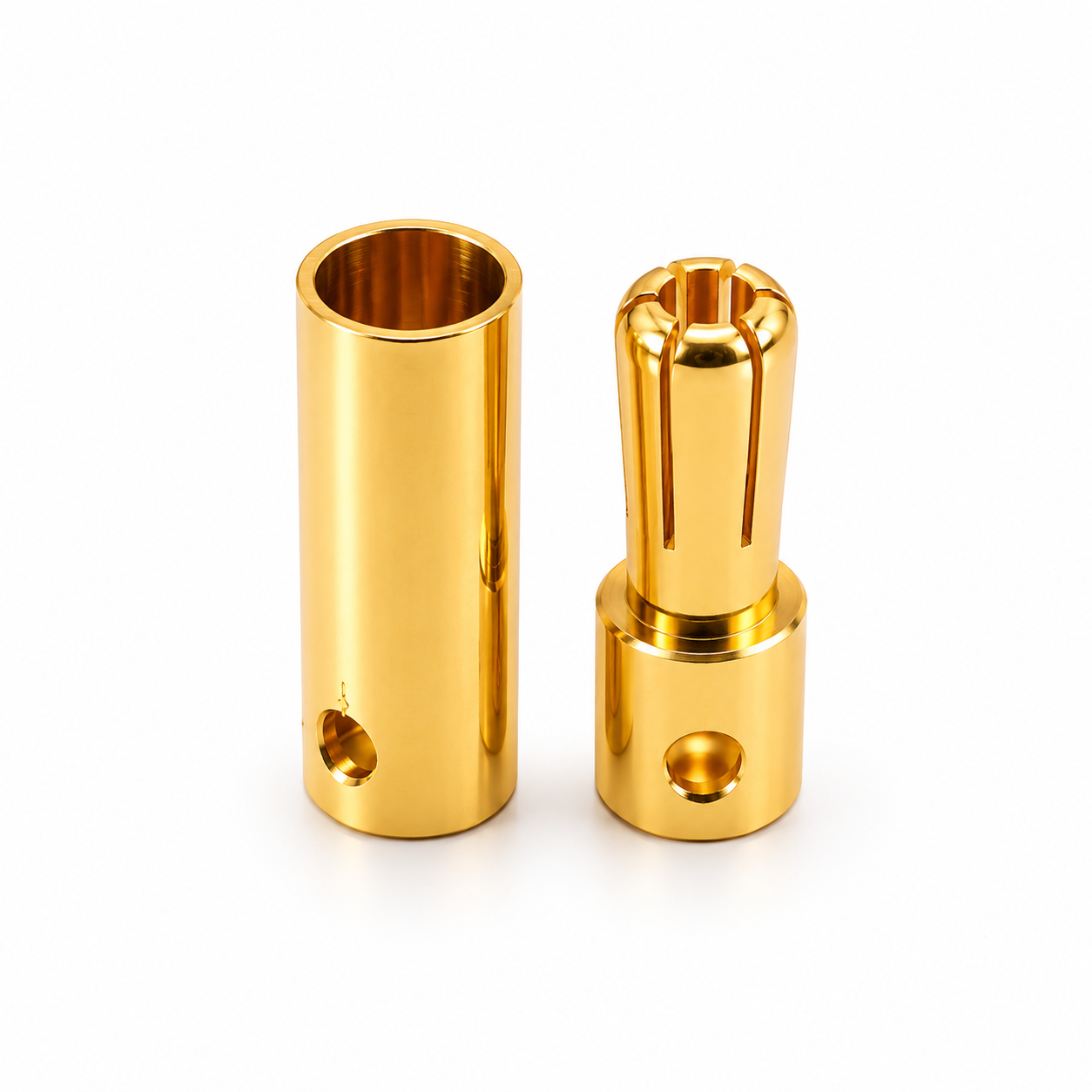

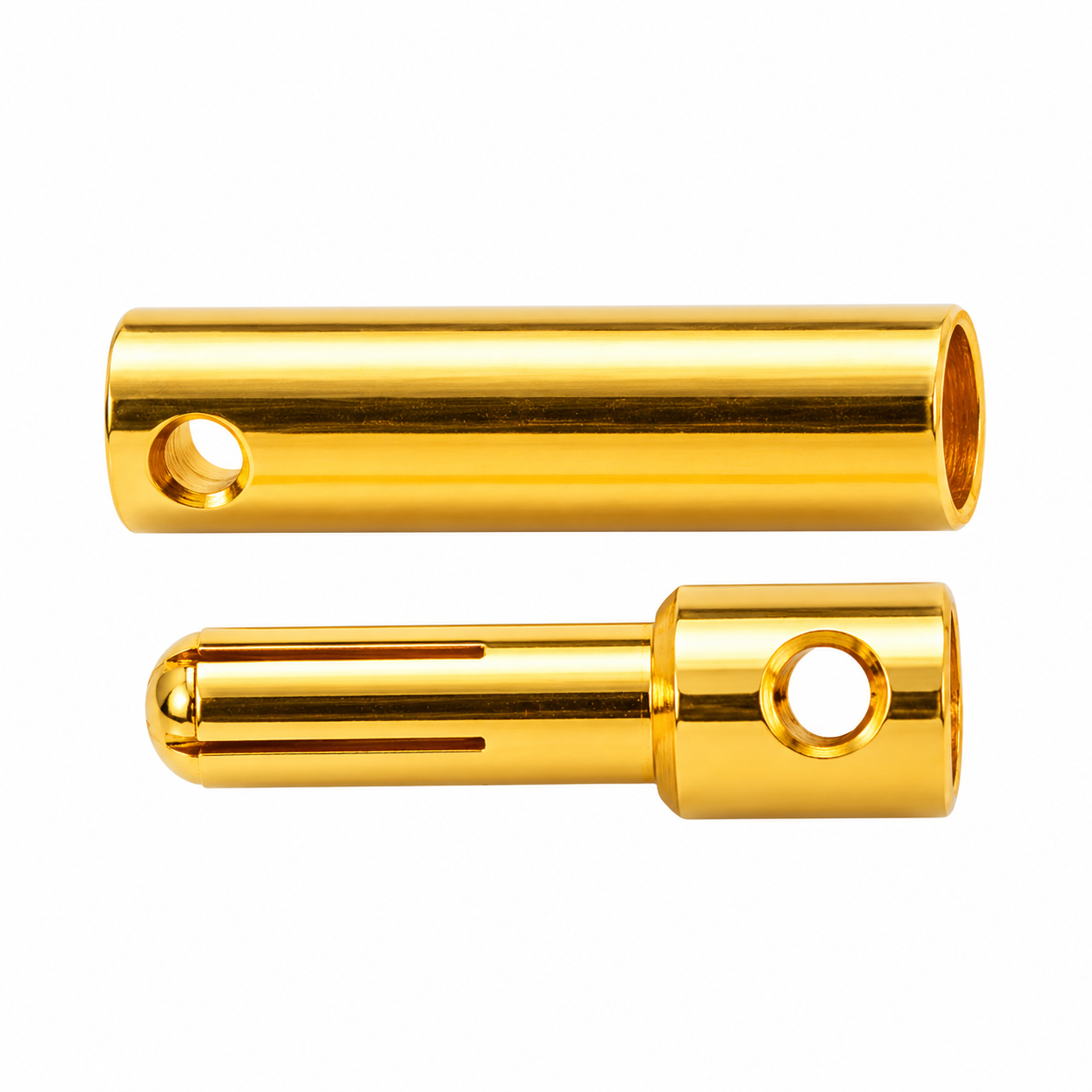

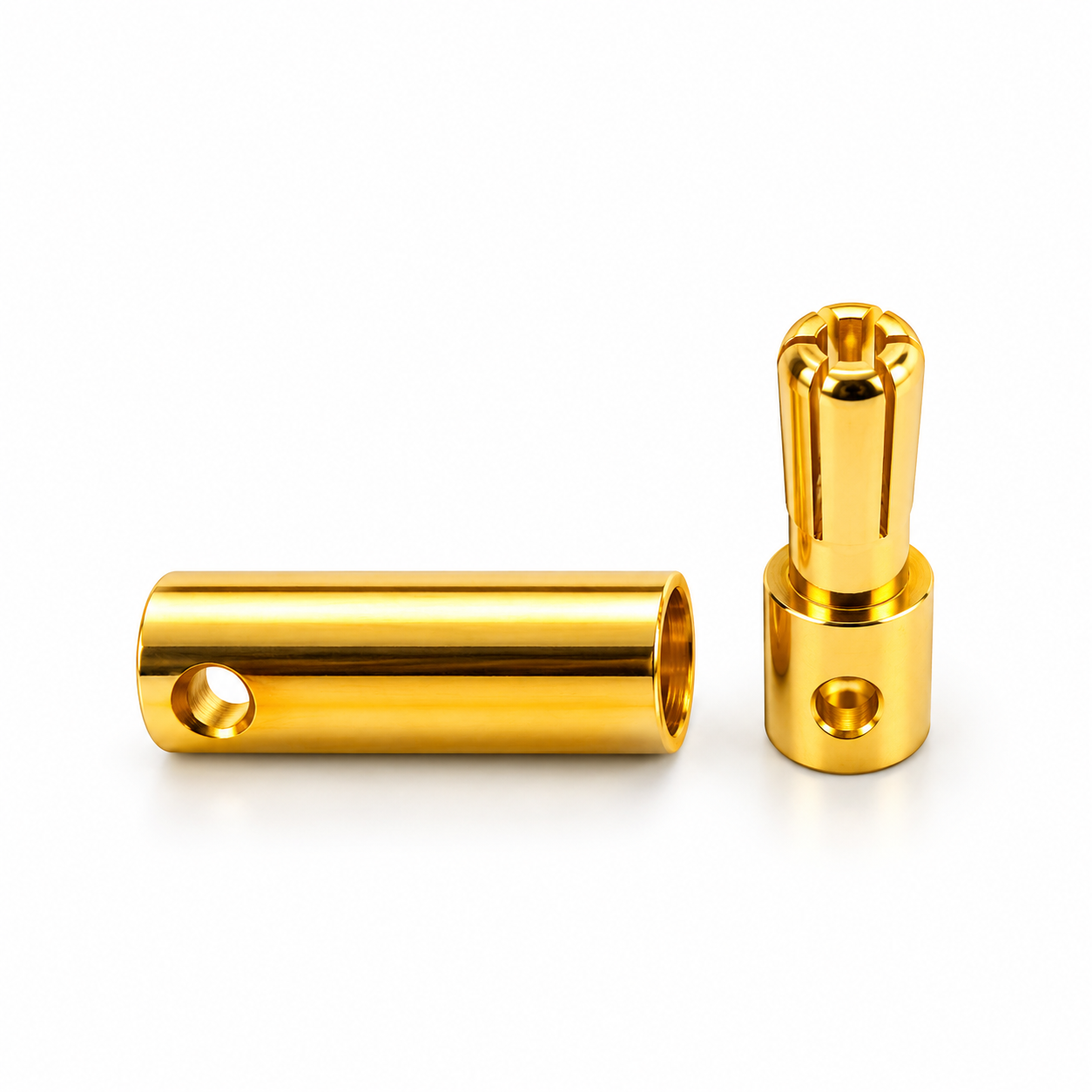

5mm Male Female Gold Bullet Banana Connector
![gold bullet connector vertical view]()
![gold bullet connector top view]()
![gold bullet connector vertical view]()
![gold bullet connector vertical view]()
![gold bullet connector top view]()
![gold bullet connector vertical view]()
The set includes one male bullet connector and one female cylindrical socket connector, designed to fit together using a spring-contact friction mechanism. The slotted male contact, cylindrical female socket, and solder-type wire terminals provide a convenient solution for assembling detachable electrical connections. Their compact metal construction, reusable design, and easy soldering installation make them suitable for RC battery connections, BLDC motor wiring, ESC connections, robotics, and electronic power systems. Heat shrink tubing is recommended for insulation and must be purchased separately.
![Female XT60 connectors-2pcs]()
![Female XT60 connectors-2pcs]()
-24%
5mm Male Female Gold Bullet Banana Connector
Verfügbar:Auf Lager
- Produkt-SKU: KG241
₹ 49
₹ 65
Specification
Beschreibung
Product Description
The 5mm Male Female Gold Bullet Banana Connector Set is a durable and reliable electrical connector pair designed for creating secure, detachable, and low-resistance wire-to-wire connections in RC vehicles, drones, brushless motors, electronic speed controllers (ESCs), battery packs, and DIY electronics projects. Featuring a 5mm nominal mating diameter and gold-coloured metal contacts, these connectors provide a firm electrical connection for power distribution and motor wiring applications.The set includes one male bullet connector and one female cylindrical socket connector, designed to fit together using a spring-contact friction mechanism. The slotted male contact, cylindrical female socket, and solder-type wire terminals provide a convenient solution for assembling detachable electrical connections. Their compact metal construction, reusable design, and easy soldering installation make them suitable for RC battery connections, BLDC motor wiring, ESC connections, robotics, and electronic power systems. Heat shrink tubing is recommended for insulation and must be purchased separately.
Technical Details
- Item Type: Bullet Banana Connector Set
- Product Type: Male and Female Electrical Connector
- Connector Size: 5mm
- Connector Configuration: 1 Male + 1 Female
- Contact Material: Metal Alloy
- Surface Finish: Gold Coloured
- Connection Method: Solder Type
- Contact Style: Slotted Bullet Pin and Cylindrical Socket
- Connection Type: Detachable
- Nominal Mating Diameter: 5mm
- Electrical Function: Power and Signal Connection
- Motor Compatibility: Suitable BLDC Motor and ESC Wiring
- Wire Compatibility: Depends on Solder Terminal Size
- Insulation: External Heat Shrink Tubing Recommended
- Mounting Type: Wire-to-Wire Solder Connection
- Application: RC Models, Battery Wiring, and Electronics
Features
- 5mm male and female bullet banana connector pair
- Gold-coloured metallic contact surfaces
- Low-resistance electrical contact design
- Quick connection and disconnection
- Slotted male bullet for secure friction-fit contact
- Matching cylindrical female socket
- Solder-type terminals for wire attachment
- Compact and lightweight metal construction
- Reusable detachable electrical connector design
- Suitable for compatible RC battery and ESC wiring
- Helps create organized motor and power connections
- Ideal for RC vehicles, robotics, and DIY electronics projects
Working Principle
The 5mm Bullet Banana Connector Set operates using a mechanical plug-and-socket electrical connection. The male connector contains a slotted spring-contact pin, while the female connector features a matching hollow cylindrical socket.
When the male bullet connector is inserted into the female socket, the spring-contact structure applies pressure against the internal socket surface. This establishes a firm metal-to-metal electrical connection that allows current to flow between the connected wires.
The detachable friction-fit design allows the connectors to be connected and disconnected when required. Proper contact pressure, soldering quality, and suitable wire selection help maintain stable electrical conductivity and minimize contact resistance.
When the male bullet connector is inserted into the female socket, the spring-contact structure applies pressure against the internal socket surface. This establishes a firm metal-to-metal electrical connection that allows current to flow between the connected wires.
The detachable friction-fit design allows the connectors to be connected and disconnected when required. Proper contact pressure, soldering quality, and suitable wire selection help maintain stable electrical conductivity and minimize contact resistance.
Connector Wiring and Installation
- Disconnect the battery or power supply before installation.
- Select suitable wires according to the intended electrical load.
- Cut and strip the wire insulation to expose the conductor.
- Slide suitable heat shrink tubing over the wire before soldering.
- Apply solder to the exposed wire and connector solder terminal.
- Solder the male connector to the required motor or electrical lead.
- Solder the female connector to the corresponding ESC or power lead.
- Allow the soldered joints to cool completely.
- Cover the male connector's soldered base with heat shrink tubing.
- Insulate the female connector body and solder termination while keeping the mating opening accessible.
- Insert the male connector into the female socket.
- Check for a secure connection and verify correct electrical polarity.
- Inspect all insulation before connecting the power supply.
Applications
- RC cars, airplanes, helicopters, and boats
- Drone and quadcopter motor connections
- BLDC motor and ESC wiring
- Custom RC battery wiring harnesses
- Electronic power distribution systems
- Brushless motor testing applications
- Robotics and automation projects
- DIY electronics and STEM projects
- Battery pack and power supply connections
- Modular electronics assemblies
- Electrical test leads and custom wiring
- Detachable DC power connections
Physical Attributes
- Connector Type: Male and Female Bullet Banana
- Male Connector Shape: Slotted Spring-Contact Bullet
- Female Connector Shape: Hollow Cylindrical Socket
- Nominal Mating Diameter: 5mm
- Surface Finish: Metallic Gold Colour
- Material: Conductive Metal Alloy
- Connection Mechanism: Friction Fit
- Mounting Style: Solder-On Wire Connection
- Construction: Compact Cylindrical Metal Body
- Protective Insulation: Not Included
Frequently Asked Questions (FAQs)
- What is the connector diameter? The connector has a nominal mating diameter of 5mm.
- What is included in the set? One male bullet connector and one female bullet connector.
- What type of connection does it use? It uses a detachable friction-fit plug-and-socket connection.
- Are these connectors suitable for BLDC motors? Yes, they can be used for compatible brushless motor and ESC wiring.
- Can they be used with RC batteries? Yes, when properly insulated and used within verified electrical ratings.
- Do these connectors require soldering? Yes, wires must be attached to the solder terminals.
- Is heat shrink tubing included? No, heat shrink tubing must be purchased separately.
- Can the connectors be disconnected and reused? Yes, they are designed for repeated connection and disconnection.
- What is the difference between 4mm and 5mm bullet connectors? The 5mm version has a larger nominal mating diameter and must be paired with a matching 5mm connector.
- Can these connectors be used for high-current applications? Yes, if their verified current rating, wire size, soldering quality, and operating conditions are suitable.
- Can I use these connectors for DIY electronics? Yes, they are suitable for compatible power distribution and electronic wiring projects.
- Are these connectors waterproof? No, the connector pair is not waterproof without a properly designed sealing arrangement.
Safety Precautions
- Always disconnect electrical power before installation.
- Verify correct polarity before applying power.
- Use suitable wire sizes for the electrical load.
- Properly insulate soldered joints with heat shrink tubing.
- Never allow exposed connectors of opposite polarity to touch.
- Avoid connecting or disconnecting under electrical load.
- Ensure soldered connections are secure and properly formed.
- Do not overheat the connectors during soldering.
- Do not exceed the manufacturer's verified current rating.
- Keep connectors away from water and conductive debris.
- Inspect connectors for looseness, wear, and overheating.
- Do not use exposed connectors for mains-voltage wiring.
Package Includes
- 1 × 5mm Male Gold Bullet Banana Connector
- 1 × 5mm Female Gold Bullet Banana Connector
