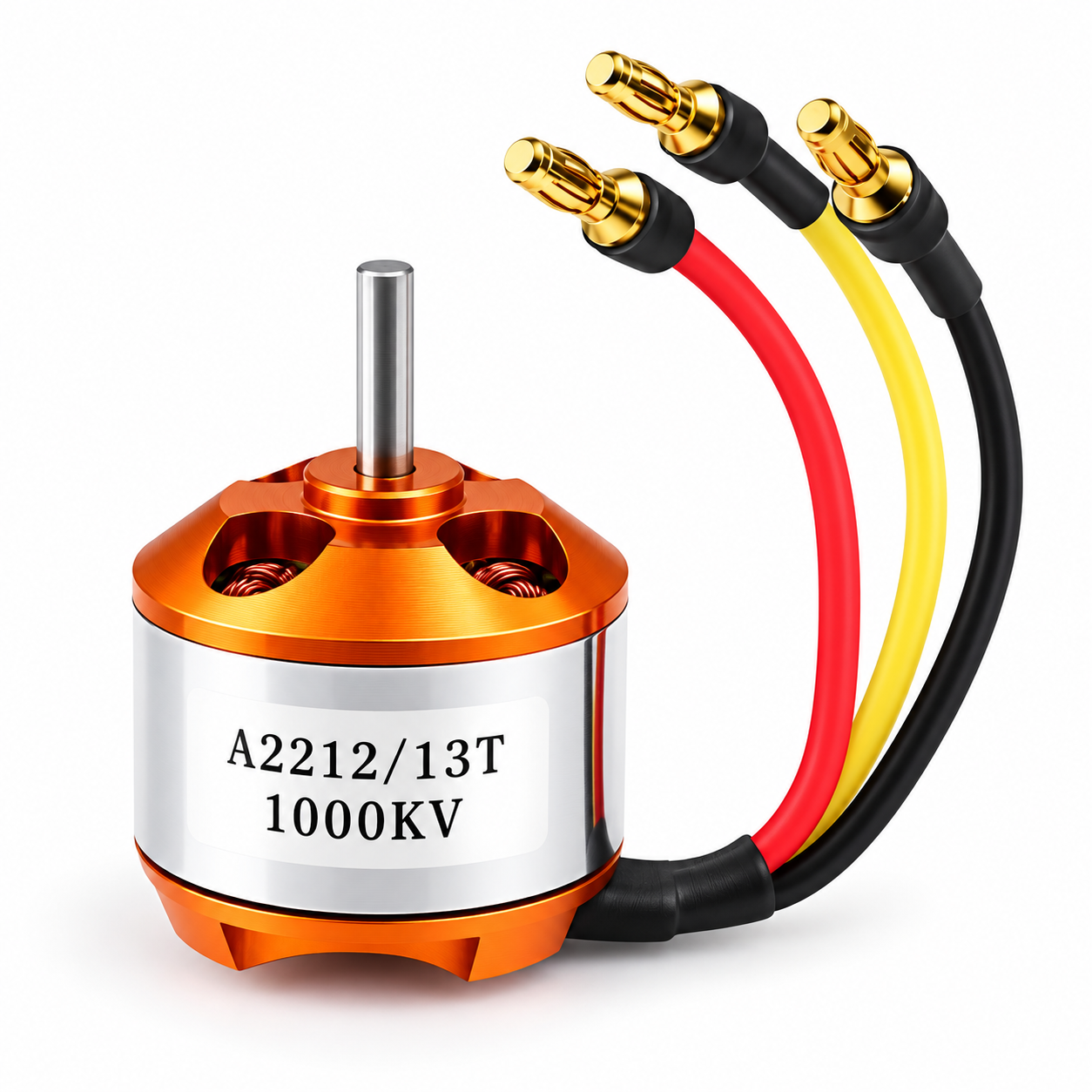

A2212 13T 1000KV BLDC Brushless Motor for Drone with Soldered Connectors

The A2212 13T 1000KV Brushless Motor is a compact, lightweight, and efficient BLDC outrunner motor designed for drones, quadcopters, multirotors, RC airplanes, and UAV projects. Featuring a 1000KV speed rating, this motor offers smooth throttle response, good torque characteristics, and reliable performance for DIY drone and aeromodelling applications.

The motor features a durable metal housing, 3.17mm shaft, and pre-soldered connectors for convenient installation. It supports 2S–3S LiPo batteries and is recommended for use with a 30A Brushless ESC. Supplied with an X-type mounting bracket, propeller adapter, and mounting screws, it is suitable for medium-sized quadcopters, RC airplanes, and other aerial propulsion projects.

Features

  • 1000KV brushless outrunner motor with good torque characteristics
  • Compact and lightweight metal construction
  • Compatible with 2S–3S LiPo batteries
  • Recommended 30A brushless ESC
  • 3.17mm motor shaft diameter
  • Pre-soldered connectors for easy ESC connection
  • Smooth throttle response and efficient operation
  • Supports clockwise and counterclockwise rotation
  • Suitable for 8-inch to 10-inch propellers, subject to load testing
  • Includes X-type mounting bracket and propeller adapter
  • Suitable for drones, quadcopters, and RC airplanes

Working Principle

The A2212 1000KV BLDC Motor operates using a three-phase brushless motor system. An Electronic Speed Controller (ESC) supplies controlled electrical signals to the motor windings, generating a rotating magnetic field that drives the outer rotor.

The 1000KV rating indicates approximately 1000 RPM per volt under no-load conditions. With an 11.1V (3S LiPo) battery, the theoretical no-load speed is approximately 11,100 RPM. Actual operating speed depends on battery voltage, propeller loading, and ESC settings.

Motor Wire and ESC Connection

  • Motor Wire 1: ESC Phase Output A
  • Motor Wire 2: ESC Phase Output B
  • Motor Wire 3: ESC Phase Output C
  • ESC Positive (+): Battery Positive (+)
  • ESC Negative (-): Battery Negative (-)
  • ESC Signal: Flight Controller, Receiver, or ESC Tester
Note: To reverse motor rotation, interchange any two of the three motor phase wires connected to the ESC. Never reverse battery polarity.

Recommended ESC, Battery and Propeller

  • Recommended ESC: 30A Brushless ESC
  • Compatible Battery: 2S–3S LiPo
  • Battery Voltage: 7.4V–11.1V (Nominal)
  • Suggested Propeller: 1045 (10 × 4.5 inch), subject to load testing
  • Alternative Propellers: 8045 or 9045
  • Propeller Adapter: Compatible with 3.17mm shaft
  • Suitable Frames: F450 Quadcopter, Multirotor, and RC Airplane Frames
Note: Propeller selection depends on battery voltage, motor loading, and operating conditions. Always verify motor current and temperature before prolonged operation. Using an oversized propeller may overload the motor.

Technical Details

  • Item Type: BLDC Brushless Drone Motor
  • Model: A2212 13T
  • Motor Type: Three-Phase Brushless Outrunner
  • Motor KV: 1000KV
  • Winding: 13T
  • Compatible LiPo Batteries: 2S–3S
  • Nominal Voltage: 7.4V–11.1V
  • No-Load Current: 0.5A at 10V
  • Maximum Efficiency Current: 4–10A
  • Maximum Current Capacity: 13A for 60 Seconds
  • Maximum Rated Power: 150W
  • Maximum Efficiency: Approximately 80%
  • Internal Resistance: 90mΩ
  • Number of Poles: 14
  • Shaft Diameter: 3.17mm
  • Recommended ESC: 30A Brushless ESC
  • Motor Wires: 3 Phase Wires
  • Connector Type: Pre-Soldered Bullet Connectors
  • Rotation Direction: CW / CCW
  • Mounting Type: X-Type Motor Bracket
  • Housing Material: Metal

Applications

  • DIY drones and quadcopters
  • F450 quadcopter frames
  • Multirotor and UAV projects
  • RC airplanes and fixed-wing aircraft
  • Foam-board and model aircraft
  • Drone assembly and aeromodelling
  • Brushless motor speed control experiments
  • Robotics and educational projects
  • RC airboat propulsion projects

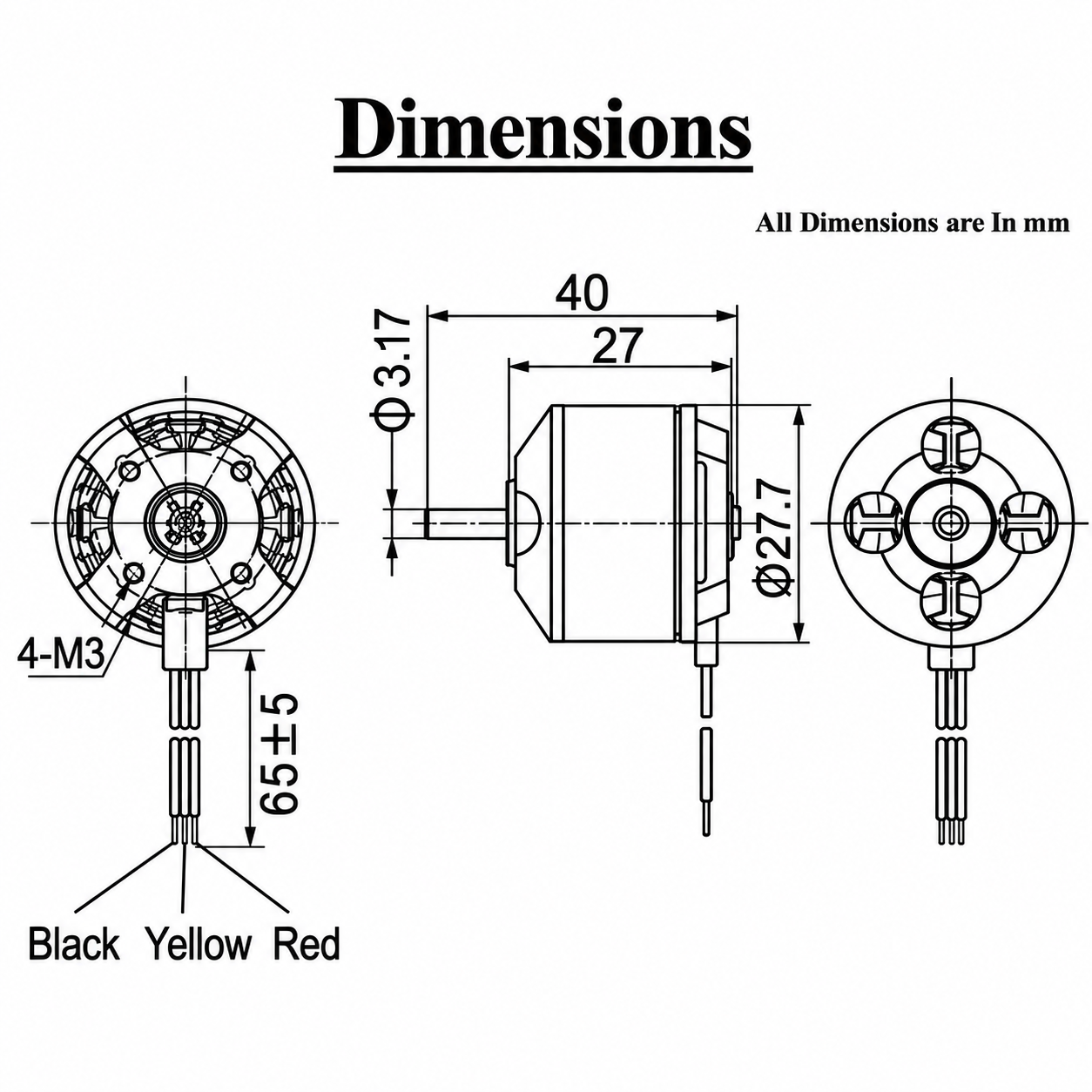

Physical Attributes

  • Compact cylindrical outrunner motor design
  • Durable metal motor housing
  • Motor Diameter: Approximately 28mm
  • Motor Body Length: Approximately 27–28mm
  • Shaft Diameter: 3.17mm
  • Motor Wires: 3 Pre-Soldered Phase Leads
  • Mounting Bracket: X-Type
  • Weight: Approximately 53g (Motor Only)
  • Compact design for RC aircraft installation

Installation and Usage Instructions

  • Secure the motor using the X-type mounting bracket.
  • Connect the three motor wires to a compatible brushless ESC.
  • Connect the ESC to a suitable 2S–3S LiPo battery.
  • Connect the ESC signal wire to the flight controller or receiver.
  • Configure the ESC according to its instructions.
  • Test the motor at low speed without a propeller.
  • Check the rotation direction and swap two phase wires if required.
  • Install a suitable propeller after successful testing.
  • Monitor motor current and temperature during operation.

Frequently Asked Questions (FAQs)

  • Which ESC is recommended? A 30A brushless ESC.
  • Which battery is compatible? 2S–3S LiPo batteries.
  • Which propeller is suitable? 1045, subject to load testing.
  • Can the motor rotate both ways? Yes, CW and CCW.
  • Can I connect it directly to a battery? No, an ESC is required.
  • Is a propeller included? No, sold separately.

Safety Precautions

  • Always use a compatible brushless ESC.
  • Do not connect the motor directly to a battery.
  • Remove the propeller during initial testing.
  • Do not exceed the rated current and power limits.
  • Ensure correct battery polarity and secure connections.
  • Use properly sized mounting screws.
  • Keep hands and loose objects away from rotating propellers.
  • Protect the motor from water and moisture.

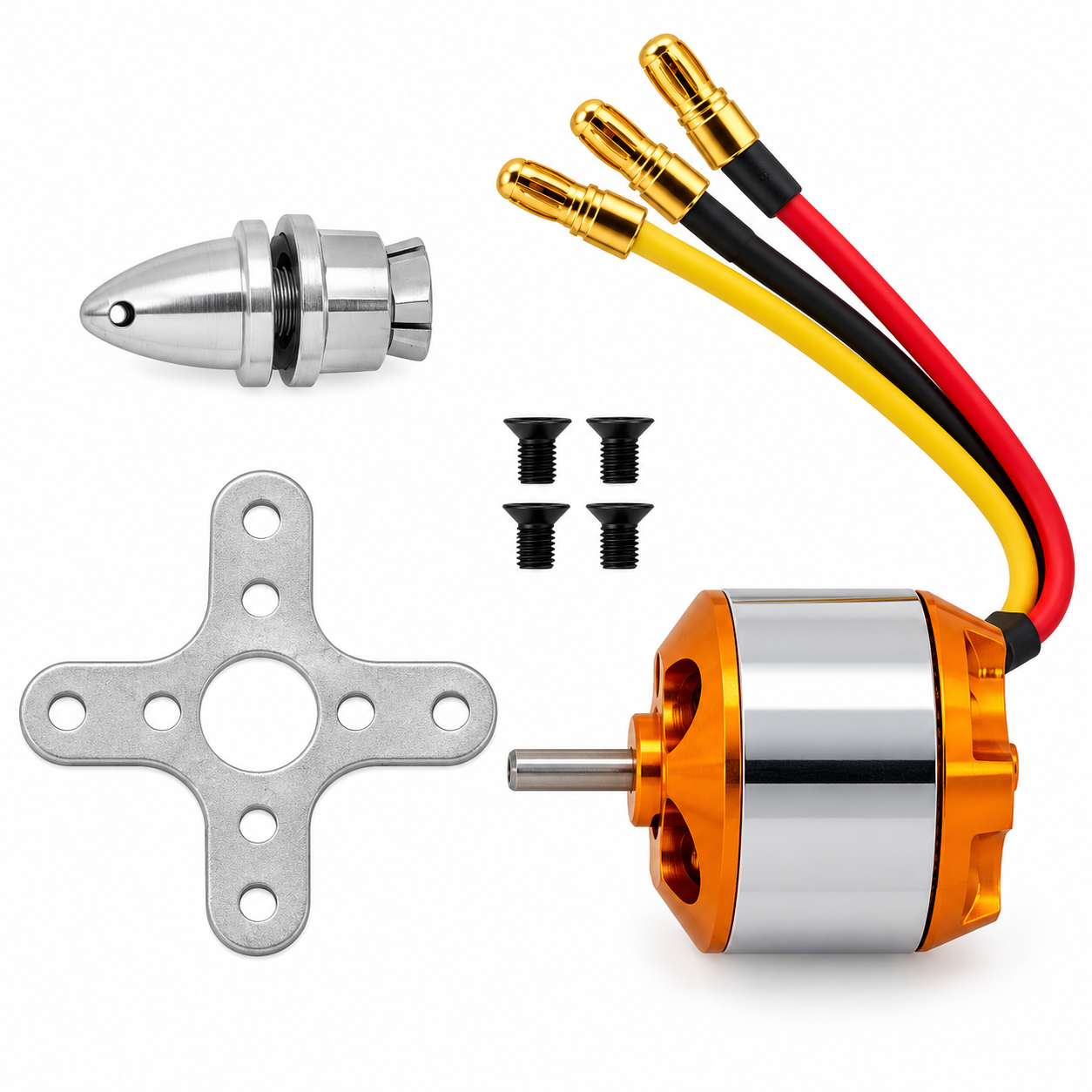

Package Includes

  • 1 × A2212 13T 1000KV BLDC Brushless Motor with Soldered Connectors
  • 1 × X-Type Motor Mounting Bracket
  • 1 × Propeller Adapter
  • 1 × Set of Mounting Screws
