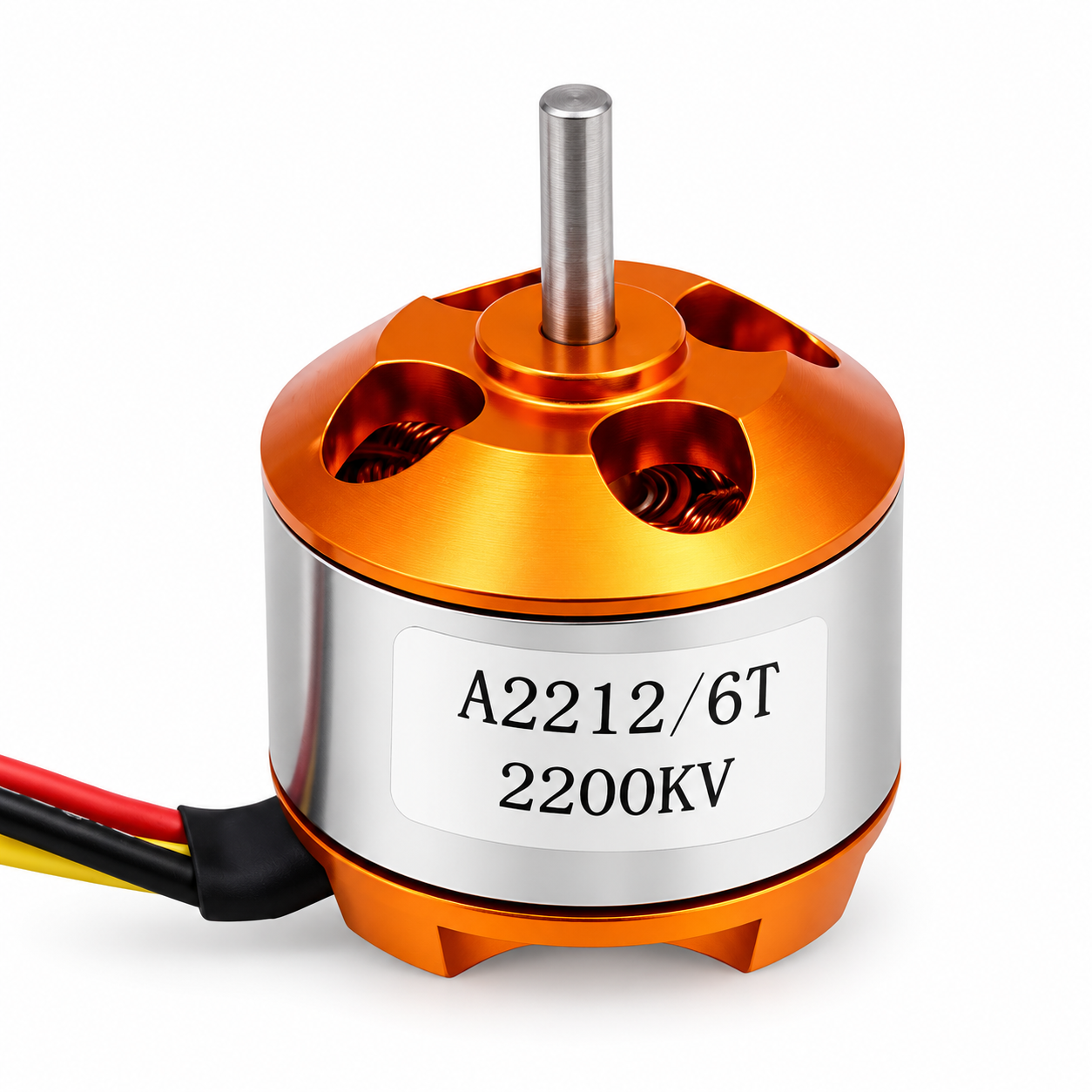

A2212 6T 2200KV BLDC Brushless Motor for Drone with Soldered Connectors

The A2212 6T 2200KV Brushless Motor is a high-speed, lightweight, and efficient BLDC outrunner motor designed for drones, quadcopters, multirotors, RC airplanes, and UAV projects. Featuring a 2200KV speed rating, this motor delivers fast rotational speed, smooth throttle response, and reliable performance for DIY drone and aeromodelling applications.

The motor features a durable metal housing, 3.17mm shaft, and pre-soldered connectors for convenient installation. It supports 2S–3S LiPo batteries and is recommended for use with a 30A Brushless ESC. Supplied with an X-type mounting bracket, propeller adapter, and mounting screws, it provides a practical solution for high-speed RC aircraft and multirotor projects.

Features

  • High-speed 2200KV brushless outrunner motor
  • Compact and lightweight metal construction
  • Compatible with 2S–3S LiPo batteries
  • Recommended 30A brushless ESC
  • 3.17mm motor shaft diameter
  • Pre-soldered connectors for easy ESC connection
  • Smooth throttle response and efficient operation
  • Supports clockwise and counterclockwise rotation
  • Includes X-type mounting bracket and propeller adapter
  • Suitable for drones, quadcopters, and RC airplanes

Working Principle

The A2212 2200KV BLDC Motor operates using a three-phase brushless motor system. An Electronic Speed Controller (ESC) supplies controlled electrical signals to the motor windings, generating a rotating magnetic field that drives the outer rotor.

The 2200KV rating indicates approximately 2200 RPM per volt under no-load conditions. With an 11.1V (3S LiPo) battery, the theoretical no-load speed is approximately 24,420 RPM. Actual operating speed depends on battery voltage, propeller loading, and ESC settings.

Motor Wire and ESC Connection

  • Motor Wire 1: ESC Phase Output A
  • Motor Wire 2: ESC Phase Output B
  • Motor Wire 3: ESC Phase Output C
  • ESC Positive (+): Battery Positive (+)
  • ESC Negative (-): Battery Negative (-)
  • ESC Signal: Flight Controller, Receiver, or ESC Tester
Note: To reverse motor rotation, interchange any two of the three motor phase wires connected to the ESC. Never reverse battery polarity.

Recommended ESC, Battery and Propeller

  • Recommended ESC: 30A Brushless ESC
  • Compatible Battery: 2S–3S LiPo
  • Battery Voltage: 7.4V–11.1V (Nominal)
  • Suggested Propeller: 6030 or 6045 for initial 3S testing
  • Propeller Adapter: Compatible with 3.17mm shaft
  • Suitable Frames: Quadcopter, Multirotor, and RC Airplane Frames
Note: Due to its high 2200KV rating, propeller size must be selected carefully. Verify operating current and motor temperature before using larger propellers. Oversized propellers may overload the motor.

Technical Details

  • Item Type: BLDC Brushless Drone Motor
  • Model: A2212 6T
  • Motor Type: Three-Phase Brushless Outrunner
  • Motor KV: 2200KV
  • Winding: 6T
  • Compatible LiPo Batteries: 2S–3S
  • Nominal Voltage: 7.4V–11.1V
  • No-Load Current: 0.5A at 10V
  • Maximum Efficiency Current: 4–10A
  • Maximum Current Capacity: 12A for 60 Seconds
  • Maximum Efficiency: Approximately 80%
  • Shaft Diameter: 3.17mm
  • Recommended ESC: 30A Brushless ESC
  • Motor Wires: 3 Phase Wires
  • Connector Type: Pre-Soldered Bullet Connectors
  • Rotation Direction: CW / CCW
  • Mounting Type: X-Type Motor Bracket
  • Housing Material: Metal

Applications

  • DIY drones and quadcopters
  • Multirotor and UAV projects
  • High-speed RC airplanes
  • Fixed-wing and model aircraft
  • Foam-board and sport airplanes
  • Drone assembly and aeromodelling
  • Brushless motor speed control experiments
  • Robotics and educational projects
  • RC airboat propulsion projects

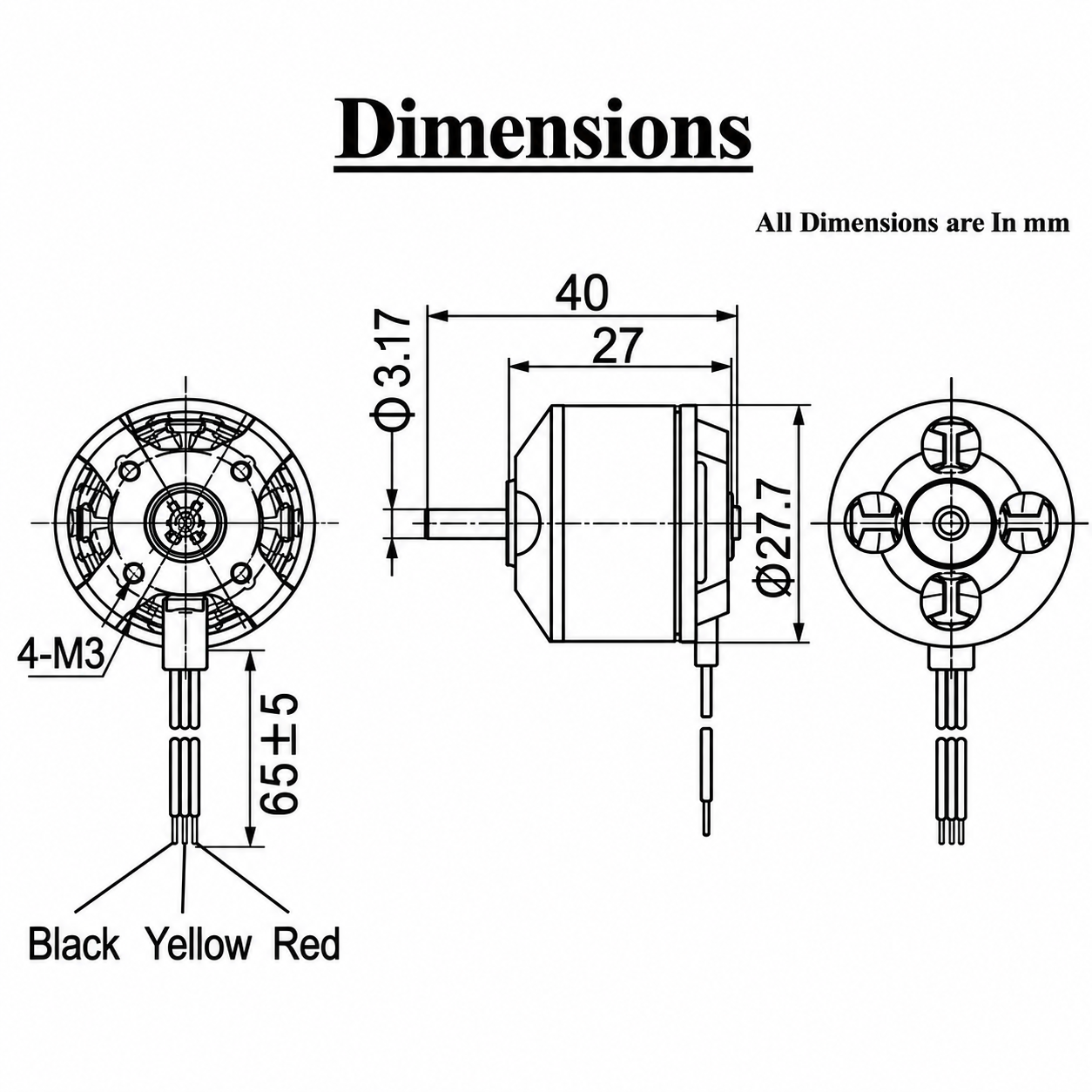

Physical Attributes

  • Compact cylindrical outrunner motor design
  • Durable metal motor housing
  • Motor Diameter: Approximately 26–28.5mm
  • Motor Body Length: Approximately 27–30mm
  • Overall Length Including Shaft: Approximately 43.5mm
  • Shaft Diameter: 3.17mm
  • Mounting Screws: M3 Type
  • Motor Wires: 3 Pre-Soldered Phase Leads
  • Mounting Bracket: X-Type
  • Weight: Approximately 50–60g (Varies by Manufacturer)

Installation and Usage Instructions

  • Secure the motor using the X-type mounting bracket.
  • Connect the three motor wires to a compatible brushless ESC.
  • Connect the ESC to a suitable 2S–3S LiPo battery.
  • Connect the ESC signal wire to the flight controller or receiver.
  • Configure the ESC according to its instructions.
  • Test the motor at low speed without a propeller.
  • Check the rotation direction and swap two phase wires if required.
  • Install a suitable propeller after successful testing.
  • Monitor motor current and temperature during operation.

Frequently Asked Questions (FAQs)

  • Which ESC is recommended? A 30A brushless ESC.
  • Which battery is compatible? 2S–3S LiPo batteries.
  • Which propeller is suitable? 6030 or 6045, subject to testing.
  • Can the motor rotate both ways? Yes, CW and CCW.
  • Can I connect it directly to a battery? No, an ESC is required.
  • Is a propeller included? No, sold separately.

Safety Precautions

  • Always use a compatible brushless ESC.
  • Do not connect the motor directly to a battery.
  • Remove the propeller during initial testing.
  • Do not exceed the rated current limits.
  • Ensure correct battery polarity and secure connections.
  • Use properly sized mounting screws.
  • Keep hands and loose objects away from rotating propellers.
  • Protect the motor from water and moisture.

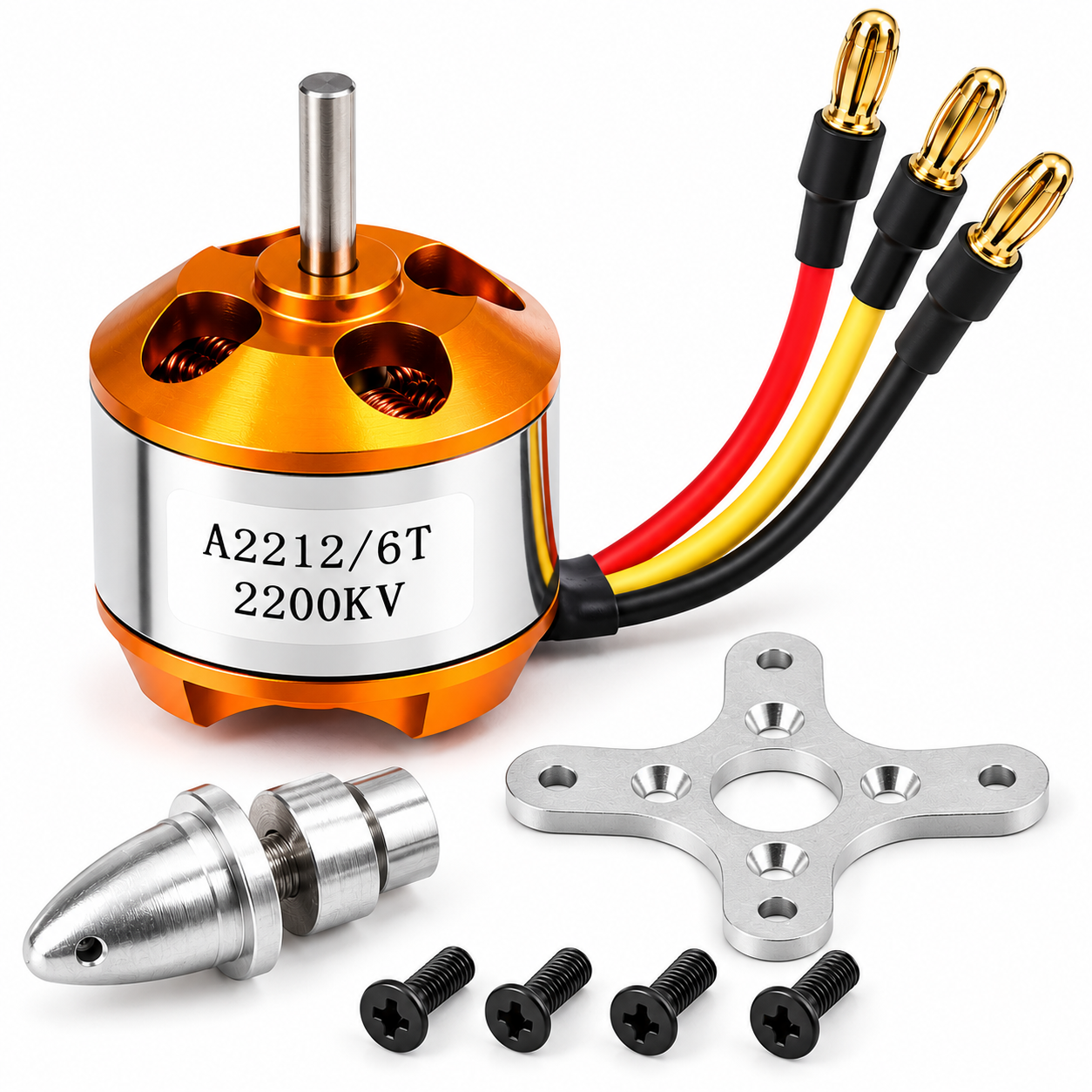

Package Includes

  • 1 × A2212 6T 2200KV BLDC Brushless Motor with Soldered Connectors
  • 1 × X-Type Motor Mounting Bracket
  • 1 × Propeller Adapter
  • 1 × Set of Mounting Screws
