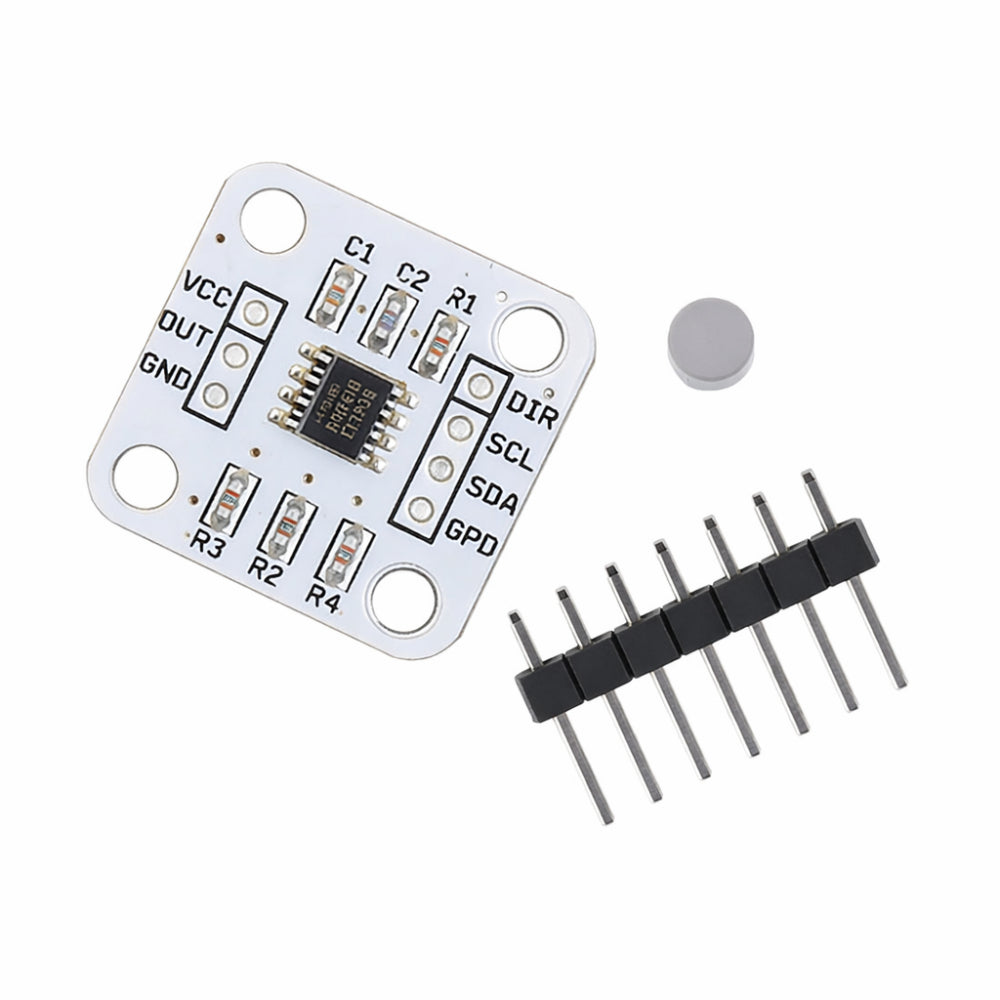

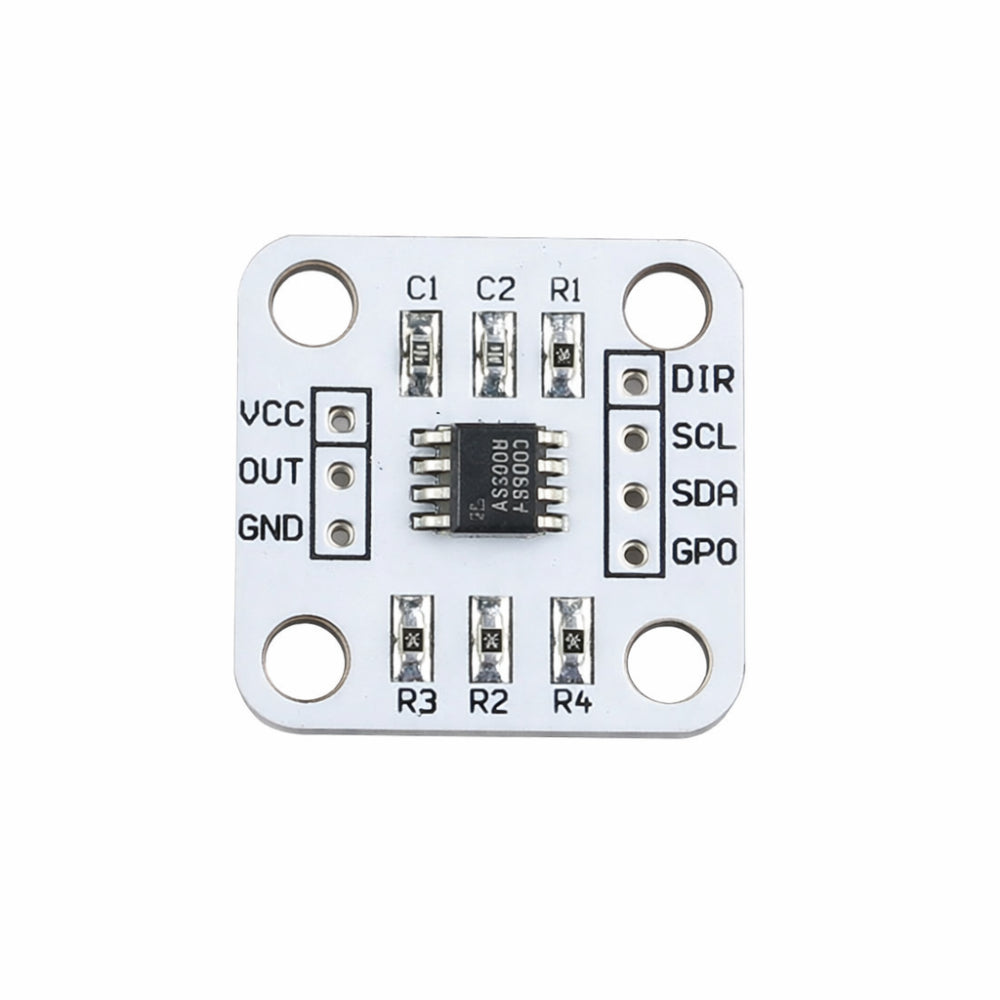

AS5600 Magnetic Encoder Angle Sensor Module

The AS5600 Magnetic Encoder is a high-precision, non-contact magnetic angle sensor designed to measure rotational position by detecting changes in a magnetic field. Based on the Hall effect principle, it converts magnetic field variations into accurate electrical signals, enabling precise angle measurement without any mechanical wear.

Featuring a 12-bit resolution (4096 positions per revolution) and multiple output modes, the AS5600 is ideal for applications such as robotics, motor control, CNC systems, and 3D printers, where reliable and accurate rotational feedback is essential.

Features

  • 12-bit DAC output resolution (4096 positions per revolution)
  • Non-contact magnetic angle measurement
  • Hall effect based magnetic sensing technology
  • Multiple output modes: I2C, PWM, and analog voltage
  • High precision and stable performance
  • No mechanical wear for long service life
  • Wide operating temperature range

Technical Details

  • Item Type: Magnetic Encoder Sensor
  • Model Name: AS5600
  • Resolution: 12-bit (4096 positions per revolution)
  • Operating Principle: Hall Effect
  • Power Supply: 3.3 V DC
  • Interface Options: I2C, PWM, Analog Voltage
  • Operating Temperature: -40 °C to +125 °C

Applications

  • Robotics and robotic joints
  • Motor position and speed control
  • 3D printers and CNC machines
  • Rotary encoders and knobs
  • Industrial automation systems
  • Precision angle measurement projects

Package Includes

  • 1 × AS5600 Magnetic Encoder Sensor Module
