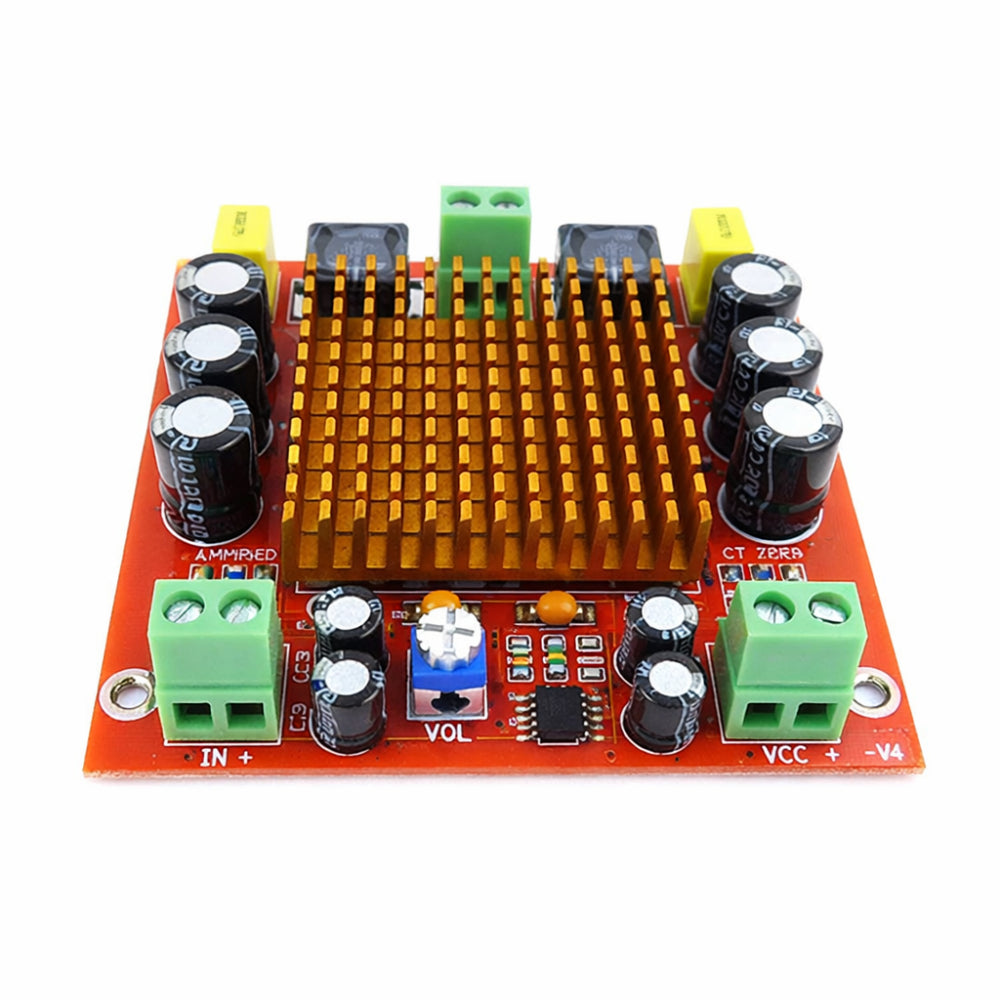

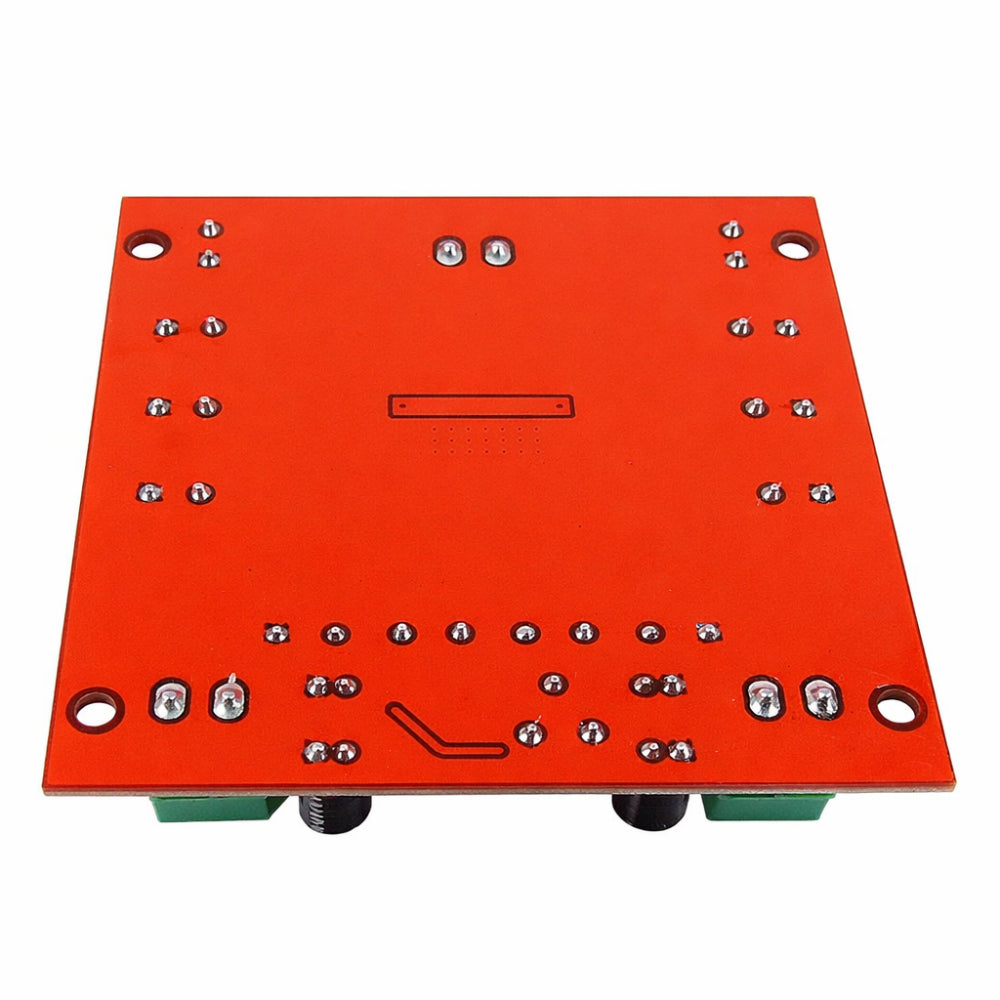

TPA3116D2 Digital Amplifier Board – Mono Channel 150W Class-D Audio Amplifier

The TPA3116D2 Digital Amplifier Board is a high-performance Class-D mono audio amplifier module designed for powerful, clear, and efficient sound amplification. It adopts an imported TPA3116D2 amplifier chip combined with a NE5532 low-noise preamplifier, delivering excellent audio quality with distortion below 0.1 percent even at high power output.

With a modulation frequency up to 1.2MHz and a built-in LC filter capacitor, this amplifier produces cleaner vocals and reduced noise. The board integrates multiple safety protections including overheat, reverse polarity, circuit, over-voltage, and under-voltage protection, ensuring stable and reliable operation in demanding audio applications.

Features

  • High-efficiency Class-D mono digital amplifier design
  • Imported TPA3116D2 power amplifier chip
  • NE5532 low-noise dual operational amplifier preamp
  • Low distortion less than 0.1 percent at high output
  • Modulation frequency up to 1.2 MHz
  • Built-in LC filter capacitor for clear vocals
  • Large capacity 35V 470 µF capacitor rated at 105 °C
  • Overheat, reverse polarity, and circuit protection
  • Over-voltage and under-voltage protection
  • Noise-free and interference-free audio output

Technical Specifications

  • Amplifier Chip: TPA3116D2
  • Preamplifier: NE5532
  • Supply Voltage: DC 12V to 26V
  • Maximum Output Power: 150 W
  • Output Power at DC 12V: 50 W
  • Output Power at DC 20V: 100 W
  • Output Power at DC 26V: 150 W
  • Output Load: 4 to 8 ohm
  • Frequency Response: 14 Hz to 100 kHz
  • Signal to Noise Ratio: 100 dB
  • Channel Configuration: Single channel (Mono)

Physical Attributes

  • Board Size: 77 × 73 × 16 mm
  • Net Weight: 63 g

Applications

  • Home theater audio systems
  • Active speaker systems
  • Car audio amplifier projects
  • DIY audio and speaker builds
  • High-power mono audio amplification

Package Includes

  • 1 x TPA3116D2 Digital Amplifier Board
