The module features a non-removable sound chip and clearly marked, easy-to-solder PCB pads for quick and reliable connections. It operates on a 3V–4.5V DC supply, making it ideal for use with two 1.5V batteries in applications such as DIY doorbells, toys, alerts, and sound-based projects. A built-in trigger/button allows one-time playback when shorted.
-32%
Dog Barking Sound Trigger Voice Module
Available:In Stock
- Product SKU: KG1311
₹ 40
₹ 59
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
Dog Barking Animal Music Chip Sound Trigger Voice Module for DIY

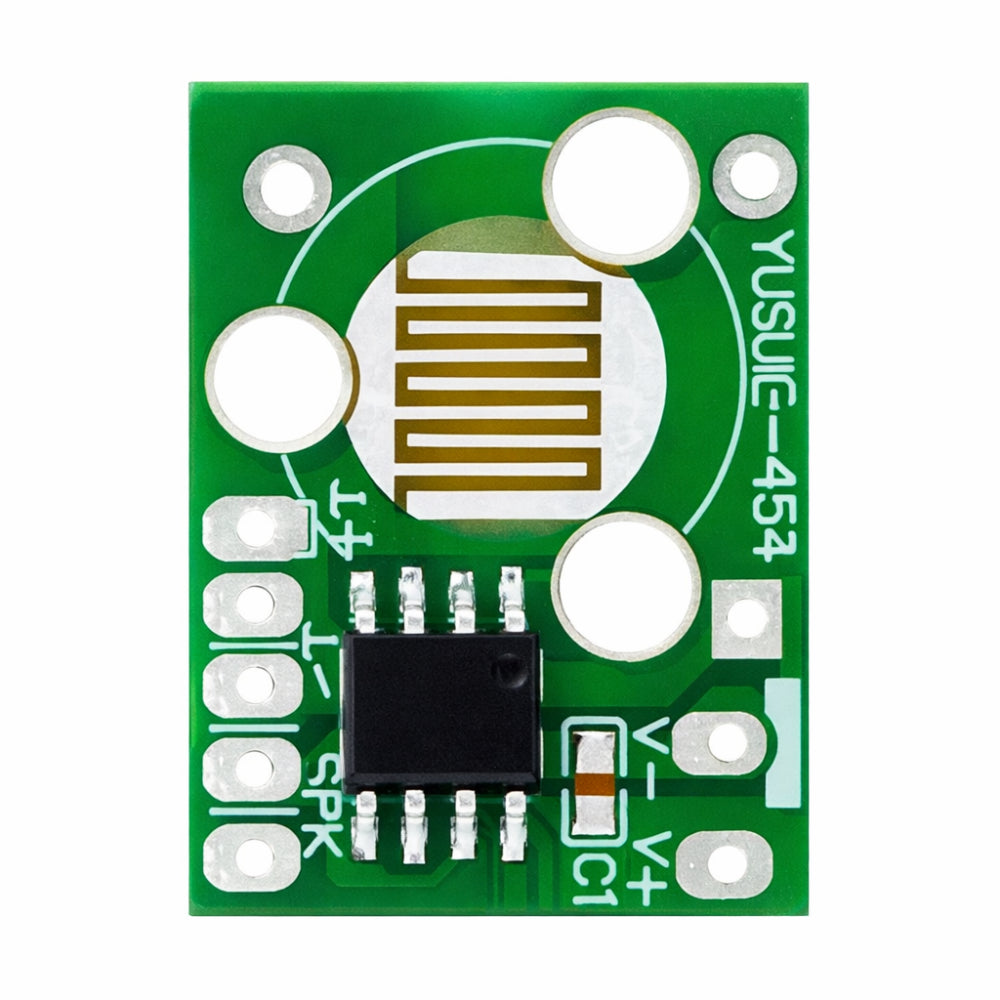

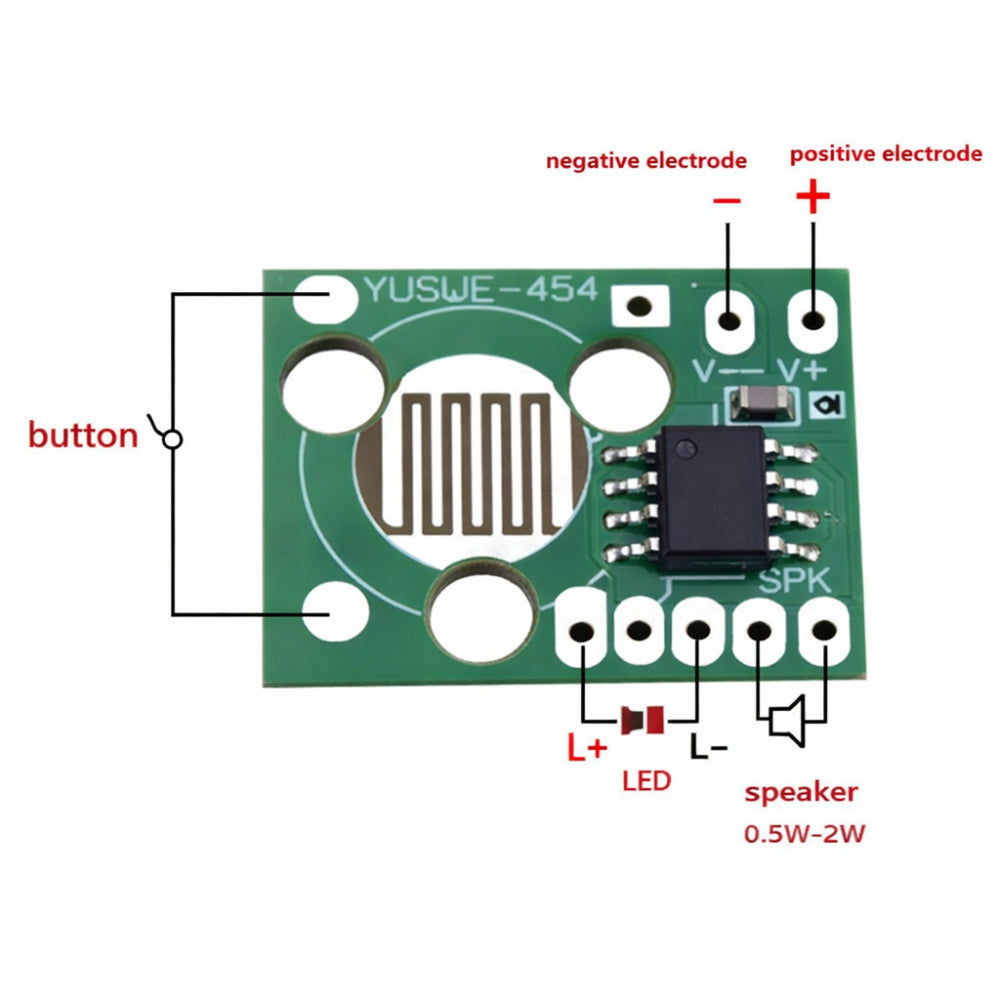

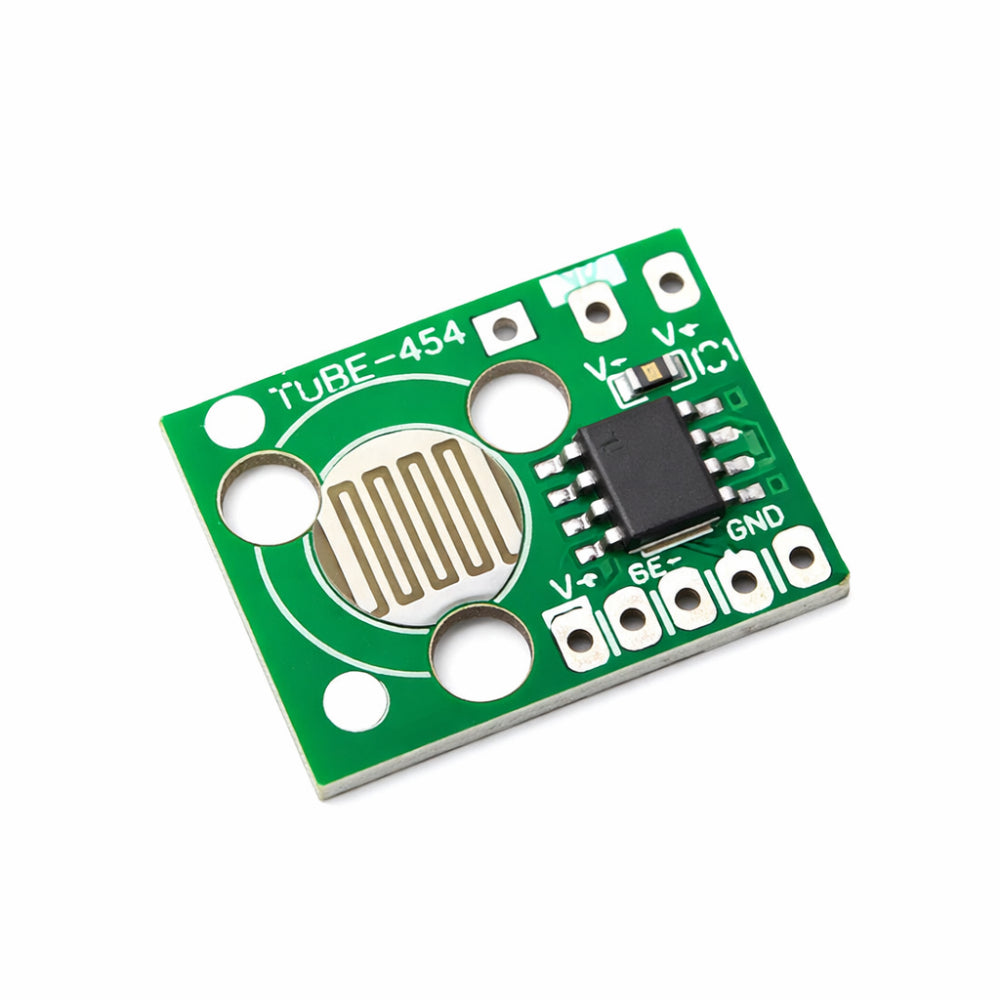

This Dog Barking Sound Trigger Voice Module is a compact and easy-to-use audio module designed to produce a realistic dog barking musical sound. It can be directly interfaced with a compatible speaker and powered by a simple DC supply, eliminating the need for any external amplifier.The module features a non-removable sound chip and clearly marked, easy-to-solder PCB pads for quick and reliable connections. It operates on a 3V–4.5V DC supply, making it ideal for use with two 1.5V batteries in applications such as DIY doorbells, toys, alerts, and sound-based projects. A built-in trigger/button allows one-time playback when shorted.
Features
- Produces realistic dog barking sound
- No external amplifier required
- Supports direct connection to speaker
- Compact PCB suitable for small DIY enclosures
- Easy-to-solder PCB pads for reliable connections
- Built-in trigger for one-time sound playback
- Good quality audio output
Technical Details
- Item Type: Sound Trigger Voice Module
- Operating Voltage: 3.0 – 4.5 V DC
- Speaker Support: 0.25W – 2W
- Speaker Impedance: 8 Ω
- Sound Chip: Non-removable (pre-programmed)
- Trigger Type: Short/Push trigger for playback
- Length: 22.2 mm
- Width: 16.2 mm
Applications
- DIY doorbell and alert systems
- Sound-based toys and models
- Educational electronics projects
- Animal sound simulation projects
- Interactive hobby and craft builds
Physical Attributes
- Compact and lightweight PCB design
- Dimensions: 22.2 × 16.2 mm
- Weight:1g
Package Includes
- 1 × Dog Barking Animal Music Chip Sound Trigger Voice Module for DIY
