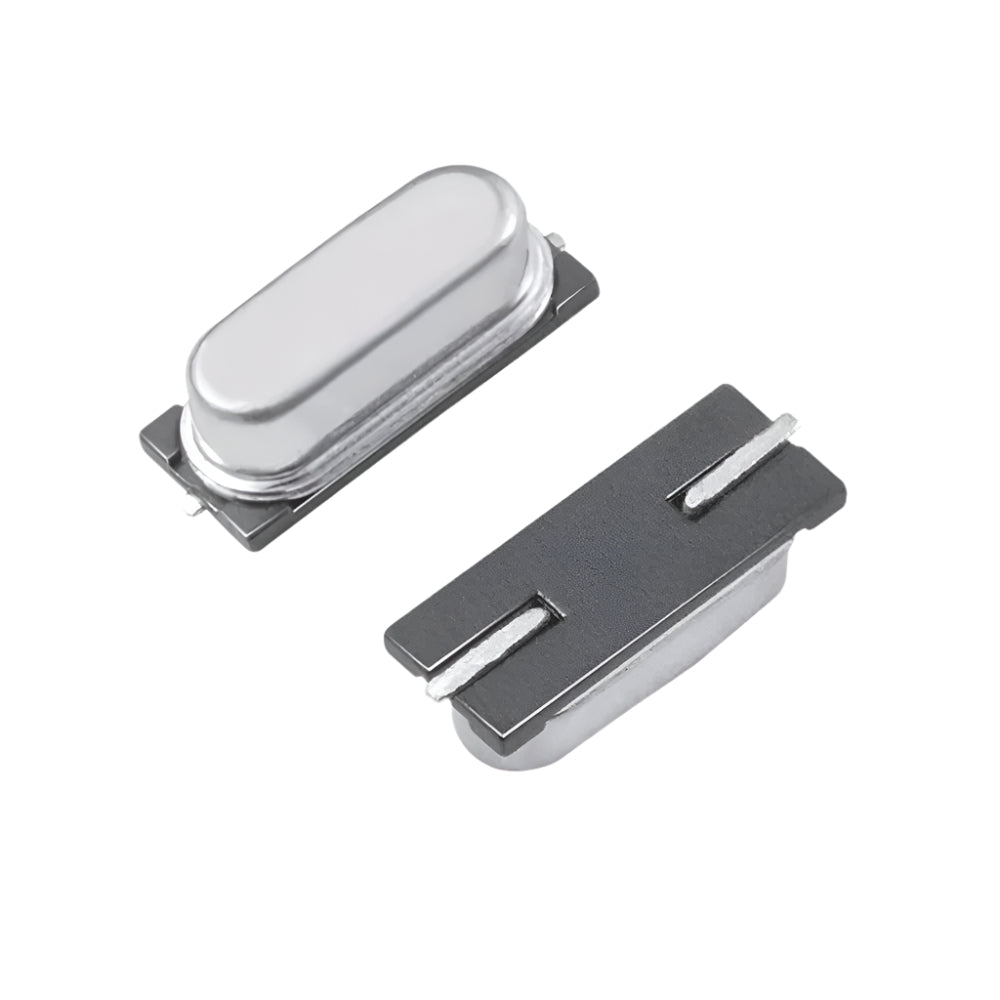

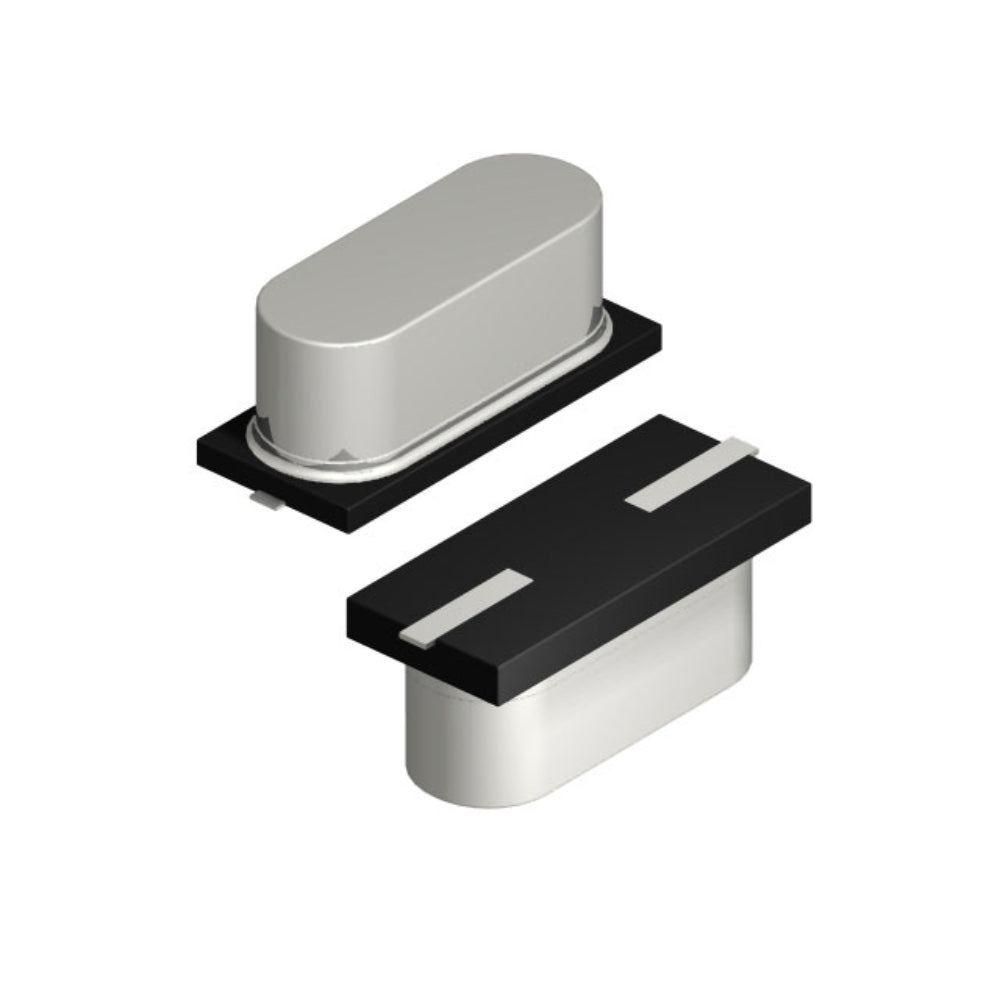

16 MHz SMD Passive Crystal Oscillator
![16 MHz SMD Passive Crystal Oscillator]()
![16 MHz SMD Passive Crystal Oscillator-1]()
![16 MHz SMD Passive Crystal Oscillator-2]()
![drawing]()
![16 MHz SMD Passive Crystal Oscillator]()
![16 MHz SMD Passive Crystal Oscillator-1]()
![16 MHz SMD Passive Crystal Oscillator-2]()
![drawing]()
This type of crystal oscillator is commonly used in a wide range of electronic systems such as microcontrollers, communication devices, clocks, and timers. With low power consumption and high shock resistance, the 16 MHz SMD Passive Crystal is well-suited for battery-powered and portable applications. It offers tight frequency tolerance and low aging characteristics, ensuring long-term reliability. Designers choose this component for its balance between performance, durability, and size, especially in time-sensitive digital circuits requiring accuracy and miniaturization.
-41%
16 MHz SMD Passive Crystal Oscillator
Available:Out of Stock
- Product SKU: CRYST029
₹ 7
₹ 12
Specification
Description
16 MHz SMD Passive Crystal Oscillator
A 16 MHz SMD Passive Crystal Oscillator is a compact and highly reliable frequency control component designed for use in surface-mount applications. Operating at a fixed frequency of 16 megahertz (MHz), this passive crystal oscillator relies on an external circuit to initiate and sustain oscillation, making it suitable for designs that require precise timing control without built-in drive circuitry. Constructed using piezoelectric quartz material, it ensures consistent performance and frequency stability over a wide temperature range. Its small SMD package allows for easy integration into compact PCBs, ideal for space-constrained designs.This type of crystal oscillator is commonly used in a wide range of electronic systems such as microcontrollers, communication devices, clocks, and timers. With low power consumption and high shock resistance, the 16 MHz SMD Passive Crystal is well-suited for battery-powered and portable applications. It offers tight frequency tolerance and low aging characteristics, ensuring long-term reliability. Designers choose this component for its balance between performance, durability, and size, especially in time-sensitive digital circuits requiring accuracy and miniaturization.
Technical Details
- Frequency Range: 16 MHz
- Tolerance: 25%
- Operating Temperature Range: -40°C to +85°C
- Storage Condition: -20°C to 70°C
- Load Capacitance: 12pF, 20pF, or specify
- Length: 11.4mm
- Width: 4.7mm
- Height: 3mm
Features:
- Stable frequency output at 16 MHz
- Wide operating temperature range (-40°C to +85°C)
- Compact dimensions (11.4mm × 4.7mm × 3mm)
- Load capacitance options: 12pF, 20pF, or customizable
- High reliability and durability
- Suitable for through-hole PCB mounting
Applications
- Microcontroller clock generation
- Embedded systems and timing circuits
- Consumer electronics
- Communication equipment
- Measurement and test instruments
- Industrial control systems
Physical Attributes
- Length: 11.4mm
- Width: 4.7mm
- Height: 3mm
- Weight : 1g
Package Includes
- 1 x 16 MHz SMD Passive Crystal Oscillator
