Since ECG signals are often affected by noise, the AD8232 single-lead ECG sensor includes an integrated instrumentation amplifier and filter system that helps obtain clean readings from PR and QT intervals. It is specifically built to extract, amplify, and filter small bio-potential signals even in the presence of motion or external interference.
-20%
AD8232 ECG Monitor Sensor Module With Cable And Electrodes
Available:In Stock
- Product SKU: KG1227
₹ 1,199
₹ 1,499
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
AD8232 ECG Heart Rate Monitor Kit – Description
The AD8232 Heart Rate Monitor Kit is a cost-effective and reliable ECG module designed to measure the electrical activity of the heart. It captures and outputs ECG signals as analog readings, making it an excellent choice for Arduino-based biomedical and wearable electronics projects.Since ECG signals are often affected by noise, the AD8232 single-lead ECG sensor includes an integrated instrumentation amplifier and filter system that helps obtain clean readings from PR and QT intervals. It is specifically built to extract, amplify, and filter small bio-potential signals even in the presence of motion or external interference.
How It Works

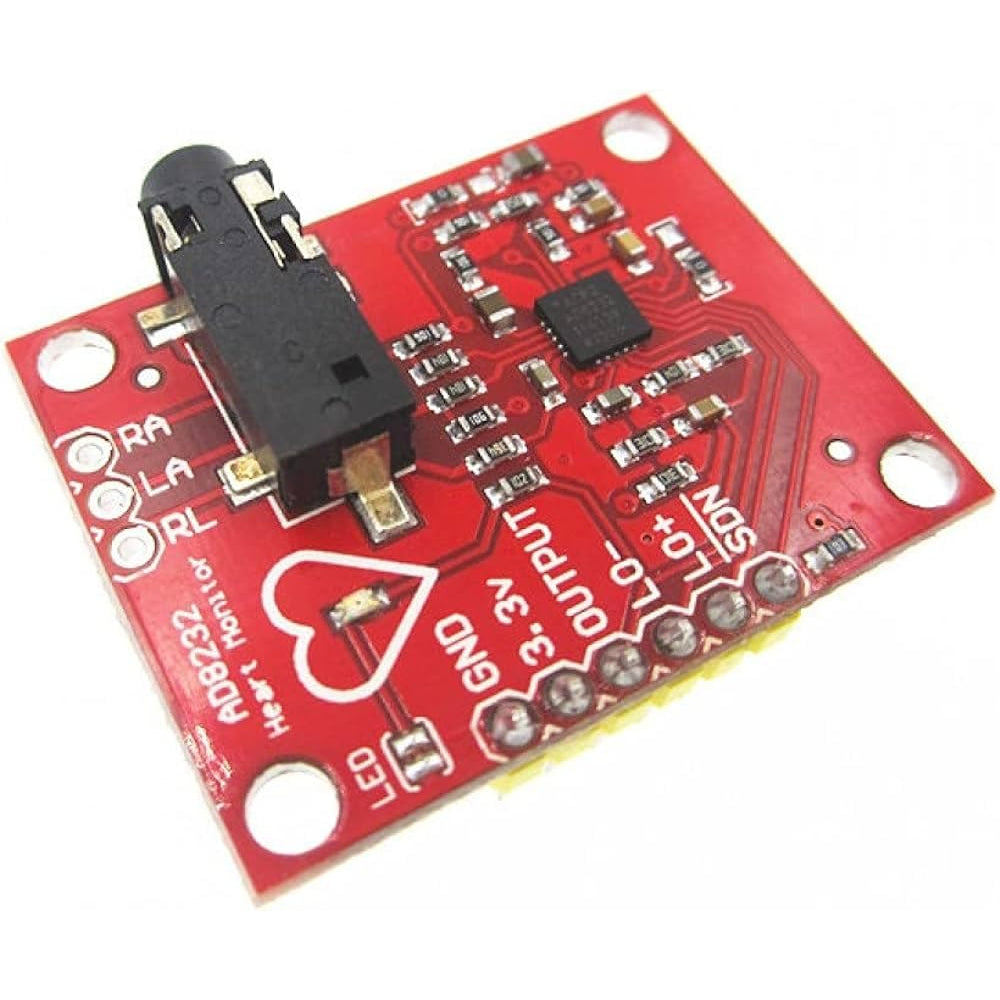

The module breaks out nine important connections, allowing flexible wiring with Arduino or other microcontroller boards. Essential operating pins include SDN, LO+, LO-, OUTPUT, 3.3V, and GND.
Additionally, RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins enable the use of custom electrodes. The onboard LED blinks in sync with the detected heartbeat, providing a quick visual indicator of activity.
Additionally, RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins enable the use of custom electrodes. The onboard LED blinks in sync with the detected heartbeat, providing a quick visual indicator of activity.
Steps to Use
- Go to the “Attachments” section on the product page and download the ZIP file.
- Unzip it and copy the folder to your Arduino “Libraries” folder.
- Open the Heart_Rate_Display_Arduino example in Arduino IDE.
- Compile and upload the code to your board.
- Open the Serial Plotter to view real-time ECG waveforms.
Applications
- Fitness & exercise heart rate monitoring
- Portable ECG systems
- Remote health tracking
- Biological signal acquisition
- Gaming and wearable sensor interfaces
Features
- Extracts, amplifies, and filters weak ECG bio-potential signals.
- Cost-effective single-lead heart rate monitoring solution.
- Integrated analog front-end (AD8232) for ECG and biopotential applications.
- Provides a clean signal output even in noisy environments.
- Leads-off detection and shutdown pin included.
- Analog output for microcontrollers.
- Onboard LED heartbeat indicator.
- 3.5 mm jack for electrode pad connection.
Specifications
- Operating Temperature: -40°C to 90°C
- Length: 36 mm
- Width: 30 mm
- Height: 18 mm
- Weight: 30 g
- Cable Length: 40cm

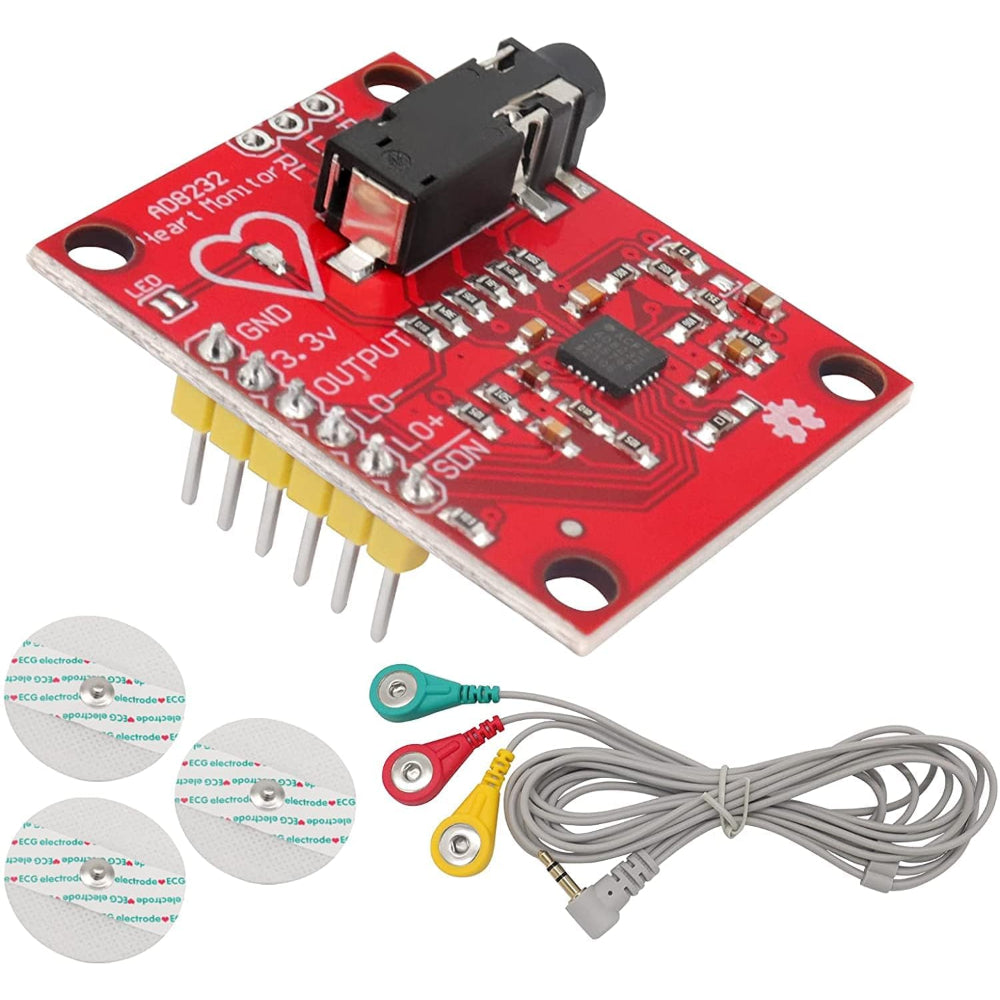

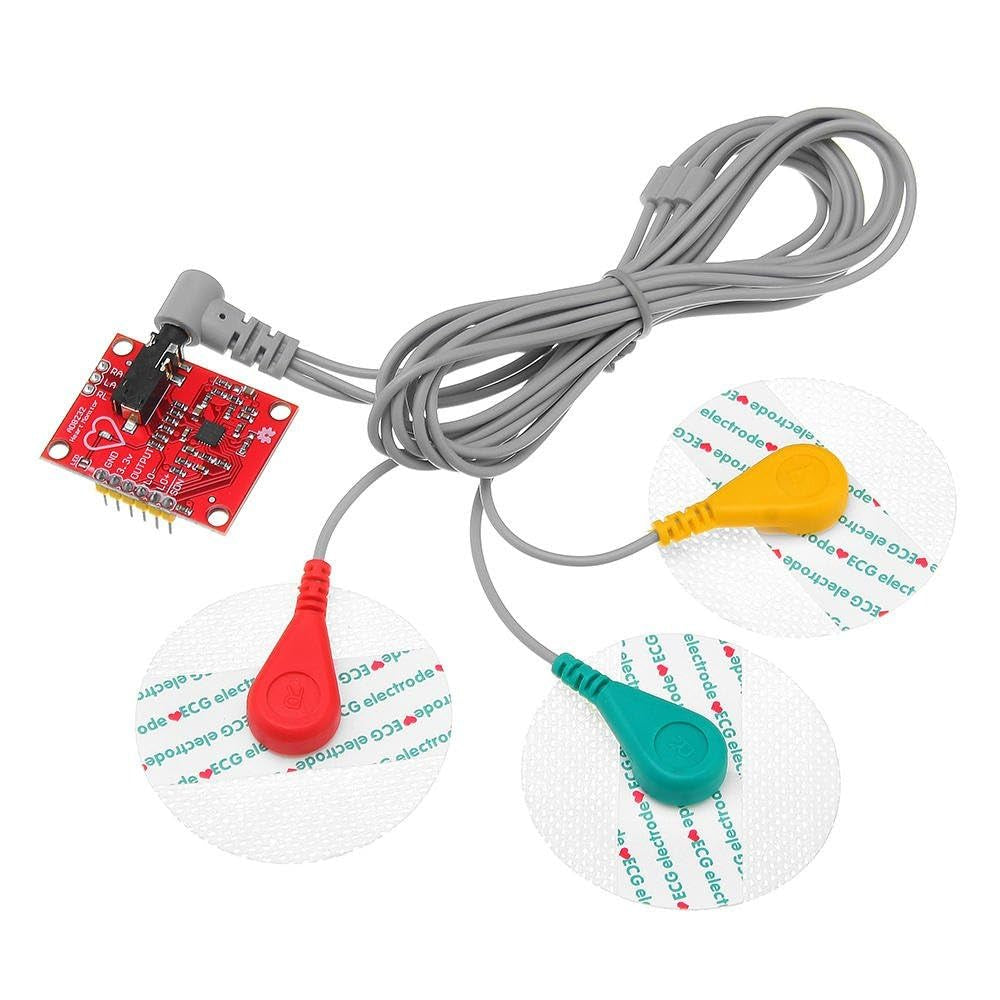

Package Includes
- 1 × AD8232 ECG Monitoring Sensor Module
- 1 × Sensor Cable
- 3 × Electrode Pads
