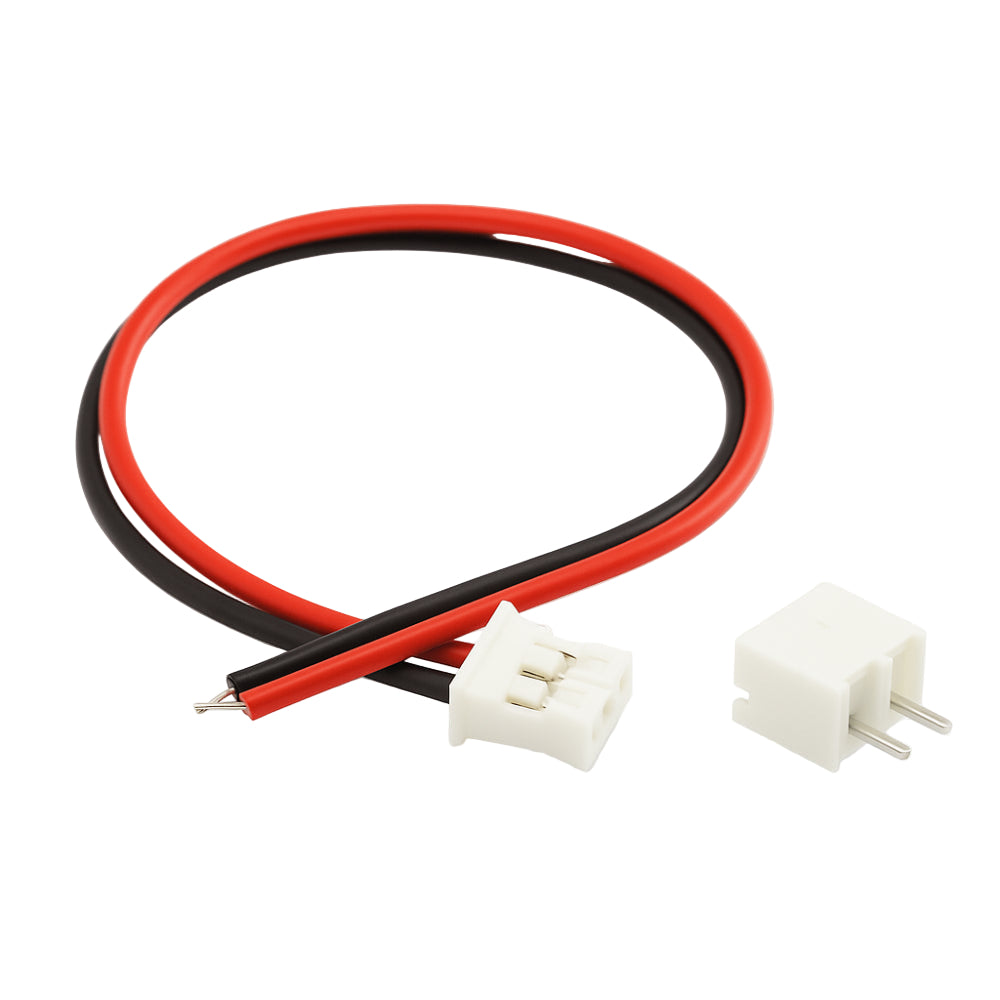

2-Pin Locking Connector 2.54 mm Pitch – Male & Female Pair (300 mm)

This 2-Pin Locking Connector Set features a 2.54 mm pitch male and female connector pair with 300 mm pre-crimped wires. It is perfect for DC power connections, battery packs, LED wiring, and DIY electronics where a secure and reliable plug connection is required.

The locking mechanism ensures a firm fit, preventing accidental disconnection, and the pre-terminated wires make it easy to use without soldering.

Features

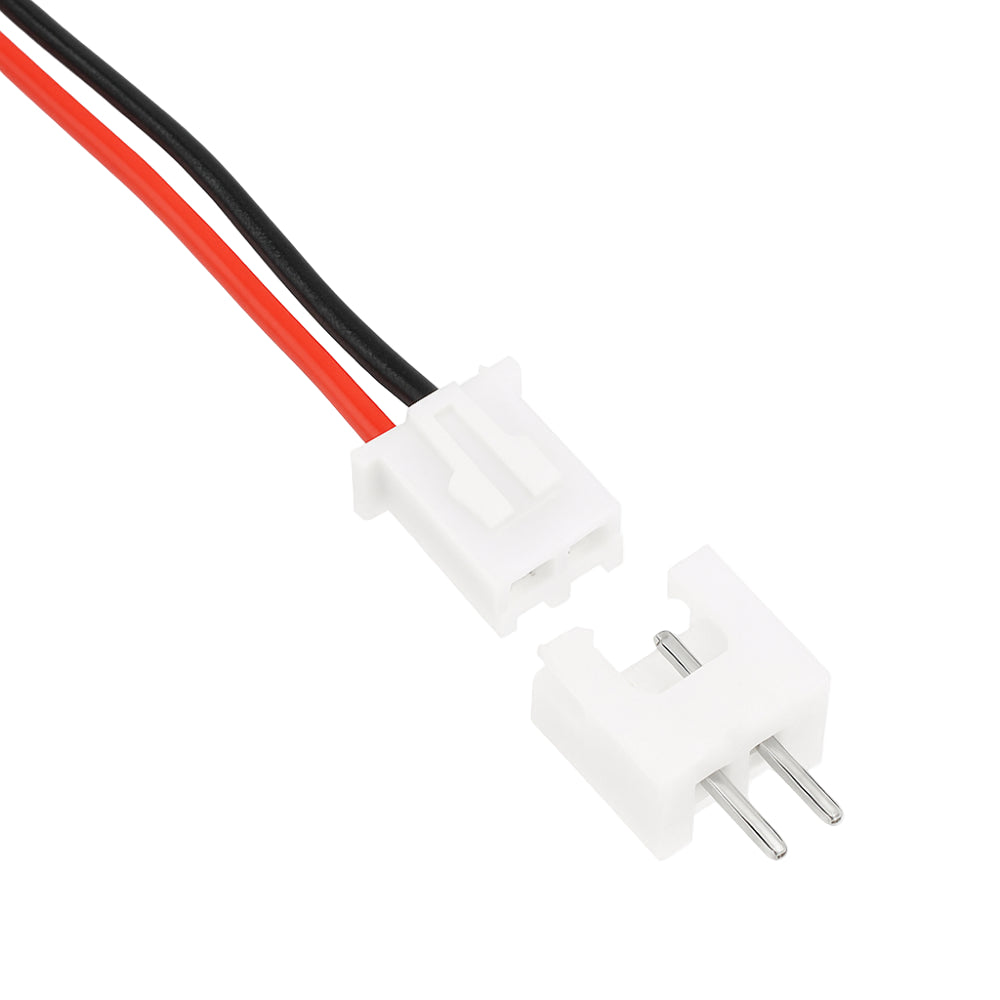

  • 2-Pin male and female connector with locking latch
  • Standard 2.54 mm pitch – compatible with many PCB headers
  • Comes with 300 mm pre-soldered wires (red & black)
  • Reliable connection for low-voltage DC power and signal lines
  • Easy plug-and-play design, no soldering needed

Technical Details

  • Connector Type: 2-Pin Locking Housing (Straight)
  • Pitch: 2.54 mm
  • Wire Length: 300 mm
  • Wire Gauge: ~24 AWG
  • Rated Current: up to 2 A (typical)
  • Mounting Type: Cable-to-board / Cable-to-cable

Physical Attributes

  • Connector Housing: Nylon, white
  • Wire Colors: Red (+), Black (−)
  • Overall Assembly Length: 320 mm
  • Weight: 3 g

Applications

  • Battery pack connections
  • LED strip and light connections
  • Small DC motor wiring
  • DIY electronics and robotics projects
  • PCB-to-wire power and signal interface

Package Includes

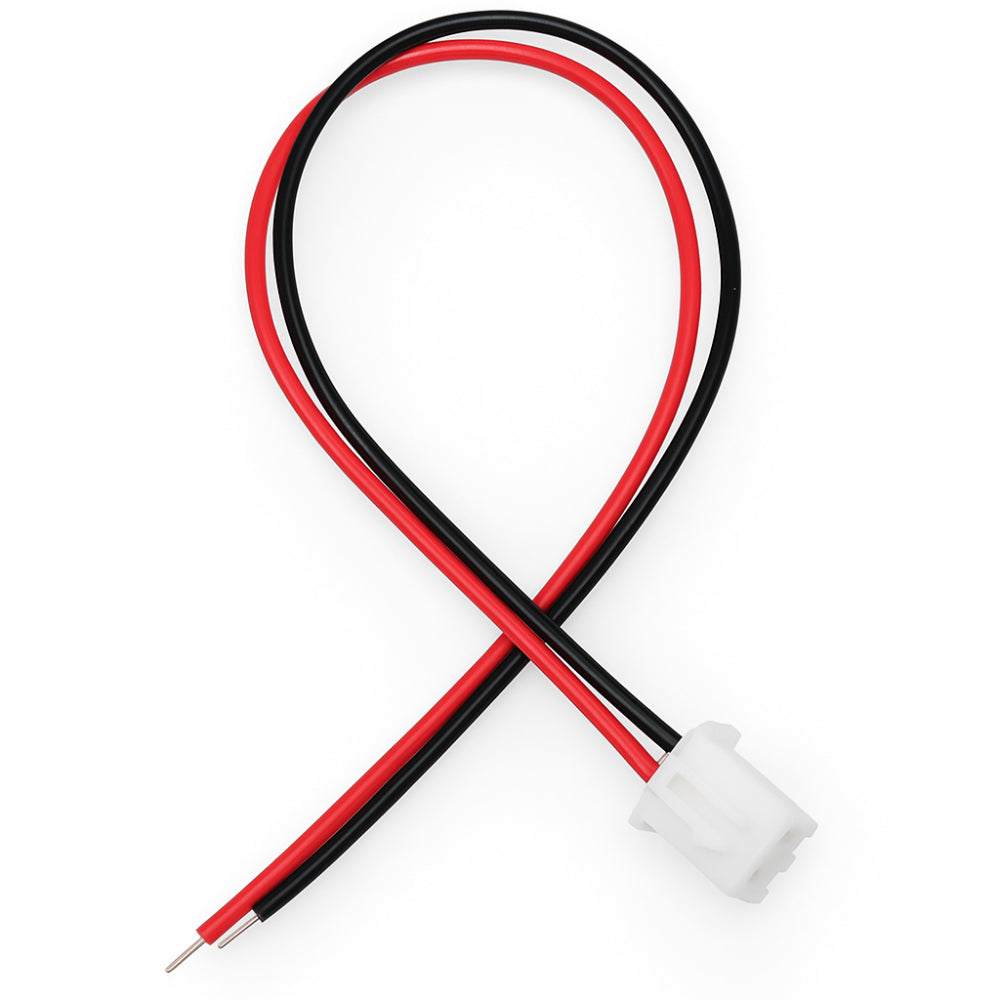

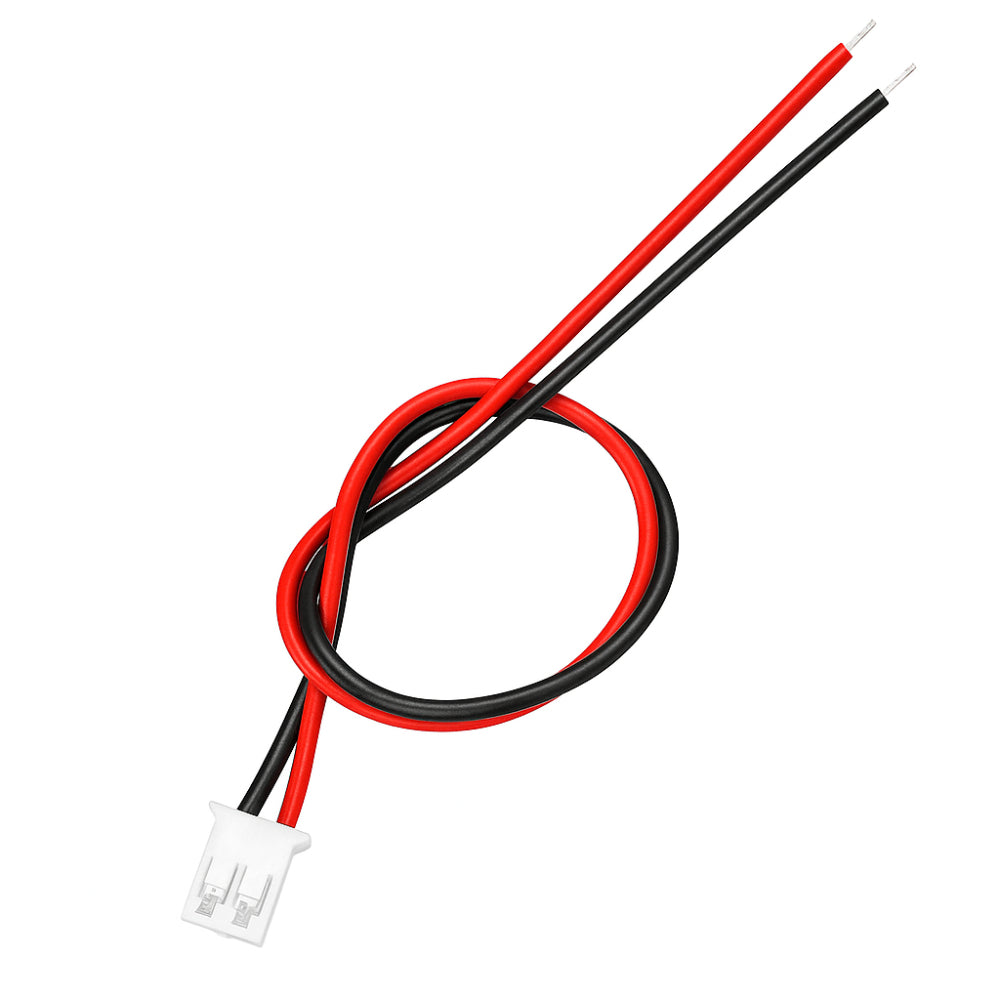

  • 1 × 2-Pin Female Connector with 300 mm Wire
  • 1 × 2-Pin Straight Male Base (Through-Hole)
