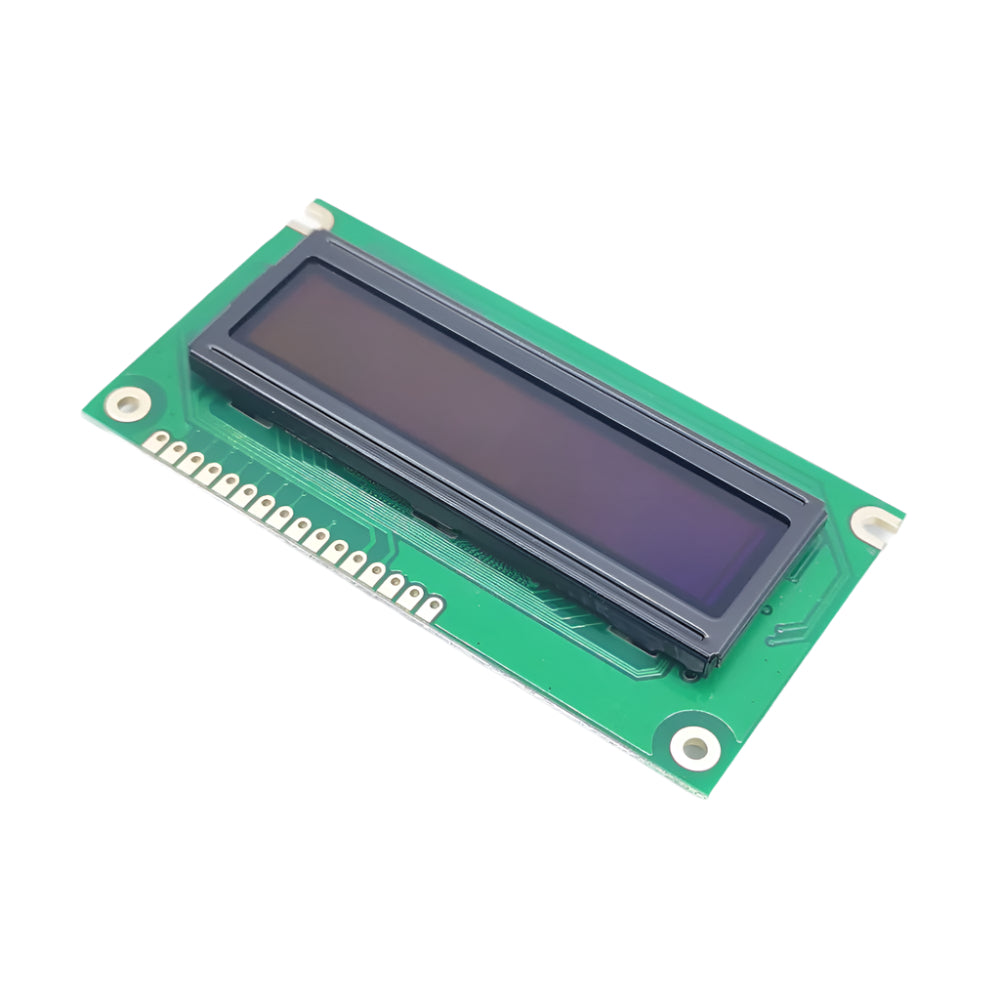

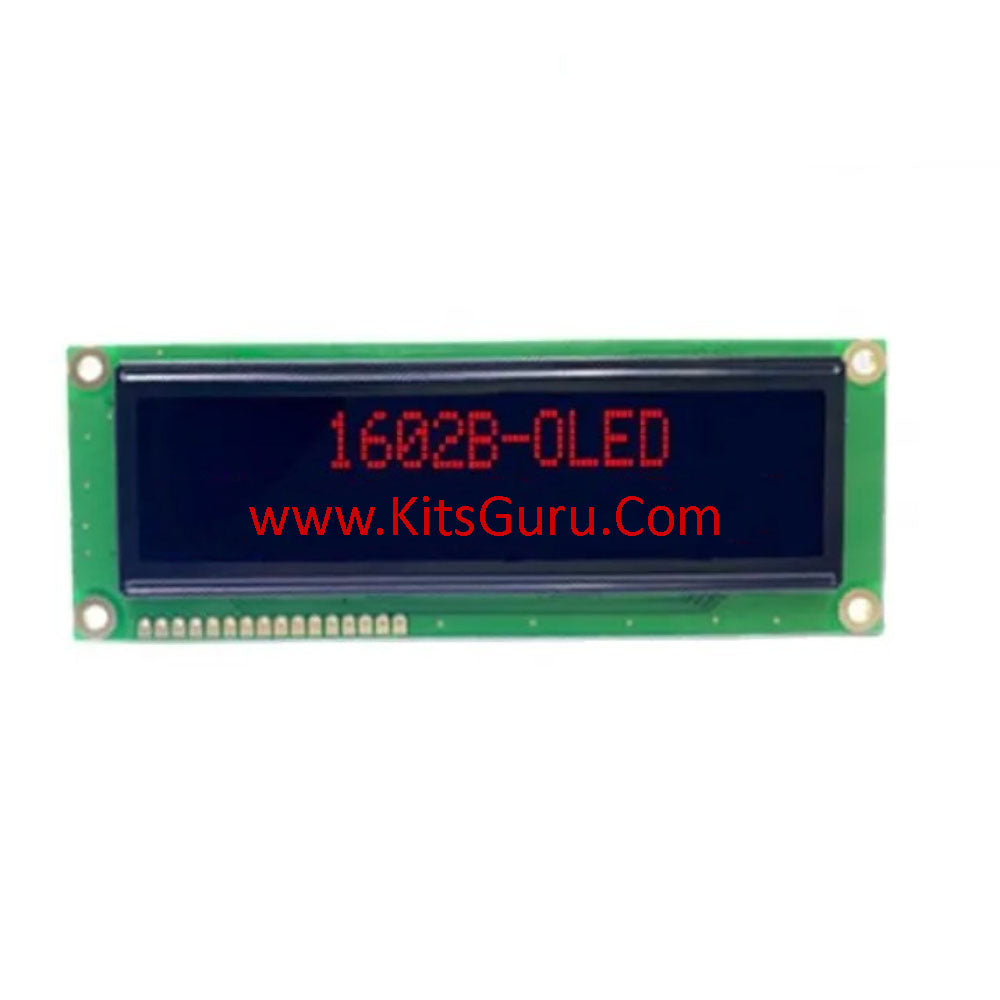

16x2 1602 Character OLED Display Red Text and Black Background Color
![OLED character 16x2 Red 8-bit parallel interface 6800 3.3V_1]()
![OLED character 16x2 Red 8-bit parallel interface 6800 3.3V_1]()
![16x2 1602 Character OLED Display Red Text and Black Background Color]()
![OLED character 16x2 Red 8-bit parallel interface 6800 3.3V_1]()
![OLED character 16x2 Red 8-bit parallel interface 6800 3.3V_1]()
![16x2 1602 Character OLED Display Red Text and Black Background Color]()
Designed as a standard character display, this module supports both Parallel (6800) and SPI interfaces for flexible integration. It is well-suited for applications in industrial control panels, consumer electronics, and embedded devices. With a standard inspection grade and no touch panel, it delivers stable performance with minimal complexity. The display's compact design and versatile interface options make it a practical choice for modern display solutions.
-20%
16x2 1602 Character OLED Display Red Text and Black Background Color
Available:Out of Stock
- Product SKU: KLCD067
₹ 3,999
₹ 4,999
Specification
Description
16x2 1602 Character OLED Display Red Text and Black Background Color
The 16x2 Character OLED Display module offers high visibility and reliability with its red emitting text on a black background. Built using COB (Chip-On-Board) technology, this module features a 16 characters x 2 lines dot matrix format. It supports a passive matrix display mode and operates efficiently at a 3.0V to 3.3V driver voltage, making it ideal for low-power embedded systems. The display also includes a polarizer to enhance contrast and readability in various lighting conditions.Designed as a standard character display, this module supports both Parallel (6800) and SPI interfaces for flexible integration. It is well-suited for applications in industrial control panels, consumer electronics, and embedded devices. With a standard inspection grade and no touch panel, it delivers stable performance with minimal complexity. The display's compact design and versatile interface options make it a practical choice for modern display solutions.
Module Classification Information
- Module Type: Oled
- Display Type: COB Character
- Dot Matrix：Character 16 words, 02 Lines
- Emitting Color: Red
- With Polarizer
- Display Mode: Passive Matrix
- Driver Voltage: ：3.0~3.3V
- Without touch panel
- Product type: Standard
- Inspection Grade : Standard
General Specification
- Number of Characters: 16 characters x 2 Lines
- Module Dimension: 122.0 x 44.0 x 10.0 (MAX) mm
- View Area: 98.0 x 21.0 mm
- Active Area: 91.14 x 18.98 mm
- Dot Size: 0.90 x 1.06 mm
- Dot Pitch: 0.96 x 1.12 mm
- Character Size: 4.74 x 8.9 mm
- Character Pitch: 5.76 x 10.08 mm
- Panel Type: OLED, Red
- Duty: 1/16
- Interface: 6800
- Size: 3.67 inch
Features
- 16x2 Character Dot Matrix Display
- COB (Chip-On-Board) Structure
- Red Emitting Text on Black Background
- Passive Matrix Display Mode
- Supports Both Parallel (6800) and SPI Interfaces
- Operating Voltage: 3.0V ~ 3.3V
- With Polarizer for High Contrast
- Standard Product Type and Inspection Grade
- No Touch Panel Included
- Ideal for Industrial, Consumer, and Embedded Applications
Applications:
- Industrial control panels
- Embedded systems and development boards
- Consumer electronic devices
- Medical equipment displays
- Home automation interfaces
- Educational training kits and projects
- Measurement and instrumentation displays
- Smart appliances and control units
Contour Drawing & Block Diagram
Interface Pin Function
Absolute Maximum Ratings
Electrical Characteristics
Package Includes
- 1 x 16x2 1602 Character OLED Display Red Text and Black Background Color
