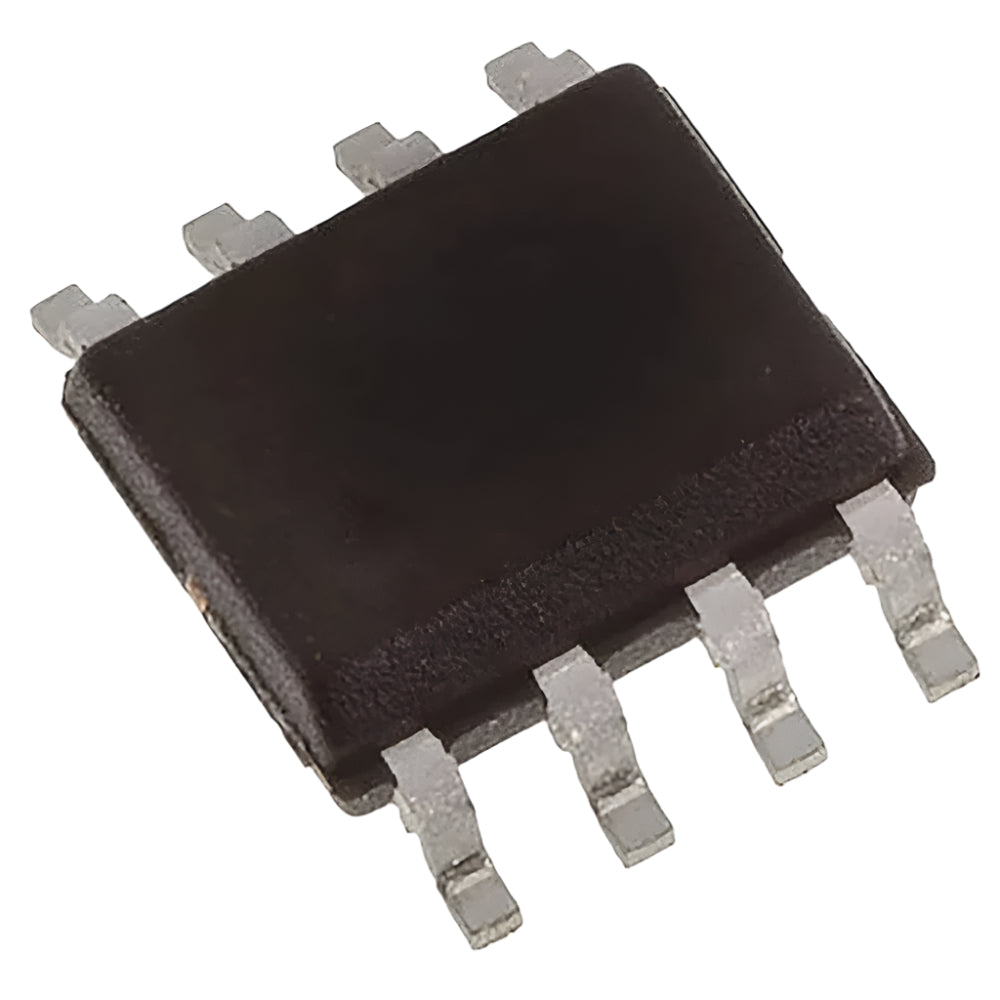

LM393DR2G IC-1

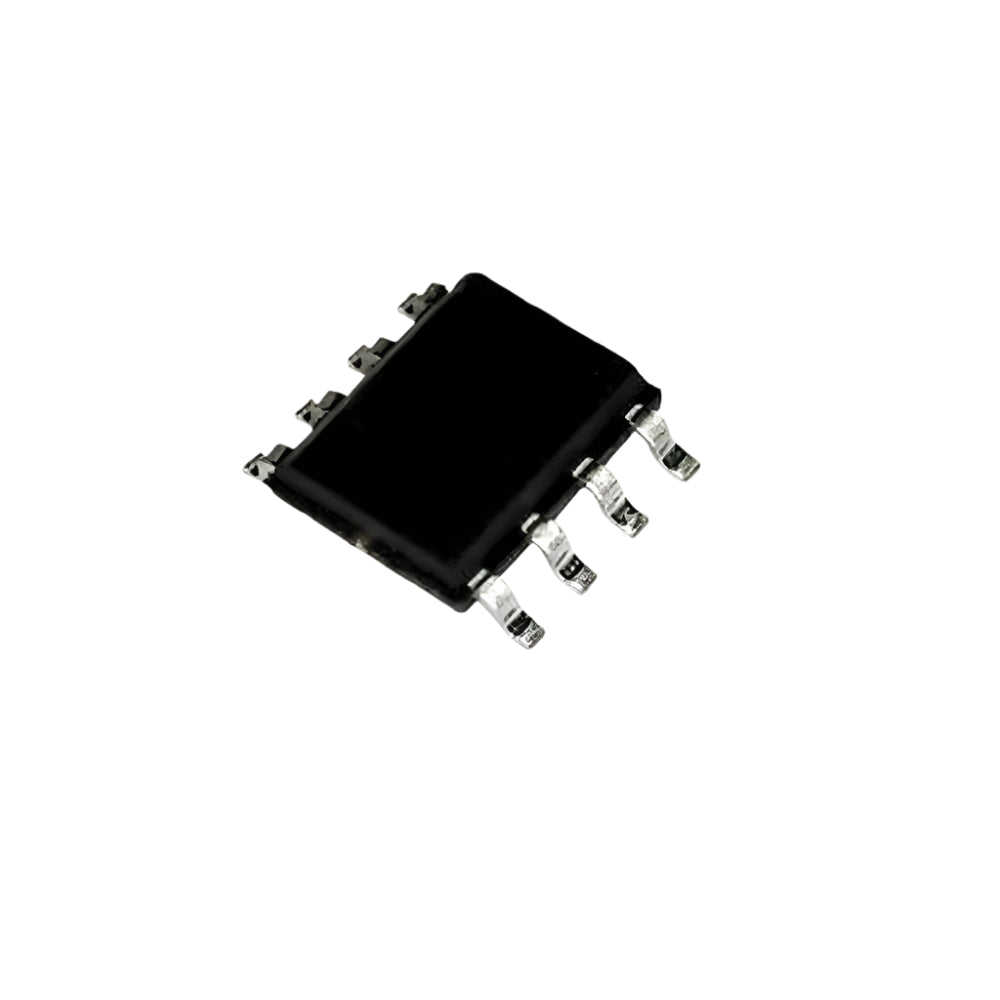

LM393DR2G IC -2

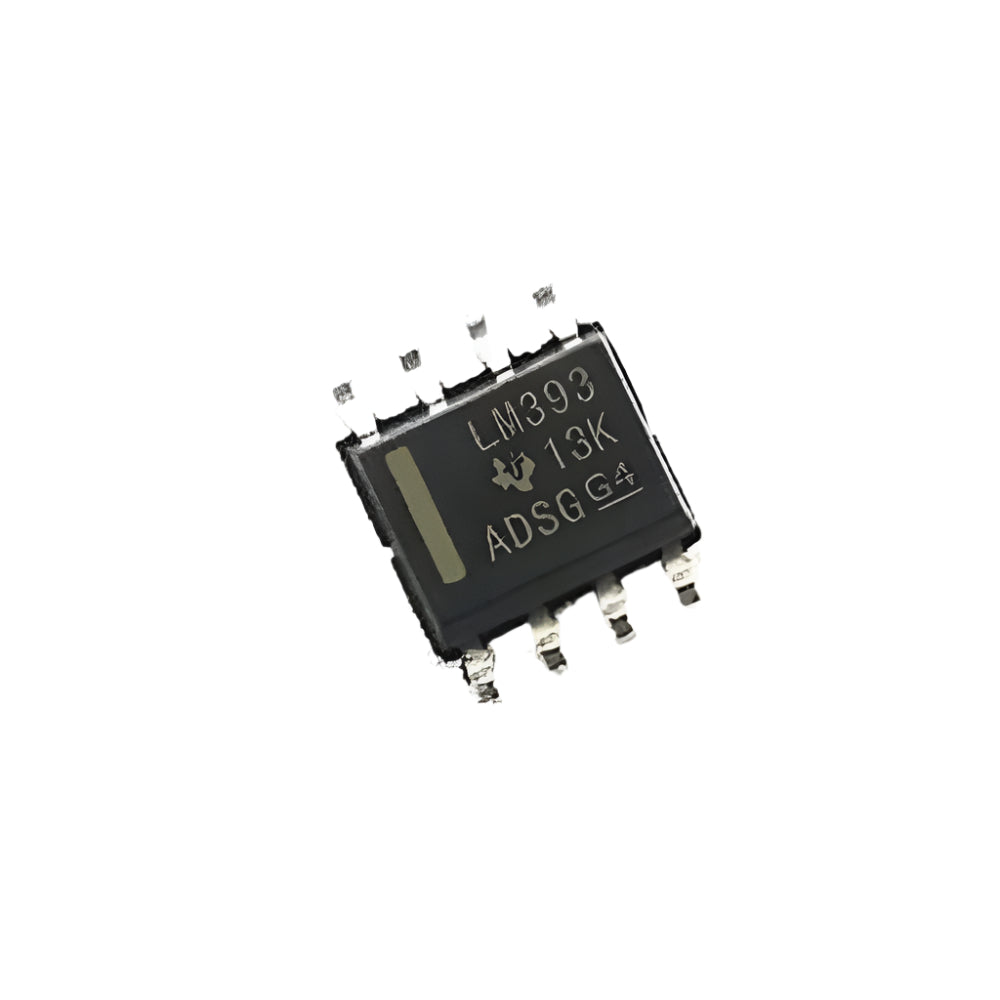

LM393DR2G IC -3
LM393DR2G IC-1
LM393DR2G IC -2
LM393DR2G IC -3

LM393DR2G-XBLW-1mV 25nA Dual channel SOP-8 Comparators

Available:In Stock
  • Product SKU: INTEG173
Wishlist
₹ 18 ₹ 39
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Dual channel SOP-8 comparator
  • 1mV offset voltage
  • 25nA low bias current
  • 2V–36V supply range
  • Low 0.4mA supply current
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36H-161A

Secure

Specification

Description

LM393DR2G-XBLW-1mV 25nA Dual channel SOP-8 Comparators

Dual channel voltage comparator with low input offset voltage of 1mV. Ultra-low input bias current of 25nA for high precision. Compact SOP-8 surface-mount package for space-saving designs. Wide supply voltage range suitable for various applications. Ideal for battery-powered and low-power electronic circuits. Fast response time and stable operation in harsh environments. Used in voltage level detection, zero crossing detectors, and signal conditioning.

Note:
Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

  • Package: SOP-8
  • Input Hysteresis Voltage (Vhys): –
  • Output Type: –
  • Rail-to-Rail: –
  • Common Mode Rejection Ratio (CMRR): –
  • Input Offset Voltage (Vos): 1mV
  • Input Bias Current (Ib): 25nA
  • Supply Current: 0.4mA
  • Supply Voltage: 2V~36V
  • Output Mode: –
  • Number of Elements: Dual channel
  • Propagation Delay Time: –
  • Operating Temperature: 0℃~+70℃

Features

  • Dual channel comparator in a compact SOP-8 package
  • Low input offset voltage of 1mV for accurate comparisons
  • Ultra-low input bias current of 25nA reduces power consumption
  • Wide supply voltage range from 2V to 36V for versatile applications
  • Low supply current of 0.4mA for energy-efficient operation
  • Open collector output allows easy interface with various logic levels
  • Suitable for battery-powered and low-power devices
  • Stable performance across 0°C to 70°C operating temperature range

Applications :

  • Voltage level detection
  • Zero-crossing detectors
  • Battery-operated devices
  • Power management circuits
  • Signal conditioning
  • Sensor interfacing

Physical Attributes

  • Weight (g): 2
  • Length: 2.92mm
  • Width: 1.3mm
  • Height: 1.1mm

Package Includes

  • 1 x LM393DR2G-XBLW-1mV 25nA Dual channel SOP-8 Comparators
