Aluminum Alloy Flange Coupling Omnidirectional/Mecanum Wheel (Outer Dia 32mm, Shaft diameter 5mm)
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

Aluminum Alloy Flange Coupling Omnidirectional/Mecanum Wheel (Outer Dia 32mm, Shaft diameter 5mm)

Available:Out of Stock
  • Product SKU: LGRO045
Wishlist
₹ 283 ₹ 599
Pre-order
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

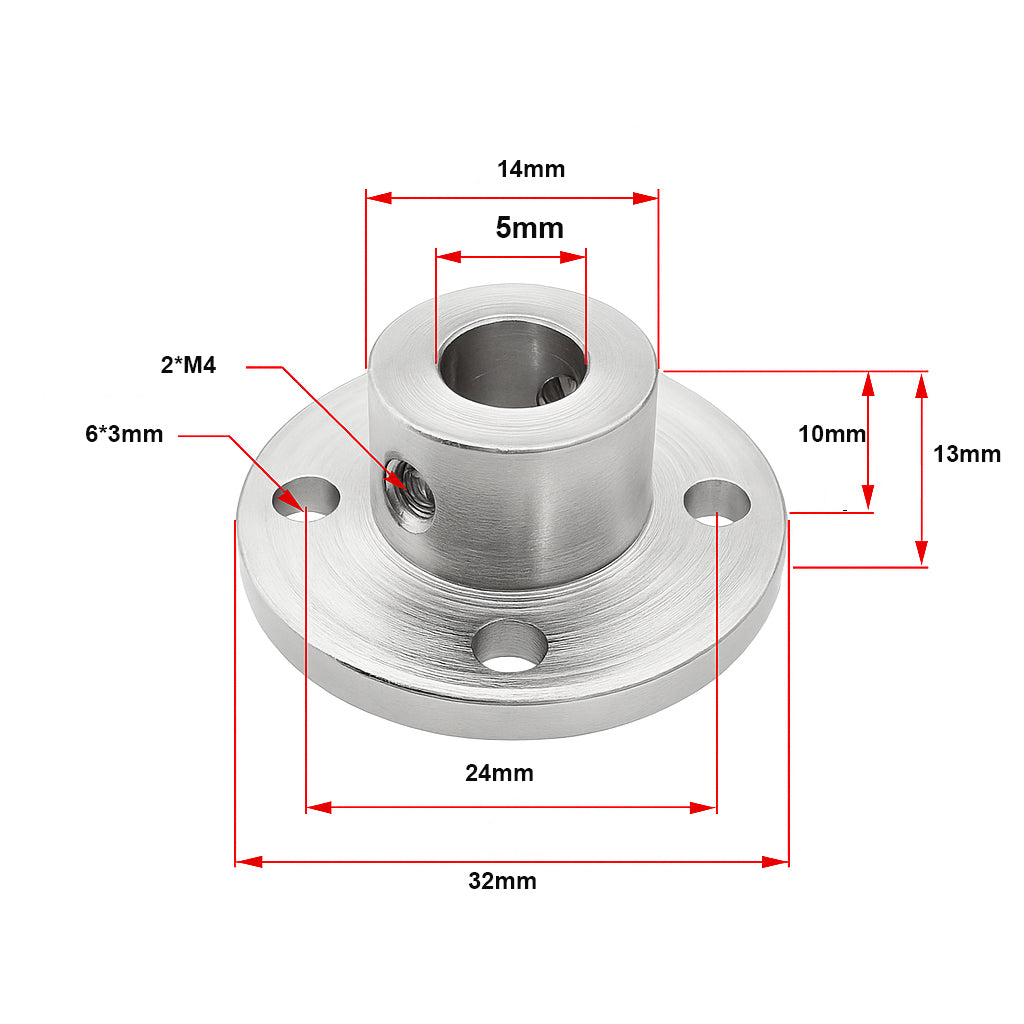

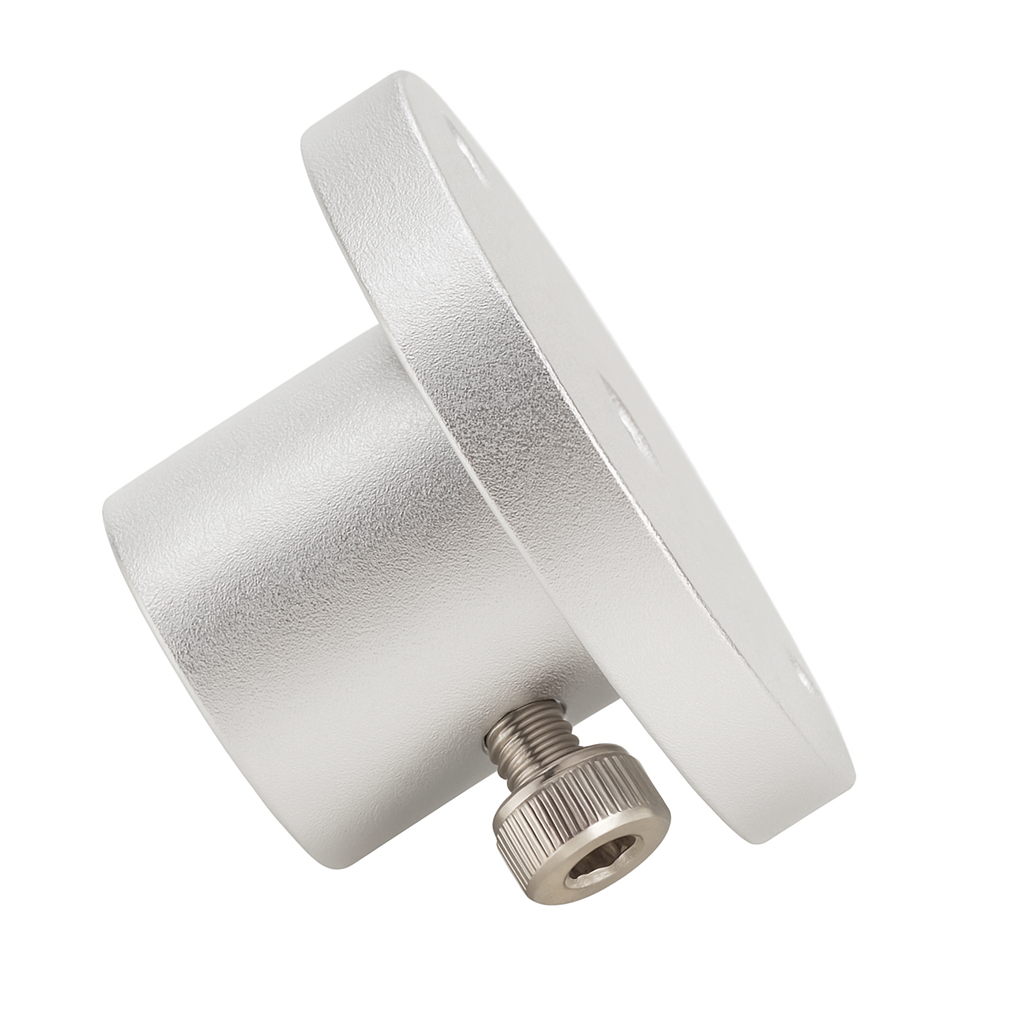

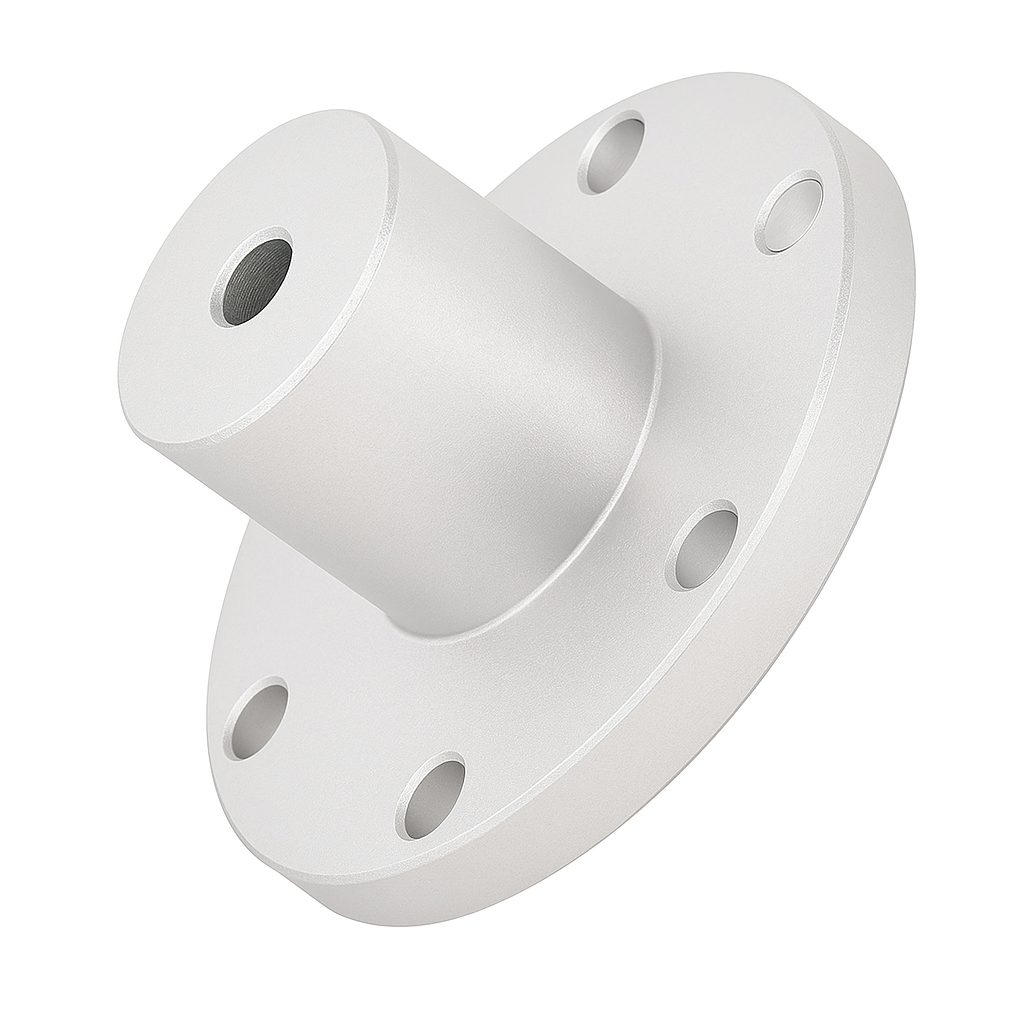

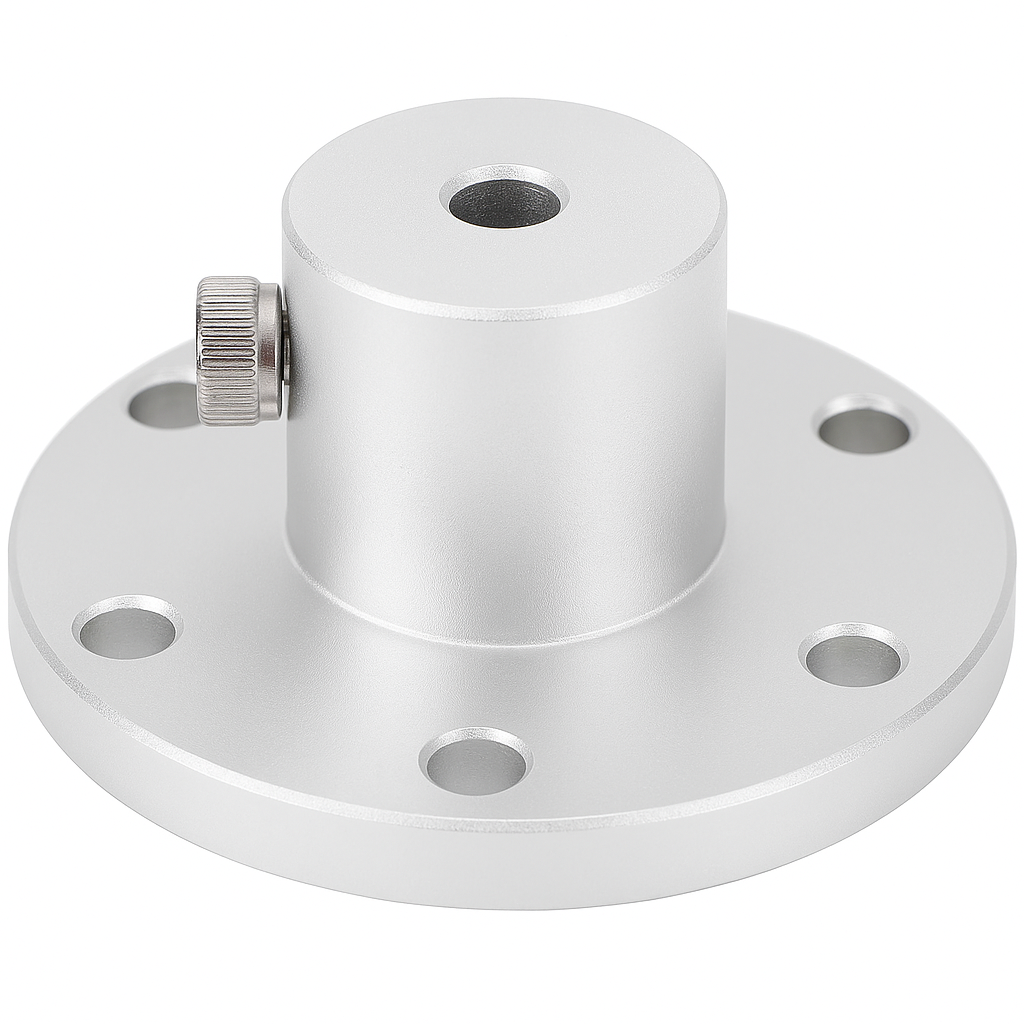

Aluminum Alloy Flange Coupling for Omnidirectional/Mecanum Wheel (Outer Dia 32mm, Shaft Diameter 5mm)

This flange coupling is engineered to connect Mecanum wheels, omni wheels, and other rotating mechanical components to motor shafts with a 5mm diameter. Manufactured from high-quality aluminum alloy, it ensures strong durability, corrosion resistance, and precise alignment for smooth motion transfer in robotic drive systems.

Its multi-hole flange mounting design provides secure attachment to wheel hubs, making it ideal for omni-directional chassis designs, automation prototypes, mechatronics projects, and educational robotics platforms requiring precise wheel-to-motor coupling.

Technical Details

  • Material: Aluminum Alloy
  • Outer Diameter: 32mm
  • Shaft Bore Diameter: 5mm
  • Mounting Hole Pattern: Multi-hole flange
  • Locking Mechanism: Set Screw
  • Usage: Motor to wheel/mechanism coupling

Key Features

  • Strong aluminum alloy structure
  • Lightweight and corrosion-resistant
  • Flange mount ensures stable coupling
  • Compatible with Mecanum and omni wheels
  • Precision-machined for balanced rotation
  • Ideal for robotics wheel hubs and drive modules

Applications

  • Robotic drive systems
  • Omni-directional wheel assemblies
  • Mecanum wheel platforms
  • STEM robotics projects
  • Automation and motion control systems

Physical Attributes

  • Material: Aluminum Alloy
  • Color: Silver Machined Finish
  • Outer Diameter: 32mm
  • Shaft Bore Size: 5mm
  • Mount Type: Multi-hole Flange

Package Includes

  • 1 × Aluminum Alloy Flange Coupling (5mm Bore)
  • 2 × Hex Nuts
