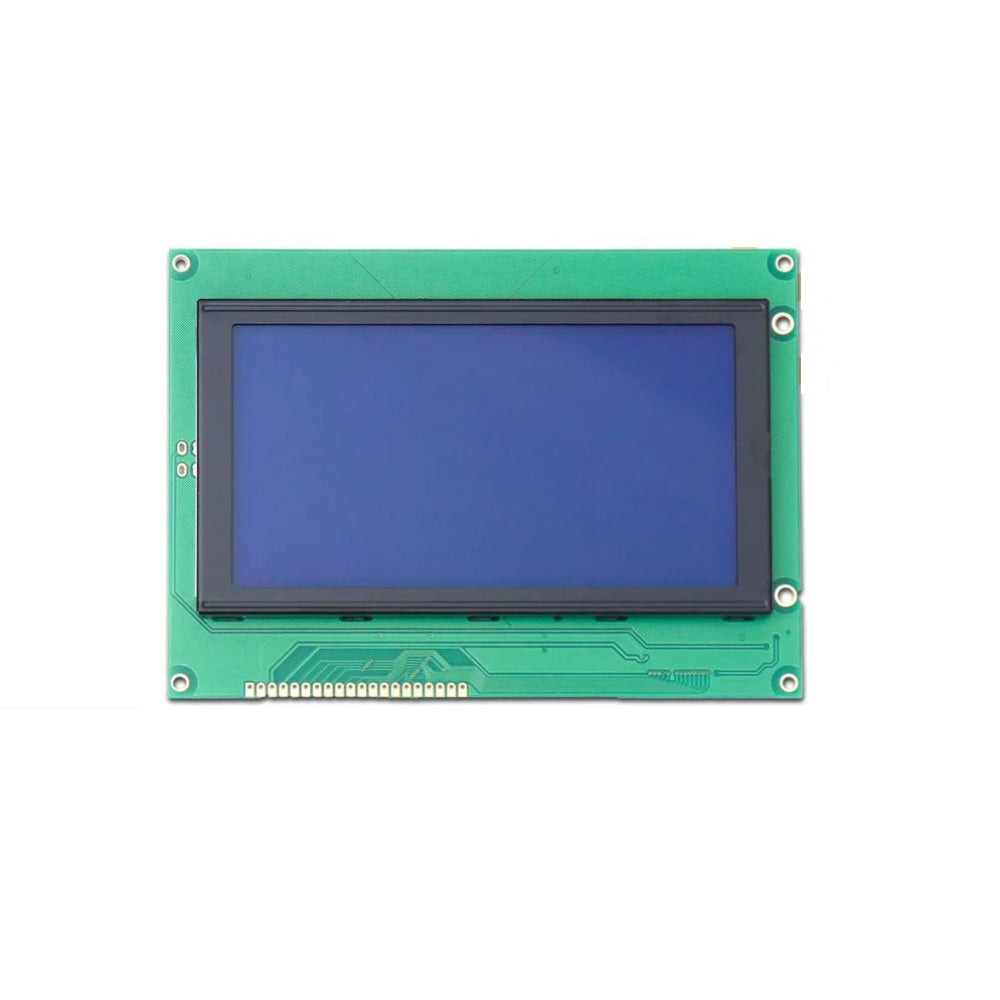

240×128 240128 Dots JHD Original graphics module
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

240×128 240128 Dots JHD Original graphics module

Available:Out of Stock
  • Product SKU: KLCD026
Wishlist
₹ 2,999 ₹ 3,999
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

Introducing the 240×128 Dots JHD Original Graphics liquid crystal display Module, a cutting-edge display solution that seamlessly blends high resolution with unmatched performance. With its impressive 240x128 pixel configuration, this liquid crystal display module delivers crystal-clear visuals, ensuring a vibrant and detailed display for a wide range of applications. Whether you're designing a sophisticated user interface or crafting intricate graphics, the JHD Original Graphics Module provides the canvas for your creativity.

Designed by JHD:

A trusted name in the industry, this module stands out for its quality and reliability. The 240×128 Dots resolution ensures that every image and text element is rendered with precision and clarity, making it an ideal choice for applications where visual excellence is paramount. The module's original graphics capabilities empower developers and designers to bring their visions to life, whether it's for industrial machinery interfaces, medical devices, or any other application that demands a high-performance display solution.

With Its Compact Form Factor and Versatile Compatibility:

The 240×128 Dots JHD Original Graphics Module is engineered to seamlessly integrate into a variety of projects. Its robust design and advanced features make it a standout choice for those seeking a dependable graphics display solution that meets the demands of modern applications. Elevate your projects with the exceptional performance and quality offered by the 240×128 Dots JHD Original Graphics Module.

Note: This is a genuine JHD Display as there are many fake JHD Displays in the Market.

Features of liquid crystal display

  • Display construction : 240*128 DOTS
  • Display mode : STN(BLUE)
  • Display type : Negative Transmissive
  • Backlight : LED/5.0V
  • Viewing direction : 6 o’clock
  • Operating temperature : -20 to 70 ℃
  • Storage temperature : -30 to 80℃
  • Driving voltage : Single power
  • Driving method : 1/128 duty, 1/12 bias
  • Type: COB (Chip On Board)
  • Number of data lines: 8-bit parallel
  • Connector : Pin
  • Drive IC : T6963C or Equivalence

Technical Details

Original JHD 240×128 240128 Dots Graphics Module

Physical Attribute of liquid crystal display

Original JHD 240×128 240128 Dots Graphics Module with Blue/Green Backlight

Block Diagram

Original JHD 240×128 240128 Dots Graphics Module with Blue/Green Backlight

External Drawing of liquid crystal display

Original JHD 240×128 240128 Dots Graphics Module with Blue/Green Backlight

Package Includes of lcd display screen

  • 1 x Original JHD 240×128 240128 Dots Graphics Module
