Front view of 8 mm M18 PNP proximity sensor

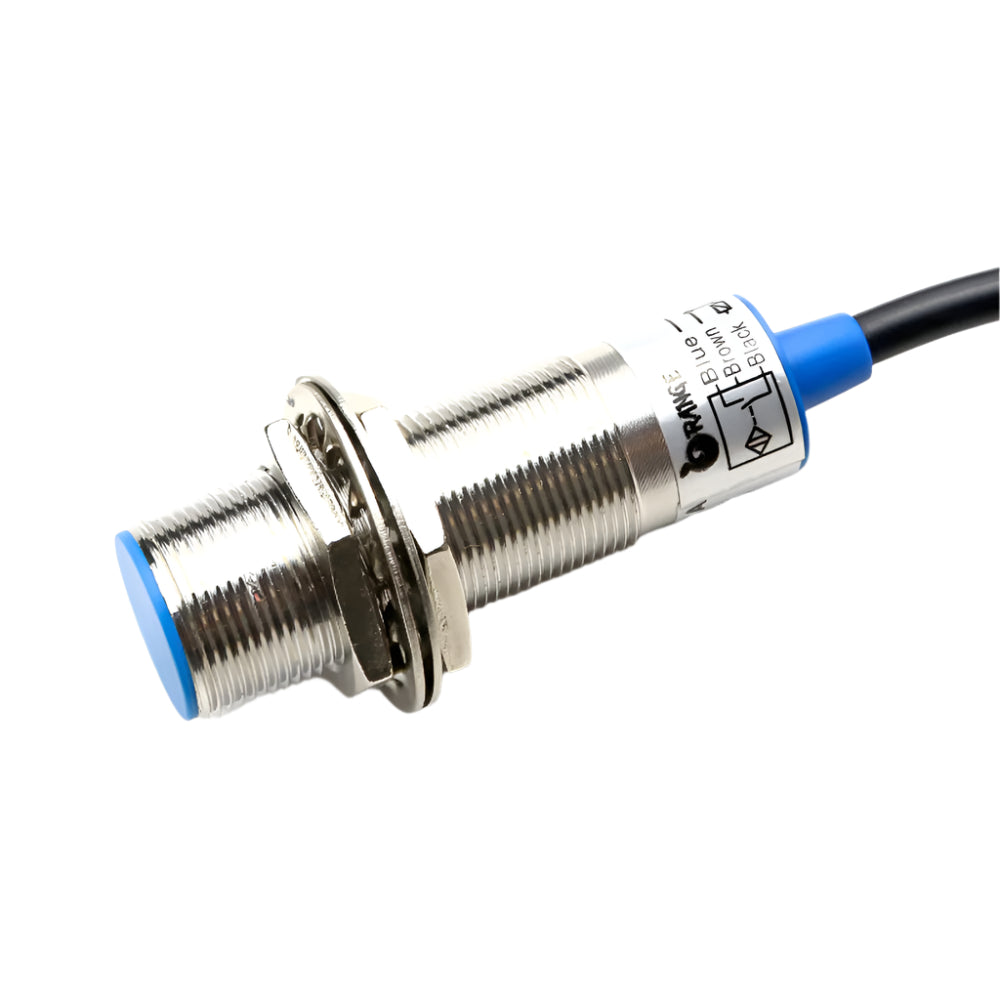

Side view of M18 inductive proximity sensor DC6–36V

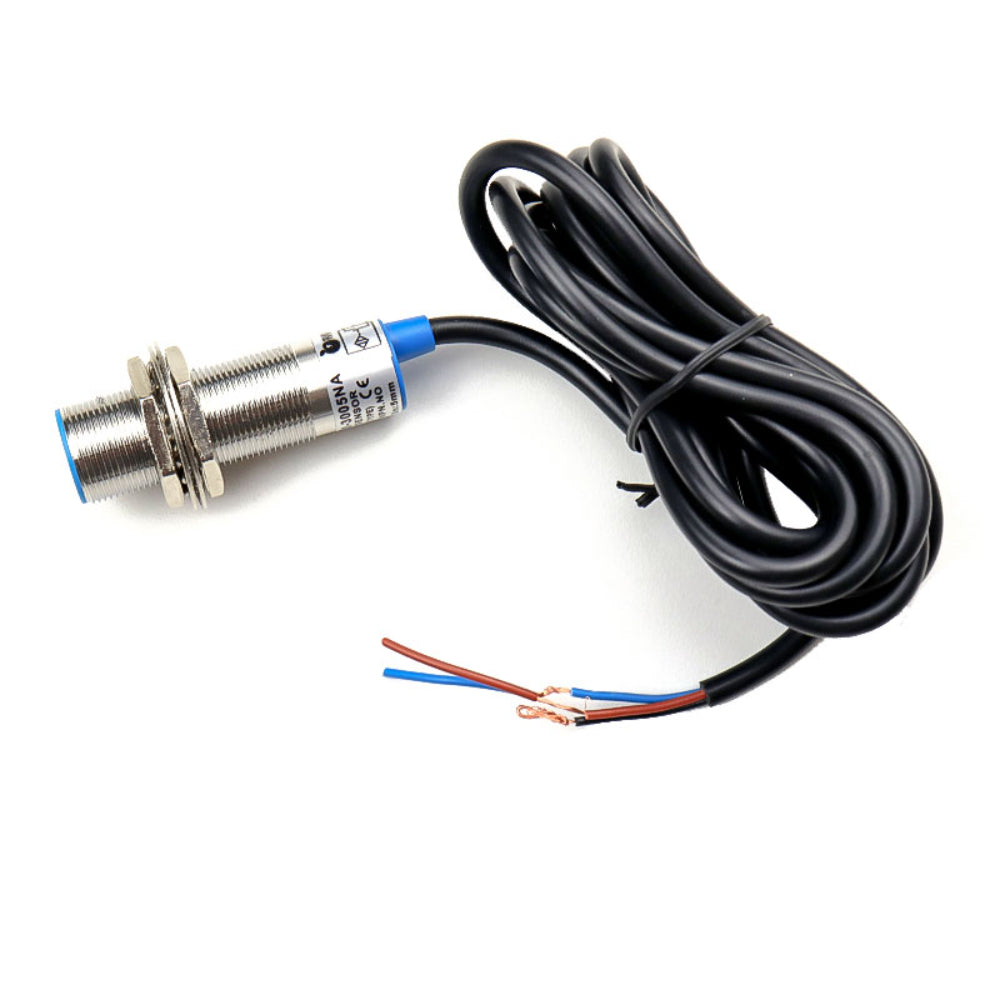

Back wiring view (3-wire cable) of M18 proximity sensor

5mm NPN Inductive Proximity Sensor M18 DC6~36V (unshielded) (Normally Open)

Available:In Stock

Product SKU: KG971

Wishlist

₹ 349 ~~₹ 449~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Voltage: 6 ~ 36V DC
Detection: 5mm
Thread: M18
Type: Inductive
Output: NPN NO
Install: Flush (Shielded)
Current: 200mA
Set Distance: 0 ~ 3.5mm

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

How Fast We Ship

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

🏠 Warehouse Details:

26 H - 162

Specification

Description

5mm NPN Inductive Proximity Sensor M18 DC6~36V (unshielded) (Normally Open)

This 5 mm M18 NPN sensor is a high-performance m18 proximity sensor designed for precise metal detection and industrial automation. As a robust inductive proximity sensor, it offers reliable, non-contact detection and excellent durability. Thanks to its efficient design, this industrial proximity sensor delivers consistent performance even in demanding manufacturing environments.

The M18 cylindrical housing (18 mm diameter) supports a wide operating voltage of DC 6–36 V (nominal 30 V) and a detection distance of 5 mm. It features a 3-wire NO (Normally Open) output and a RED LED indicator for status. This m18 proximity sensor—built as an inductive, non-flush sensor—combines compactness with reliable sensing, ideal for varied automation tasks.
The Inductive Proximity Sensor application:

Mine metallurgy.

Plastics, textile and Chemical Industry.

Light industry, tobacco, electric power, railway, and war industry.

Technical Details

Voltage: 6–36 V DC
Detection: 5 mm
Thread: M18
Model: RM18~3005 NA
Type: Inductive
Output: NPN NO
Install: Flush (Shielded)
Current: 200 mA
Set Distance: 0–3.4 mm
Insulation: 50 MΩ
Temp: –30 to 80 °C
Cable: Ø4, 3-Wire, 2 m
Weight: 80 g

Feature

IP67 protection (IEC standard)
Compact size and easy installation for tight spaces
High precision and repeatable detection
Durable exterior and strong build quality
Excellent anti-interference performance — a robust industrial proximity sensor
Suitable for many output forms with cost-effective inductive proximity sensor design
Wide voltage range for flexible deployment
Dustproof, vibration-proof, waterproof and oil-proof
Short-circuit and reverse-connection protection for safety
High on-off frequency and long service life

Applications :

Industrial Automation: Detects metal objects in conveyor systems, assembly lines, and automated machinery using this reliable m18 proximity sensor.
Precision Metal Detection: Ideal for sensing small metal components in manufacturing processes, thanks to its precise inductive proximity sensing.
Robotics: Enables accurate positioning and motion control in robotic arms and automated systems.
CNC Machines: Detects metal tools and workpieces in milling, lathe, and grinding machines.
Automotive Manufacturing: Used in vehicle assembly lines for detecting parts and ensuring correct alignment.
Security & Access Control: Integrated into automated gates, doors, and security systems for non-contact sensing.
Smart Warehousing: Assists in inventory management by detecting metallic storage bins and automated equipment reliably.
Medical & Laboratory Equipment: Useful in detecting metal components in precision instruments.
