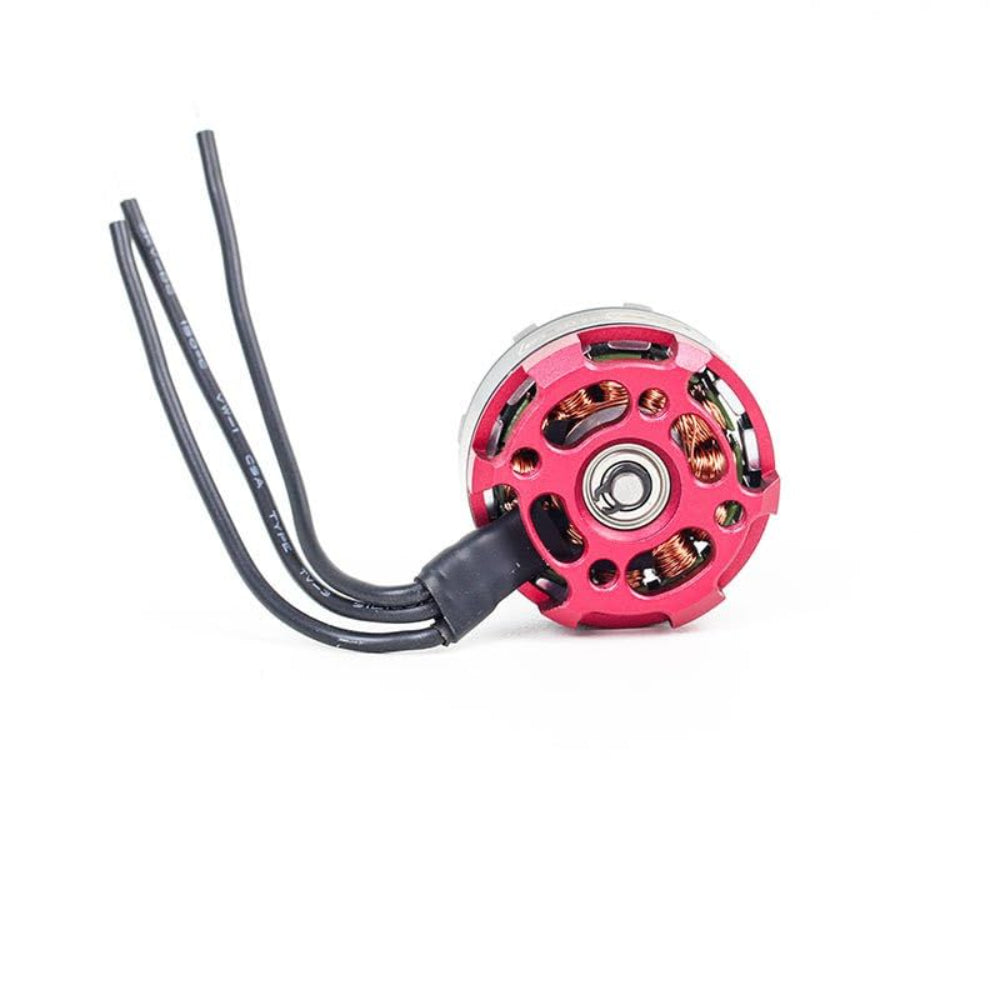

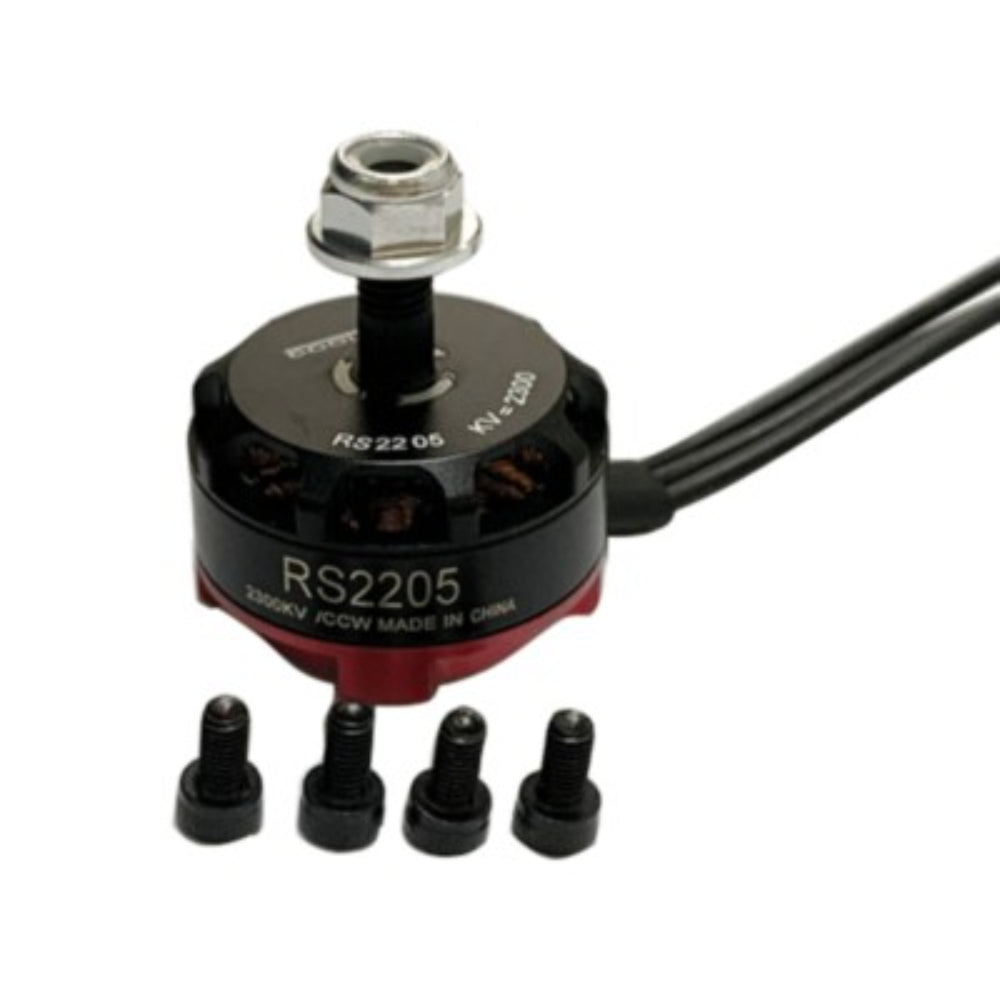

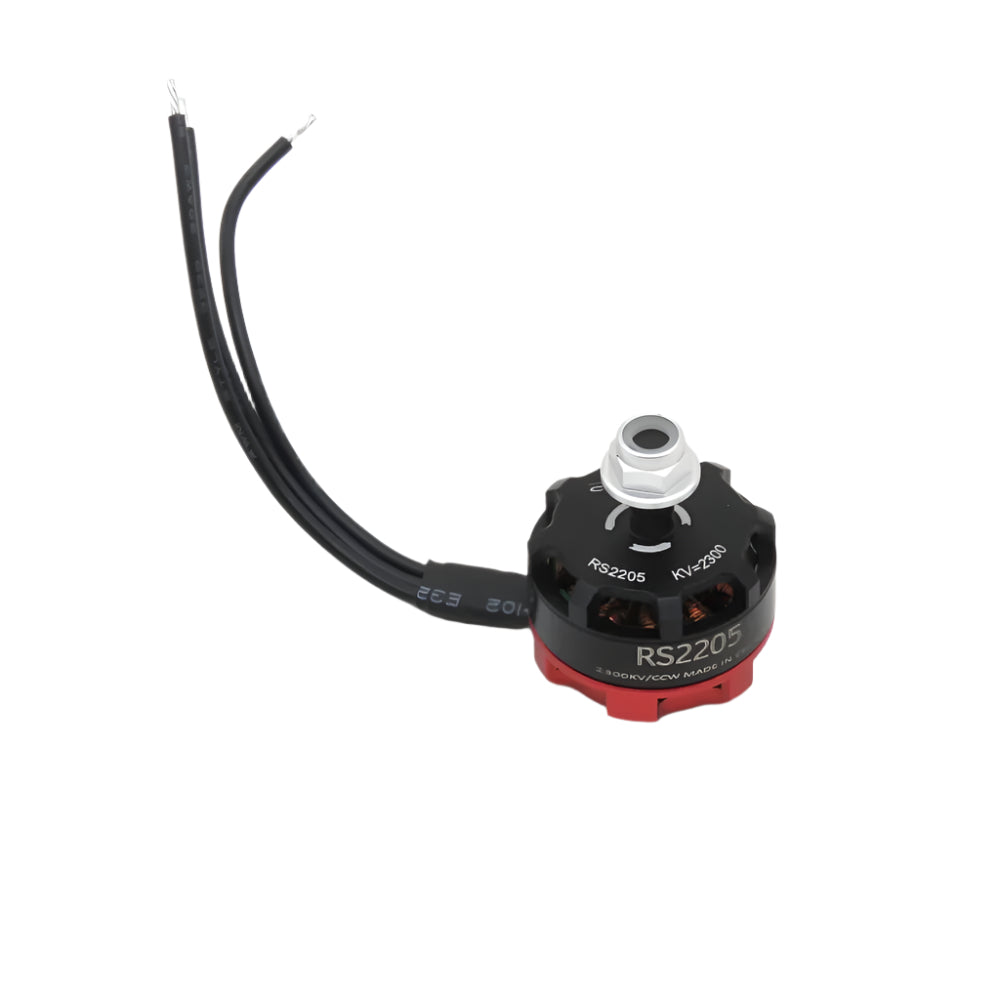

RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter Silver Cap CCW Motor Rotation
![RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter Silver Cap CCW Motor Rotation_3]()
![RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter Silver Cap CCW Motor Rotation_1]()
![RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter Silver Cap CCW Motor Rotation]()
![RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter Silver Cap CCW Motor Rotation_3]()
![RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter Silver Cap CCW Motor Rotation_1]()
![RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter Silver Cap CCW Motor Rotation]()
When paired with an Orange 3S LiPo battery and a premium 5-inch propeller, the RS2205 2300KV delivers outstanding acceleration and excellent stopping power at high RPMs, with a thrust of around 1024 grams. Whether you’re building your first drone or upgrading your racing setup, this motor provides reliable performance and durability at a competitive price, making it a smart choice for your drone project.
-21%
RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter Silver Cap CCW Motor Rotation
Available:In Stock
- Product SKU: KG661
₹ 749
₹ 949
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter Silver Cap CCW Motor Rotation
The RS2205 2300KV Brushless DC Motor is designed specifically for FPV racing drones such as the QAV250 and QAV300. It offers an excellent balance of quality and affordability, making it ideal for beginners wanting to learn the basics of FPV flying. Built from high-quality materials, this motor features a self-cooling mechanism with unique cooling fins that draw air through the motor coils, reducing temperature by up to 30% and extending its lifespan. The motor also includes curved N52 Neodymium magnets and genuine Japanese NMB bearings for smooth, efficient operation.When paired with an Orange 3S LiPo battery and a premium 5-inch propeller, the RS2205 2300KV delivers outstanding acceleration and excellent stopping power at high RPMs, with a thrust of around 1024 grams. Whether you’re building your first drone or upgrading your racing setup, this motor provides reliable performance and durability at a competitive price, making it a smart choice for your drone project.
Technical Details
- Motor KV (RPM/V): 2300
- Motor Type: Brushless Motor
- Compatible LiPO Batteries: 3S to 4S
- Nut Type: CW
- Maximum Thrust (gm): 1024
- Required ESC (A): 30-40
- Framework: 12N14P
- Shaft Diameter (mm): 5
- Compatible Prop (inch): 5
- Length (mm): 27.9
- Width (mm): 27.9
- Height (mm): 31.7
- Weight (g): 40
Features
- High Strength N52 Neodymium Magnets
- Active Cooling Fins Greatly Reduce Operating Motor Temperature
- Low CG and Lightweight Design
- Japanese Bearing for Quality Performance
- Enhanced Anti-Off U Ring for Safe and Stable Operation
Applications :
- Racing Drones and FPV Quadcopters
- Mini Multirotor UAVs
- High-Speed Drone Builds
- Freestyle Flying and Acrobatic Drones
- DIY Drone Projects
- Educational Robotics and STEM Kits
Physical Attributes
- Shaft Diameter (mm): 5
- Compatible Prop (inch): 5
- Length (mm): 27.9
- Width (mm): 27.9
- Height (mm): 31.7
- Weight (g): 40
Package Includes
- 1 x RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Multicopter Silver Cap CCW Motor Rotation
- 1 x Mounting Screw set.
