MY1016Z3 24V 350W 324RPM Brushed DC Gear Motor with Chain Sprocket
- Product SKU: KG101
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
24V 350W 324RPM MY1016Z3 EBIKE Brush Motor
The 24V 350W 324RPM MY1016Z3 Electric Brush DC Gear Motor is a reliable, high-torque motor built for electric bikes, scooters, go-karts, and DIY mobility systems. Designed with an integrated gearbox, it delivers stable speed, strong torque, and smooth performance even under heavy loads. Its compact design and durable construction make it suitable for long-term use in both personal and commercial applications.With a rated power of 350W at 24V, this motor provides a rated speed of 324 RPM and a rated torque of 110 kg-cm, while achieving up to 350 kg-cm stall torque. It consumes only 3.3A at no load and about 19.2A at rated load, ensuring efficiency and reliability. Compact, powerful, and versatile, the MY1016Z3 brushed DC motor is the perfect choice for anyone looking for a dependable electric drive solution.
Technical Details
- Item Type: Brushed Motor
- Motor Type: Brushed DC Gear Motor
- Model No.: MY1016Z3
- Operating Power (W): 350
- Rated Voltage (V): 24
- No Load Current (A): 3.30
- Rated Current (A): 19.2 approx
- Rated Torque (kg-cm): 110 approx
- Stall Torque (kg-cm): 350 approx
- Stall Current (A): 53 approx
- No-load Shaft Speed: 350 RPM
- Rated Shaft Speed: 324 RPM (5–10% lower than no-load RPM)
- Rated Speed Without Gear: 3200 RPM approx
- Sprocket: 9 teeth
- Left or Right rotation by Reversing Wires
- Pitch: 12.7 mm (1/2 inch)
- Weight: 2.786 kg
- Gearbox: Yes (Integrated)
- Cable Length: 50 cm
- Gear Ratio: 9.78 : 1
Features
- 24V — Voltage for ample power
- 350W — Output for efficient performance
- 324 RPM — Speed for smooth rides
- Specifically designed for electric bicycles (e-bikes)
- Provides ample torque and speed for various e-bike applications
Sprocket Details
- Type: Fixed single chain sprocket
- Teeth: 9T
- Pitch: 1/2 inch (12.7 mm)
- Chain: #410 (3.2 mm inner width)
- Roller Dia: 7.75 mm
- Pitch Circle Diameter (PCD): 36 mm (9T)
- Bore: 10 mm shaft
- Mounting: Factory fitted (Not easily replaceable)
- Material: Hardened steel
Applications
- Electric bicycles (e-bikes)
- Electric scooters
- DIY electric vehicles
- Mobility solutions
- Electric go-karts and trikes
Physical Attributes
- Weight: 2.786 kg
- Gearbox: Integrated
- Output Shaft: Sprocket with 9 teeth
- Cable Length: 50 cm
Package Includes
- 1 x MY1016Z3 24V 350W 324RPM Brushed DC Gear Motor with Chain Sprocket
Customer Reviews
It's very good product
I was in search of a high torque low rpm good powered motor in small size light weight and also at good price. My search ended here. It's noise less efficient motor thanks to kitsguru for providing genuine product and good service...

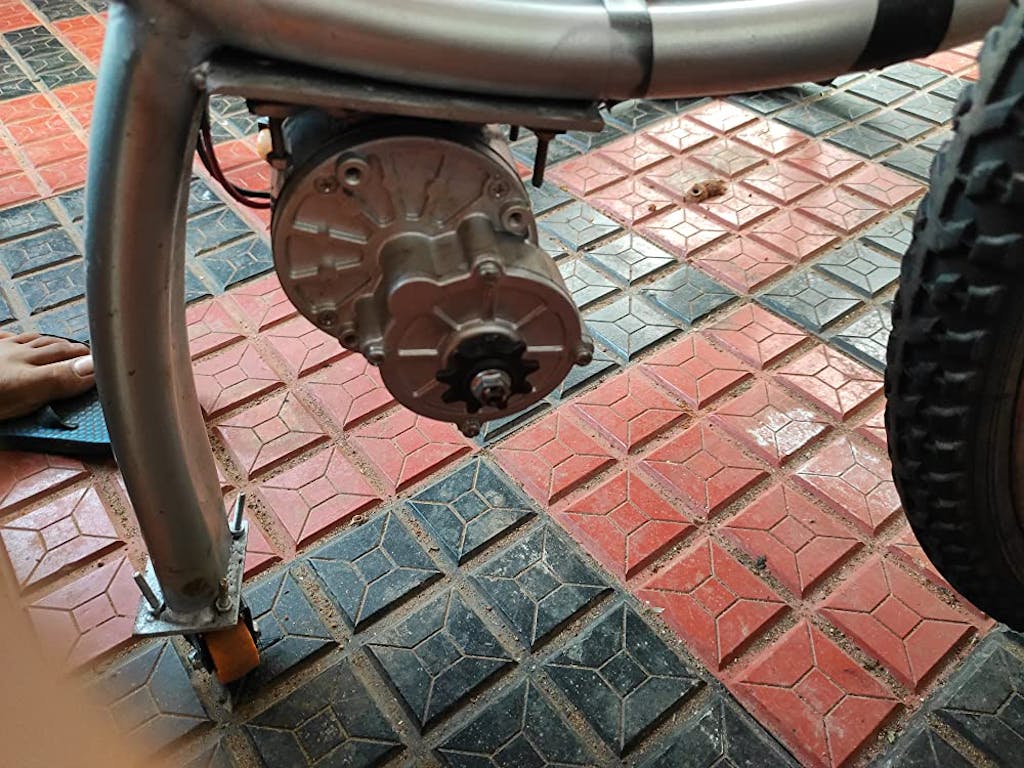

It is awesome. I made a scooter(E-Bike)It’s packing was damaged but nothing happened to the motorI recommend it⚡️⚡️⚡️
I liked this motor Imaked this for makeing electric cycyle
