Equipped with multiple labeled connectors for throttle, brakes, motor, battery, display, and more, this controller is easy to integrate into most e-bike setups. Its compact dimensions make it suitable for tight installations, while features like under-voltage protection and brake power cut-off enhance safety. Whether upgrading an existing system or building a new one, this controller offers a balanced combination of performance, protection, and versatility.
-27%
36V/48V 350W Brushless Motor Controller for E-Bike & Scooter
Available:In Stock
- Product SKU: KGEB062
₹ 1,599
₹ 2,199
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
36V/48V 350W Brushless Motor Controller for E-Bike & Scooter
The 36V/48V 350W Brushless Motor Controller is a high-efficiency dual-voltage controller designed for electric bikes, scooters, and light electric vehicles. It supports both 36V and 48V brushless DC hub motors, making it ideal for a wide range of applications and battery systems. With a rated power output of 350W, it ensures smooth, quiet, and responsive performance. The controller is housed in a durable aluminum alloy casing that helps with heat dissipation and ensures long-lasting use even under varying environmental conditions.Equipped with multiple labeled connectors for throttle, brakes, motor, battery, display, and more, this controller is easy to integrate into most e-bike setups. Its compact dimensions make it suitable for tight installations, while features like under-voltage protection and brake power cut-off enhance safety. Whether upgrading an existing system or building a new one, this controller offers a balanced combination of performance, protection, and versatility.
Technical Details
- Model: YKZQ-16
- Rated Voltage: DC 36V / 48V
- Rated Power: 350W
- Rated Current: 14±1A
- Motor Type: Brushless DC (BLDC) Hub Motor
- Low Voltage Protection: 31.5±0.5V (for 36V), 42±0.5V (for 48V)
- Control Type: Square wave controller
- Cooling: Aluminum casing with natural air cooling
- Material: Aluminum alloy with fin structure

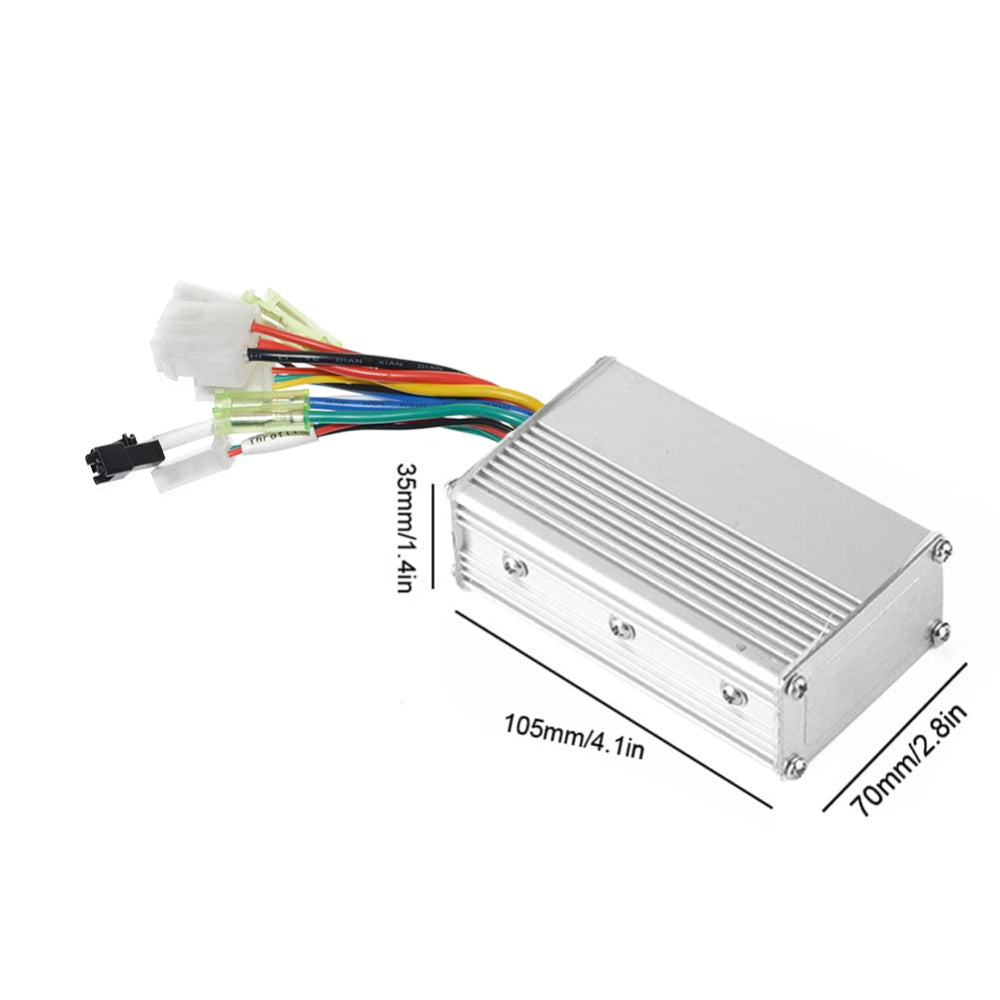

- Dimensions: 105mm (L) × 70mm (W) × 35mm (H)
- Mounting: Integrated base plate with screw slots
- Wiring: Labeled connectors for throttle, brake, motor, battery, charger, etc.
- Applications: E-bikes, scooters, tricycles, DIY EVs
Features
- Supports dual voltage: 36V and 48V DC
- 350W rated output for efficient motor performance
- Compatible with brushless hub motors (BLDC)
- Square wave drive for smooth acceleration
- Under-voltage protection to prevent battery damage
- Brake power cut-off function for added safety
- Compact aluminum alloy case with heat dissipation fins
- Pre-labeled connectors for easy plug-and-play installation
- Durable and weather-resistant construction
- Stable operation with low noise and minimal maintenance
Applications
- Electric bicycles (e-bikes)
- Electric scooters and mopeds
- Electric tricycles and cargo bikes
- DIY electric vehicle conversion kits
- Mobility scooters and light transport carts
- Educational and robotics electric drive projects
Physical Attribute
- Body Material: Aluminium
- Size: 105×70×35 mm
- Weight: 257
Package Includes
- 1 x 36V/48V 350W Brushless Motor Controller for E-Bike & Scooter
