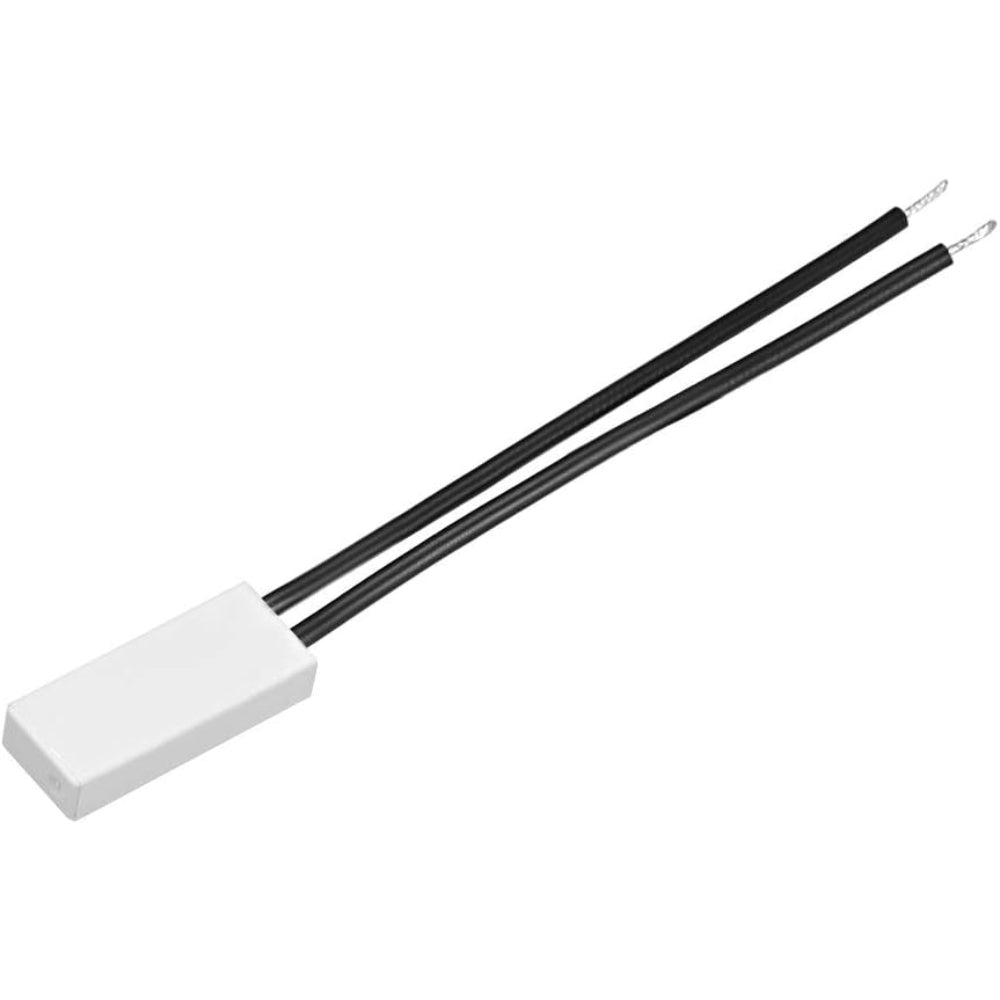

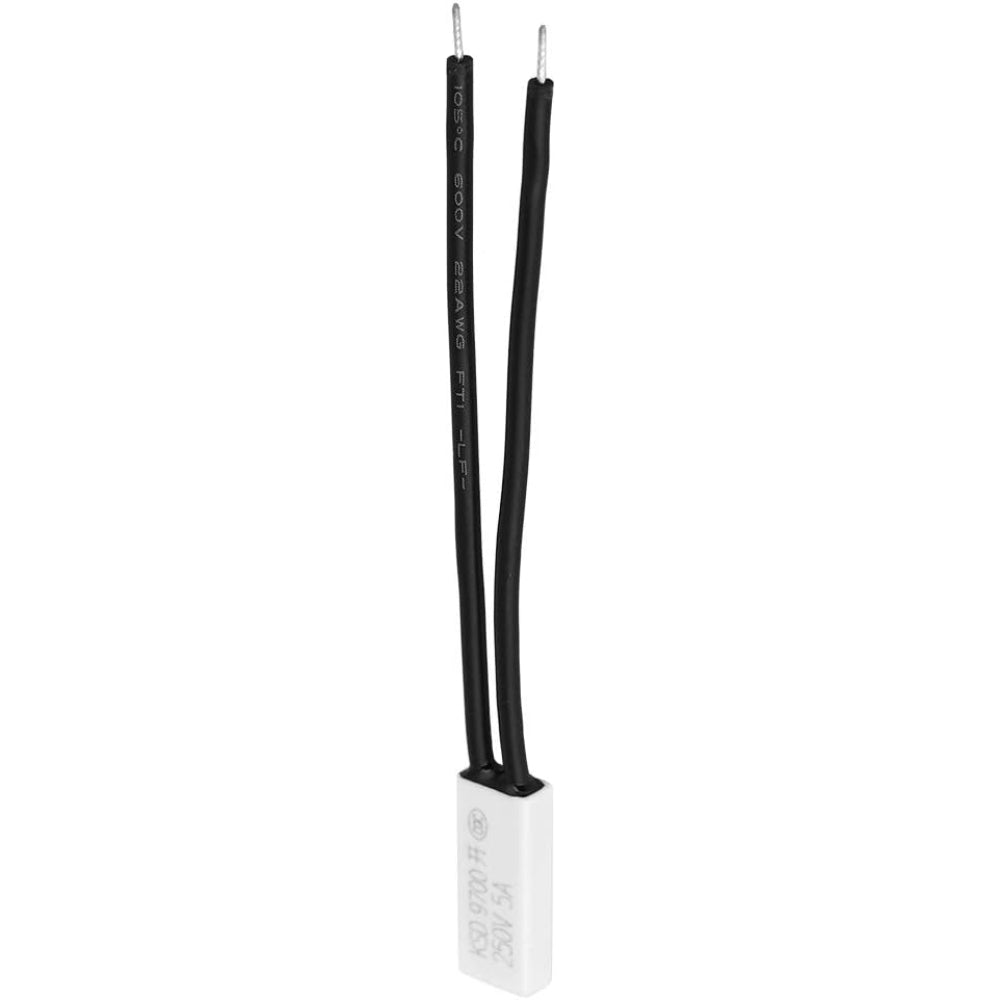

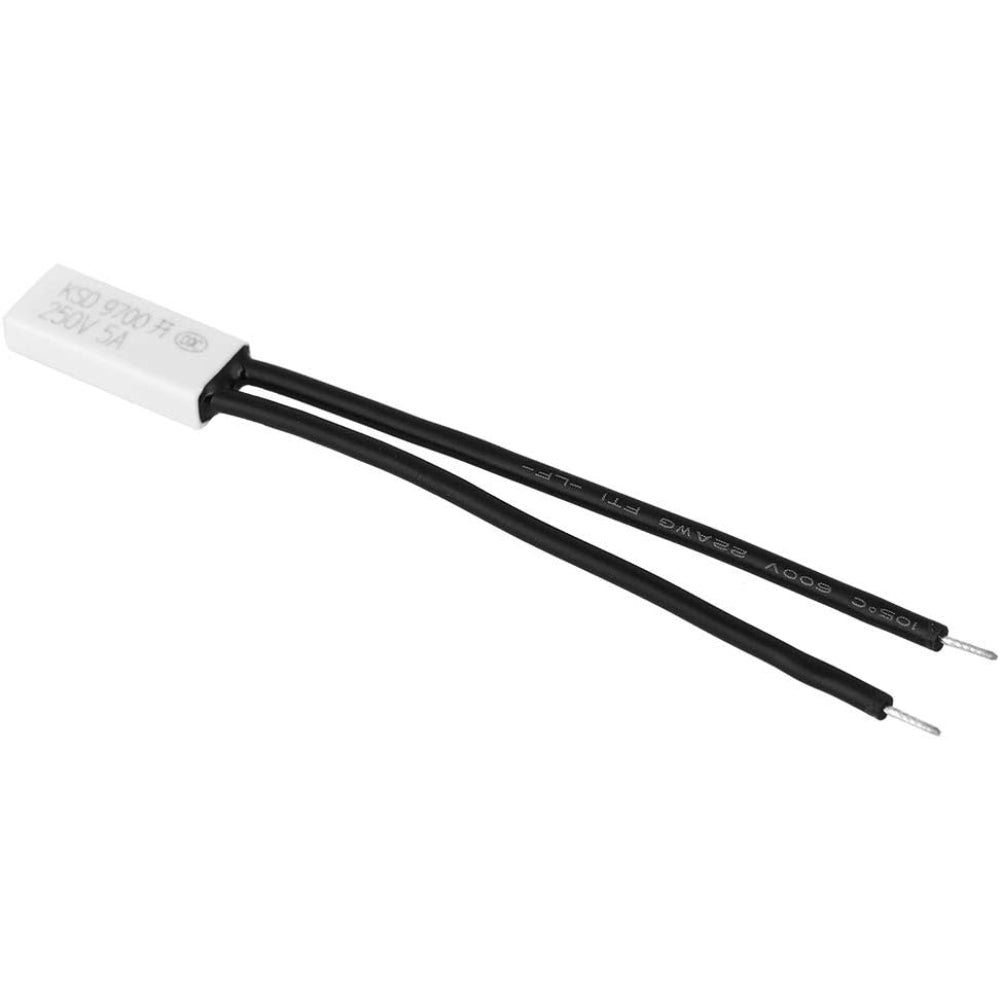

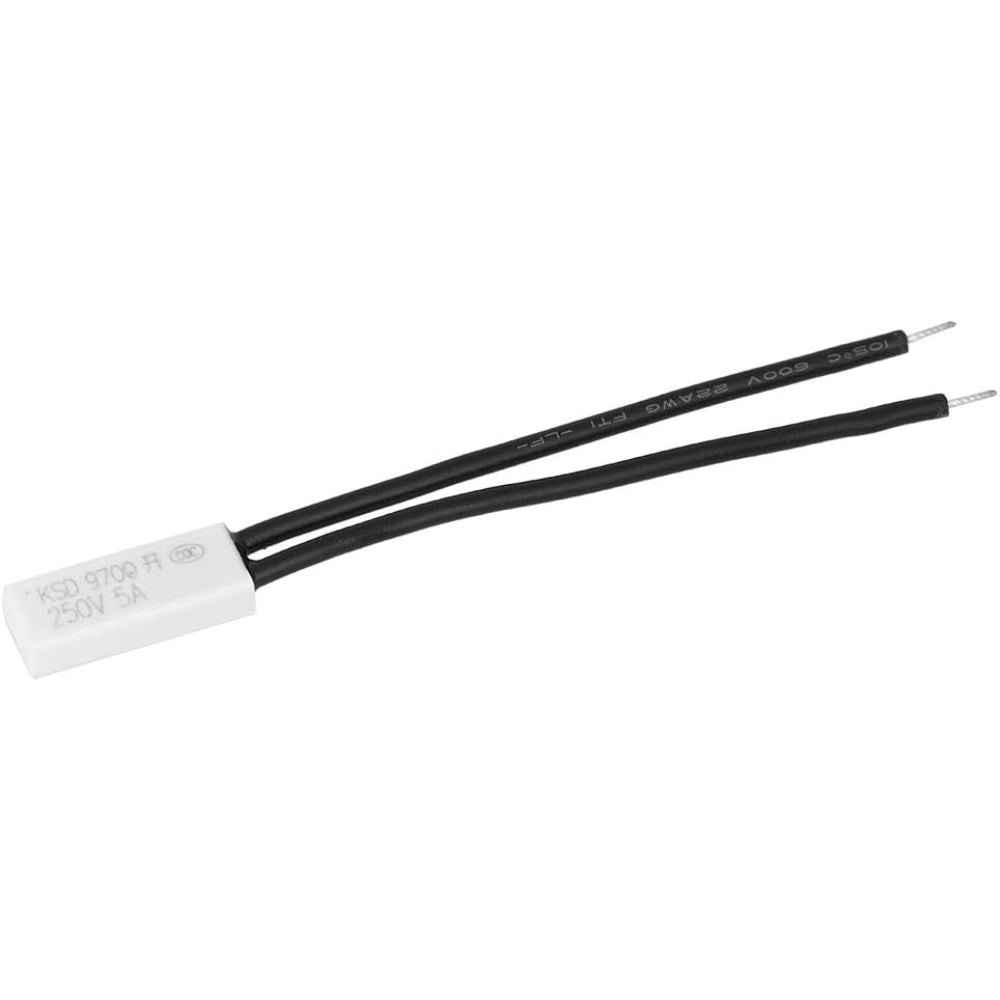

40 Degrees KSD9700 Metal Temperature Control Switch 250V 10A Normally Open

The 40°C KSD9700 Metal Temperature Control Switch is a high-performance thermal protector designed to regulate temperature in electrical systems. This switch operates at 40°C (±3°C) and features a Normally Open (NO) contact, meaning the circuit remains open under normal conditions and closes when the temperature reaches 40°C, allowing current to flow. Its precise activation ensures reliable thermal management, making it ideal for applications that require automatic temperature control.

Built with a durable metal housing, this switch offers excellent heat conduction and long-lasting performance. It supports a rated voltage of 250V AC and a current capacity of 10A, making it suitable for electric motors, transformers, heating elements, and industrial equipment. Additionally, the auto-reset function ensures the switch returns to its original state once the temperature drops below the threshold, providing continuous and reliable operation for overheating protection.

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

  • Item Type: Switch
  • Model Type: Temperature Control Switch
  • Rated Voltage: 250V
  • Operating Current: 10A
  • Model Name: KSD9700
  • Operating Temperature: 40°C (±3°C)
  • Contact Type: Normally Open (NO) – Closes at 40°C
  • Housing Material: Metal (Stainless Steel)
  • Insulation Resistance: ≥100MΩ
  • Dielectric Strength: ≥1500V AC/min
  • Response Speed: Fast heat response
  • Lifespan: ≥100,000 cycles
  • Cable Length: 70 mm
  • Dimensions: 20 x 9 x 5 mm
  • Weight: 3g

Features

  • Activates at 40°C to regulate temperature.
  • Normally Open (NO) – closes at 40°C.
  • Supports 250V AC, 10A current.
  • Durable stainless steel casing.
  • Compact and lightweight design.
  • Auto-reset for continuous protection.
  • Long lifespan of ≥100,000 cycles.
  • Ideal for motors, transformers, and appliances.
  • Quick and precise temperature response.
  • Prevents overheating damage.

Applications :

  • Electric motors and transformers
  • Battery packs and power supplies
  • Household appliances and HVAC systems
  • Industrial heating elements
  • Medical and laboratory equipment
  • Lighting fixtures and electronic devices
  • Temperature-sensitive circuits
  • Overheating protection in control systems

Physical Attributes

  • Cable Length: 70 mm
  • Dimensions: 20 x 9 x 5 mm
  • Weight: 3g

Package Includes

  • 1 x 40 Degrees KSD9700 Metal Temperature Control Switch 250V 10A Normally Open
