Encased in a durable stainless steel housing, this switch offers excellent heat conduction and long-lasting performance. With a rated voltage of 250V AC and a current capacity of 10A, it is suitable for a wide range of industrial and household applications. The auto-reset function restores the switch to its original state once the temperature drops, ensuring continuous protection. Its compact design, fast response time, and high durability make it a dependable solution for overheating prevention.
Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
![SPDT Micro Switch V-152-1C25-1]()
![SPDT Micro Switch V-152-1C25-2]()
-18%
45 Degrees KSD9700 Metal Temperature Control Switch 250V 10A Normally Closed With Hole
Available:Out of Stock
- Product SKU: SWITC095
₹ 129
₹ 159
Specification
Description

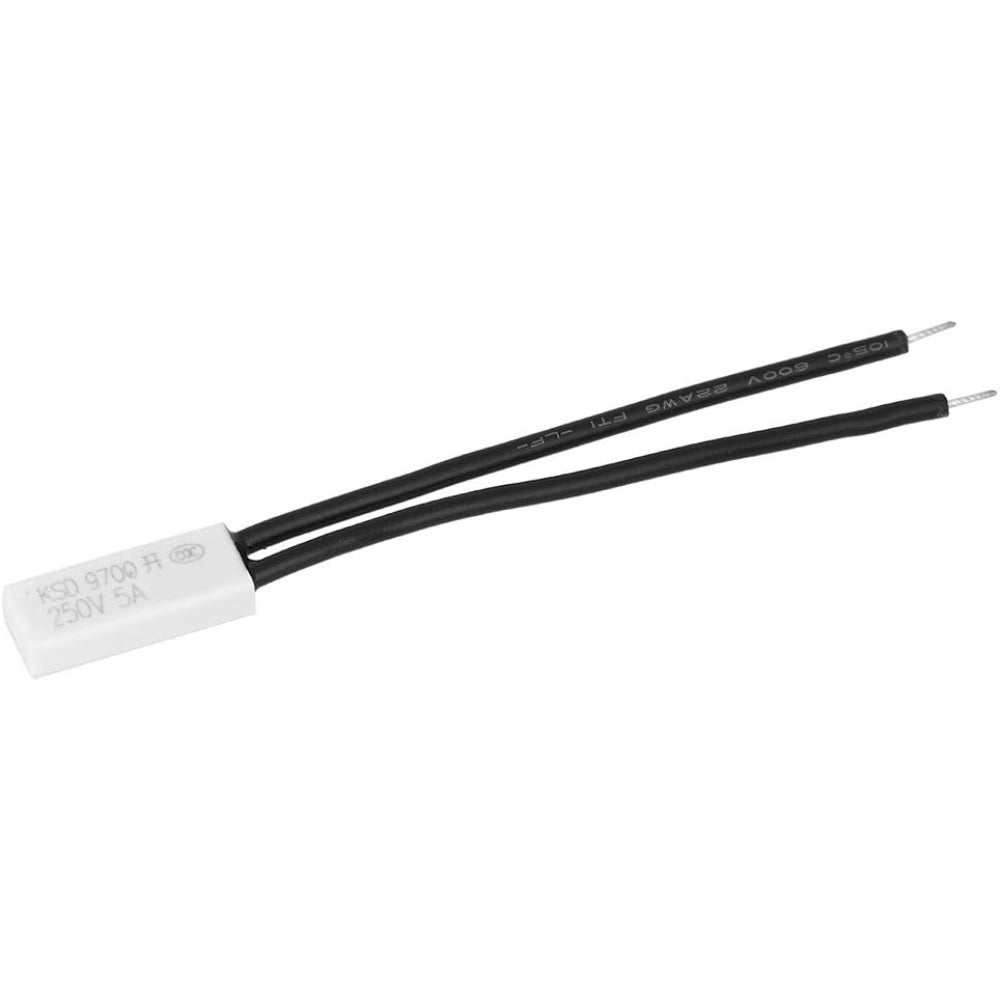

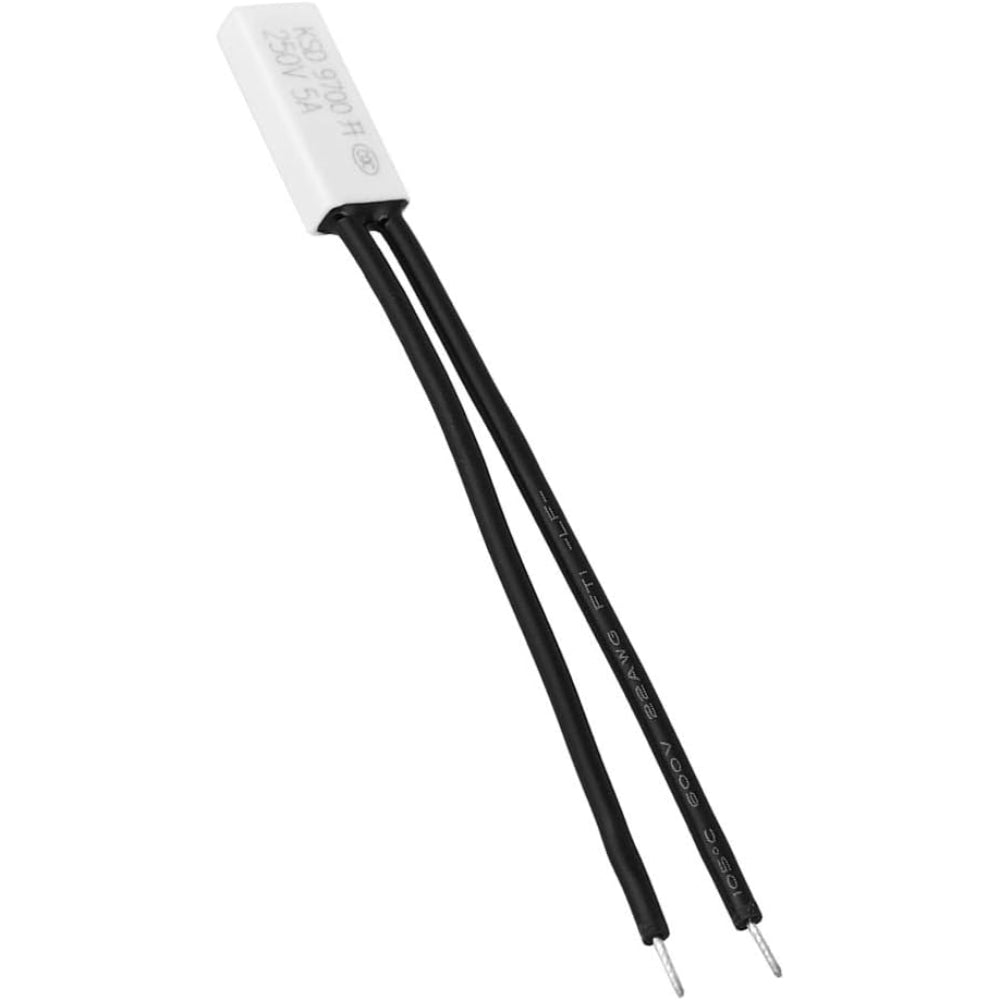

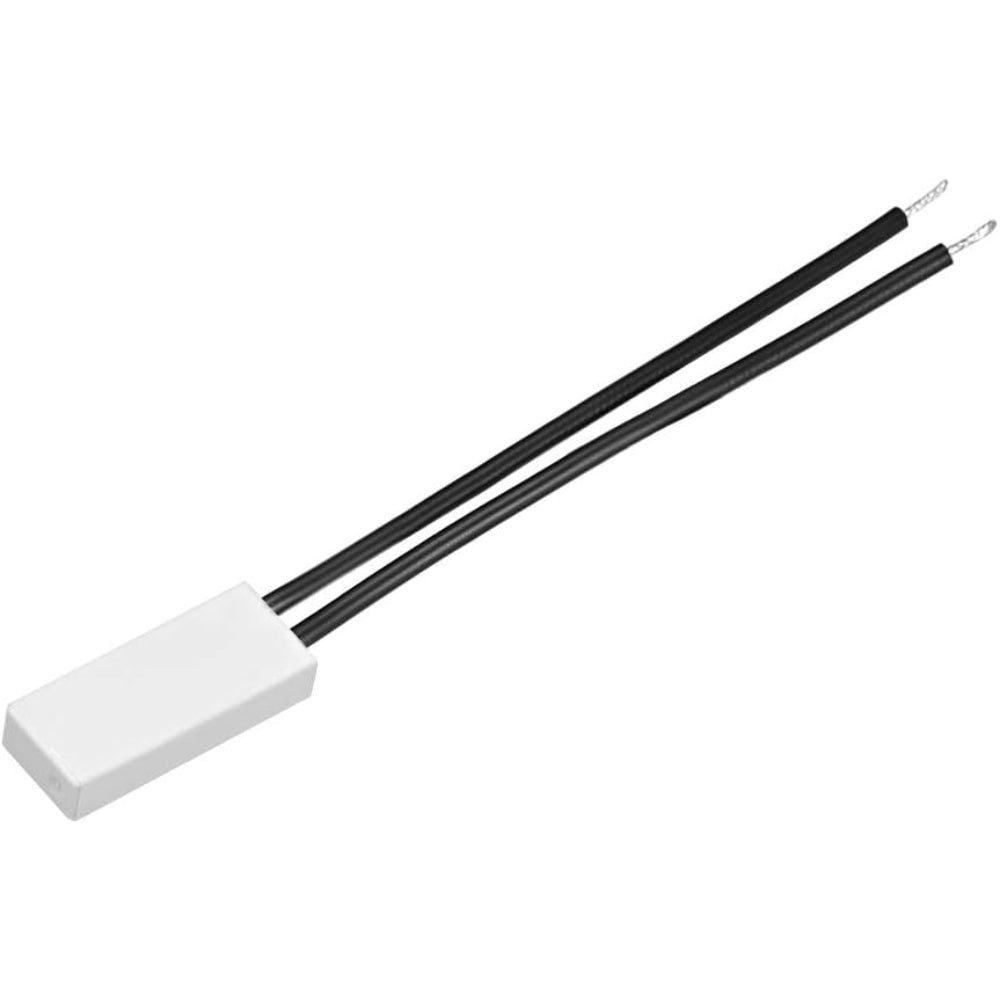

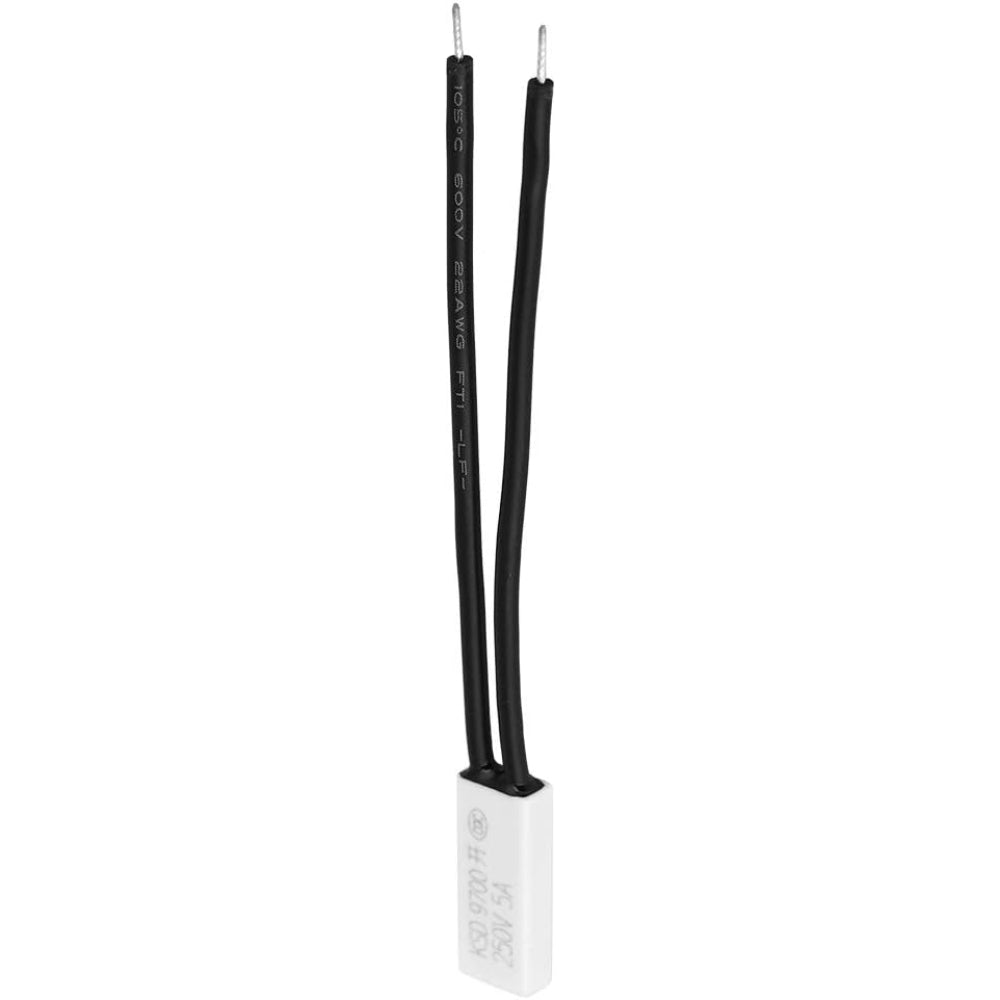

45 Degrees KSD9700 Metal Temperature Control Switch 250V 10A Normally Closed With Hole
The 45°C KSD9700 Metal Temperature Control Switch is a reliable thermal protector designed for temperature-sensitive applications. It operates at 45°C (±3°C) and features a Normally Closed (NC) contact, meaning the circuit remains closed under normal conditions and opens when the temperature reaches 45°C to prevent overheating. This ensures effective thermal regulation, making it ideal for motors, transformers, and heating systems.Encased in a durable stainless steel housing, this switch offers excellent heat conduction and long-lasting performance. With a rated voltage of 250V AC and a current capacity of 10A, it is suitable for a wide range of industrial and household applications. The auto-reset function restores the switch to its original state once the temperature drops, ensuring continuous protection. Its compact design, fast response time, and high durability make it a dependable solution for overheating prevention.
Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
Technical Details
- Item Type: Temperature Control Switch
- Model: KSD9700
- Operating Temperature: 45°C (±3°C)
- Contact Type: Normally Closed (NC) – Opens at 45°C
- Rated Voltage: 250V AC
- Operating Current: 10A
- Housing Material: Metal (Stainless Steel)
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: ≥1500V AC/min
- Response Speed: Fast heat response
- Lifespan: ≥100,000 cycles
- Cable Length: 70 mm
- Dimensions: 20 x 9 x 5 mm
- Weight: 3g
Features
- Operates at 45°C (±3°C) for precise thermal protection
- Normally Closed (NC) – opens at 45°C to prevent overheating
- Supports 250V AC and 10A current rating
- Durable stainless steel housing for efficient heat conduction
- Fast response time ensures quick activation
- Auto-reset function restores operation when temperature drops
- Compact and lightweight design for easy installation
- Long lifespan of ≥100,000 cycles
- Suitable for various electrical and industrial applications
Applications :
- Overheat protection in transformers and electrical components
- Temperature regulation in motors and batteries
- Safety feature in household and industrial appliances
- HVAC systems for temperature monitoring
- Automotive applications for engine temperature control
Physical Attributes
- Cable Length: 70 mm
- Dimensions: 20 x 9 x 5 mm
- Weight: 3g
Package Includes
- 1 x 45 Degrees KSD9700 Metal Temperature Control Switch 250V 10A Normally Closed With Hole
