KSD302 Temperature Control Switch 90 Degree Normally Open, 16A 250V AC Thermostat

KSD302 Temperature Control Switch 90 Degree Normally Open, 16A 250V AC Thermostat

The KSD302 Temperature Control Switch is a high-performance bimetal thermostat designed to regulate temperature with accuracy and reliability. This model is configured as Normally Open (NO), meaning the circuit remains open during standard operation and closes when the ambient temperature reaches 90°C, allowing current to flow. It is ideal for activating heating systems, triggering ventilation fans, or other devices where automatic temperature-based switching is required. The switch ensures fast response times and long-term durability thanks to its snap-action mechanism and quality metal housing.

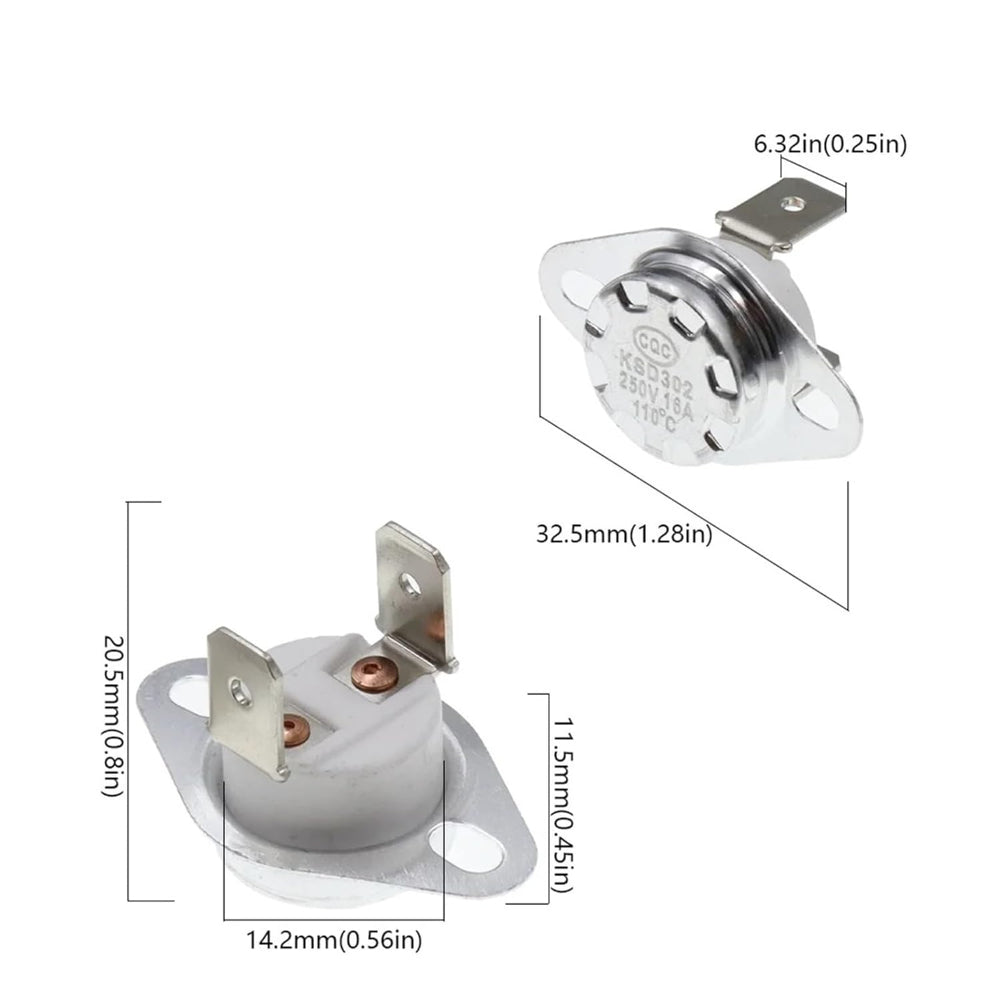

With a current rating of 16A at 250V AC, the KSD302 is well-suited for medium to high-power electrical applications. Its compact form factor, including a 32.5mm mounting width, 14.2mm base diameter, and 6.32mm terminal size, allows for easy installation in tight spaces. The unit's sturdy construction and thermal sensitivity make it a reliable component for use in household appliances, industrial machines, and HVAC systems where thermal safety and performance matter most.

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details
