CL11 Polyester Film Capacitor 2A221J 0.00022µF 220pF 100V
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-33%

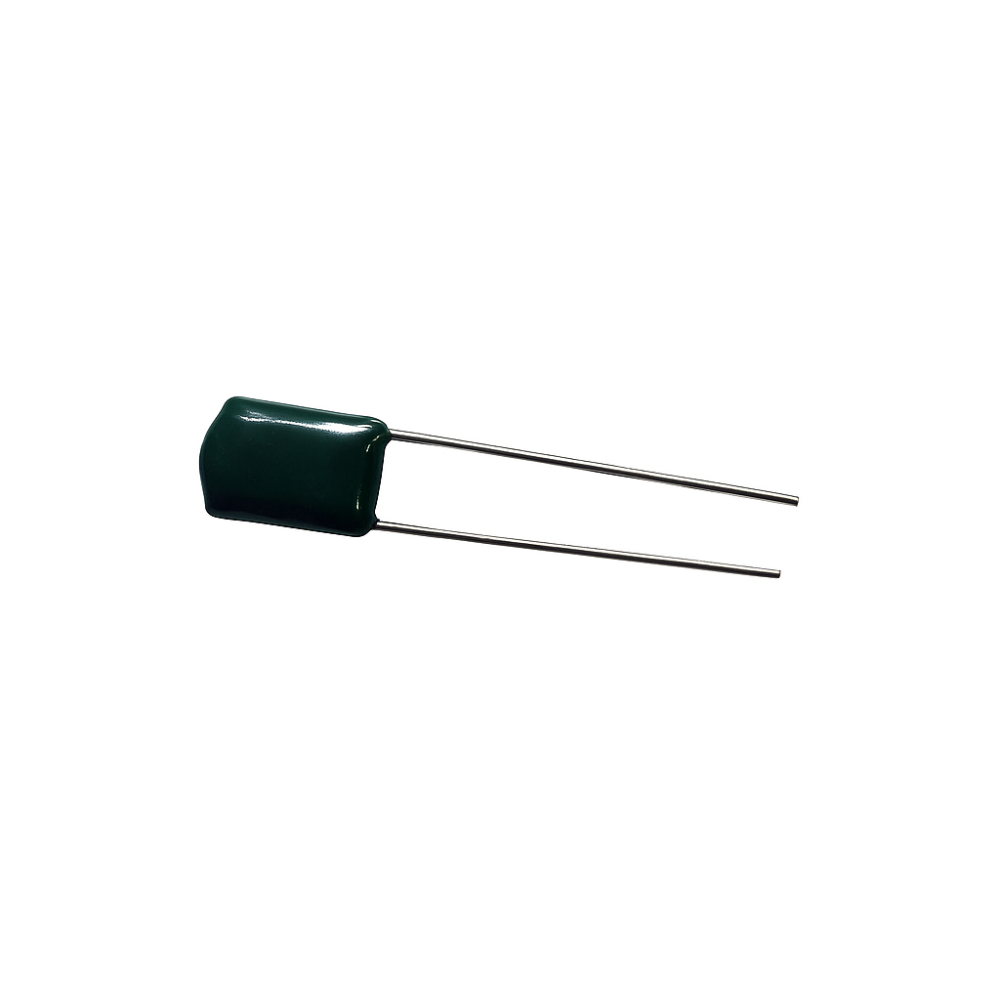

CL11 Polyester Film Capacitor 2A221J  220pF 100V-1

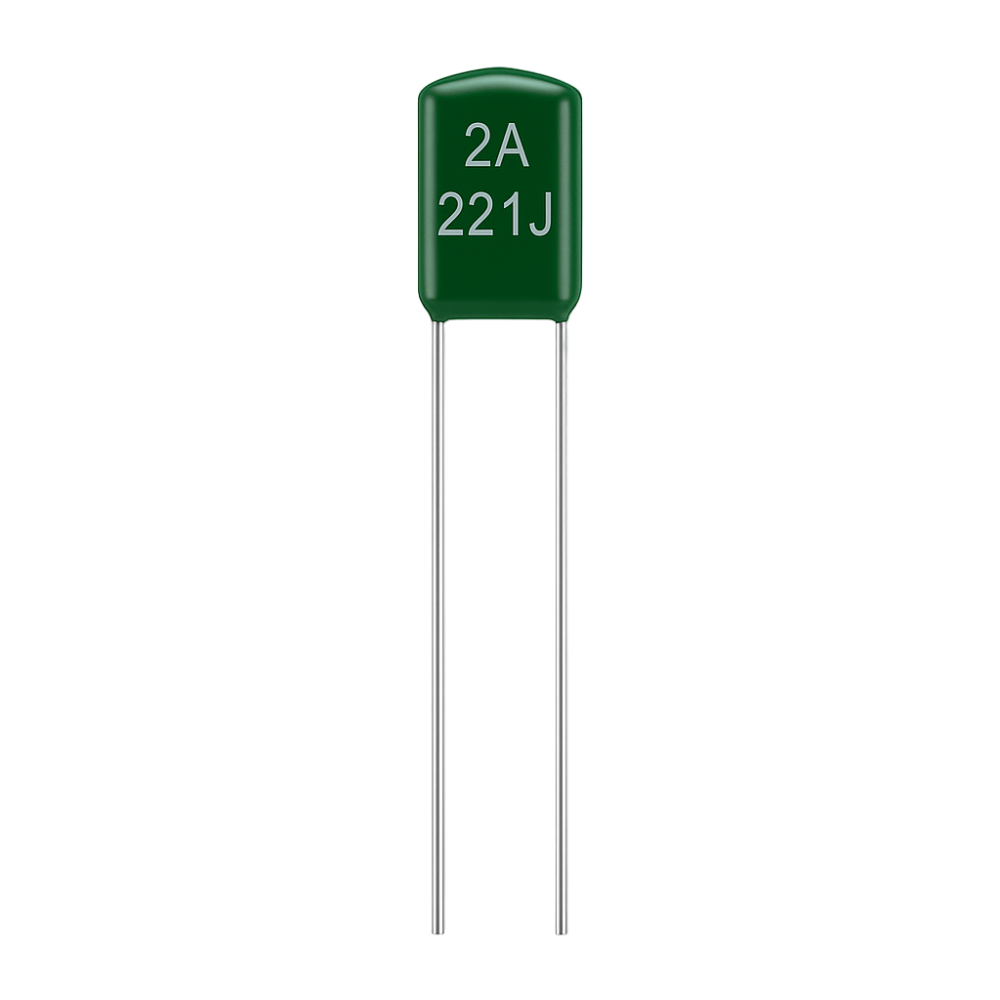

CL11 Polyester Film Capacitor 2A221J  220pF 100V-2

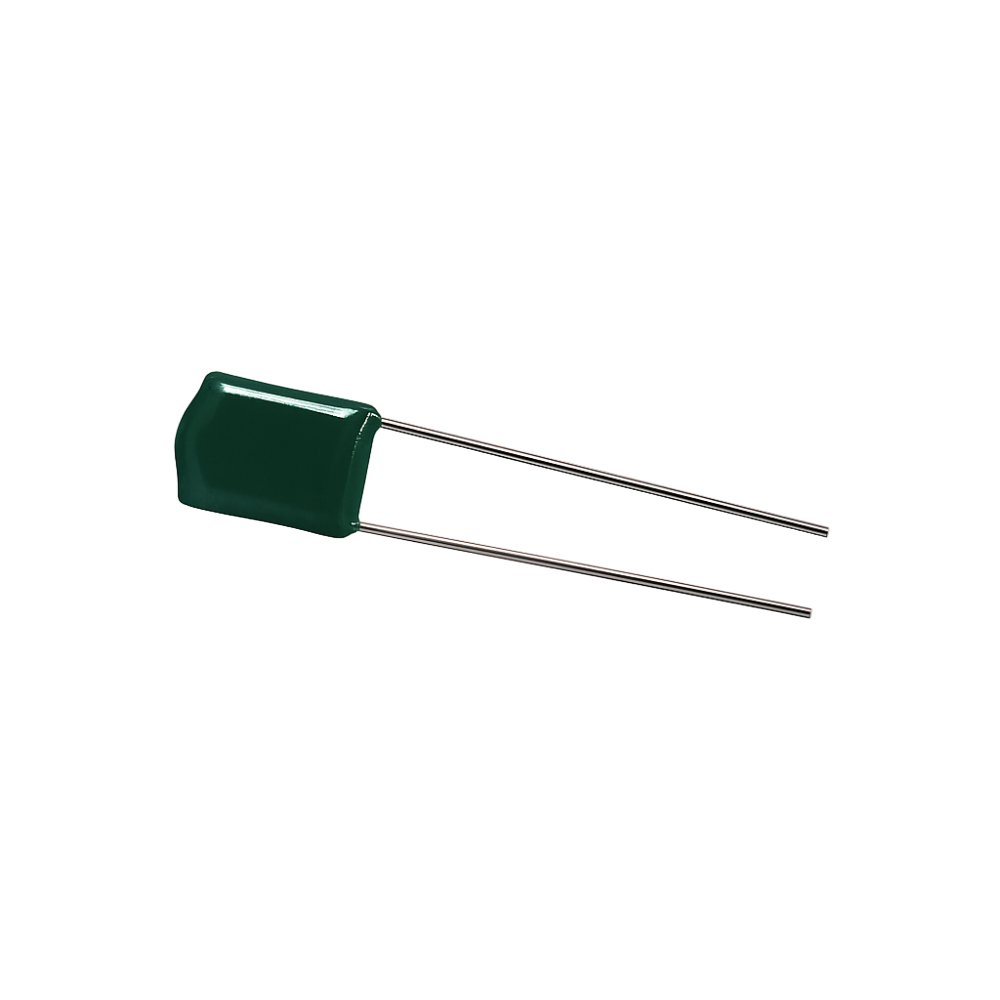

CL11 Polyester Film Capacitor 2A221J  220pF 100V-3

CL11 Polyester Film Capacitor 2A221J 0.00022µF 220pF 100V

Available:In Stock
  • Product SKU: CAPAC104
Wishlist
₹ 6 ₹ 9
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 220pF ±5% Capacitance
  • 100V DC Rated
  • Low Loss & Stable
  • High Insulation
  • Through-Hole Mount
  • Compact & Reliable
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
34 E - 133 G
Secure

Specification

Description

CL11 Polyester Film Capacitor 100V 2A221J – 0.00022µF 220pF ±5%

The CL11 Polyester Film Capacitor 100V 2A221J is a compact metallized polyester film capacitor with a capacitance value of 0.00022µF (220pF) and a rated voltage of 100V.

It is ideal for signal coupling, decoupling, filtering, and timing circuits where small capacitance values are required. Its ±5% tolerance, low dielectric loss, and high insulation resistance make it perfect for use in precision circuits and general-purpose electronic applications.

Features

  • Metallized polyester film construction for reliability
  • Stable capacitance with ±5% tolerance
  • Low dielectric absorption and high insulation resistance
  • Rated for 100V DC applications
  • Compact through-hole mounting design

Technical Details

  • Capacitance: 0.00022µF (220pF)
  • Rated Voltage: 100V DC
  • Tolerance: ±5% (J)
  • Dielectric: Metallized Polyester Film
  • Lead Pitch: 5 mm (typical)
  • Operating Temperature: −40°C to +85°C

Physical Attributes

  • Body Shape: Rectangular, radial leads
  • Body Length: ~5–6 mm
  • Body Height: ~5 mm
  • Body Thickness: ~3 mm
  • Lead Diameter: 0.5 mm
  • Lead Length: 22 mm
  • Mounting Type: Through-hole
  • Weight: < 1 g

Applications

  • Signal coupling and decoupling circuits
  • Filtering in RF and low-current signal paths
  • RC timing networks and oscillators
  • Snubber and pulse circuits
  • General-purpose low-capacitance electronic circuits

Package Includes

  • 1 × CL11 Polyester Film Capacitor 100V 2A221J – 0.00022µF ±5%
