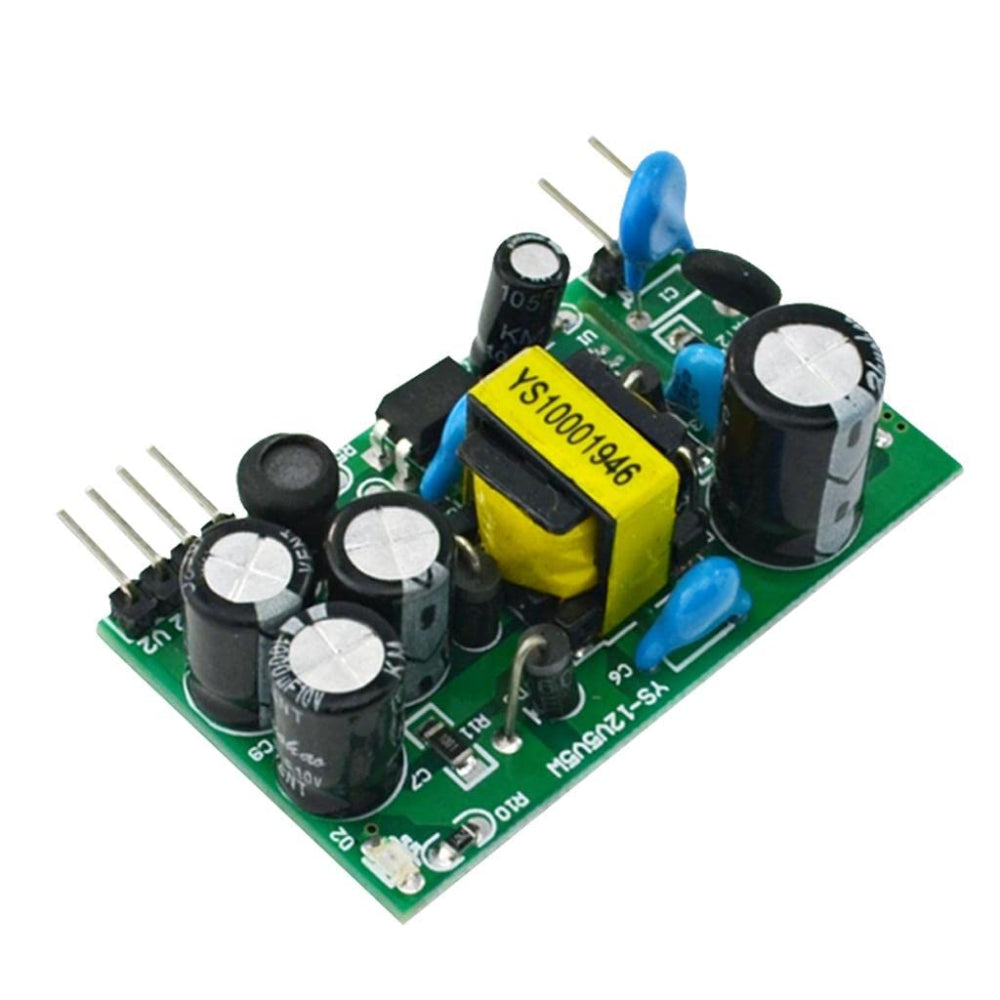

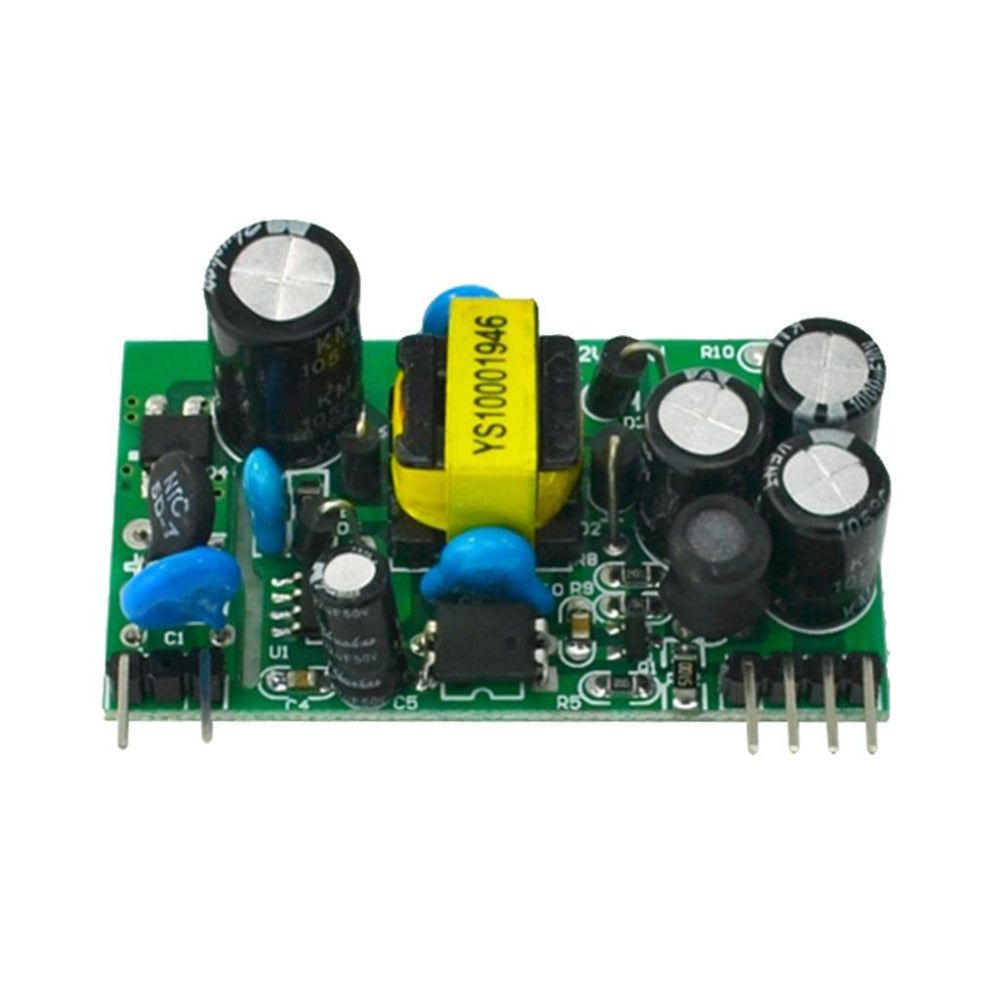

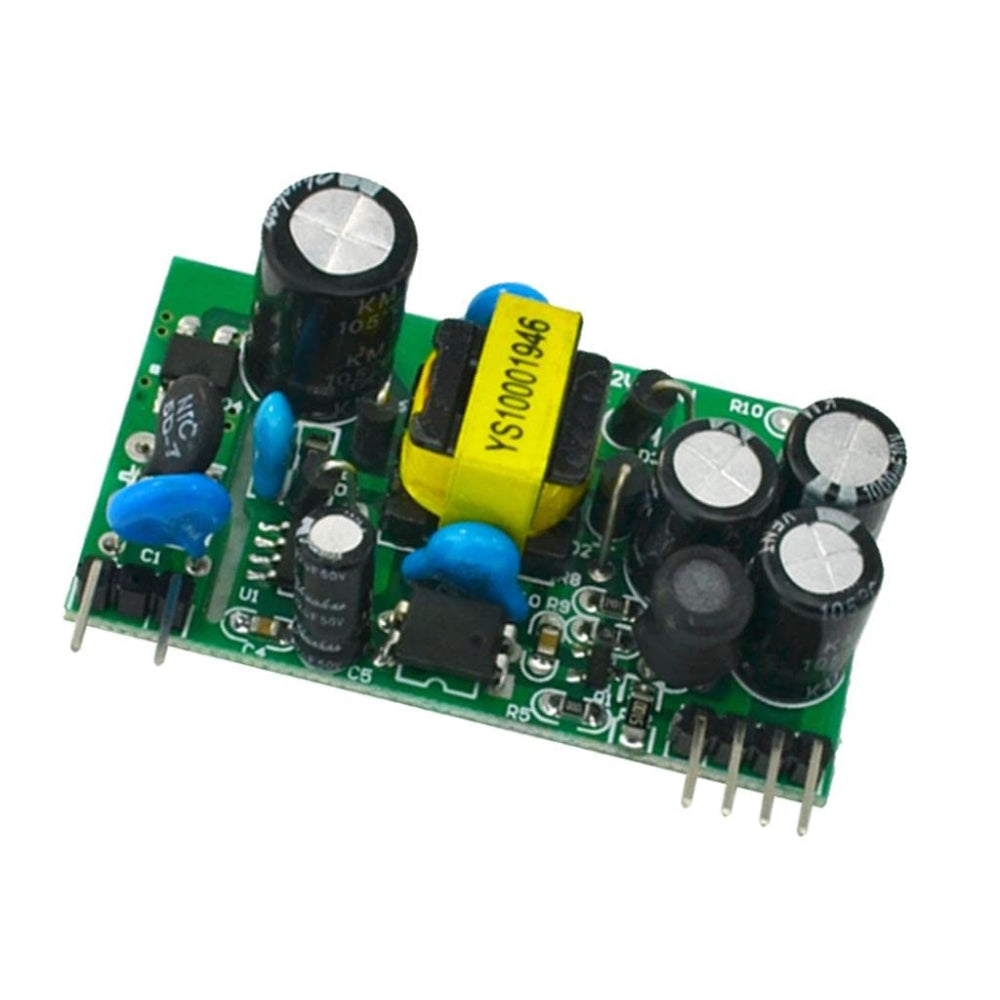

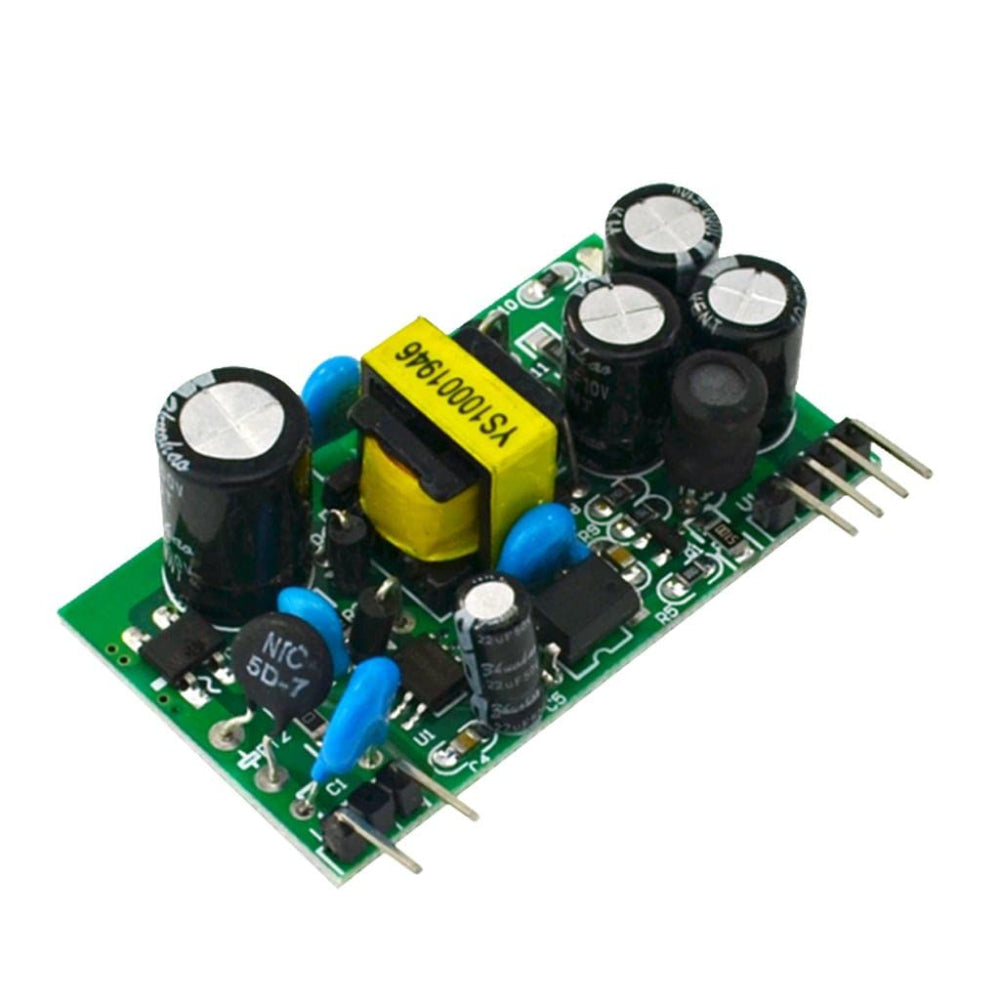

12V 250mA / 5V 300mA AC-DC Module 220V to 12V / 5V Isolated Switching Power Supply Module

This industrial-grade isolated AC-DC power supply module provides dual regulated DC outputs: 12V and 5V. It supports a wide input voltage range of AC 85–265V (50/60Hz) and is designed with a compact footprint for easy integration into electronics projects.

The module includes built-in over-temperature, over-current, and short-circuit protection. It also features high/low voltage isolation, an EMI filter circuit for stable output performance, an indicator LED, and mounting holes for secure installation—making it a cost-effective solution for embedded and DIY applications.

Technical Details

  • Input Voltage: AC 85–265V (50/60Hz)
  • Output Voltage: DC 5V / 12V (±0.2V)
  • Output Current: 12V 250mA / 5V 300mA
  • Type: Dual output isolated AC-DC switching power module
  • Protection: overload, short circuit, and over-temperature protection
  • EMI Filtering: input and output EMI filter circuit
  • Indicator: power status LED
  • Mounting: mounting holes provided

Features

  • Wide input voltage range (AC 85–265V)
  • Overload, short-circuit, and over-temperature protection
  • Small size with high efficiency
  • Full-load burn-in test protection
  • High/low voltage isolation for improved safety
  • EMI filter circuit for stable and low-noise output
  • Indicator LED and mounting holes for easy installation

Physical Attributes

  • Length × Width × Height (mm): 50 × 30 × 20
  • Weight (g): 19

Package Includes

  • 1 × 12V 250mA / 5V 300mA AC-DC Isolated Switching Power Supply Module
