12V 300mA Power Supply Module
This is an isolated power supply, meaning the AC input side is electrically isolated from the DC output side for improved safety. With industrial-grade build quality, built-in protection features, and a precision voltage stabilizer, this module is a cost-effective solution for reliable 12V power.
12V 300mA Power Supply Module
Available:In Stock
- Product SKU: KG139
₹ 249
₹ 399
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description

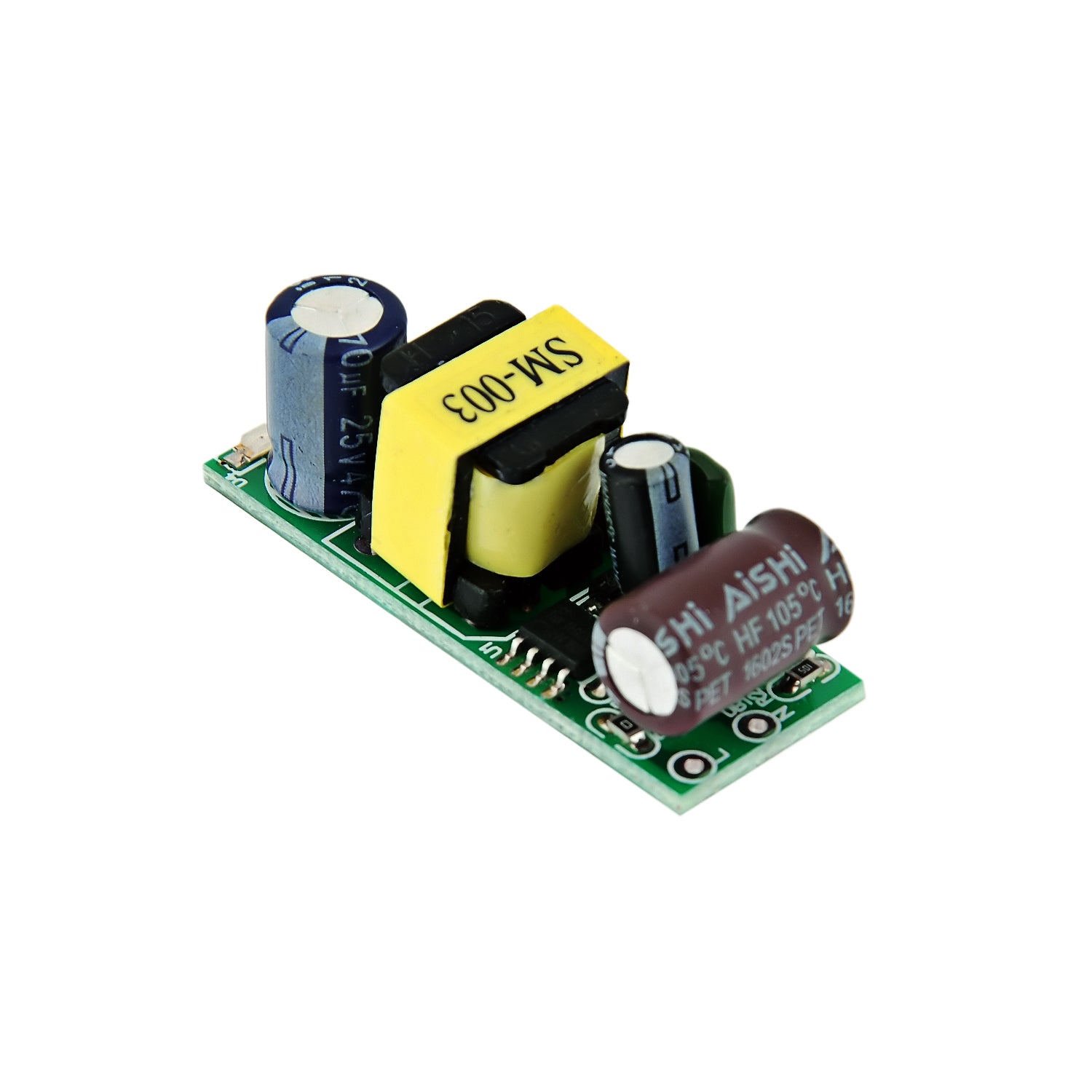

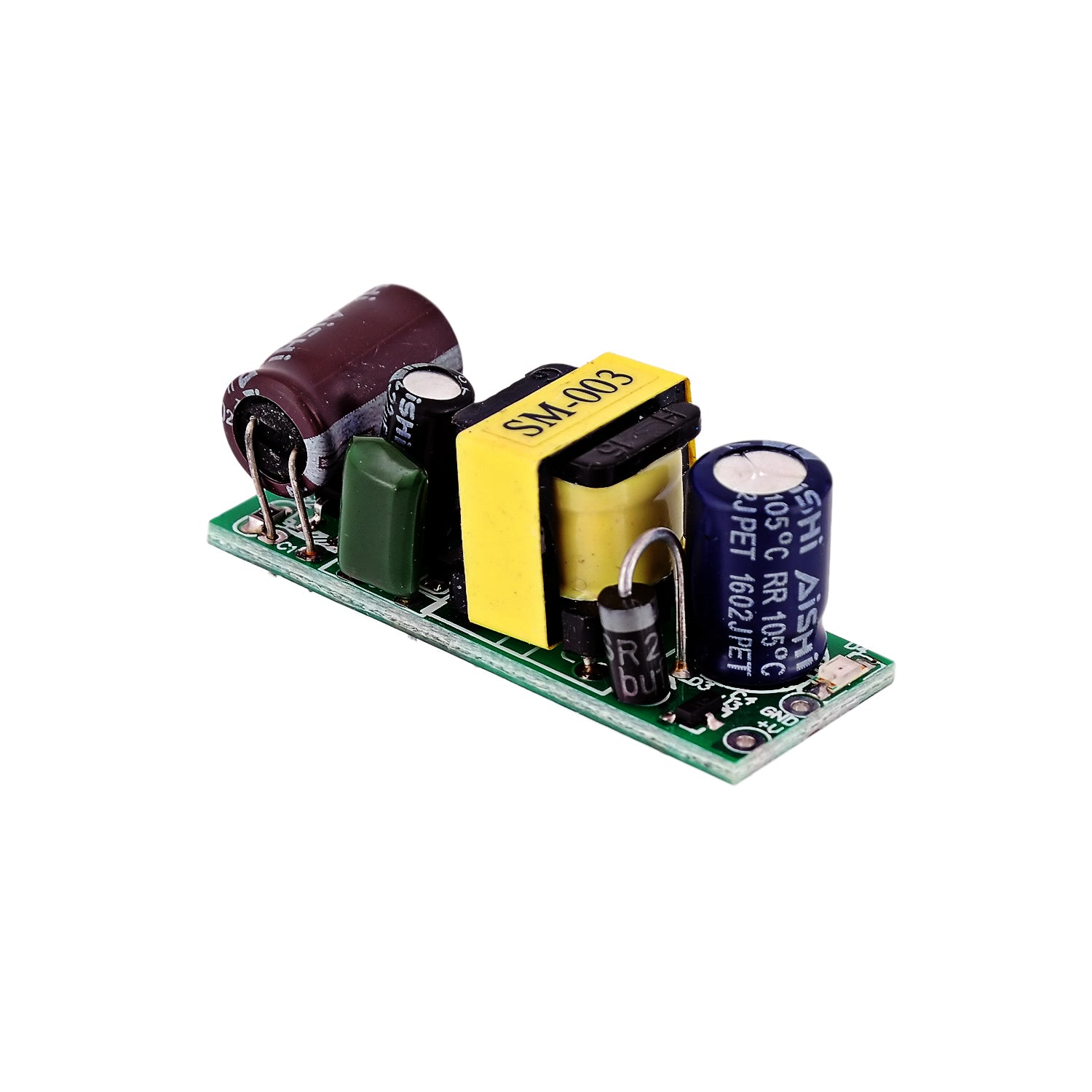

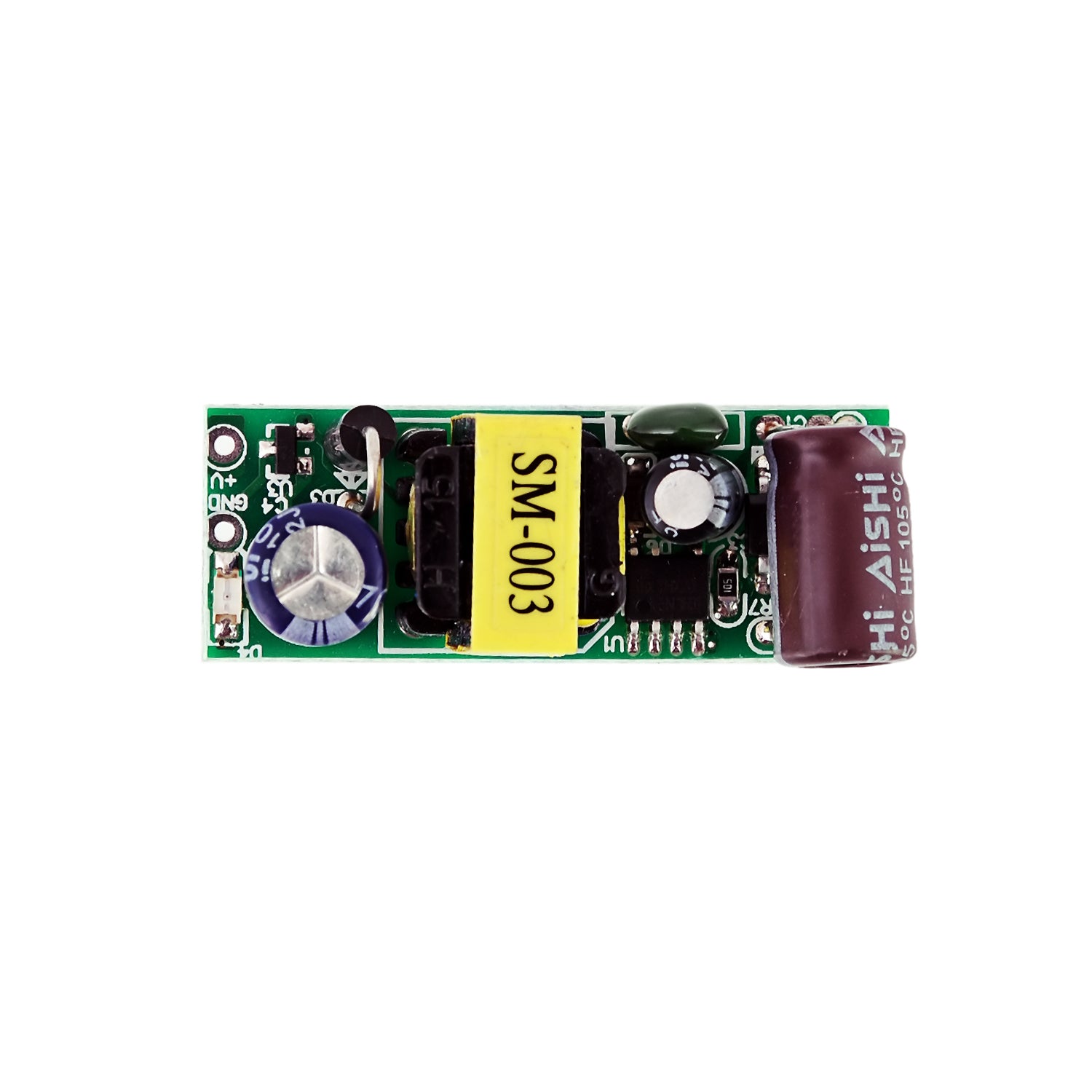

12V 300mA Power Supply Module (5W) – Isolated AC-DC Step-Down
The 12V 300mA Power Supply Module is a compact AC-to-DC converter that delivers a regulated 12V DC output at up to 300mA, with a maximum power output of 5W. It is suitable for powering small LED strips and low-power 12V electronics where space is limited.This is an isolated power supply, meaning the AC input side is electrically isolated from the DC output side for improved safety. With industrial-grade build quality, built-in protection features, and a precision voltage stabilizer, this module is a cost-effective solution for reliable 12V power.
Technical Details
- Model: Power Supply Module
- Input Voltage: 220V AC
- Output Voltage: 12V DC
- Output Current: 300mA
- Output Power: 5W (max)
- Protection: overload, short circuit, over-temperature
- Type: Isolated AC-DC power module
Features
- Wide input voltage range
- Overload, short-circuit, and over-temperature protection
- Small size with high efficiency
- Industrial-grade build quality
- Full-load burn-in test protection
- Suitable for LED strips and low-power 12V devices
Applications
- LED strips (low-power)
- DIY electronics and embedded systems
- Small 12V modules, sensors, and controllers
- Automation and indicator lighting projects
Physical Attributes
- Length: 30mm
- Width: 20mm
- Height: 15mm
- Weight: 10g
Package Includes
- 1 × 12V 300mA Power Supply Module
