Industrial Grade 2000W Switching Power Supply 0–60V Adjustable
![12V 2000W High-Efficiency Industrial-Grade AC to DC Switching Power Supply]()
![12V 2000W High-Efficiency Industrial-Grade AC to DC Switching Power Supply_1]()
![Industrial Grade 2000W Switching Power Supply 0–60V Adjustable]()
![12V 2000W High-Efficiency Industrial-Grade AC to DC Switching Power Supply]()
![12V 2000W High-Efficiency Industrial-Grade AC to DC Switching Power Supply_1]()
![Industrial Grade 2000W Switching Power Supply 0–60V Adjustable]()
For protection and reliability, the SE-2000-60 includes overload protection (105%–150% cutoff with auto recovery), thermal stability with a temperature coefficient of ±0.03%/°C (0–5°C), and startup parameters of 200ms (start), 50ms (rise), and 20ms (hold). Built to endure industrial conditions, it withstands vibrations from 10–500Hz at 2G for up to 60 minutes. This robust unit is an ideal choice for high-power applications requiring consistent voltage, dependable protection, and efficient power delivery.
-25%
Industrial Grade 2000W Switching Power Supply 0–60V Adjustable
Available:In Stock
- Product SKU: KG1208
₹ 29,000
₹ 39,000
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
Industrial Grade 2000W Switching Power Supply 0–60V Adjustable

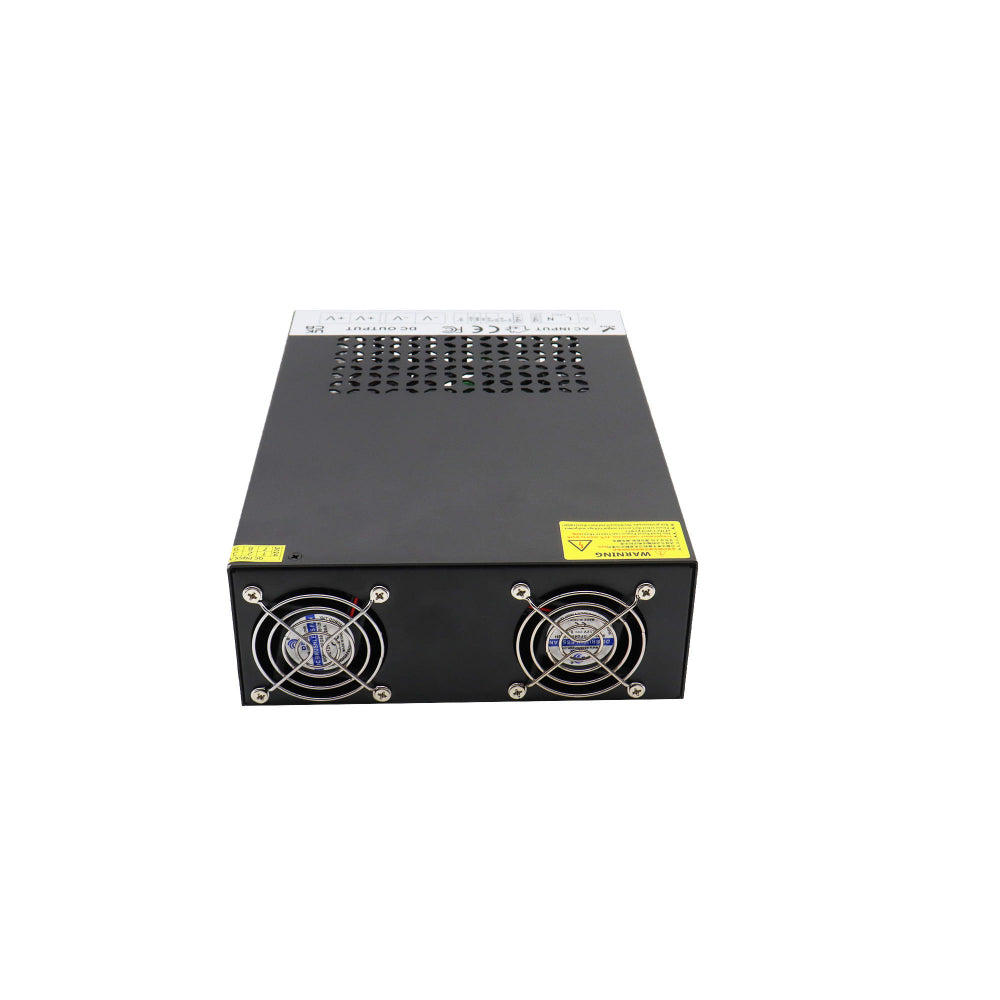

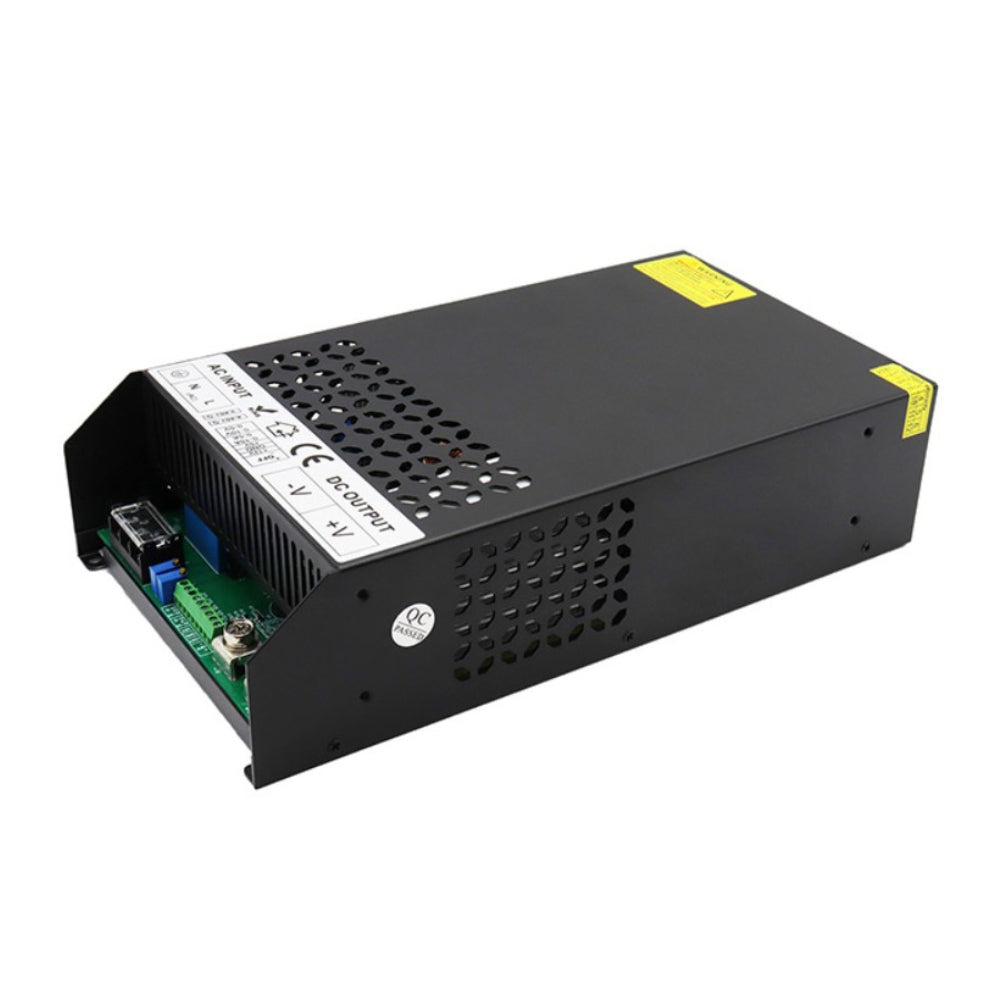

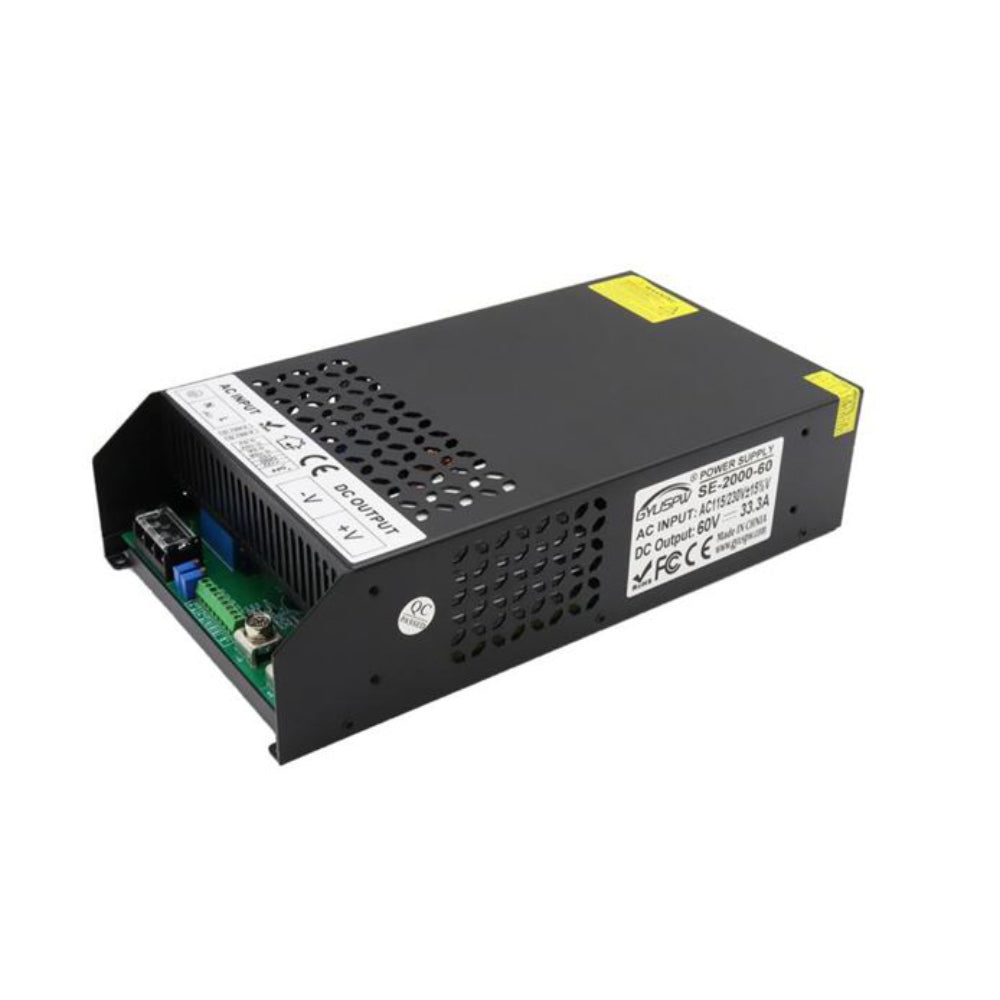

The SE-2000-60 is a high-performance industrial-grade DC power supply delivering a regulated output of 60V ±0.5% with a maximum power capacity of 2000W. It supports a rated output current of up to 33.3A and ensures superior stability with line and load regulation both within ±0.5%. The power supply features low output ripple of <500mVp-p, making it suitable for sensitive electronic applications. Designed to operate from a wide input voltage range of AC185–265V at 50–60Hz, it maintains efficiency greater than 85%, even under full load conditions.For protection and reliability, the SE-2000-60 includes overload protection (105%–150% cutoff with auto recovery), thermal stability with a temperature coefficient of ±0.03%/°C (0–5°C), and startup parameters of 200ms (start), 50ms (rise), and 20ms (hold). Built to endure industrial conditions, it withstands vibrations from 10–500Hz at 2G for up to 60 minutes. This robust unit is an ideal choice for high-power applications requiring consistent voltage, dependable protection, and efficient power delivery.
Technical Details
- Model: SE-2000-60
- DC Output Voltage: 60V ±0.5%
- Rated Output Current: 33.3A Max
- Ripple Factor: <500mVp-p
- Line Stability: ±0.5%
- Load Stability: ±0.5%
- DC Output Power: 2000W Max
- Efficiency: >85%
- Input Voltage: AC185–265V 50–60Hz
- Input Current: 18.2A
- Overload Protection: 105%–150%, Type: Cut off output, Reset: Auto recovery
- Temperature Coefficient: ±0.03%℃ (0–5℃)
- Start, Rise, Hold Time: 200ms, 50ms, 20ms
- Earthquake Resistance: 10–500Hz, 2G 10min/one cycle, Time: 60 minutes
- Resistance to Pressure: Input–Output/Shell: 1.0KVAC, Output–Shell: 1.0KVAC
- Isolation Resistance: 500VDC / 100MΩ (Input–Output/Shell)
- Working Temperature & Humidity: -10℃ to +60℃, 20%–90%RH
- Storage Temperature & Humidity: -20℃ to +85℃, 10%–95%RH
- Power Supply Size: 280 × 155 × 70mm
- Weight: 2.5kg/pcs
- Standard: CE / RoHS / UKCA / FCC
Features
- 60V ±0.5% regulated DC output
- Up to 33.3A output current
- Maximum power: 2000W
- Line & load regulation: ±0.5%
- Low ripple: <500mVp-p
- High efficiency: >85%
- Wide input range: AC185–265V, 50–60Hz
- Overload protection with auto recovery (105%–150%)
- Temperature coefficient: ±0.03%/°C (0–5°C)
- Startup time: 200ms start, 50ms rise, 20ms hold
- Vibration resistance: 10–500Hz, 2G, 60 minutes
- Ideal for industrial high-power applications
Applicatios
- LED strip lighting systems
- LED downlights and panel lights
- CNC machines and automation equipment
- CCTV surveillance systems
- DC motors and industrial machinery
- Power supply for workshops and manufacturing plants
Physical Attributes
- Dimension: 280 × 155 × 70 mm
- Weight (gm) : 2808
Package Includes
- 1 x Industrial Grade 2000W Switching Power Supply 0–60V Adjustable
