Ultra Small AC-DC 85-265V to DC 5V Power Module 2.5W
Available:In Stock
- Product SKU: KG409
₹ 129
₹ 199
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description

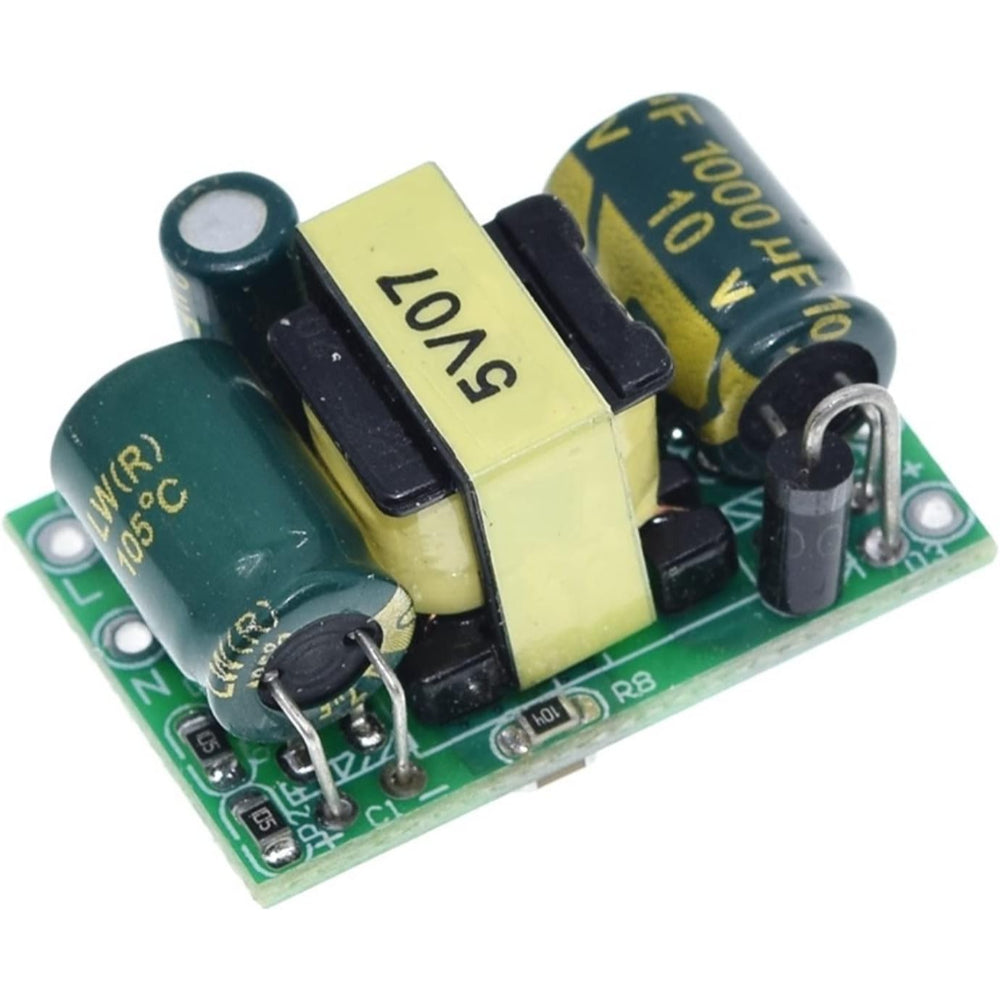

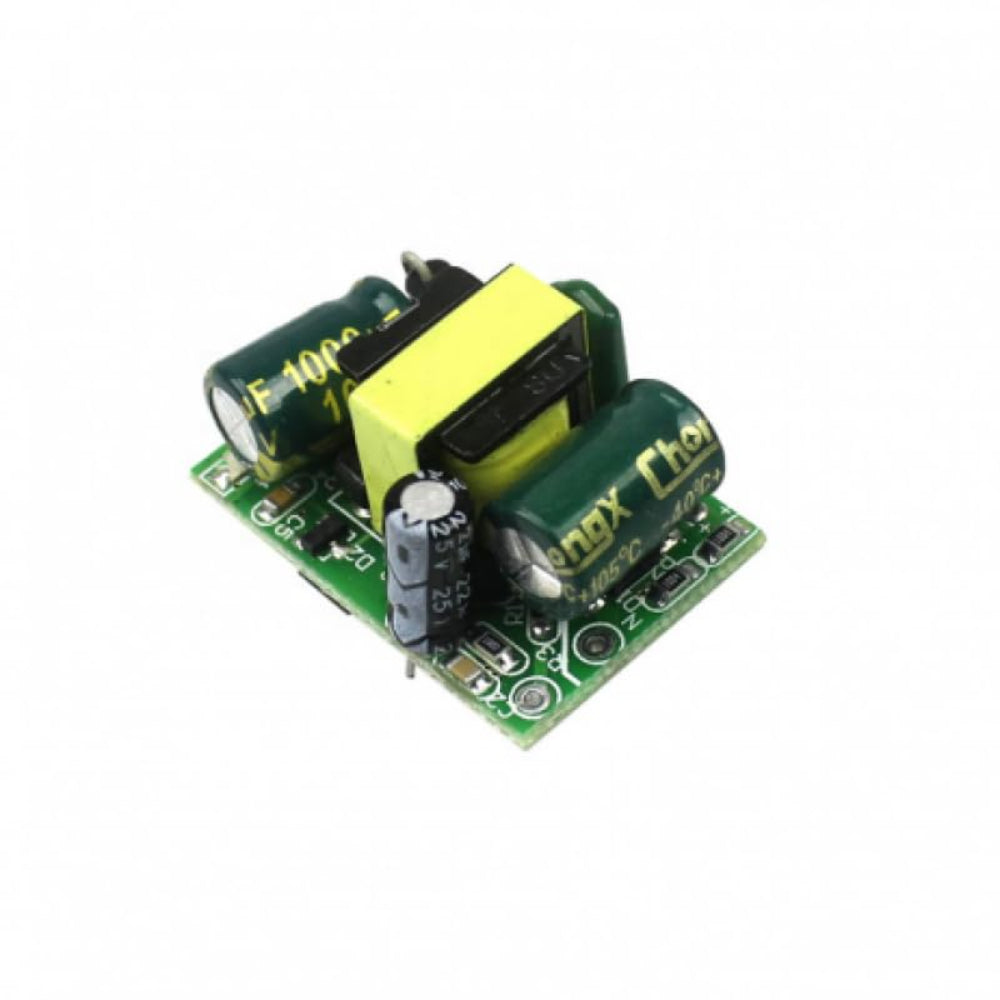

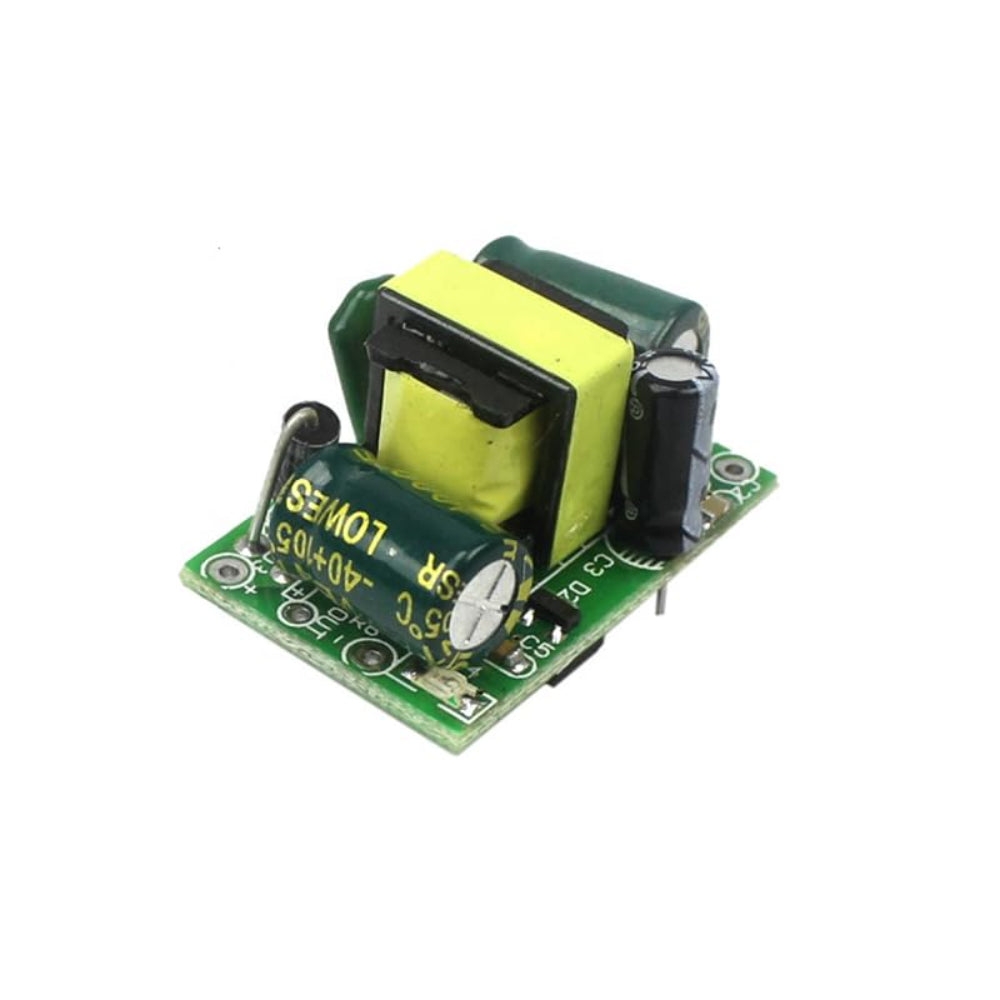

Ultra Small AC-DC 85–265V to DC 5V Power Module (2.5W) – 5V 500mA
This ultra-small AC to DC power module provides a stable 5V DC output up to 500mA, making it ideal for DIY electronics and embedded projects that operate on 5V. With a maximum power rating of 2.5W, it offers a compact and cost-effective solution where space is limited.
The module features low ripple and noise, high efficiency, and built-in overload/short-circuit protection. It is designed to meet EMC and safety requirements, and its ultra-thin footprint makes it easy to integrate into compact enclosures and control boards.
The module features low ripple and noise, high efficiency, and built-in overload/short-circuit protection. It is designed to meet EMC and safety requirements, and its ultra-thin footprint makes it easy to integrate into compact enclosures and control boards.
Features
- Ultra-thin and ultra-small size
- Wide input voltage range (85–265V AC)
- Low ripple and low noise output
- Output overload and short-circuit protection
- High efficiency and high power density
- Designed to meet EMC and safety test requirements
- Low power consumption
- Environment-friendly design
- Meets UL and CE requirements
Specifications
- Input Voltage: 220 VAC
- Output Voltage: 5V DC
- Max Output Current: 0.5A
- Output Power: 2.5W (Max.)
Physical Attributes

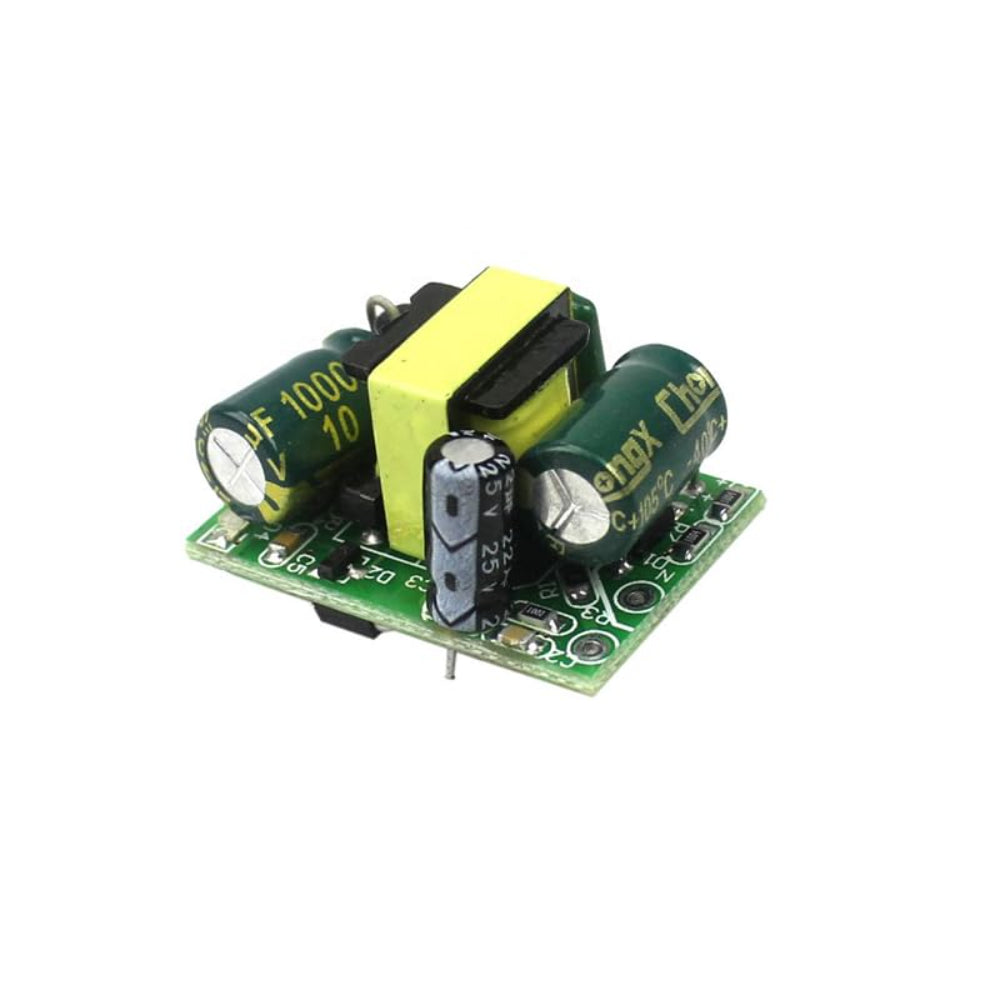

- Dimensions (L × W × H): 30 × 20 × 15 mm
- Weight: 10 g
Important Notes
- Mains safety: This module connects to high-voltage AC. Use proper insulation and enclosure. Do not touch live terminals.
- For better life and reduced heating, avoid continuous operation at maximum load in sealed enclosures.
- Always confirm output polarity (+5V and GND) before connecting your circuit.
Package Includes
- 1 × AC-DC 5V 500mA (2.5W) Isolated Switching Power Supply Module (220V to 5V)
