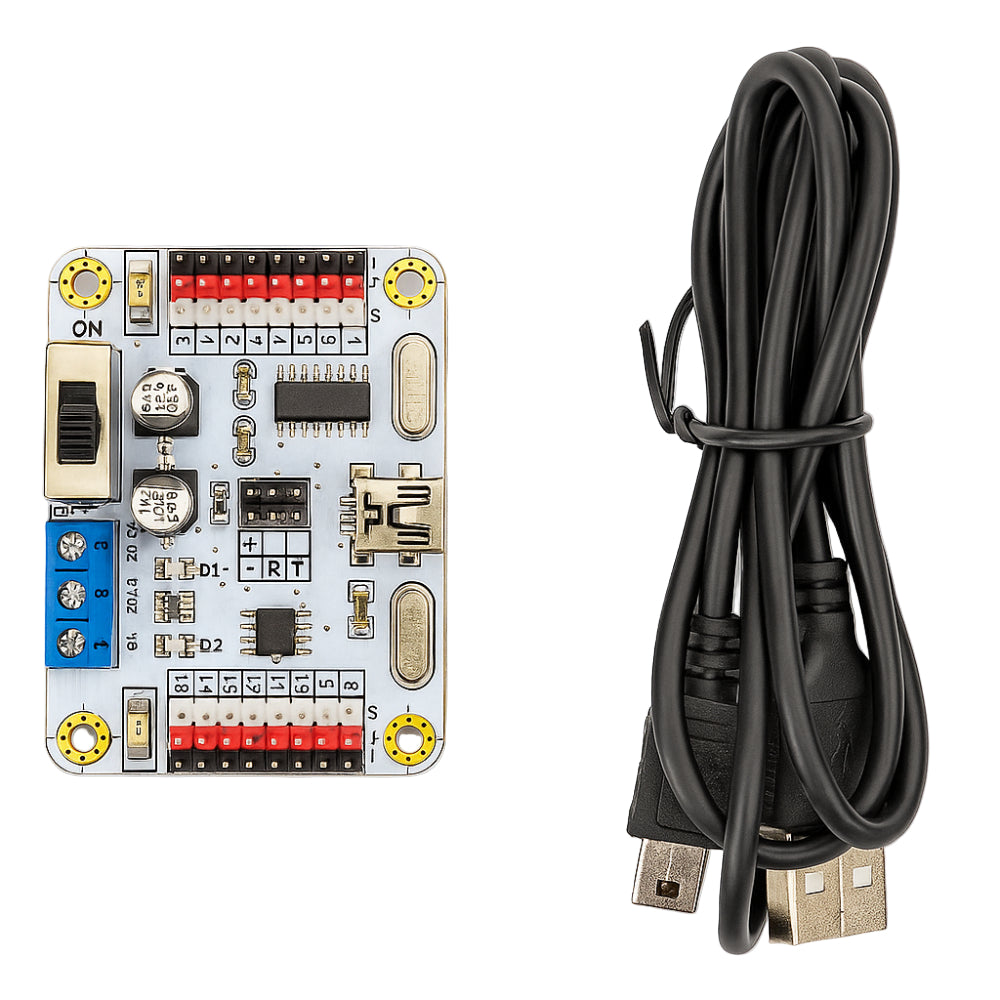

16 Channel Servo Motor Controller Robot Servo Driver

16 Channel Servo Motor Controller Robot Servo Driver

Available:Out of Stock

Product SKU: KG358

Wishlist

₹ 1,693 ~~₹ 1,999~~

Pre-order

Specification

Description

The servo controller can run online debugging steering gear, you can save the download action group, realize off-line operation!PC software can provide 128 (0-127) group action preservation, in which each group action can save 256 actions.

This is the newly upgraded controller board. Up to 16 servo motors can be controlled at the same time, either by using software on a PC, or UART communication ( TTL serial port) of MCU (51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering.

Features

Controlling MCU power supply: 6.5-12 V or 3.5-5.5V. (USB can be used to power the chip on the servos board. And it can be chosen automatically. With the USB reverse protection, it can protect your computer from being hurt by the reverse USB.)
Servos power supply: DC (depends on the motors, generally 5V DC)
Control channels: 16. (can be controlled at the same time and the accuracy can be adjusted)
Communication Input: USB or UART (TTL or USART). (The Bluetooth or some other wireless module can be used to make the controlling)
Signal Output: PWM (Accuracy 1us).
Servo motor resolution: 1us, 0.09 degrees.
Baud Rate: 9600,19200,28400,57600,115200,128000(recognized automatically)
Servo motors supported: Futaba, Hitec, or some other Servos Motor controlled by PWM.
Control mode: USB and UART (TTL) to accept the command. (Comes with USB data wire and PC controlling software)
Flash: onboard 512K ROM(If every command is used to control the motors at the same time, more than 500 commands can be saved.)
