BME680 Environmental Sensor Module (CJMCU-680) – Temperature, Humidity, Pressure & VOC

This BME680 Environmental Sensor Breakout Board is a high-precision, low-power module that can measure temperature, humidity, barometric pressure, and VOC gas levels with excellent accuracy. It includes both SPI and I²C interfaces, making it easy to integrate with popular microcontrollers (Arduino, ESP8266) and SBCs (Raspberry Pi).

The sensor provides ±3% humidity accuracy, ±1 hPa barometric pressure accuracy, and ±1 °C temperature accuracy, allowing altitude estimation within ±1 m. The VOC sensor works by monitoring changes in internal resistance, making it ideal for air quality monitoring and environmental projects.
Note: It should not be used for any safety, medical, or finished product usage. All gas sensors require calibration for precision output.

Features

  • Measures Temperature, Humidity, Barometric Pressure, and VOC Gas
  • Supports I²C and SPI communication interfaces
  • High precision: ±3% RH (humidity), ±1 hPa (pressure), ±1 °C (temperature)
  • Altitude estimation with ±1 m accuracy based on pressure
  • Low-power operation, suitable for battery-powered IoT applications
  • Compact 1.6 mm PCB, breadboard-friendly design
  • 6-pin header included (soldering required)

Technical Details

  • Item Type: Sensor
  • Model Type: Environmental Sensor
  • Model No.: CJMCU-680
  • Sensor: Bosch BME680
  • Operating Voltage: 5 V DC
  • Interfaces: I²C, SPI

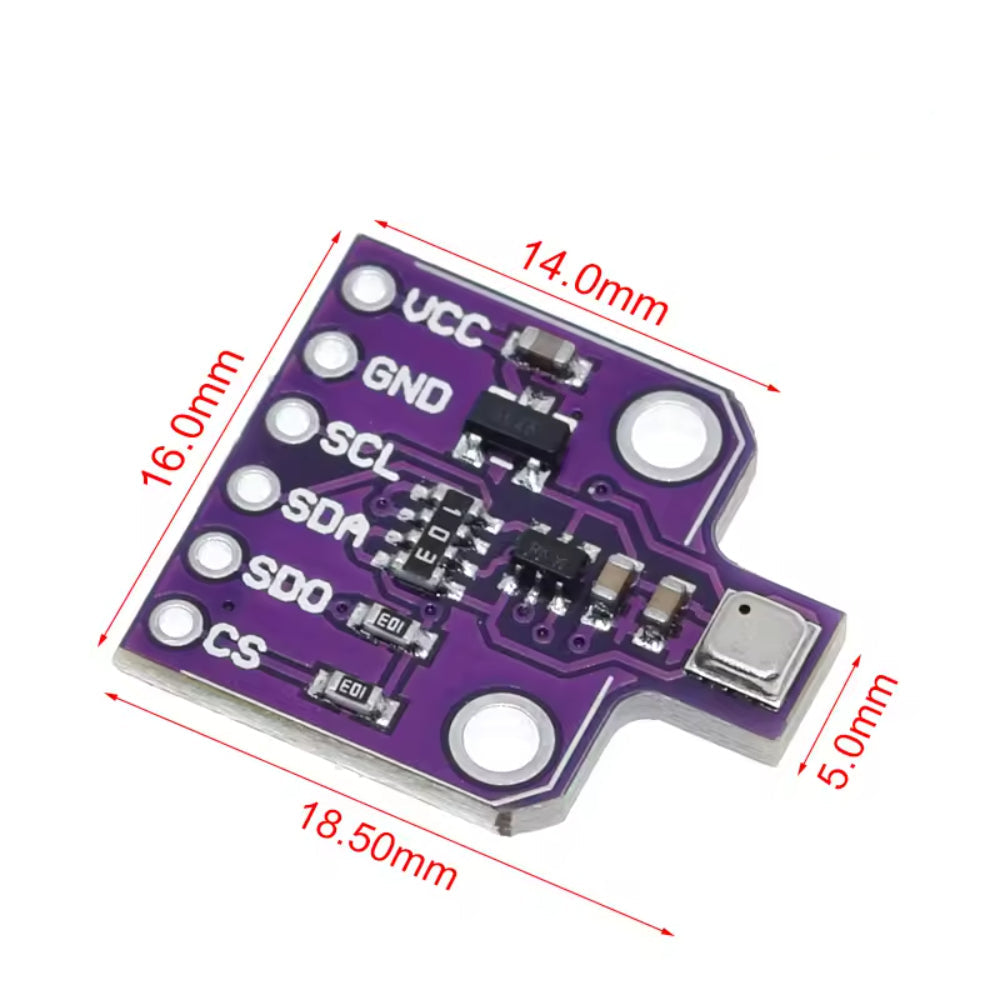

  • Length: 18 mm
  • Width: 16 mm
  • PCB Thickness: 1.6 mm
  • Development Board: CJMCU-680

Applications

  • Indoor Air Quality Monitoring
  • Weather Stations and Environmental Sensing
  • Altitude Measurement and HVAC Control
  • IoT Devices and Smart Home Projects
  • Wearable and Portable Environmental Monitors

Physical Attributes

  • PCB Color: Purple
  • Material: FR-4 High-Quality PCB
  • Pin Header: 6-pin male header (included, unsoldered)
  • Compact design for easy breadboard use

Package Includes

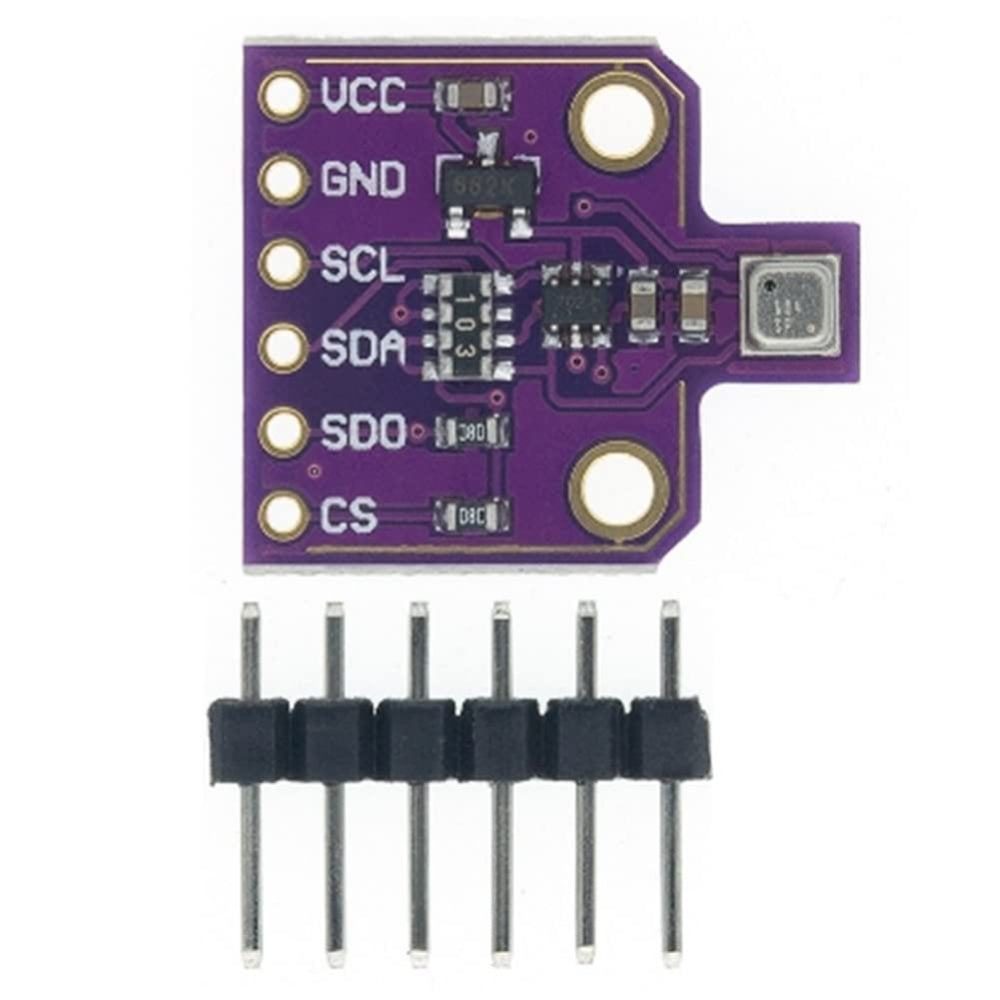

  • 1 × CJMCU-680 BME680 Environmental Sensor Breakout Board
  • 1 × 6-Pin Male Header
