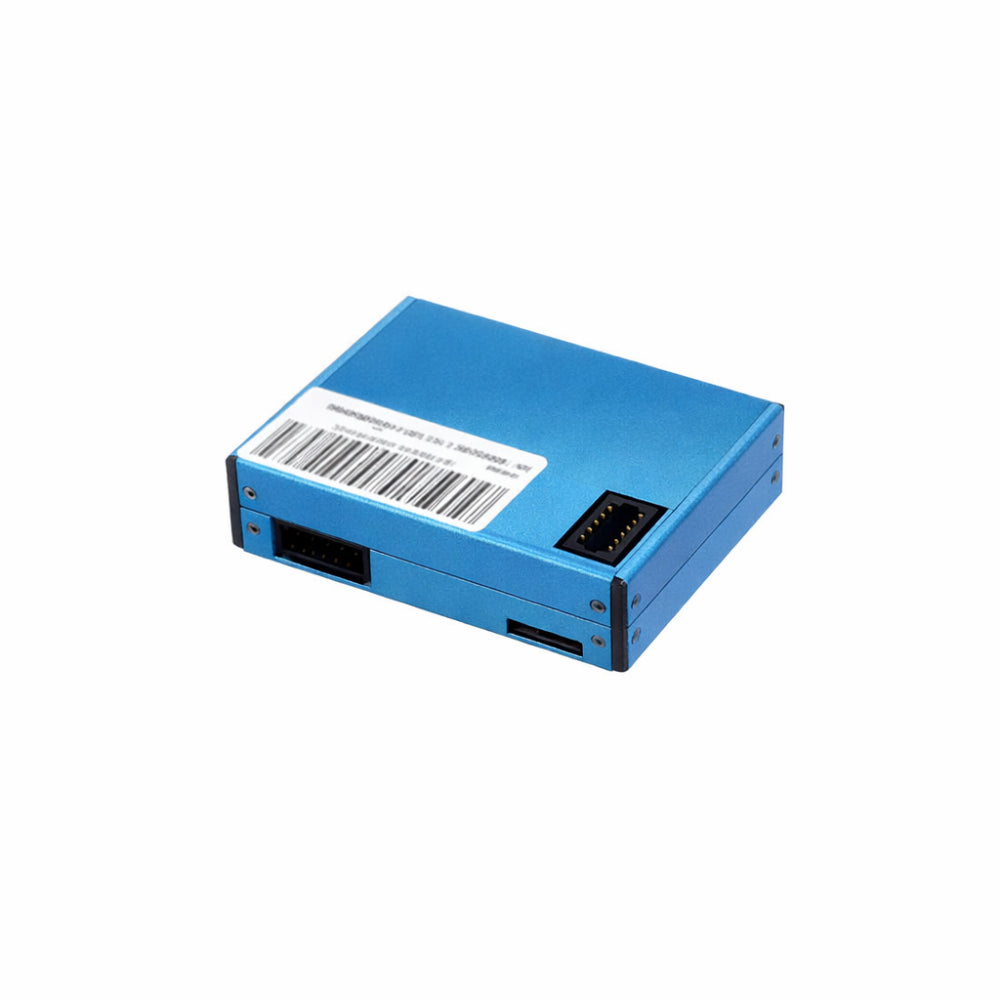

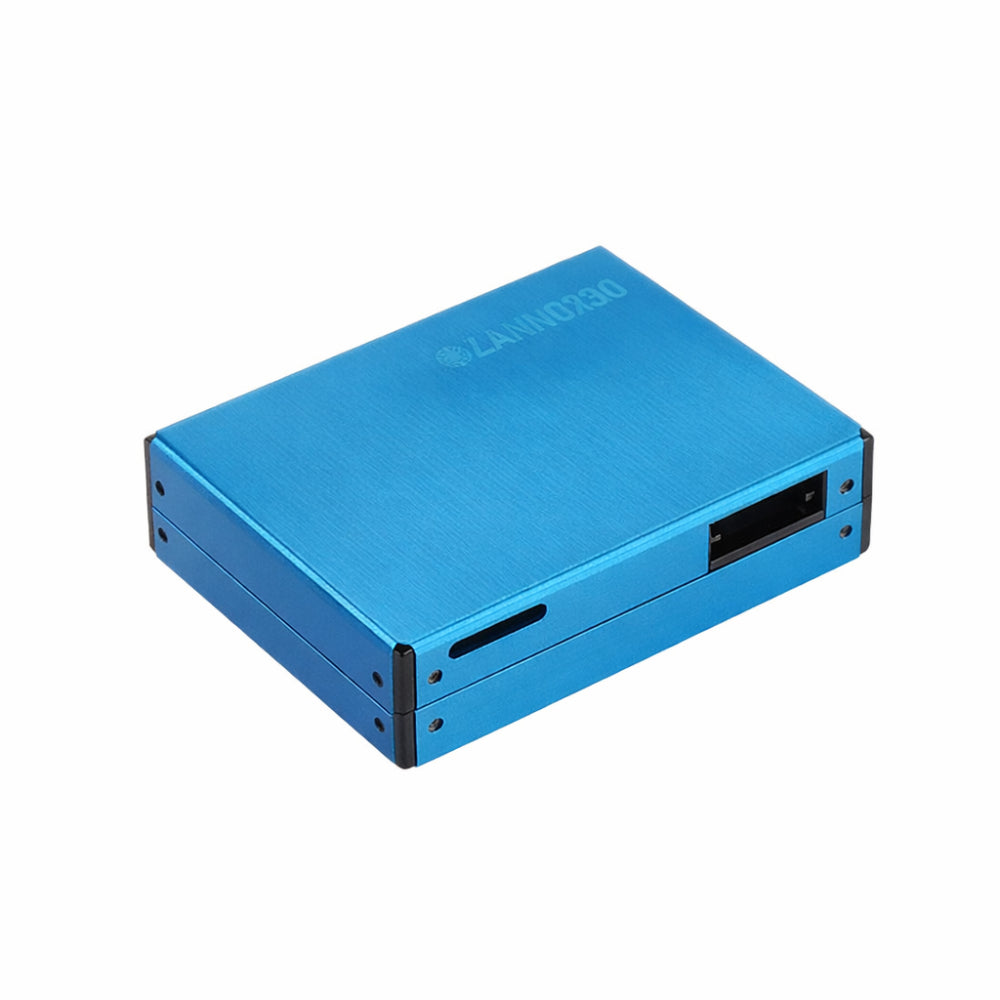

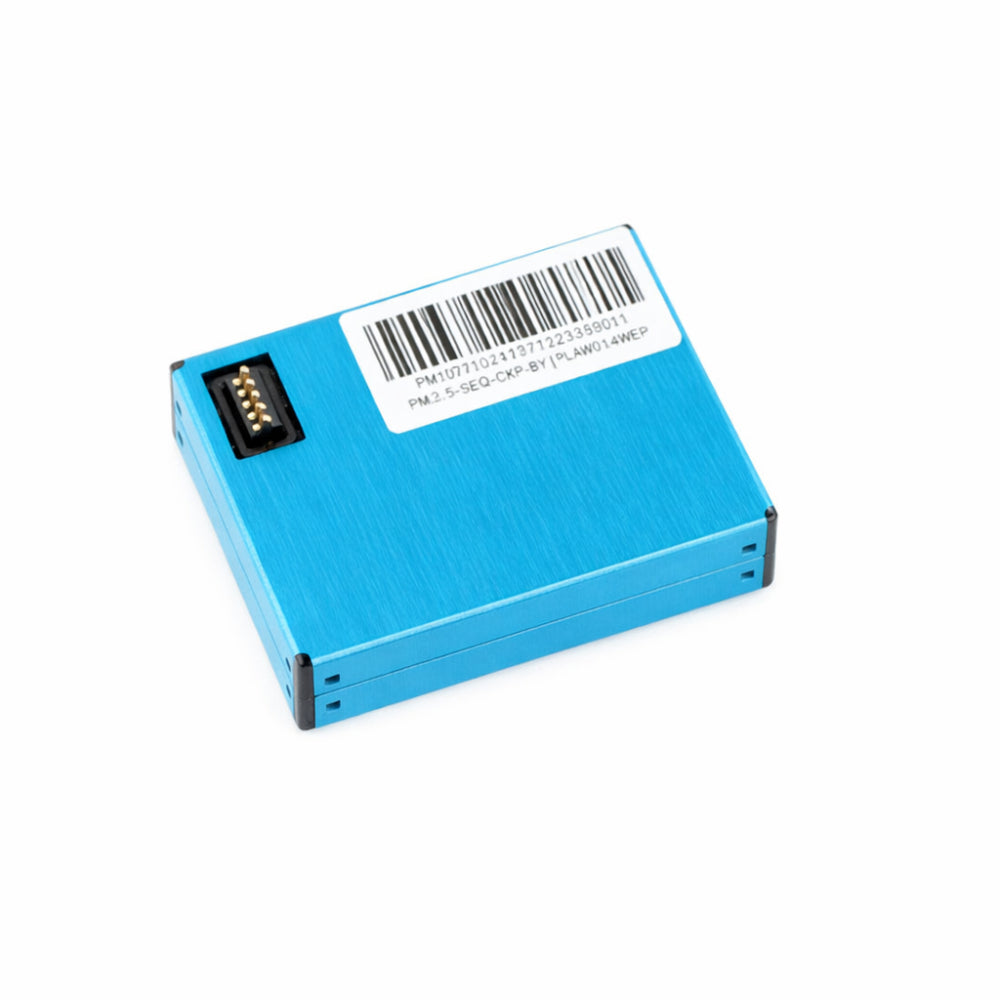

PMS7003 Sensor Module PM2.5 Air, Particle Dust Sensor
![PMS7003 Sensor Module PM2.5 Air, Particle Dust Sensor]()
![PMS7003 Sensor Module PM2.5 Air, Particle Dust Sensor]()
![PMS7003 Sensor Module PM2.5 Air, Particle Dust Sensor]()
![PMS7003 Sensor Module PM2.5 Air, Particle Dust Sensor]()
![PMS7003 Sensor Module PM2.5 Air, Particle Dust Sensor]()
![PMS7003 Sensor Module PM2.5 Air, Particle Dust Sensor]()
This sensor operates on the laser scattering principle, where airborne particles scatter laser light, and the scattered light intensity is analyzed to calculate particle concentration. With a minimum detectable particle size of 0.3 µm and fast response time, the PMS7003 delivers accurate and stable measurements. Its ultra-thin 12 mm design allows easy integration into compact and portable devices.
Note: The product does not include a connecting cable.
-22%
PMS7003 Sensor Module PM2.5 Air, Particle Dust Sensor
Available:In Stock
- Product SKU: KG1323
₹ 1,699
₹ 2,199
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
PMS7003 PM2.5 Air Quality & Particle Dust Sensor Module
The PMS7003 Particle Dust Sensor Module is a digital, high-precision air quality sensor designed to measure the concentration of suspended particles (PM1.0, PM2.5, and PM10) in the air. It provides real-time particle concentration data through a digital interface, making it ideal for air quality monitoring and environmental sensing applications.This sensor operates on the laser scattering principle, where airborne particles scatter laser light, and the scattered light intensity is analyzed to calculate particle concentration. With a minimum detectable particle size of 0.3 µm and fast response time, the PMS7003 delivers accurate and stable measurements. Its ultra-thin 12 mm design allows easy integration into compact and portable devices.
Note: The product does not include a connecting cable.
Features
- Laser scattering technology for accurate particle measurement
- Measures PM1.0, PM2.5, and PM10 particle concentrations
- Minimum detectable particle size: 0.3 µm
- Effective PM2.5 range: 0–500 µg/m³
- Maximum PM2.5 range: ≥1000 µg/m³
- High counting efficiency: 50% @ 0.3 µm, 98% @ ≥0.5 µm
- Ultra-thin design (only 12 mm thick)
- Real-time response with continuous data acquisition
- Optional air inlet direction for flexible installation
- Digital output interface
Technical Details
- Item Type: Dust / Air Quality Sensor
- Model No.: PMS7003
- Effective Range (PM2.5): 0 – 500 µg/m³
- Maximum Range (PM2.5): ≥1000 µg/m³
- Resolution: 1 µg/m³
- Maximum Consistency Error: ±10% @ 100–500 µg/m³, ±10 µg/m³ @ 0–100 µg/m³
- Counting Efficiency: 50% @ 0.3 µm, 98% @ ≥0.5 µm
- Standard Sampling Volume: 0.1 L
- Response Time: ≤10 seconds
- Single Response Time: < 1 second
- Particle Size Range: 0.3–1.0 µm, 1.0–2.5 µm, 2.5–10 µm
- Operating Voltage: 5.0 V DC (Min: 4.5 V, Max: 5.5 V)
- Operating Current: ≤100 mA
- Standby Current: ≤200 µA
- Interface Logic Level: 2.7–3.3 V
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -40°C to +80°C
- Operating Humidity: 0–99%
- Target Medium: Air Quality
Applications
- PM2.5 and air quality monitoring systems
- Indoor and outdoor pollution detection
- Environmental monitoring equipment
- Smart home and IoT air quality devices
- Air purifiers and ventilation systems
- Portable air quality measuring instruments
Physical Attributes
- Ultra-thin compact design (12 mm thickness)
- Weight:30g
- Designed for portable and embedded systems
Package Includes
- 1 × PMS7003 PM2.5 Air & Particle Dust Sensor Module
