The module includes a nickel-plated FR-04 sensor board that collects raindrops. As water accumulates, the board’s resistance decreases, resulting in a lower voltage output. A completely dry board outputs maximum voltage (approx. 5V on the analog pin). The included 12V relay module can directly control external devices like motors, pumps, alarms, or other systems, making it ideal for automatic weather response projects.

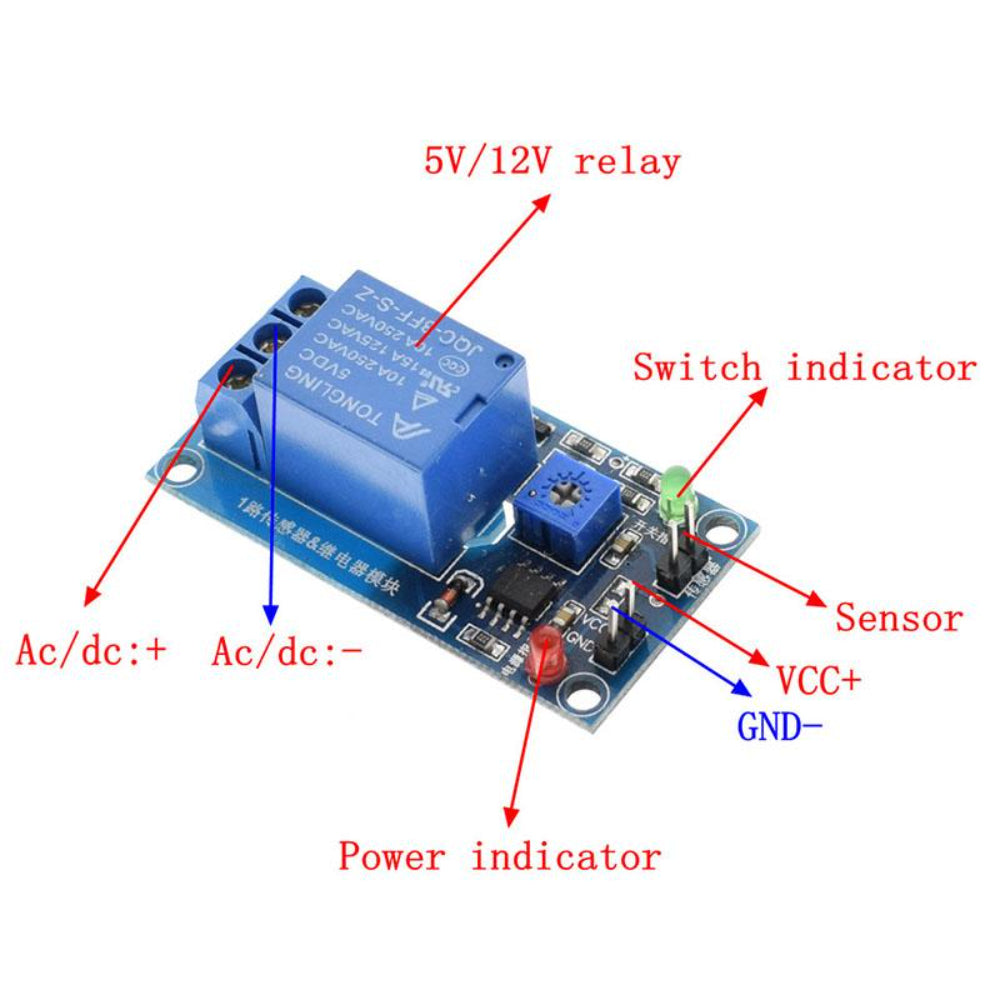

Sensitivity can be adjusted using the onboard potentiometer. The module features LM393 voltage comparator, LED indicators for power and output status, and mounting holes for easy installation.
-33%
Raindrops Detection Sensor Module with 12V Relay Module
Available:In Stock
- Product SKU: KG1221
₹ 99
₹ 149
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
Raindrops Detection Sensor Module with 12V Relay
The Raindrops Detection Sensor Module is designed for rain detection and measuring rainfall intensity. It converts rainwater presence into digital and analog output signals that can be used in weather monitoring systems and automation projects.The module includes a nickel-plated FR-04 sensor board that collects raindrops. As water accumulates, the board’s resistance decreases, resulting in a lower voltage output. A completely dry board outputs maximum voltage (approx. 5V on the analog pin). The included 12V relay module can directly control external devices like motors, pumps, alarms, or other systems, making it ideal for automatic weather response projects.
Sensitivity can be adjusted using the onboard potentiometer. The module features LM393 voltage comparator, LED indicators for power and output status, and mounting holes for easy installation.
Features
- Based on LM393 wide voltage comparator
- Nickel-plated FR-04 PCB – oxidation resistant, durable
- Large sensing area: 55 × 40 mm
- Analog and digital output (TTL compatible)
- Onboard power and output LED indicators
- Relay output for direct load control (AC/DC)
- Adjustable sensitivity via potentiometer
- Fixed mounting holes for easy installation
Technical Details
- Item Type: Sensor
- Model Type: Rain Detection Sensor
- Operating Voltage: 12V DC
- PCB Dimensions: 55 × 40 mm
- Relay Capacity: 250V 10A (AC) / 30V 10A (DC)
- Quiescent Current: 5 – 12 mA
- Control Board Size (L×W×H): 50 × 26 × 20 mm
- Weight: 23g
Applications
- Automatic rainwater detection systems
- Weather monitoring and IoT projects
- Smart irrigation and plant watering systems
- Rain-triggered alarms or wipers
- Robotics and automation projects involving rain sensing
Physical Attributes
- Sensor Board Size: 55 × 40 mm
- Relay Module Size: 50 × 26 × 20 mm
- Material: High-quality FR-04 PCB with nickel plating
- LED indicators for power and relay status
- Weight: 23g
Package Includes

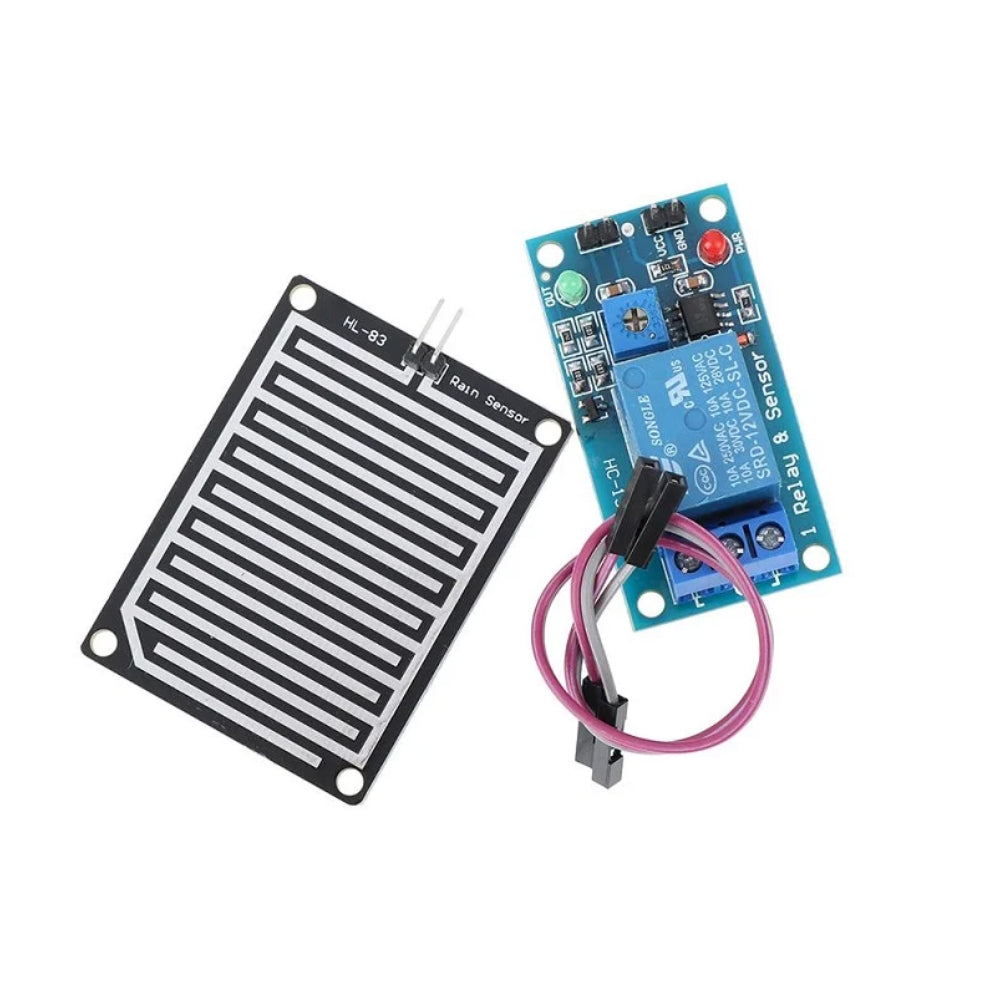

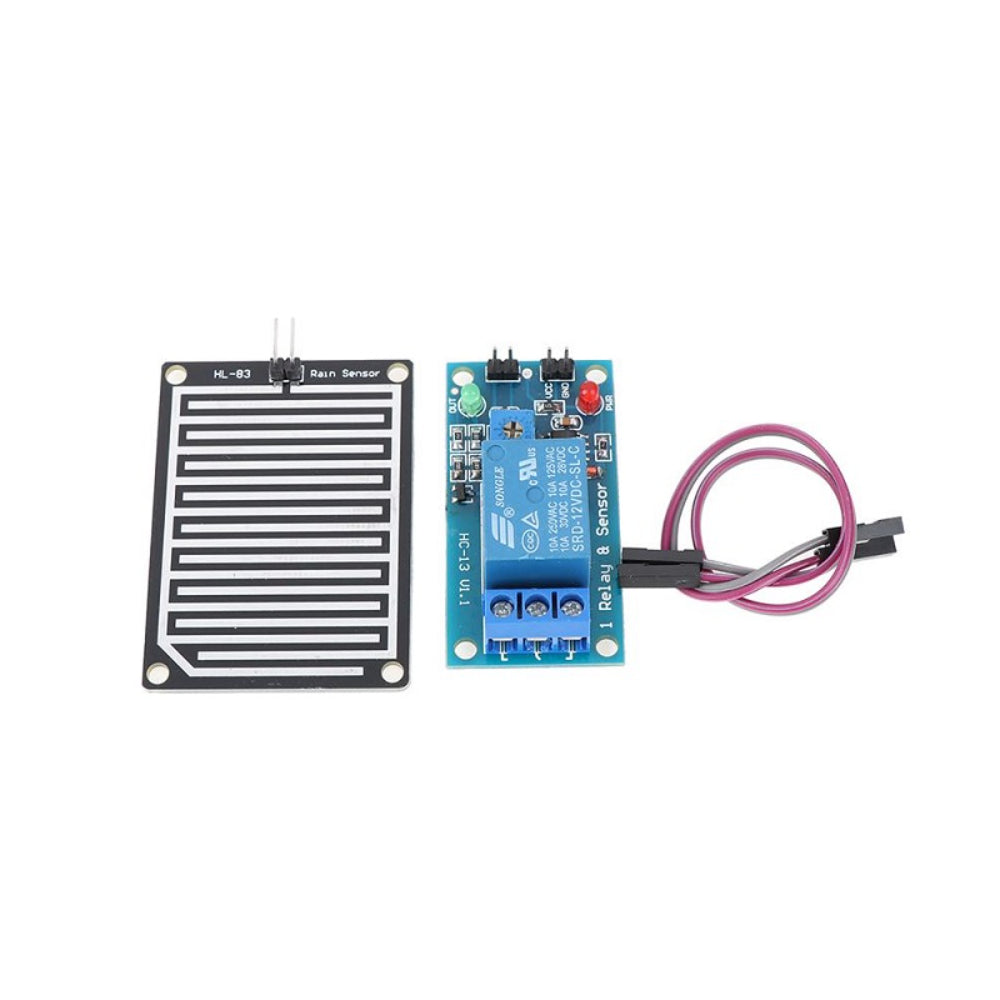

- 1 × Raindrop Sensor Board (55 × 40 mm)
- 1 × 12V Relay Control Module
- 1 × 2-Pin Dupont Cable (20 cm)
