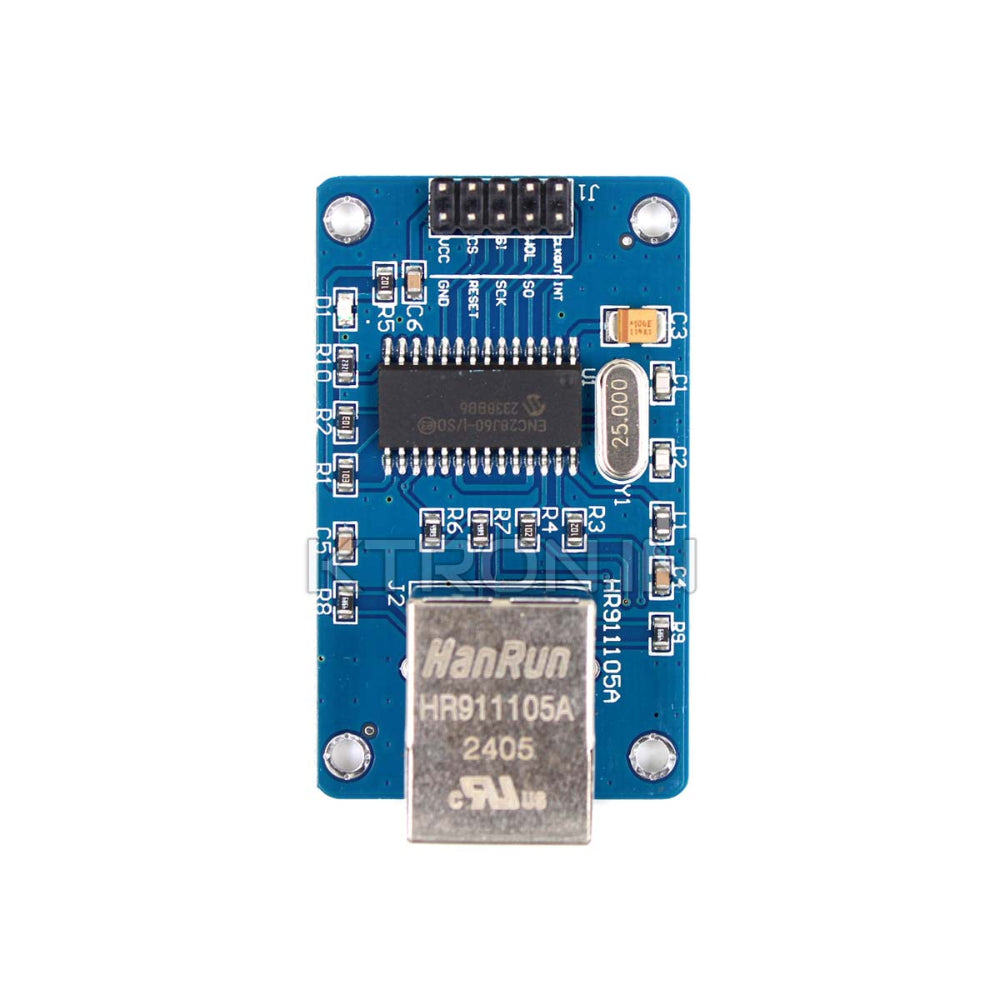

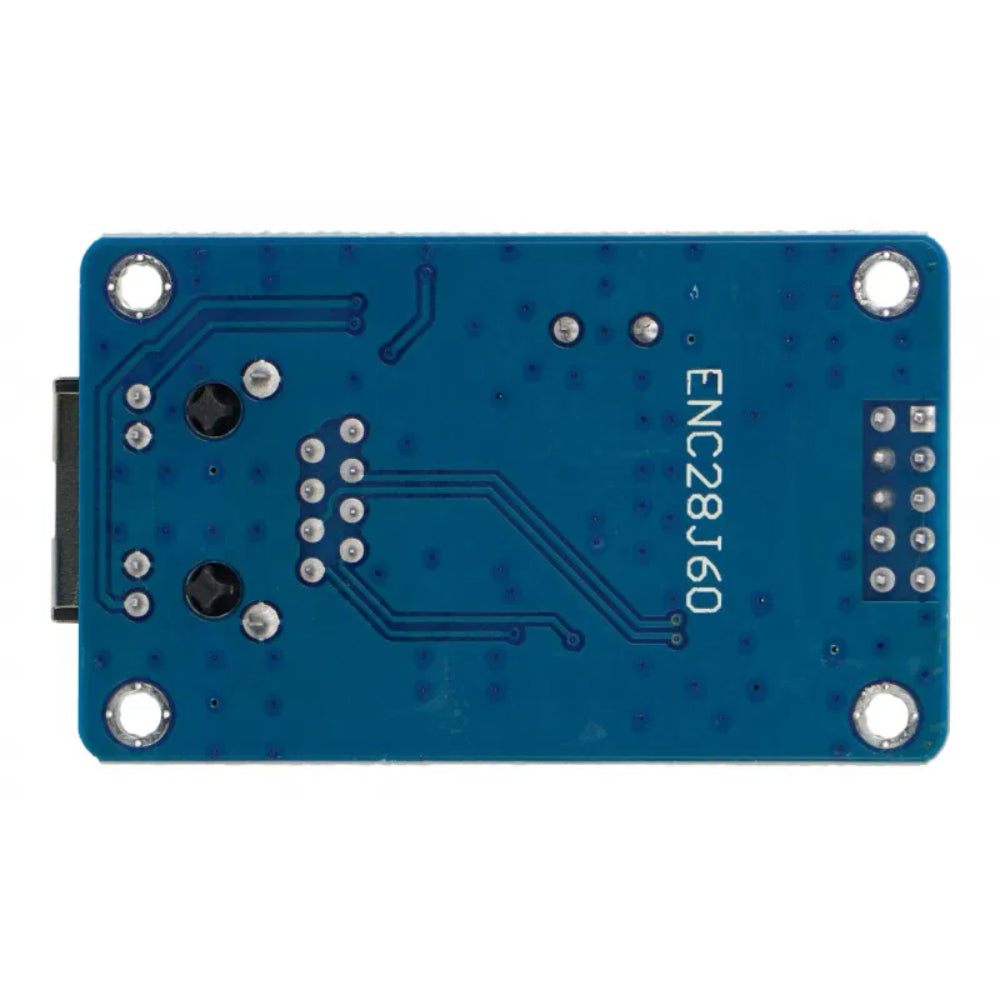

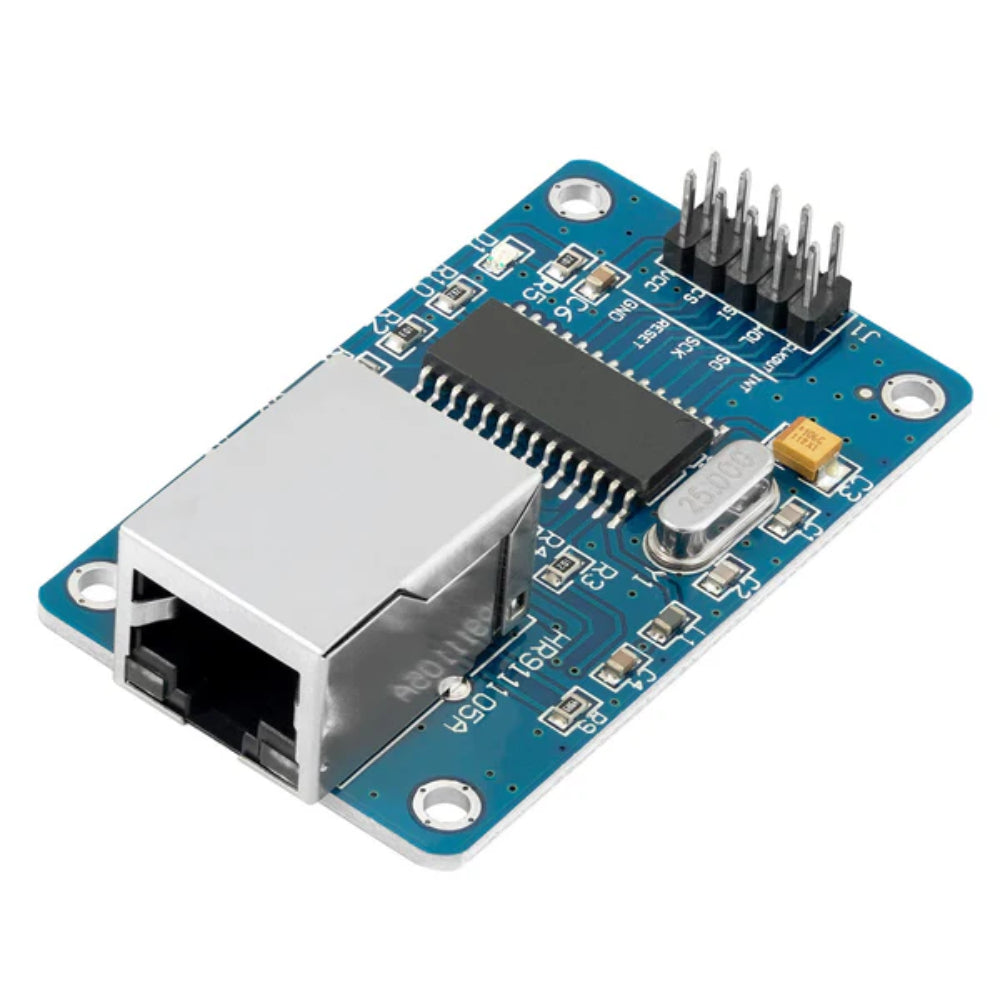

ENC28J60 Ethernet Module (10 Pin Package: SSOP)
![ENC28J60EthernetModule]()
![ENC28J60EthernetModule]()
![ENC28J60EthernetModule]()
![ENC28J60EthernetModule]()
![ENC28J60EthernetModule]()
![ENC28J60EthernetModule]()
Since the board is small in size and it supports SPI, it is applicable to a variety of projects.
Utilizes the new SSOP 10 package Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 25MHz.
The ENC28J60 Ethernet Module(10 Pin Package: SSOP) is an industry standard Serial Peripheral Interface (SPI). It is designed to serve as an Ethernet network interface for any controller equipped with SPI.
This ENC28J60 Ethernet Module(10 Pin Package: SSOP) includes all you need to change your Arduino into an ethernet device for your network. These days many makers prefer WiFi type network communication. Ethernet still has lots of application and still stays a fast and secure way to connect to network devices.
5 Stars ![User picture]()
![User picture]()
![User picture]()
Good board Perfect! Just what I was looking for
-18%
ENC28J60 Ethernet Module (10 Pin Package: SSOP)
Available:In Stock
- Product SKU: KG046
₹ 327
₹ 399
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
ENC28J60 Ethernet Module
The ENC28J60 Ethernet Module (10 Pin Package: SSOP) is a board which contains an Ethernet port and converts Ethernet input into SPI. The board is based on Microchip’s ENC28J60 integrated circuit and it can be used to provide internet connectivity to microcontroller systems like Arduino boards over Ethernet.Since the board is small in size and it supports SPI, it is applicable to a variety of projects.
Utilizes the new SSOP 10 package Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 25MHz.
The ENC28J60 Ethernet Module(10 Pin Package: SSOP) is an industry standard Serial Peripheral Interface (SPI). It is designed to serve as an Ethernet network interface for any controller equipped with SPI.
This ENC28J60 Ethernet Module(10 Pin Package: SSOP) includes all you need to change your Arduino into an ethernet device for your network. These days many makers prefer WiFi type network communication. Ethernet still has lots of application and still stays a fast and secure way to connect to network devices.
Technical Details
- Model Type: Ethernet Module
- Crystal Oscillator: 25 MHz
- Ethernet Port: HanRun HR911105A
- Length (mm): 57
- Width (mm): 34
- Height (mm): 16
- Weight (g): 14
The ENC28J60 consists of seven major functional blocks
- SPI Interface: Communication channel between the host controller and ENC28J60
- Control Registers: For controlling and monitoring the ENC28J60
- Dual Port RAM: Buffer for received and transmitted data packets
- Arbiter: Controls access to RAM buffer for DMA, transmit, and receive blocks
- Bus Interface: Interprets data and commands from the SPI interface
- MAC Module: Implements IEEE 802.3 compliant MAC logic
- PHY Module: Encodes and decodes analog data on the twisted-pair interface
Features
- Fully Compatible with 10/100/1000Base-T Networks
- Integrated MAC and 10Base-T PHY
- Supports One 10Base-T Port with Automatic Polarity Detection and Correction
- Supports Full and Half-Duplex Modes
- Automatic Programmable Retransmit on Collision
- Programmable Padding and CRC Generation
- Automatic Rejection of Erroneous Packets
- SPI Interface with Clock Speeds Up to 20 MHz
- Chipboard: ENC28J60/SS
- Board Crystal: 25 MHz
- Network Interface: HR911105A
- 5V Power Supply Pin
- Stable Performance
- Compatible with Arduino, SPI, AVR, PIC, LPC, STM32
Applications :
- Internet of Things (IoT): Used in IoT devices for network connectivity, enabling communication between devices and the internet.
- Embedded Systems: Ideal for embedded projects requiring Ethernet connectivity, such as home automation systems and sensors.
- Networked Sensors: Can be used in systems where sensors collect data and send it to a central server via Ethernet.
- Remote Monitoring: Employed in remote monitoring systems where devices need to be monitored and controlled over a network.
- Data Logging: Used in systems that log data and need to transmit that data to a server for storage and analysis.
- Industrial Control Systems: Integrated into industrial automation systems to provide network communication for machinery and control units.
- Web Server Projects: Enables the creation of small, embedded web servers for controlling devices or displaying information on a webpage.
Physical Attributes of ENC28j60 Ethernet Module
- Length (mm): 57
- Width (mm): 34
- Height (mm): 16
- Weight (g): 14
Package Includes
- 1 x ENC28J60 Ethernet Module (10 Pin Package: SSOP)
Customer Reviews
Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
r
Awesome product working really well.
l
I am satisfied with this product. The price is very reasonable and the shipping was phenomenal. The board is well made, the ethernet connector is firmly connected to the board and the connection with the cable is stiff.
A
Just what I needed for a wired home automation project. Wireless can't reach everywhere...
j
Arrived quickly and works great.
