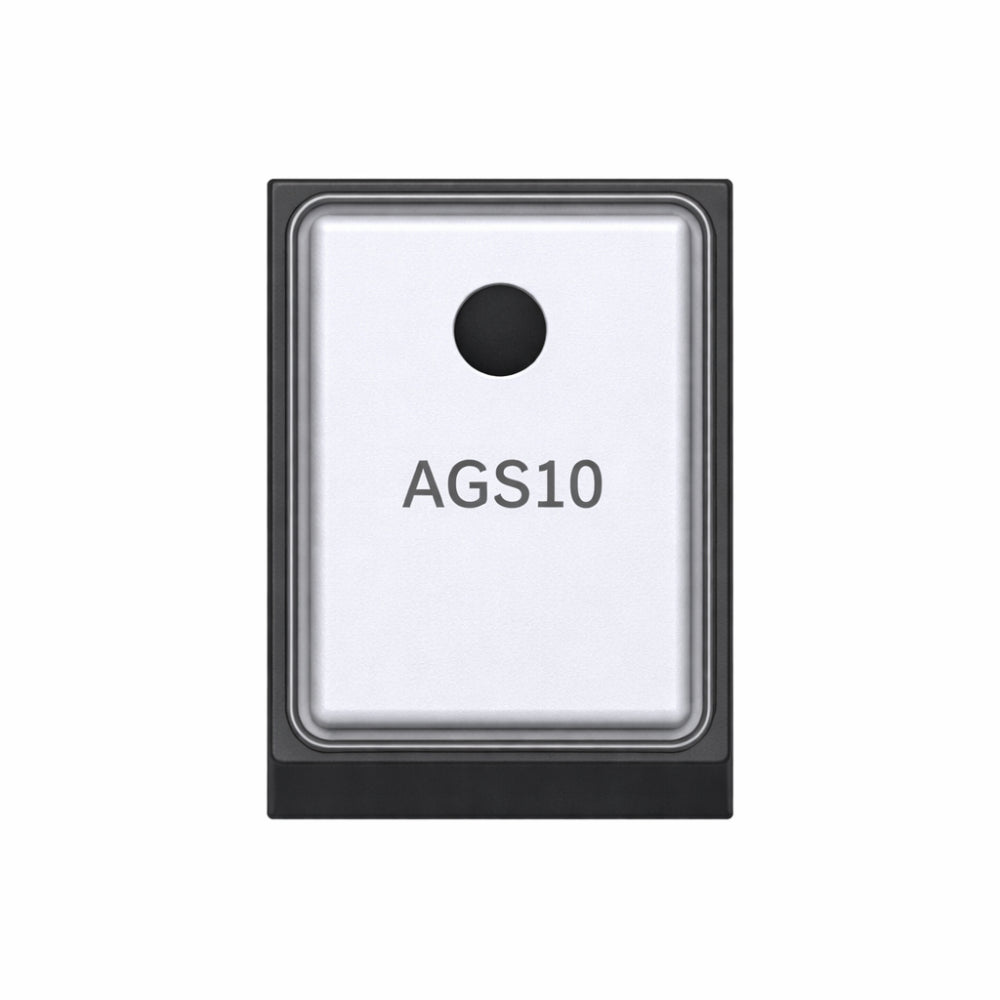

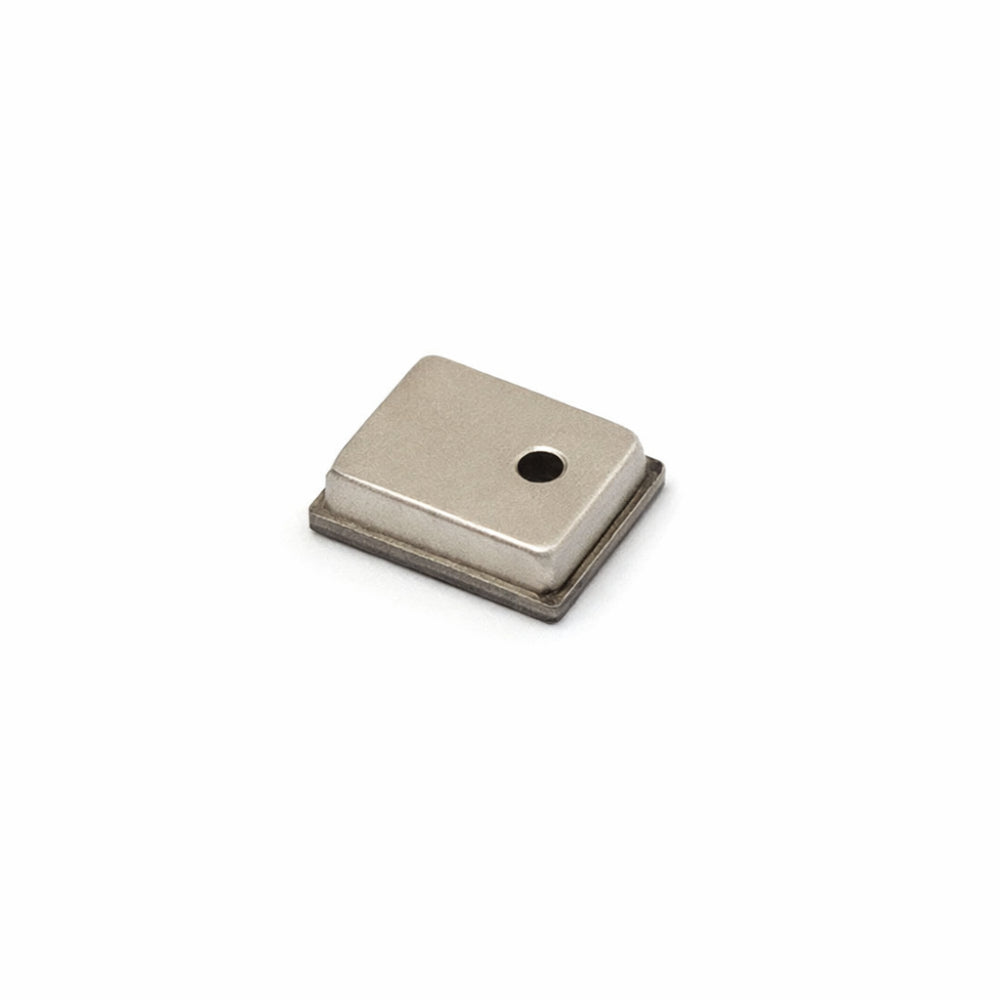

ASAIR AGS10 TVOC Gas Sensor Module
![ASAIR AGS10 TVOC Gas Sensor Module]()
![ASAIR AGS10 TVOC Gas Sensor Module]()
![ASAIR AGS10 TVOC Gas Sensor Module]()
![ASAIR AGS10 TVOC Gas Sensor Module]()
![ASAIR AGS10 TVOC Gas Sensor Module]()
![ASAIR AGS10 TVOC Gas Sensor Module]()
This MEMS semiconductor metal oxide sensor features low power consumption, high sensitivity, fast response time, and a simple driving circuit. With a long lifespan and factory calibration, the AGS10 is ideal for air quality monitoring and VOC detection applications.
-32%
ASAIR AGS10 TVOC Gas Sensor Module
Available:In Stock
- Product SKU: KG1331
₹ 100
₹ 149
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
AGS10 MEMS Ethanol / TVOC Gas Sensor Module
The AGS10 Gas Sensor is a MEMS-based ethanol and TVOC gas sensor with a calibrated digital signal output. It uses dedicated digital acquisition and advanced gas sensing technology to deliver high reliability, excellent long-term stability, and consistent performance.This MEMS semiconductor metal oxide sensor features low power consumption, high sensitivity, fast response time, and a simple driving circuit. With a long lifespan and factory calibration, the AGS10 is ideal for air quality monitoring and VOC detection applications.
Features
- MEMS semiconductor metal oxide gas sensor
- High sensitivity with fast response time
- Calibrated digital signal output
- Low power consumption
- Excellent reliability and long-term stability
- Lifespan greater than 6 years (@25°C in clean air)
- Simple driving circuit and easy integration
- Low-cost MEMS gas sensing solution
Technical Details
- Item Type: Gas Sensor
- Model No.: AGS10
- Sensor Category: MEMS Semiconductor Metal Oxide Sensor
- Standard Test Gas: Ethanol
- Output Unit: ppb or grade
- Measuring Range: 0 – 9999
- Typical Accuracy (25°C, 50% RH): ±25% F.S
- Power Supply Voltage: 3.0 ± 0.1 V DC
- Supply Current: 27 mA
- Typical Power Consumption: 75 mW
- Sampling Period: ≥ 2 seconds per reading
- Warm-Up Time: ≥ 120 seconds
- Operating Temperature: 0 – 50 °C
- Operating Humidity: 0 – 95% RH
- 3D Model: AGS10 Sensor
Applications
- TVOC and ethanol gas detection
- Indoor air quality monitoring
- Smart home and HVAC systems
- Air purifiers and ventilation systems
- Environmental monitoring devices
- Portable gas detection equipment
Package Includes
- 1 × ASAIR TVOC Gas Sensor Module (Model: AGS10)
