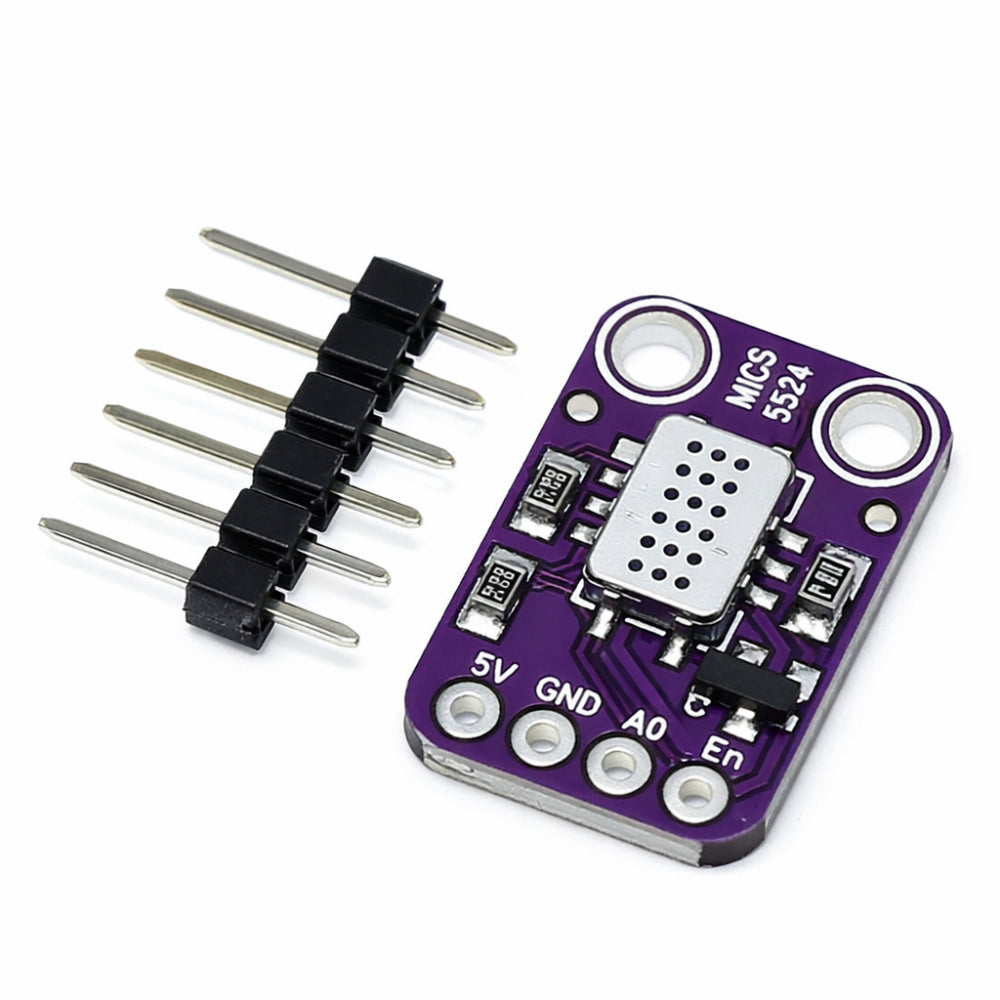

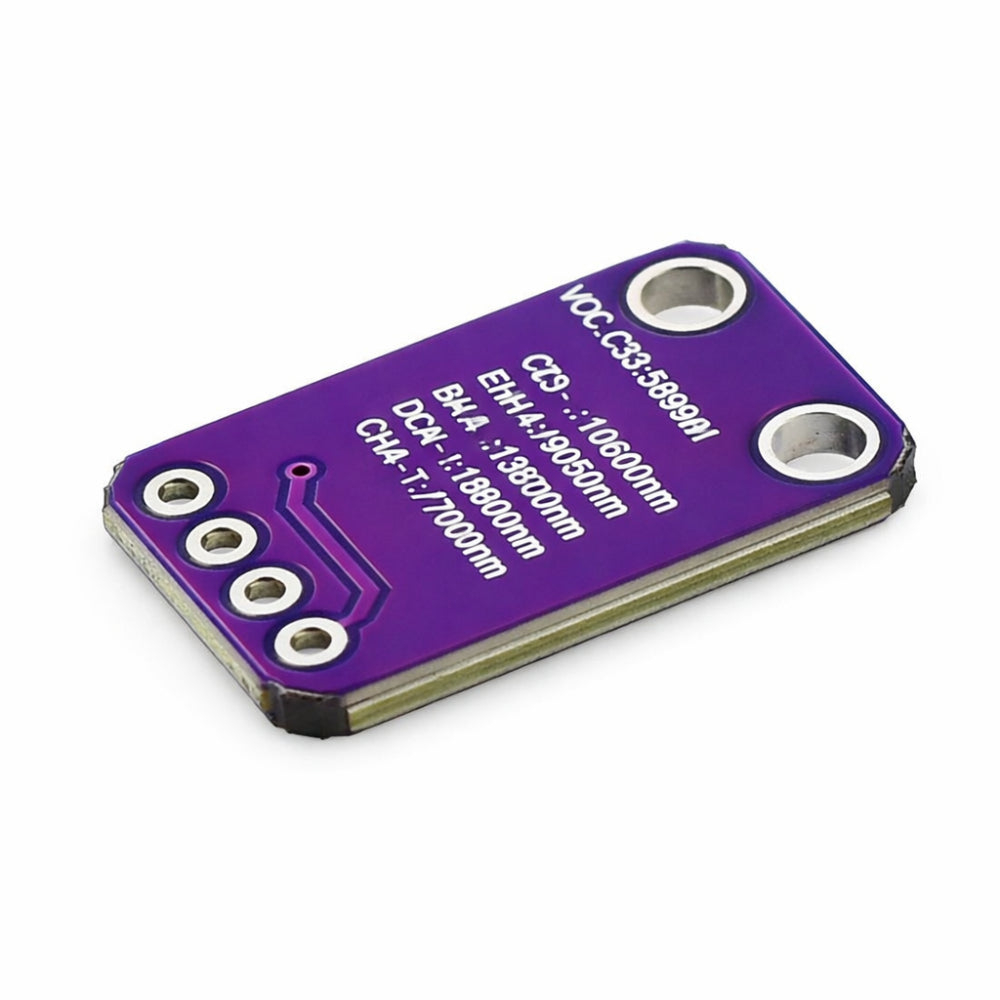

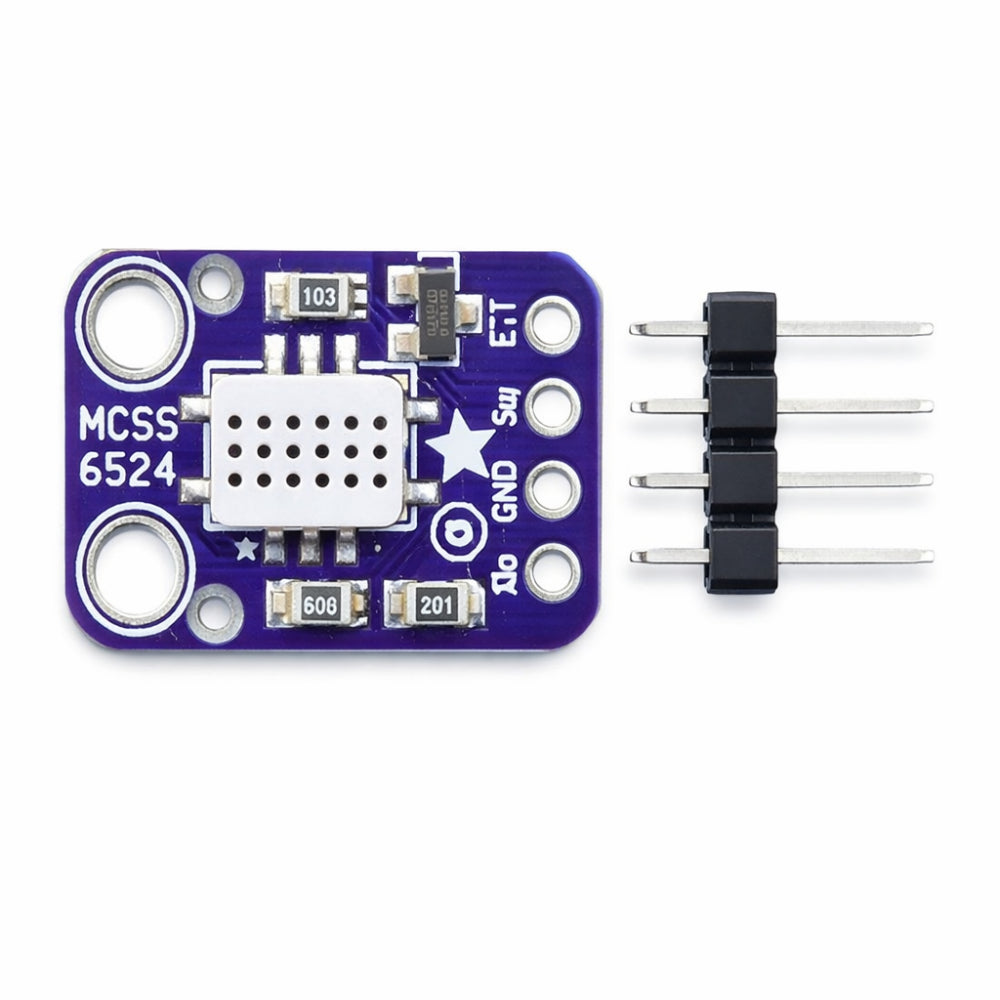

MICS-5524 CO H2 CH4 Gas Sensor Detection Module
![MICS-5524 CO H2 CH4 Gas Sensor Detection Module]()
![MICS-5524 CO H2 CH4 Gas Sensor Detection Module]()
![MICS-5524 CO H2 CH4 Gas Sensor Detection Module]()
![MICS-5524 CO H2 CH4 Gas Sensor Detection Module]()
![MICS-5524 CO H2 CH4 Gas Sensor Detection Module]()
![MICS-5524 CO H2 CH4 Gas Sensor Detection Module]()
This sensor is sensitive to multiple gases including CO, ammonia, ethanol, hydrogen, methane, propane, and iso-butane. However, it cannot distinguish between individual gases and provides a combined response based on detected gas concentration. The analog output voltage increases proportionally with gas concentration.
The MiCS-5524 breakout board is intended for educational, hobby, and experimental use only and is not suitable for safety-critical or medical applications. Calibration is required for precise gas measurement.
-20%
MICS-5524 CO H2 CH4 Gas Sensor Detection Module
Available:In Stock
- Product SKU: KG1334
₹ 1,352
₹ 1,699
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
MiCS-5524 Carbon Monoxide, Hydrogen & Methane Gas Sensor Module
The MiCS-5524 Gas Sensor Module is a robust MEMS-based gas detection sensor designed for detecting carbon monoxide (CO) and various combustible gases. It is suitable for indoor air quality monitoring, natural gas leakage detection, breath analysis, and early fire detection.This sensor is sensitive to multiple gases including CO, ammonia, ethanol, hydrogen, methane, propane, and iso-butane. However, it cannot distinguish between individual gases and provides a combined response based on detected gas concentration. The analog output voltage increases proportionally with gas concentration.
The MiCS-5524 breakout board is intended for educational, hobby, and experimental use only and is not suitable for safety-critical or medical applications. Calibration is required for precise gas measurement.
Features
- MEMS-based multi-gas detection sensor
- Sensitive to carbon monoxide and combustible gases
- Analog voltage output proportional to gas concentration
- Supports heater enable (EN) pin for power saving
- Low power heater consumption (25–35 mA typical)
- Compact size with lightweight design
- Suitable for indoor air quality and gas leakage monitoring
- Assembled and tested breakout board
Detectable Gases & Ranges
- Carbon Monoxide (CO): ~1 to 1000 ppm
- Ammonia (NH₃): ~1 to 500 ppm
- Ethanol: ~10 to 500 ppm
- Hydrogen (H₂): ~1 to 1000 ppm
- Methane / Propane / Iso-Butane: ~1000+ ppm
Technical Details
- Item Type: Gas Sensor
- Model Name: MiCS-5524
- Operating Voltage: 4.9 – 5.1 V DC
- Heater Power Dissipation: 88 mW
- Heater Current: 25 – 35 mA (typical)
- Output Type: Analog voltage
- Enable Pin: Pull HIGH (5V) to turn heater OFF
- Warm-Up Time: ≥ 1 second before readings
Environmental Specifications
- Operating Temperature: -30 °C to +85 °C
- Operating Humidity: 5 – 95% RH
Physical Attributes
- Dimensions: 20 × 13 × 3.4 mm
- Weight: 1 g
- Ultra-compact MEMS gas sensor module
Applications
- Indoor air quality monitoring
- Carbon monoxide detection
- Natural gas leakage detection
- Breath checker devices
- Early fire detection systems
- Educational and experimental projects
Package Includes
- 1 × MiCS-5524 Gas Sensor Detection Module
- 1 × Header Set (not soldered)
