25GA370 620 RPM 12V 25mm Diameter centre Shaft DC high torque geared motor
![25GA370 DC 12V 1360RPM Reduction Motor High Torque_2]()
![25GA370 DC 12V 1360RPM Reduction Motor High Torque_1]()
![25GA370 DC 12V 1360RPM Reduction Motor High Torque]()
![25GA370 280 RPM 12V 25mm Diameter centre D-Shaft DC high torque geared motor]()
![25GA370 280 RPM 12V 25mm Diameter centre D-Shaft DC high torque geared motor_1]()
![25GA370 DC 12V 1360RPM Reduction Motor High Torque_2]()
![25GA370 DC 12V 1360RPM Reduction Motor High Torque_1]()
![25GA370 DC 12V 1360RPM Reduction Motor High Torque]()
![25GA370 280 RPM 12V 25mm Diameter centre D-Shaft DC high torque geared motor]()
![25GA370 280 RPM 12V 25mm Diameter centre D-Shaft DC high torque geared motor_1]()
Durable Construction: The metal gearbox ensures long-lasting performance and reliability.
Precision Engineering: Designed for smooth operation with minimal backlash.
Center Shaft Design: Offers balanced torque distribution and ease of integration into various designs.
Compact and Efficient: The 25mm diameter housing allows for easy integration, while the motor operates efficiently at 12V, drawing minimal current.
Automation Systems: Suitable for applications needing fast, high-torque motion, such as conveyor belts, automated gates, or other systems with rapid operation.
Model Making: Perfect for models and prototypes that require high-speed motors with substantial torque for realistic performance.
DIY and Hobby Projects: Great for custom machines, DIY robots, and personal projects needing reliable, high-speed motors with a center shaft.
Industrial Equipment: Suitable for small-scale industrial machinery where high-speed, high-torque motors are essential for efficient operation.
![DC 12V 2.5RPM 37mm Diameter GA37 Geared Industrial Grade Highly Reliable and Full Copper Motor]()
![DC 12V 370RPM 37mm Diameter GA37 Geared Industrial Grade Highly Reliable and Full Copper Motor]()
-33%
25GA370 620 RPM 12V 25mm Diameter centre Shaft DC high torque geared motor
Available:In Stock
- Product SKU: LGGE295
₹ 399
₹ 599
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
The 25GA370 is a high-torque reduction motor designed to operate at 12V DC with a no-load speed of 620 RPM. The center shaft configuration enhances its suitability for applications that require both high speed and substantial torque. Its compact 25mm diameter gearbox and robust metal construction ensure reliable performance in various mechanical, robotic, and automation systems.
Features:
High Torque Output: Provides substantial force at high speeds, ideal for demanding applications that require both speed and power.Durable Construction: The metal gearbox ensures long-lasting performance and reliability.
Precision Engineering: Designed for smooth operation with minimal backlash.
Center Shaft Design: Offers balanced torque distribution and ease of integration into various designs.
Compact and Efficient: The 25mm diameter housing allows for easy integration, while the motor operates efficiently at 12V, drawing minimal current.
Technical Details
- Reduction Ratio:9.6
- Rated Voltage(DC): 12
- No Load Speed (RPM):620
- No Load Current(A): 0.06
- Rated Speed(RPM):450
- Rated Current(A):0.30
- Rated Torque(KG-CM):0.22
- Rated Power(W):3.6
- Stall Torque(KG-CM):0.8
- Stall Current(A):1.3

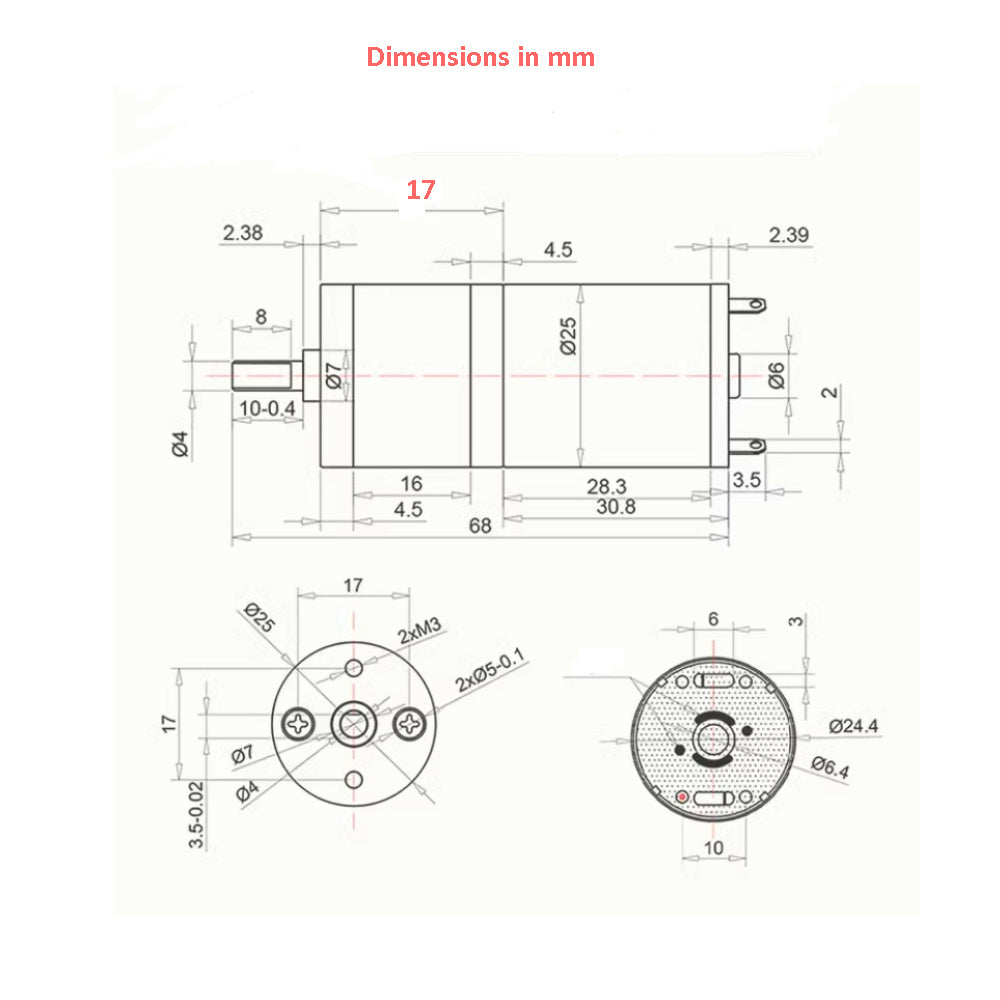

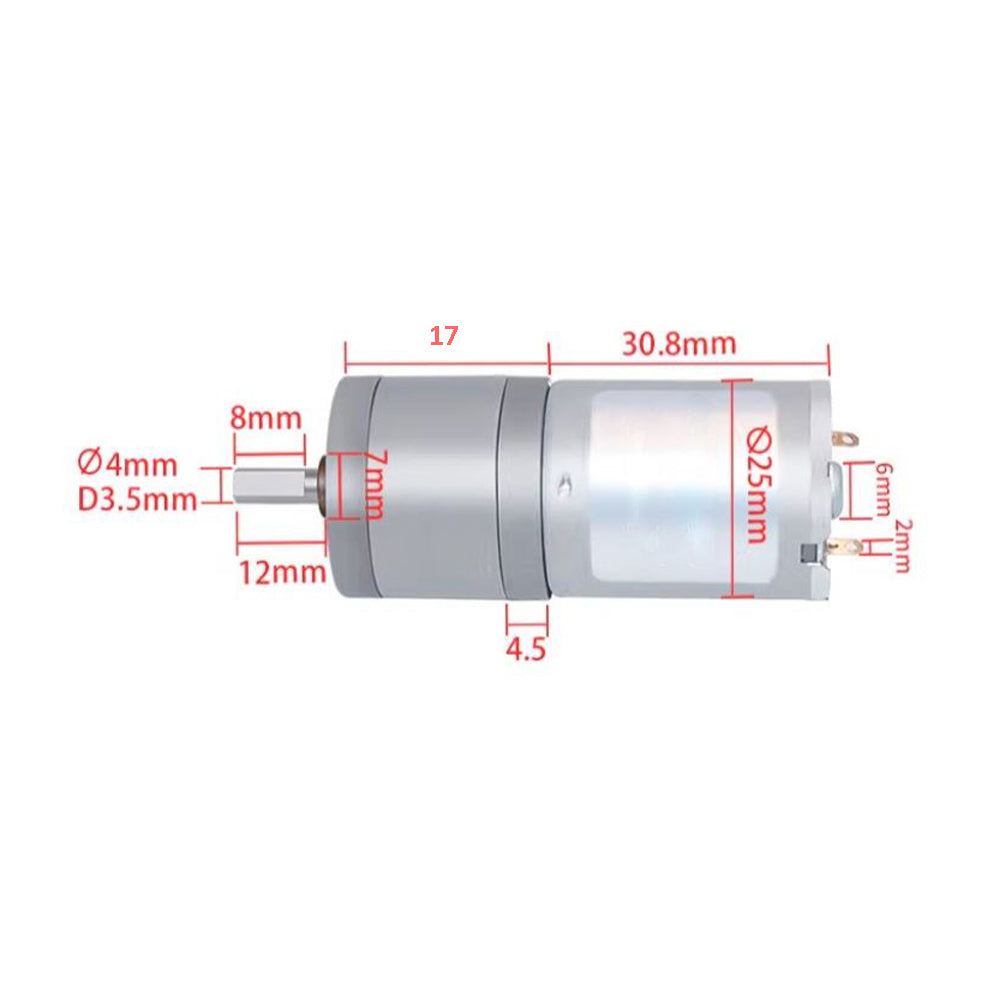

- Gearbox Length (mm):17
Applications:
Robotics: Ideal for robotic drive systems and components requiring high-speed movement with significant torque.Automation Systems: Suitable for applications needing fast, high-torque motion, such as conveyor belts, automated gates, or other systems with rapid operation.
Model Making: Perfect for models and prototypes that require high-speed motors with substantial torque for realistic performance.
DIY and Hobby Projects: Great for custom machines, DIY robots, and personal projects needing reliable, high-speed motors with a center shaft.
Industrial Equipment: Suitable for small-scale industrial machinery where high-speed, high-torque motors are essential for efficient operation.
Package Includes
- 1 x 25GA370 620 RPM 12V 25mm Diameter centre Shaft DC high torque geared motor
