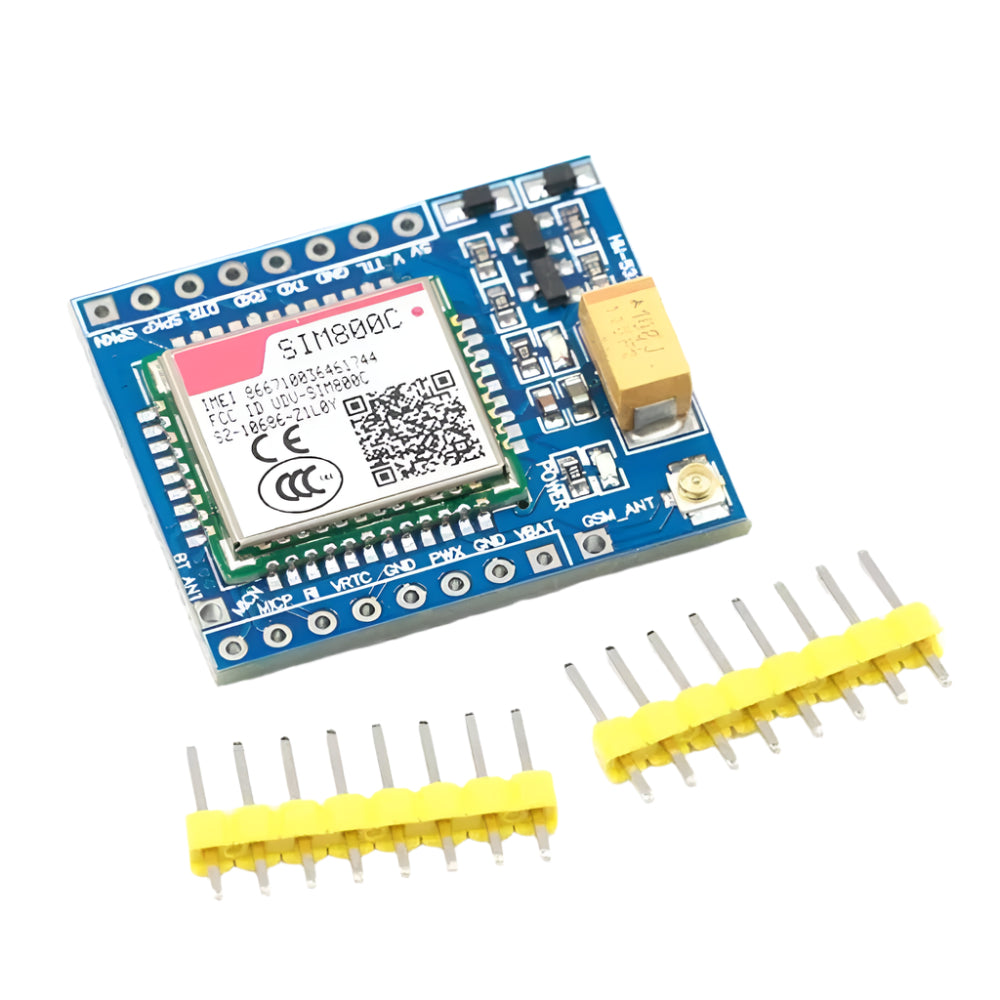

GSM Module GPRS SMS Voice Phone Development Board SIM800C

The GSM Module GPRS SMS Voice Phone Development Board SIM800C is a versatile and powerful module designed for seamless communication and data transmission. With support for GSM, GPRS, SMS, and voice capabilities, this development board is an excellent choice for various IoT, mobile communication, and remote monitoring applications.

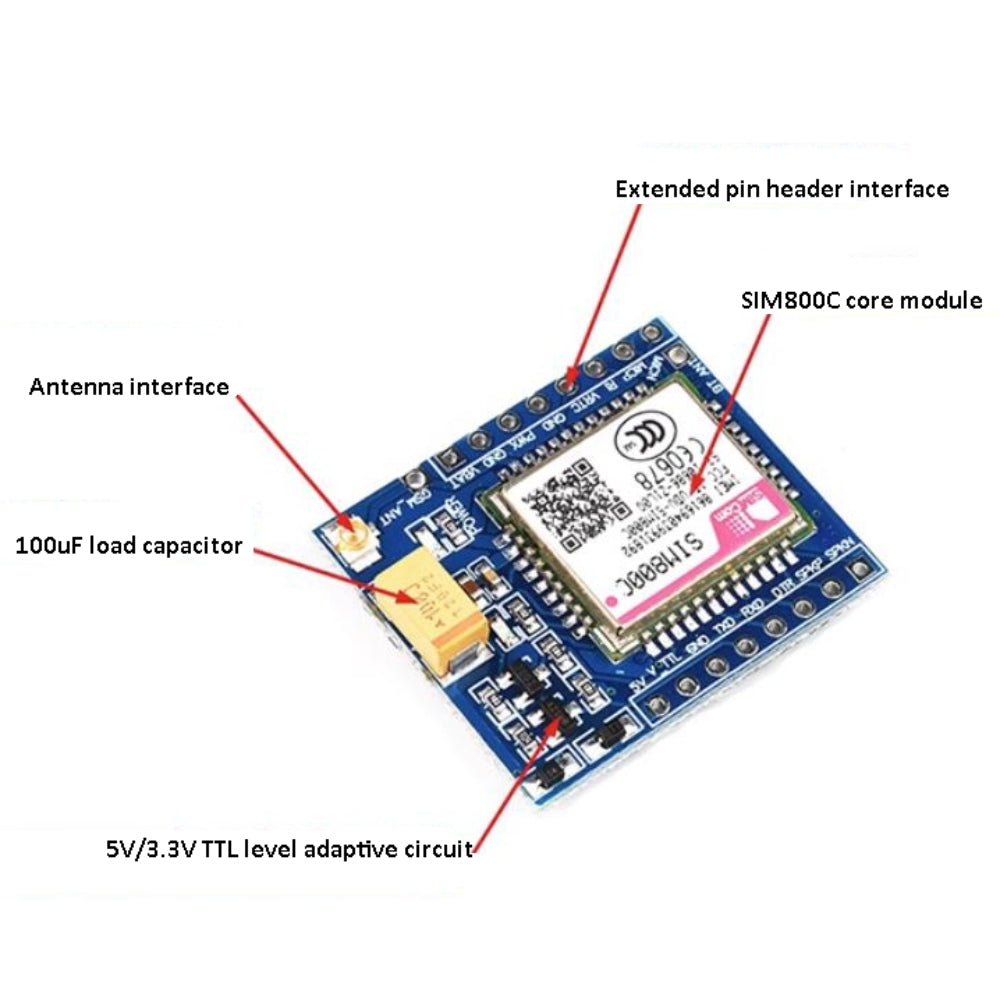

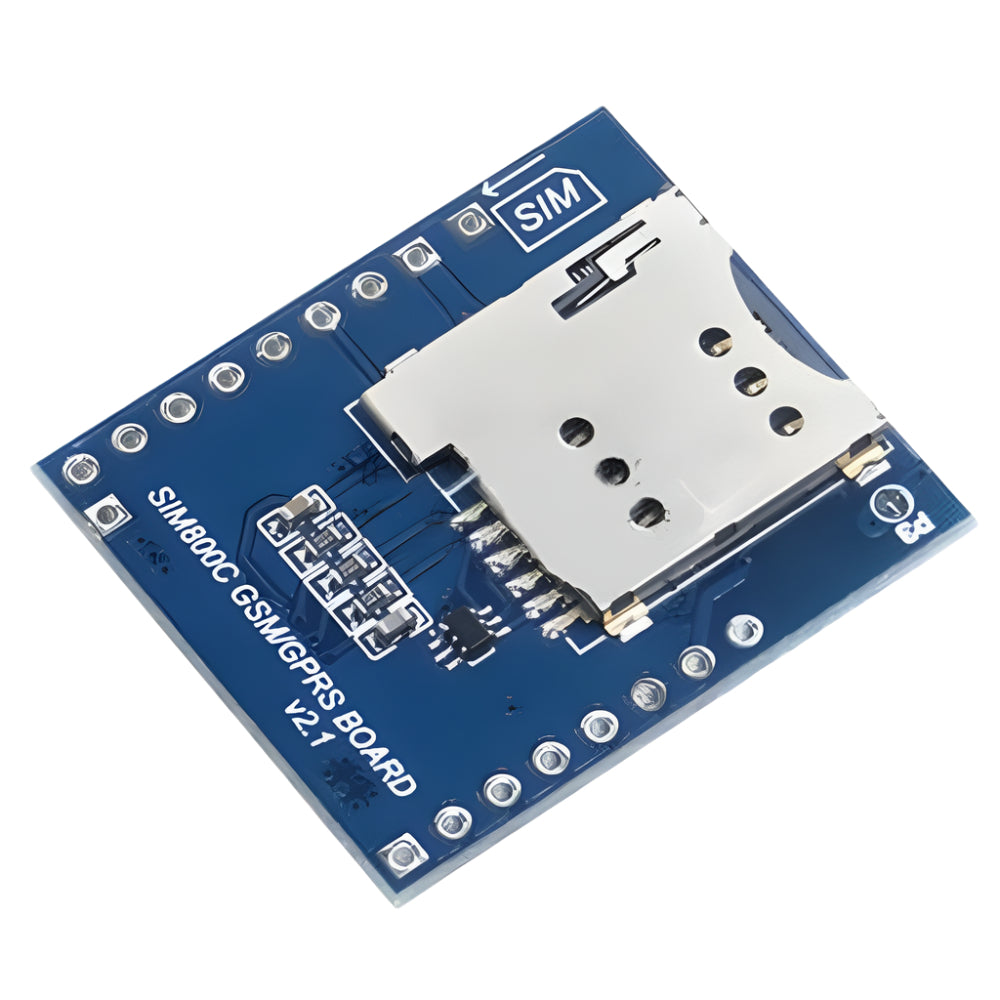

This GSM/GPRS development board is based on a SIM800C chip supporting Bluetooth function and AT command control via the serial port. On-board SIM card slot and support 850/900/1800/1900MHz quad band can be used worldwide. It is equipped with a 5V/3.3V logic converter circuit compatible with most MCU breakout boards to obtain the SMS and TTS functions.

Seamless Communication -SIM800C with GSM and GPRS Capabilities

Experience seamless communication with the GSM Module GPRS SMS Voice Phone Development Board SIM800C. This module is equipped with GSM and GPRS capabilities, allowing you to establish reliable connections for voice calls, SMS messaging, and data transmission. Whether you're building a mobile communication system or an IoT application, this board ensures efficient and stable connectivity.

SMS and Voice Functions - Versatile Communication ToolSIM800C

The development board supports SMS messaging and voice functions, providing versatile communication tools for your projects. With SMS capabilities, you can send and receive text messages for remote control and notifications. The voice feature enables two-way communication, making it ideal for applications that require voice calls.

Efficient Data Transmission withSIM800C- GPRS for Remote Monitoring

The GPRS capability of the SIM800C module allows for efficient data transmission over cellular networks. With GPRS, you can remotely monitor and control your devices or collect data from sensors. This functionality opens up possibilities for remote monitoring applications and real-time data acquisition.

Technical Details

  • Power input: DC5V or received by a lithium battery input VBAT and GND.
  • Supports MCU level: 5V / 3.3V for TTL logic (Such as the common 51 and the Arduino is 5v, STM32 is the 3.3v)
  • Antenna use: IPEX antenna interfaces, you can use the version PCB antenna or antenna IPEX-SMA- peppers

Pin Description

  • 5V: power supply pin, the only input DC5V, used to power the board.
  • V_TTL: access control board microcontroller core target voltage of 5V / 3.3V (according to its own microcontroller is much to distinguish – kernel v), this pin is used to convert the GSM module board TXD and RXD for the corresponding TTL logic.
  • GND: power supply ground
  • TXD: Send pin serial port module, TTL level (not directly connected to RS232 level)
  • RXD: receive pin serial port module, TTL level (not directly connected to RS232 level)
  • DTR: Data Terminal Ready
  • SPKP: Core Audio output pin
  • SPKN: Core Audio output pin
  • MICN: Core Audio input
  • MICP: Core Audio input
  • RI: Ring core pin tips
  • VRTC: RTC pin external battery
  • GND: power supply ground
  • PWX: This pin can turn down or turn off the module
  • GND: power supply ground
  • VBAT: lithium battery input pin, 3.3v-4.4v

Physical Attributes

  • L x W (mm): 31 x 27
  • Weight (gm): 8

Features

  • Power input: DC5V or received by a lithium battery input VBAT and GND.
  • Supports MCU level: 5V / 3.3V for TTL logic (Such as the common 51 and the Arduino is 5v, STM32 is the 3.3v)
  • Antenna use: IPEX antenna interfaces, you can use the version PCB antenna or antenna IPEX-SMA- peppers

Product Video

Documentation

Package Includes

  • 1 x SIM800C GSM GPRS Module
