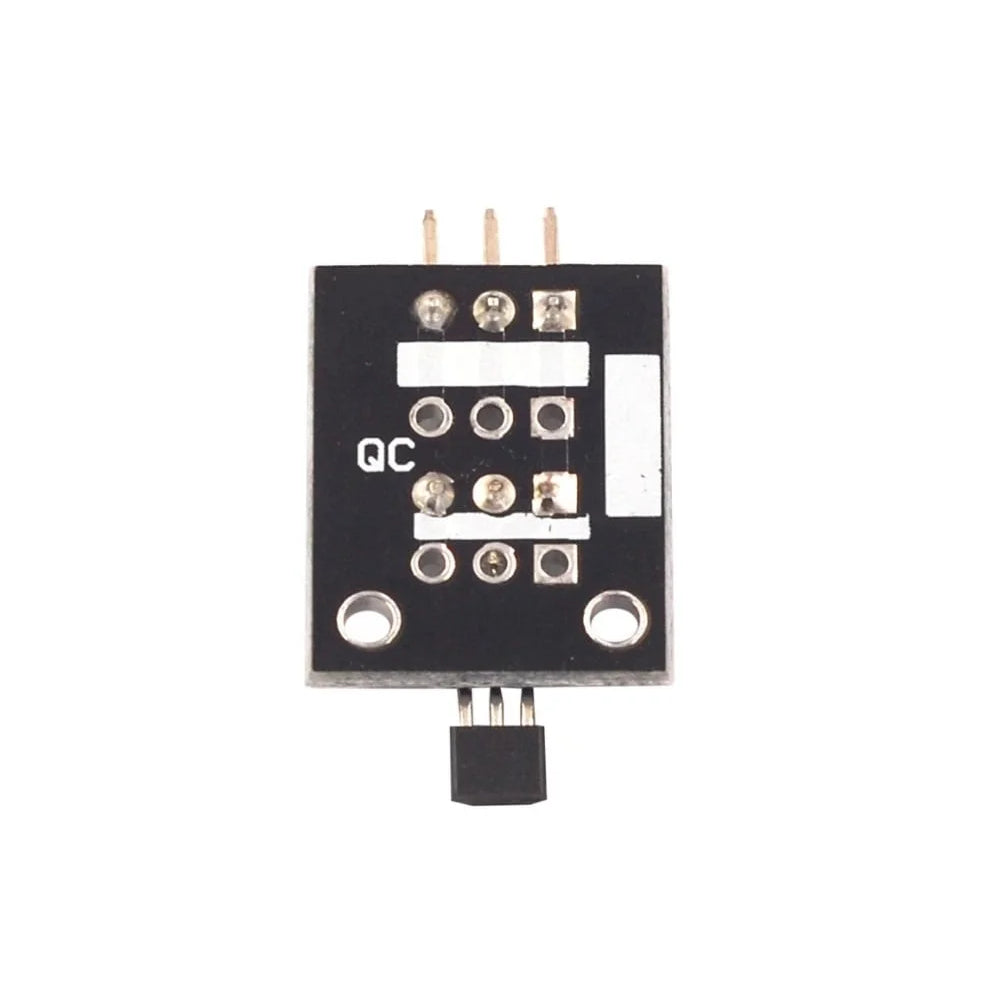

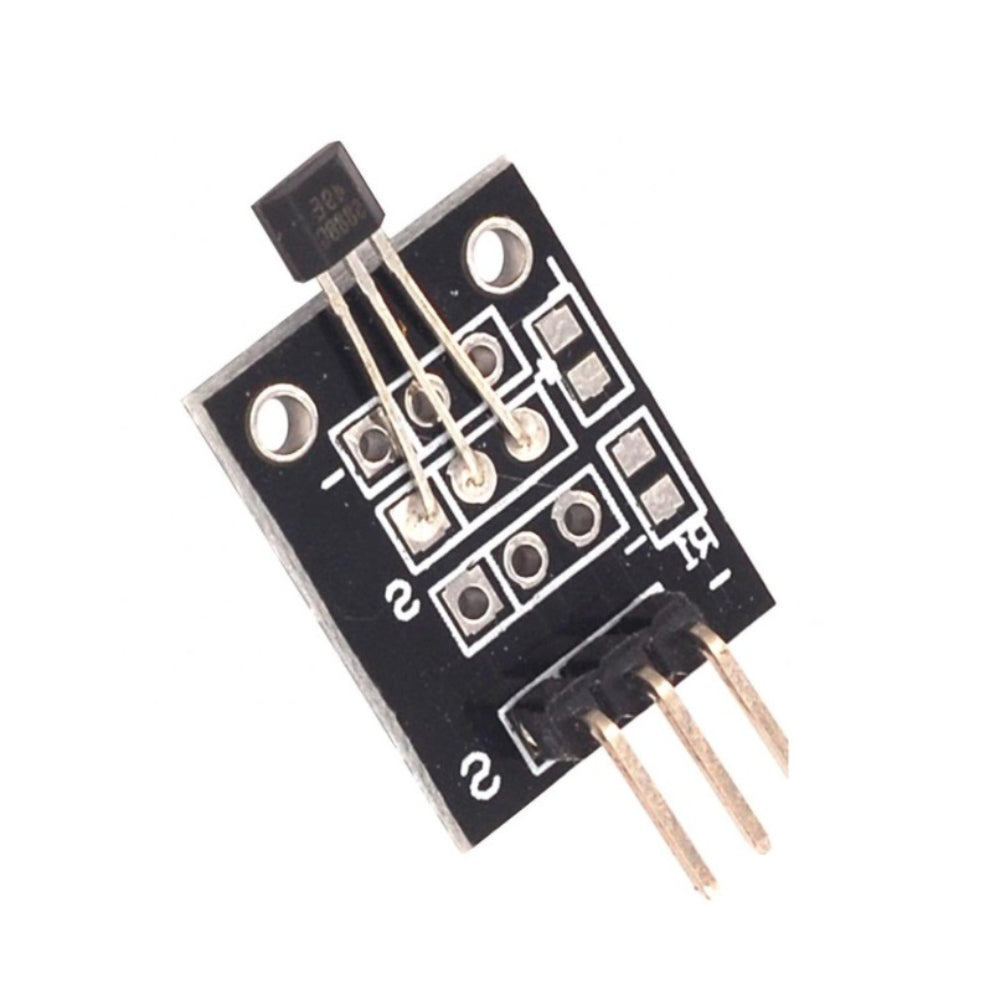

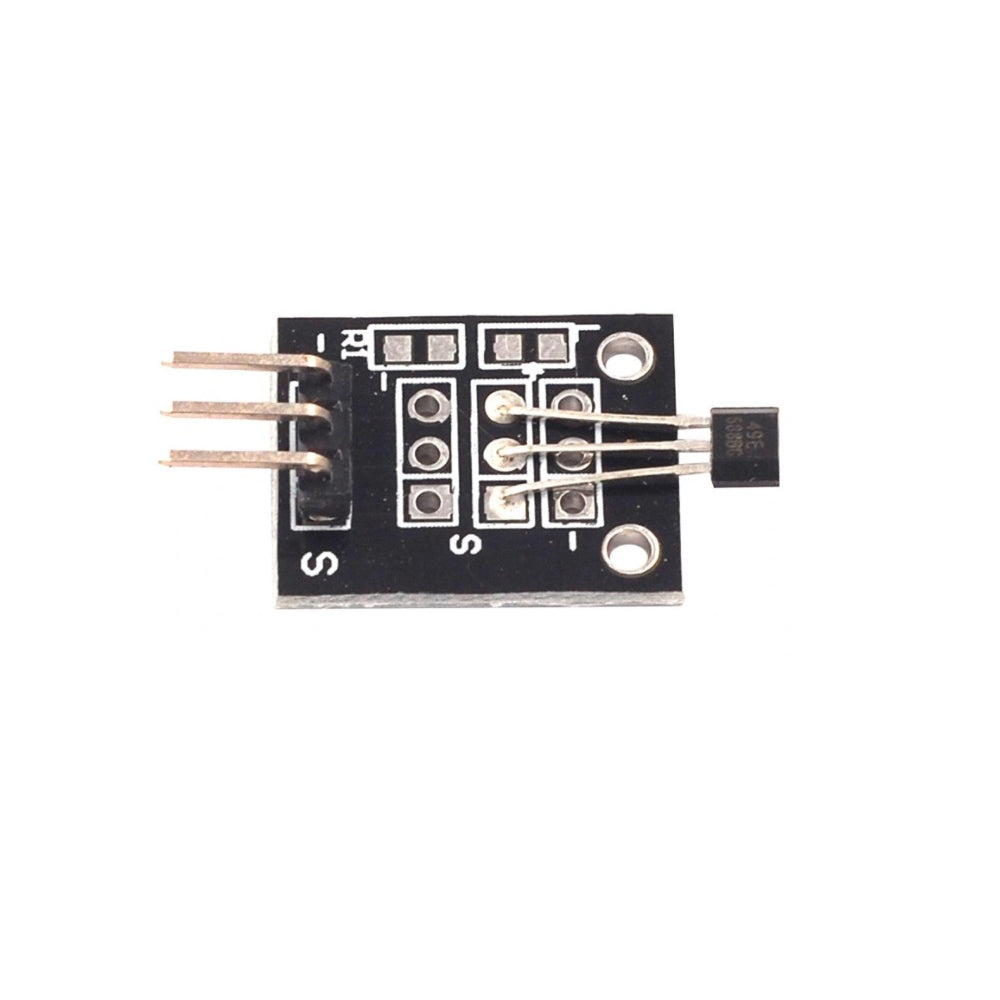

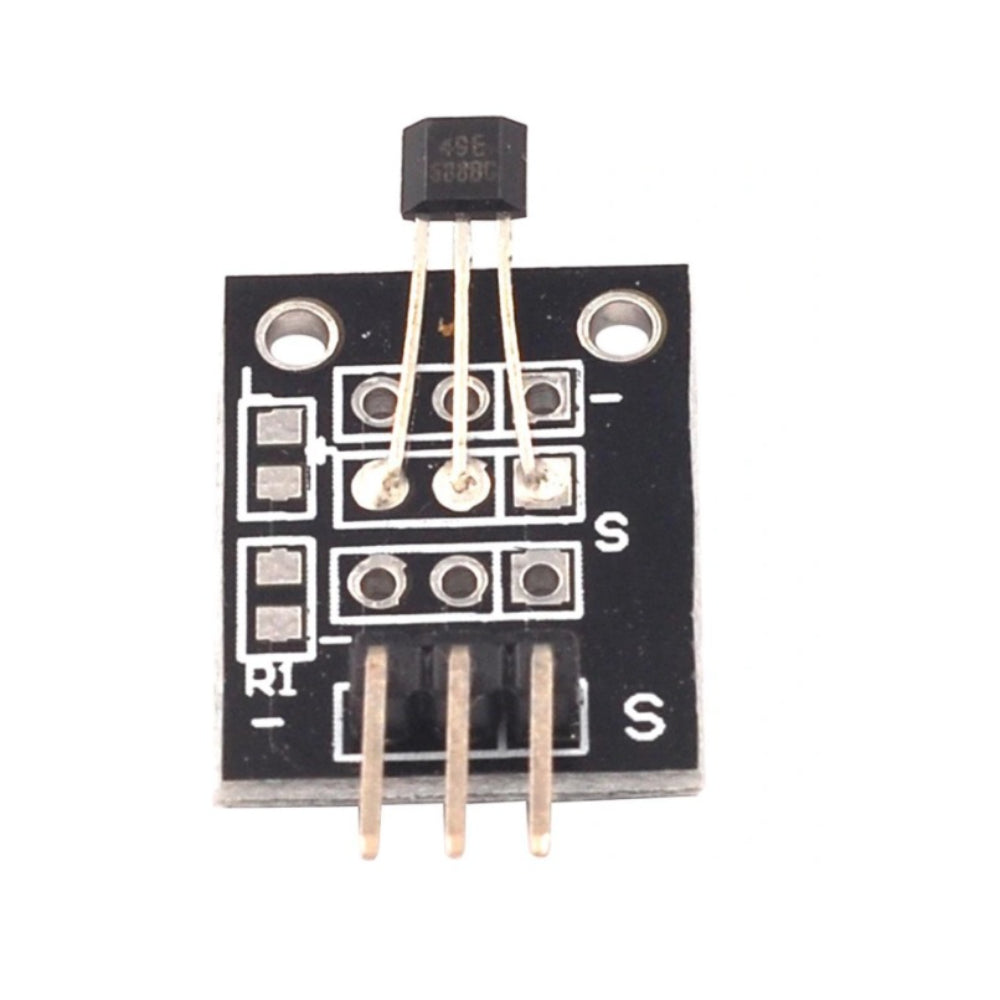

SS49E Linear Hall Effect Sensor Module
Available:In Stock
- Product SKU: KG1254
₹ 26
₹ 39
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
SS49E Analog Hall Magnetic Sensor Module – 3144 Series Compatible
The SS49E Analog Hall Magnetic Sensor Module is based on the Hall effect principle and designed for precise magnetic field detection. It integrates a voltage regulator, Hall voltage generator, differential amplifier, Schmidt trigger, temperature compensation circuit, and open-collector output stage to form a highly reliable magnetic sensing system.The module features both analog output and a built-in LED indicator, allowing easy visualization of magnetic field detection. It is widely used in Arduino projects, position sensing, speed measurement, and magnetic switch applications.
Features
- Compact and lightweight design
- High sensitivity magnetic field detection
- Fast response and accurate switching performance
- Stable output with temperature compensation
- Built-in LED indicator for magnetic field presence
- High precision and reliability
- Easy integration with Arduino and microcontrollers
Technical Details
- Model Type: Hall Effect Sensor
- Model No.: SS49E
- Series: 3144 Compatible
- Type: Magnetic Sensor Module
- Operating Voltage: 4.5V – 24V DC
- Output Type: Analog Voltage Signal
- Compatibility: Arduino and other microcontrollers
- Operating Temperature: -40°C to +85°C
- Dimensions (mm): 25 × 15 × 7
Applications
- Magnetic field strength and polarity detection
- Speed and position sensing
- Proximity and contactless switch applications
- Rotation, gear, and motor speed measurement
- DIY electronics and robotics projects
- Magnetic feedback and security systems
Package Includes
- 1 × SS49E Analog Hall Magnetic Sensor Module
