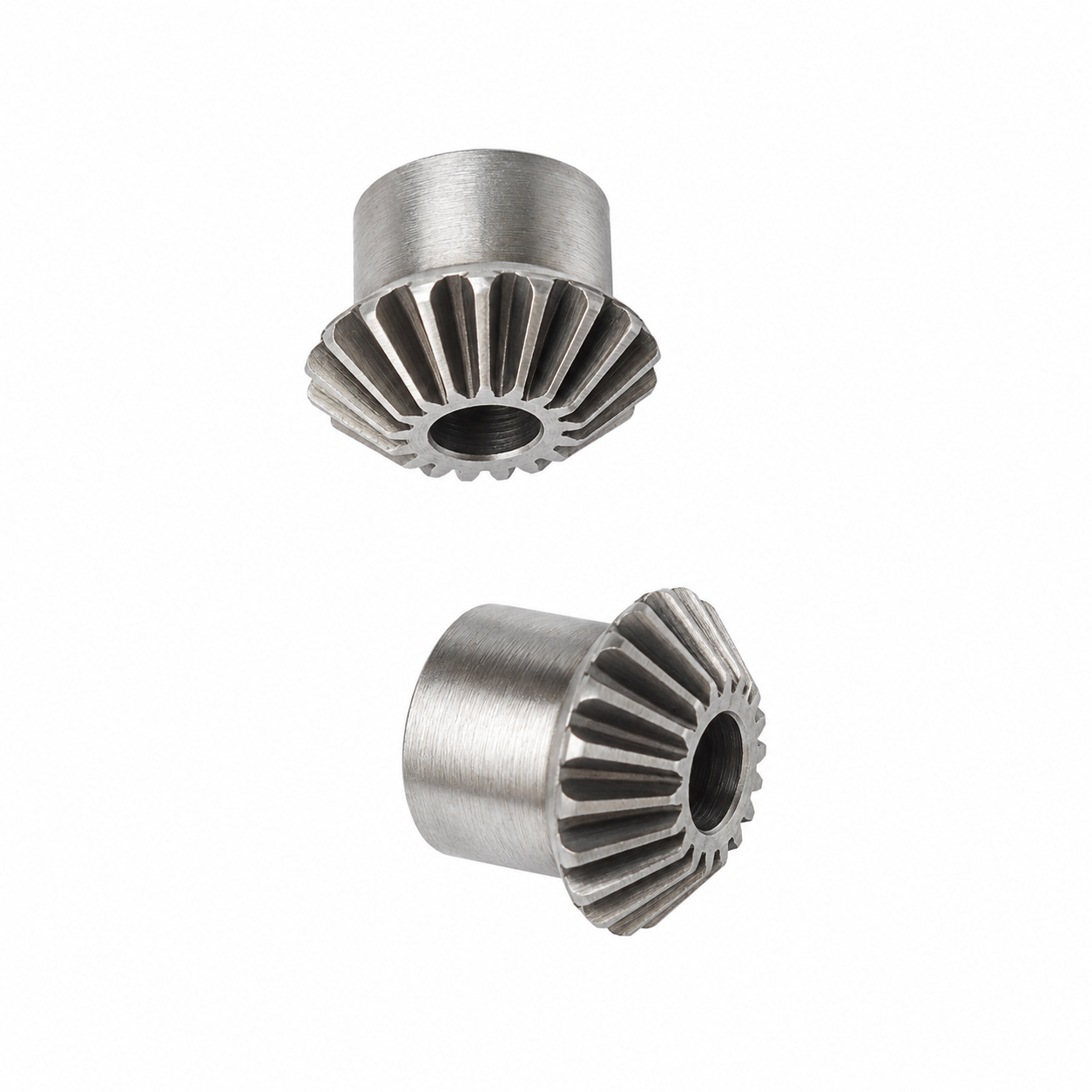

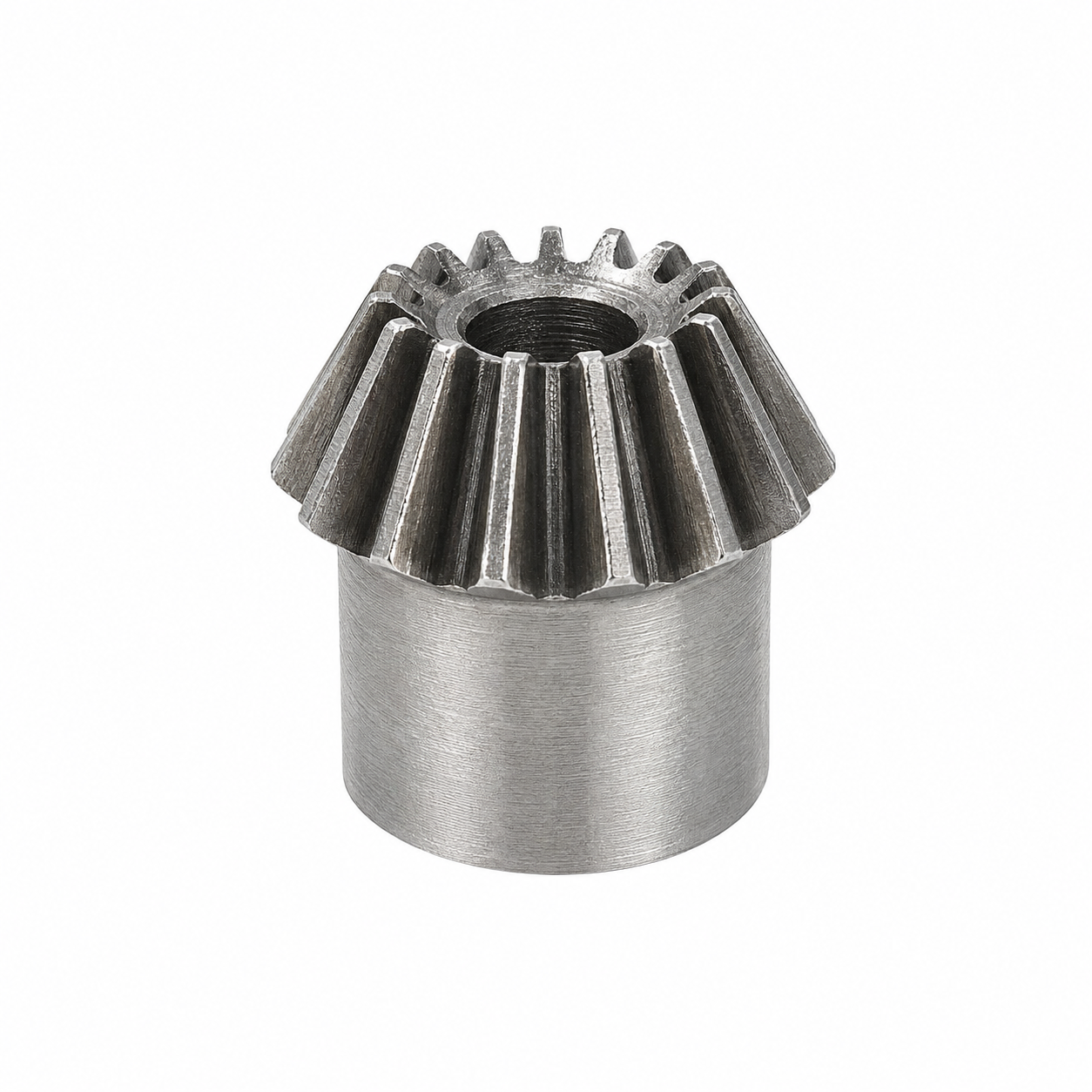

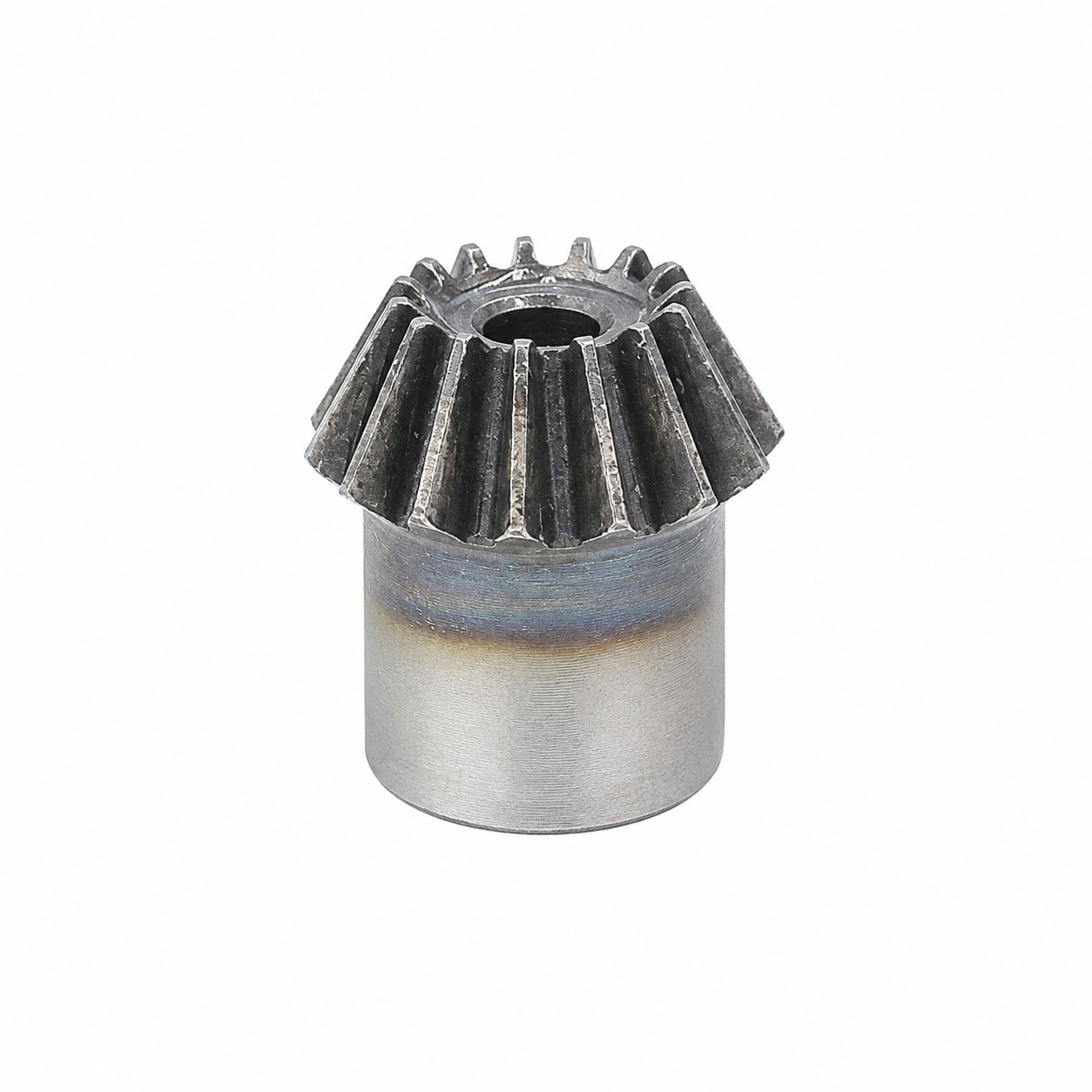

1 Module 15 Teeth 6mm Bore Bevel Gear 90 Degree Bevel Gear Carbon Steel
![1 Module 15 Teeth 5mm Bore Bevel Gear 90]()
![1 Module 15 Teeth 5mm Bore Bevel Gear 90_1]()
![1 Module 15 Teeth 5mm Bore Bevel Gear 90_2]()
![drawing]()
![1 Module 15 Teeth 5mm Bore Bevel Gear 90]()
![1 Module 15 Teeth 5mm Bore Bevel Gear 90_1]()
![1 Module 15 Teeth 5mm Bore Bevel Gear 90_2]()
![drawing]()
With a Module Size of 1 and 15 teeth, this bevel gear is suitable for small mechanical assemblies where accurate angular power transmission is required. The 6mm bore diameter allows it to be mounted on compatible shafts, while its compact size makes it useful for space-limited gear mechanisms.
-22%
1 Module 15 Teeth 6mm Bore Bevel Gear 90 Degree Bevel Gear Carbon Steel
Available:In Stock
- Product SKU: GEAR123
₹ 365
₹ 469
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
1 Module 15 Teeth 6mm Bore 90 Degree Bevel Gear Carbon Steel
The 1 Module 15 Teeth 6mm Bore 90 Degree Bevel Gear is a compact and durable gear designed for transmitting motion between two shafts positioned at a 90-degree angle. Made from carbon steel, this bevel gear provides good strength and wear resistance for mechanical transmission, robotics, automation, and DIY engineering applications.With a Module Size of 1 and 15 teeth, this bevel gear is suitable for small mechanical assemblies where accurate angular power transmission is required. The 6mm bore diameter allows it to be mounted on compatible shafts, while its compact size makes it useful for space-limited gear mechanisms.

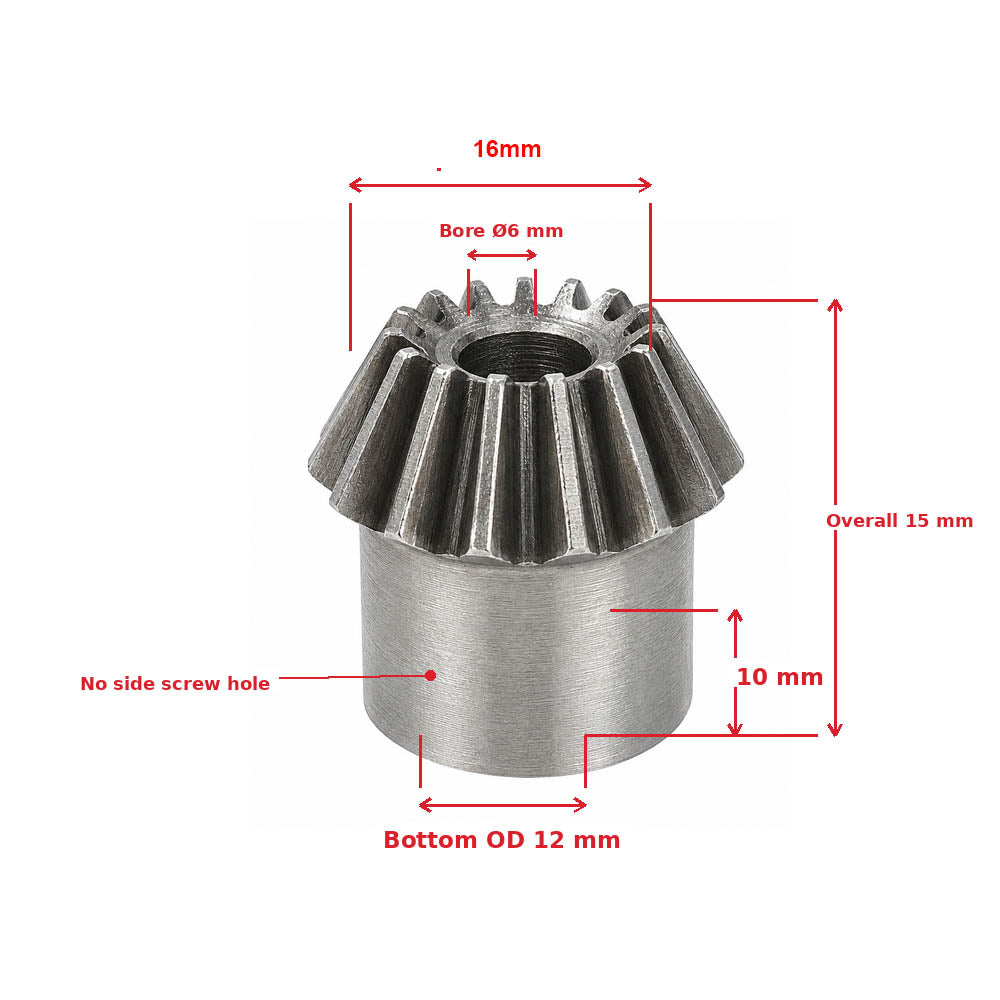

Technical Details
- Product Type: 90 Degree Bevel Gear
- Material: Carbon Steel
- Module Size: 1
- Number of Teeth: 15
- Bore Diameter: 6mm
- Outer Diameter: 16mm
- Height: 15mm
- Base Diameter: 12mm
- Gear Angle: 90 Degrees
- Suitable Shaft Diameter: 6mm
- Application Type: Mechanical power transmission and angular motion transfer
Features
- Made from carbon steel for strength and durability
- Designed for 90-degree power transmission
- 1 module gear size for compact mechanisms
- 15 teeth design for compatible gear pairing
- 6mm bore suitable for compatible shafts
- Compact size for small mechanical assemblies
- Useful for robotics, automation, and DIY projects
- Suitable for motion transfer between perpendicular shafts
Applications
- Robotics projects
- DIY mechanical assemblies
- Small gear transmission systems
- Automation equipment
- Model making and prototyping
- Educational mechanical projects
- Perpendicular shaft drive mechanisms
- Custom machinery and motion systems
Physical Attributes
- Material: Carbon Steel
- Outer Diameter: 16mm
- Height: 15mm
- Base Diameter: 12mm
- Bore Diameter: 6mm
- Weight: 10g
Package Includes
- 1 x 1 Module 15 Teeth 6mm Bore 90 Degree Bevel Gear Carbon Steel
