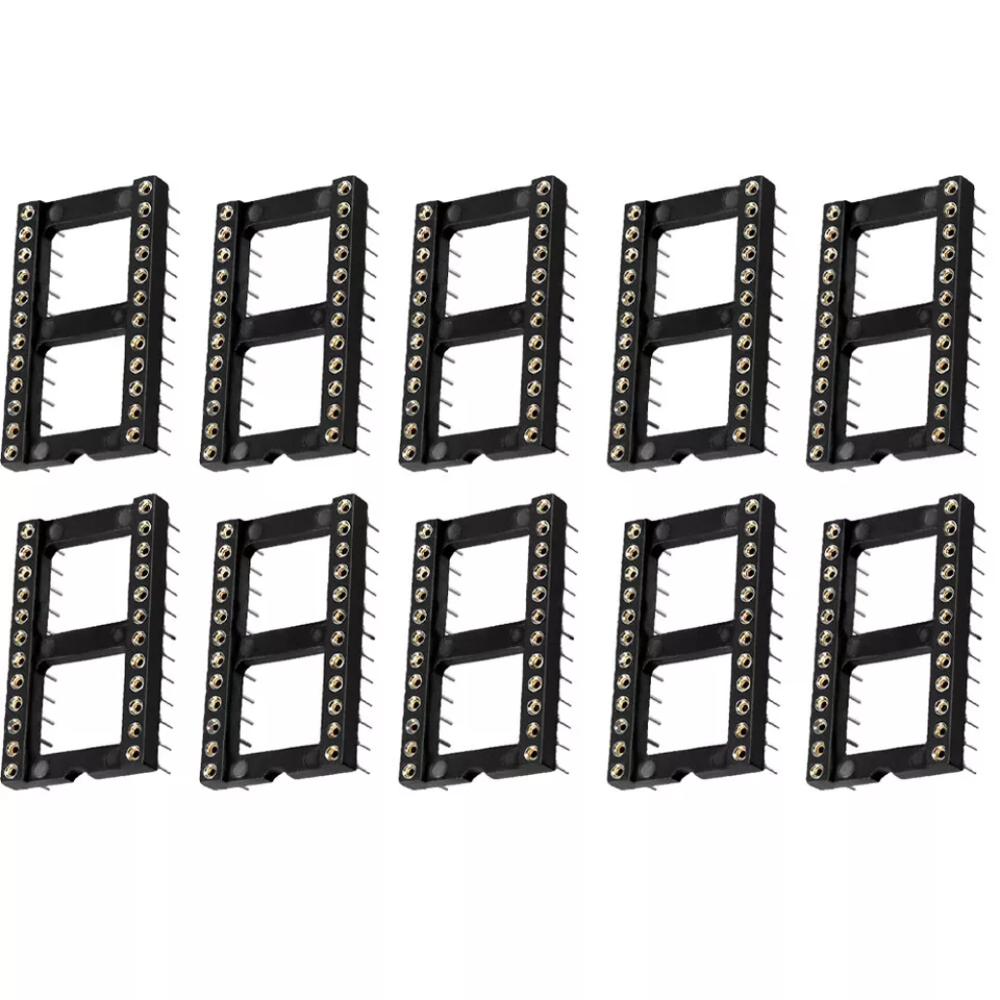

24 Pin DIP IC Base Pitch Width 15.24mm and pins spaced at 2.54mm 10Pcs
- Product SKU: BASE009_10
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
A 24-pin Dual In-line Package (DIP) IC base with a pitch width of 15.24 mm and pins spaced at 2.54 mm is a standardized component used for mounting integrated circuits (ICs) onto printed circuit boards (PCBs).
The 24-pin DIP base securely holds and connects 24-pin ICs to a PCB. It facilitates easy insertion and removal of ICs, making it suitable for various applications including prototyping, testing, and production.
Features:
User-Friendly Design: Simplifies the process of mounting and replacing ICs, particularly beneficial during prototyping and troubleshooting.Thermal Protection: Helps protect ICs from heat damage during soldering by providing a heat-resistant interface.
Reusability: Allows for multiple insertions and removals, making it a cost-effective solution for various projects.
Applications:
Prototyping and Development: Suitable for environments where ICs need to be frequently swapped for testing and development purposes.Production Designs: Used in products where future IC replacement or upgrades may be required, facilitating easier maintenance.
Educational Kits: Commonly found in educational kits and breadboard setups due to their versatility and ease of use.
Technical Details
- Current Handling Capacity: 1A
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Operating Temperature Range: -25 to 85°C
- Color: Black
- Voltage Rating: 50V AC
- Orientation: Vertical
- Mounting Type: Through Hole
- Frame Type: Open Frame
- Termination Method: Solder
- Depth: 5.1mm
Features OF 24 Pin IC Base
- Pins: 24 Pin
- Molded notch for proper orientation.
- Easy to insert and remove ICs.
- Maximum reliability
- It has tapered entry for ease of insertion
- Available in different sizes and shapes according to ic
Dimensions OF 24 Pin IC Base
Product Video
Documentation OF 24 Pin IC Base
Package Includes
- 1 x 24 Pin DIP IC Base Pitch Width 15.24mm and pins spaced at 2.54mm 10Pcs
