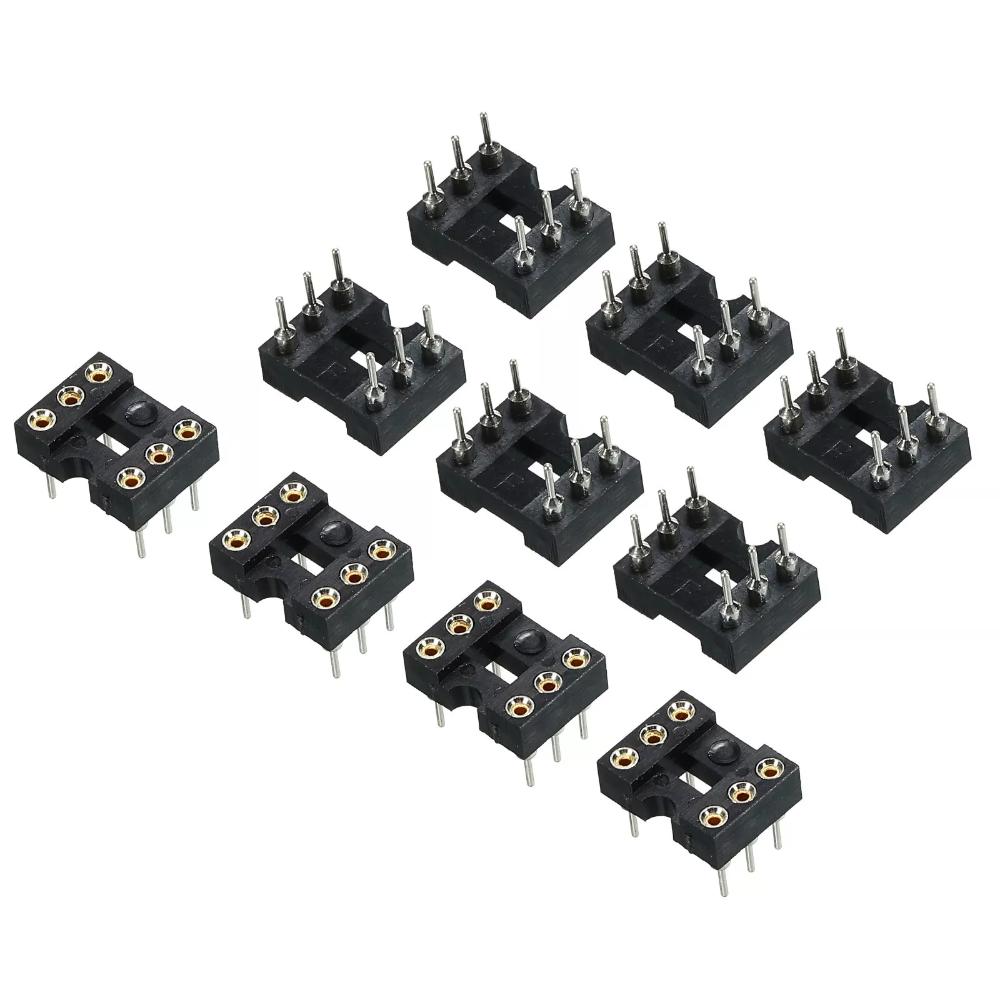

6 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10Pcs
![6 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10Pcs-1]()
![6 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -2]()
![6 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -3]()
![6 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10Pcs-1]()
![6 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -2]()
![6 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -3]()
Protection: Reduces the risk of thermal damage to ICs during soldering and de-soldering.
Reusability: Allows multiple insertions and removals of ICs, making it a cost-effective solution for development and testing.
-37%
6 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10Pcs
Available:In Stock
- Product SKU: BASE001_10
₹ 50
₹ 80
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
A 6-pin Dual In-line Package (DIP) IC base or socket with a pitch width of 7.62 mm and pins spaced at 2.54 mm is a standardized component used in electronic circuits.
The 6 Pin IC Base is designed to accommodate and hold 6-pin integrated circuits (ICs) securely on a printed circuit board (PCB). It provides a reliable connection and allows easy replacement of ICs without soldering directly to the board.
The 6 Pin IC Base is designed to accommodate and hold 6-pin integrated circuits (ICs) securely on a printed circuit board (PCB). It provides a reliable connection and allows easy replacement of ICs without soldering directly to the board.
Features:
Ease of Use: Simplifies mounting ICs on a PCB, especially beneficial during testing and troubleshooting.Protection: Reduces the risk of thermal damage to ICs during soldering and de-soldering.
Reusability: Allows multiple insertions and removals of ICs, making it a cost-effective solution for development and testing.
Applications :
Used in prototyping and development environments where ICs need to be frequently replaced or updated. Employed in final production designs where future IC replacement is anticipated, such as in maintenance-heavy or upgradeable systems. Common in educational and experimental setups due to ease of use and flexibility.Technical Details of DIP IC BASE
- Number of Pins: 6
- Pin Pitch: 2.54 mm (0.1 inch)
- Current Handling Capacity: 1A
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Operating Temperature Range: -25 to 85°C
- Color: Black
- Voltage Rating: 50V AC
- Orientation: Vertical
- Mounting Type: Through Hole
- Frame Type: Open Frame
- Termination Method: Solder
- Depth: 5.1mm
Features
- Pins: 6 Pin
- Molded notch for proper orientation.
- Easy to insert and remove ICs.
- Maximum reliability
- It has tapered entry for ease of insertion
- Available in different sizes and shapes according to ic
Dimensions of DIP IC BASE
Product Video
Documentation of 6 Pin IC Base
Package Includes
- 1 x 6 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10Pcs
