8 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10Pcs
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-37%
8 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10Pcs-1
8 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -2
8 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -3
8 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10Pcs-1
8 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -2
8 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm -3

8 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10Pcs

Available:In Stock
  • Product SKU: BASE002_10
Wishlist
₹ 50 ₹ 80
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Sourced directly from Factory
  • Beware of Fakes & Refurbished
  • Original, High Quality
  • KitsGuru Warranty
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   -

Secure

Specification

Description

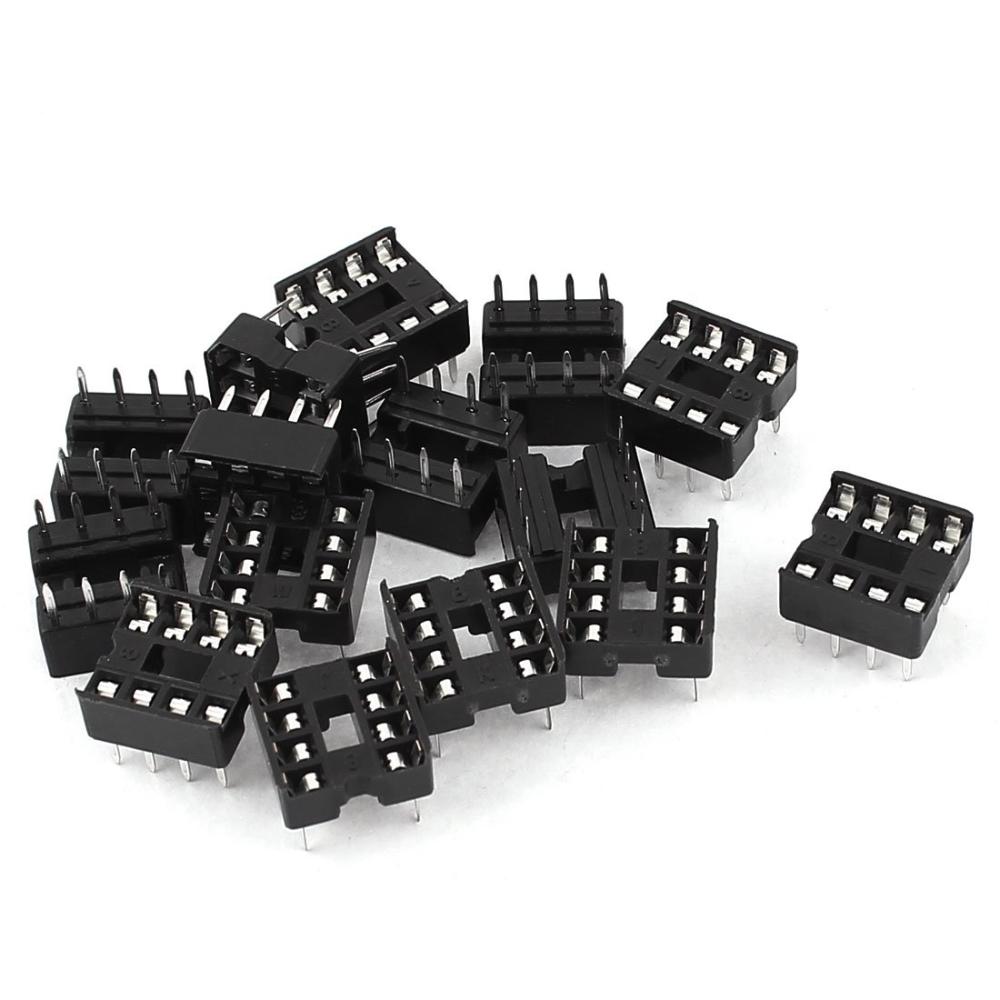

An 8-pin Dual In-line Package (DIP) IC base or socket with a pitch width of 7.62 mm and pins spaced at 2.54 mm is a standardized component used to mount integrated circuits (ICs) onto a printed circuit board (PCB) securely.

The 8 Pin IC Base is designed to hold and connect 8-pin integrated circuits (ICs) to a printed circuit board (PCB) securely. It facilitates easy insertion and removal of ICs, which is particularly useful in prototyping, testing, and applications where the IC might need to be replaced.

Features of 8 Pin IC Base:

Ease of Use: Simplifies the process of mounting ICs on a PCB, especially beneficial during testing and troubleshooting.

Protection: Reduces the risk of thermal damage to ICs during soldering and desoldering.

Reusability: Allows multiple insertions and removals of ICs, making it a cost-effective solution for development and testing.

Applications:

Used in prototyping and development environments where ICs need to be frequently replaced or updated. Employed in final production designs where future IC replacement is anticipated, such as in maintenance-heavy or upgradeable systems. Common in educational and experimental setups due to ease of use and flexibility.

Technical Details of 8 Pin IC Base

  • Number of Pins: 8
  • Row Spacing (Pitch Width): 7.62 mm (0.3 inches)
  • Pin Pitch: 2.54 mm (0.1 inch)
  • Current Handling Capacity: 1A
  • Contact Material: Phosphor Bronze
  • Contact Plating: Tin
  • Operating Temperature Range: -25 to 85°C
  • Color: Black
  • Voltage Rating: 50V AC
  • Orientation: Vertical
  • Mounting Type: Through Hole
  • Frame Type: Open Frame
  • Termination Method: Solder
  • Depth: 5.1mm

Features

  • Pins: 8 Pin
  • Molded notch for proper orientation.
  • Easy to insert and remove ICs.
  • Maximum reliability
  • It has tapered entry for ease of insertion
  • Available in different sizes and shapes according to ic

Dimensions

base

Product Video

Documentation

Package Includes

  • 1 x 8 Pin DIP IC Base Pitch Width 7.62mm and pins spaced at 2.54mm 10Pcs
