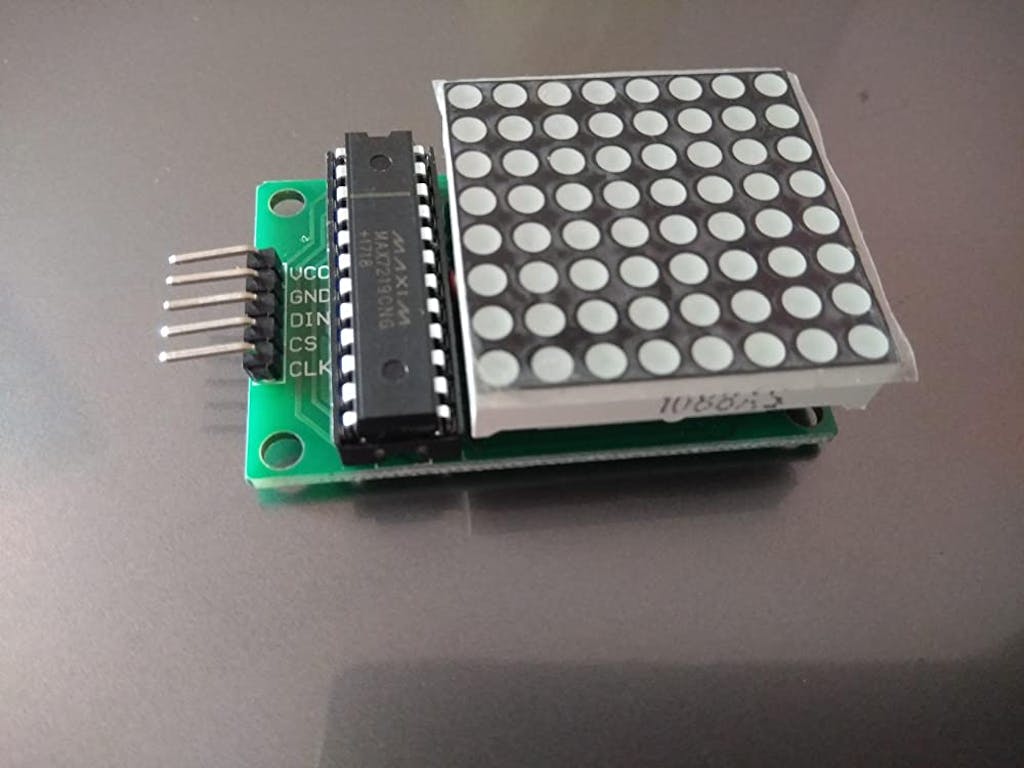

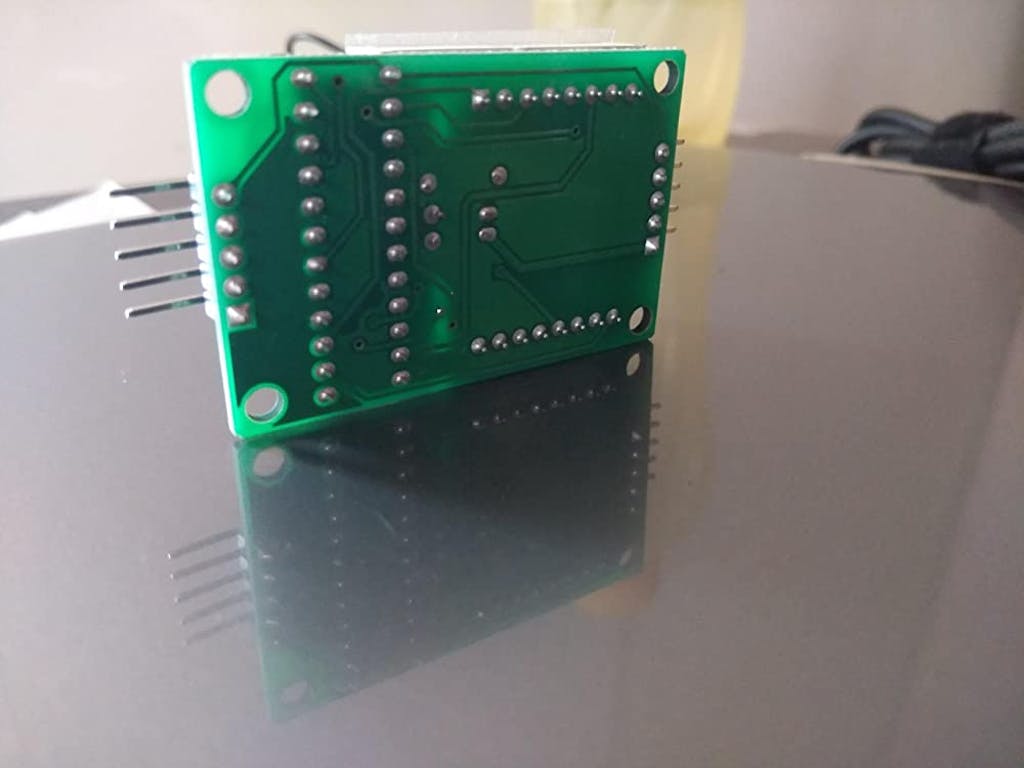

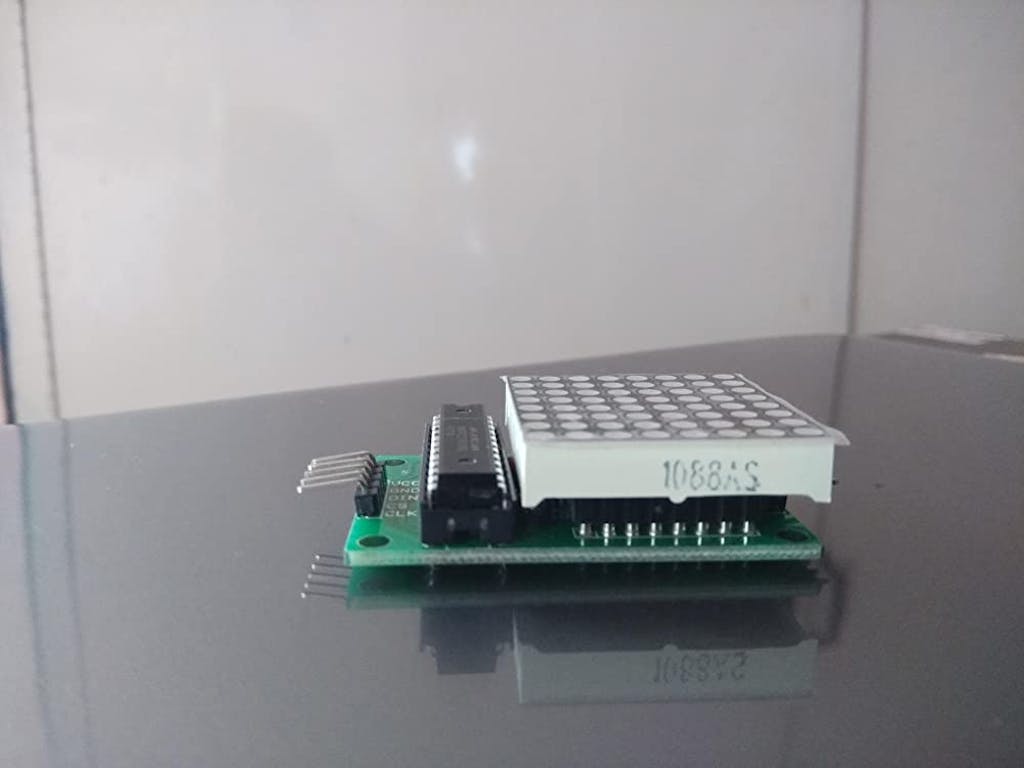

MAX7219 Dot Led Matrix Module MCU Control LED Display Module

Name: MAX7219 Dot Led Matrix Module MCU Control LED Display Module
Availability: InStock
Rating: 5.0 (14 reviews)

Available:In Stock

Product SKU: KG116

Wishlist

₹ 119 ~~₹ 199~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Driver Chip: MAX7219
Input Voltage: 3.7 to 5.3 V
Input Current: 320 mA
Display Dimensions: 32x32x6 (LxWxH) mm
PCB Dimensions: 50×32 (LxW) mm

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

Shipping Details

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

Warehouse Details 12E-124

Specification

Description

This MAX7219 Dot LED Matrix Module is a versatile and easy-to-use component for adding dynamic, customizable LED displays to your projects. The module features an 8x8 matrix of LEDs, totaling 64 individual LEDs that can be controlled with precision to display text, graphics, or animations. Powered by the MAX7219 driver chip, this module communicates with microcontrollers like Arduino using a simple 4-wire serial interface, requiring only 3 I/O pins to control the entire display. The common-cathode configuration makes it compatible with a wide range of microcontrollers, and the modules can be daisy-chained to create larger displays. With the MAX7219, you can address each individual LED without needing to refresh the entire display, allowing for more efficient control. This module is ideal for applications requiring bright, clear, and animated LED displays, such as digital clocks, messaging systems, or creative projects involving visual effects.

Technical Details of led matrix max7219

Model Type: LED Dot Matrix Module
Driver IC: MAX7219
Input Voltage (V): 5
Max. Operating Current (mA): 320
LED Color: Red
Length (mm): 32
Width (mm): 32
Height (mm): 6
PCB Size (L x W) mm: 50 x 32

Features of led matrix max7219

Requires only 3 communication wires from MCU
Cascading multiple Matrix LED Modules is very easy
Size of the display is very compact
The PCB features M3 holes for mounting

Pin Out of led matrix max7219

Vcc – 5V
GND – GND
DIN – Pin 12
CS – Pin 10
CLK – Pin 11

Physical Attributes of led matrix max7219

PCB Size (L x W) mm: 50 x 32
Weight (gm): 22

Integration with Arduino

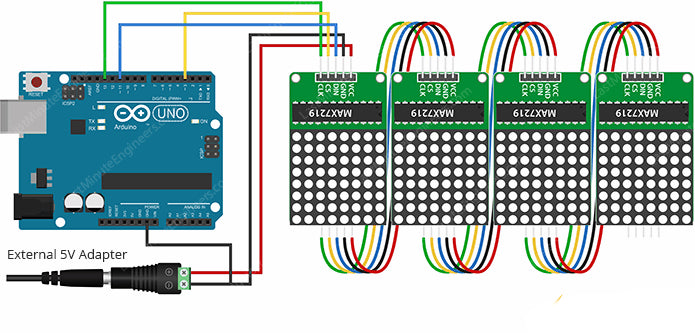

Below is the hookup for the FC-16 MAX7219 Module:

Sample Code

Package Includes

1 x MAX7219 8x8 Dot LED Matrix Dispkay Module MCU Control
