10kg Load Cell Weight Sensor with HX711 ADC Converter

To measure the weight and load of any object we use strain gauges but the problem with using standalone strain gauges is that they are fragile and are easily bent and break if not used in a proper enclosure. This load cell made up of aluminum alloy can measure up to 10 kg load and outputs in the form of electrical signals proportionally. This sensor will use an HX711 Analog to Digital signal converter, it is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it, to read and send the data to the microcontroller or development board you are using as the analog signal from the load cell is too small to be read easily.

Accurate measures forces from 0-1kg; load cell specs: 22 cm (8.5 in) wire leads pre-attached. Dimensions 12.7 mm high, 12.7 mm wide, 80 mm long (0.5 in x 0.5 in x 3.15 in). 4 mounting holes, 15 mm spacing on each side. On both holes tapped the m4 thread, on the other side, both holes tapped the m5 thread.

HX711: This top-of-the-line load cell amplifier mounted on a breakout board pairs perfectly with the load cell to provide fast, accurate force measurements. It measures small changes in the resistance of the strain gauges mounted to the load cell and passes these values directly to any microcontroller (like an Arduino or Raspberry pi).

Connection (to HX711): Red to e+; black to e-; green to a+; white to a-

Technical Details

  • Differential input voltage: ±40mV
  • Data accuracy: 24-bit A/D converter
  • Refresh frequency: 10/80 Hz
  • Operating voltage: 2.7V to 5V DC
  • Operating current: <10mA

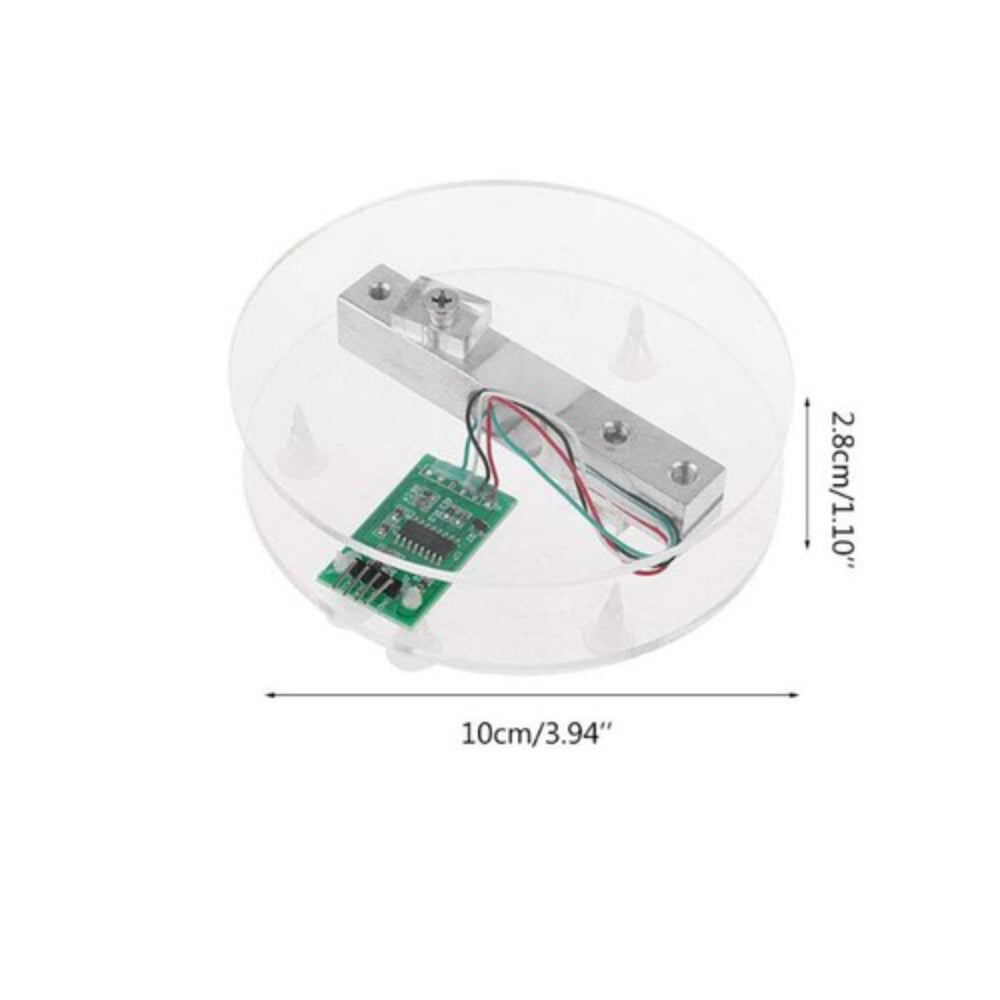

  • Dimensions: 12.7 x 12.7 x 80 mm

Features

  • 10kg load cell sensor
  • HX711 24-bit ADC for high precision
  • Aluminium alloy construction with strain gauges
  • Excitation voltage: 5-10V DC
  • Gain options: 32, 64, 128
  • Selectable data rate: 10SPS / 80SPS
  • Operating voltage: 2.7V–5V
  • Low power consumption
  • Compact design for easy integration

Applications :

  • Electronic weighing systems
  • Industrial automation
  • Smart weighing solutions
  • Arduino & Raspberry Pi projects
  • Kitchen and postal scales
  • Healthcare and fitness devices
  • DIY weight measurement projects

Physical Attributes

  • Dimensions(mm) 12.7 x 12.7 x 80
  • Weight: 35 g

Package Includes

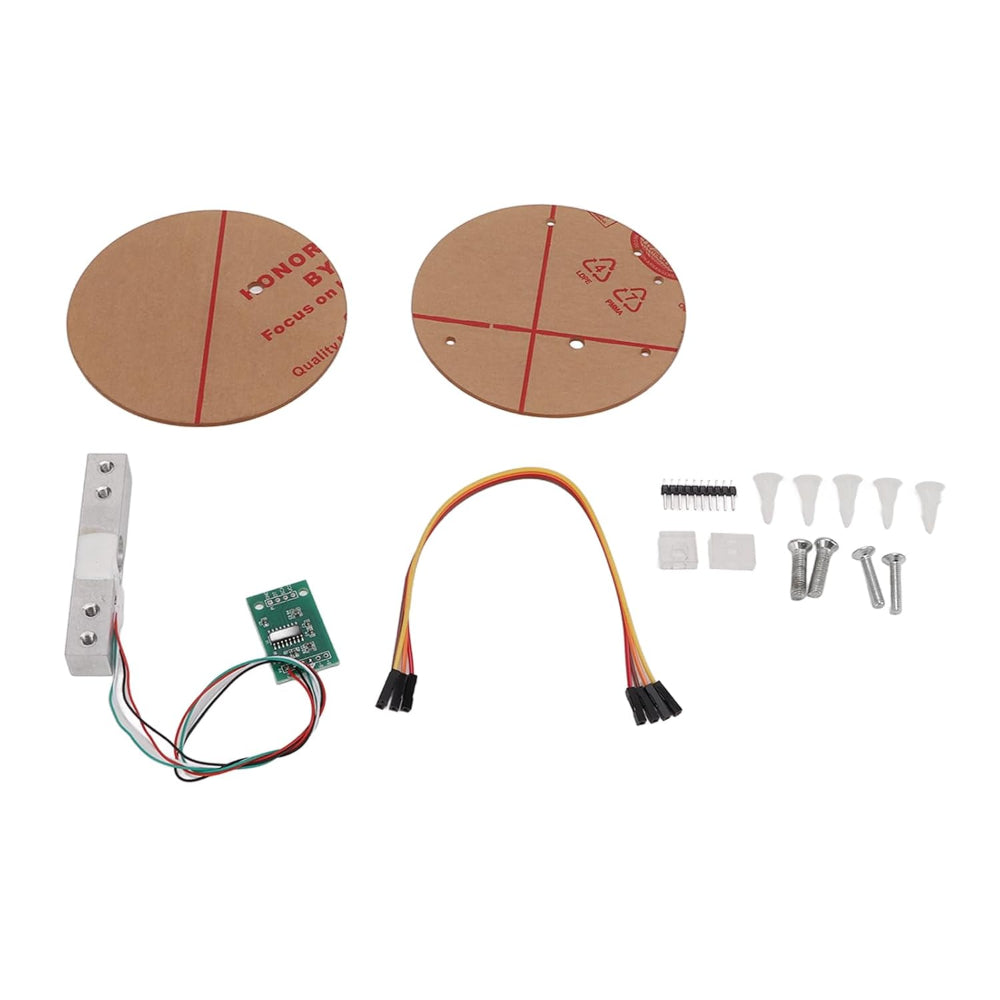

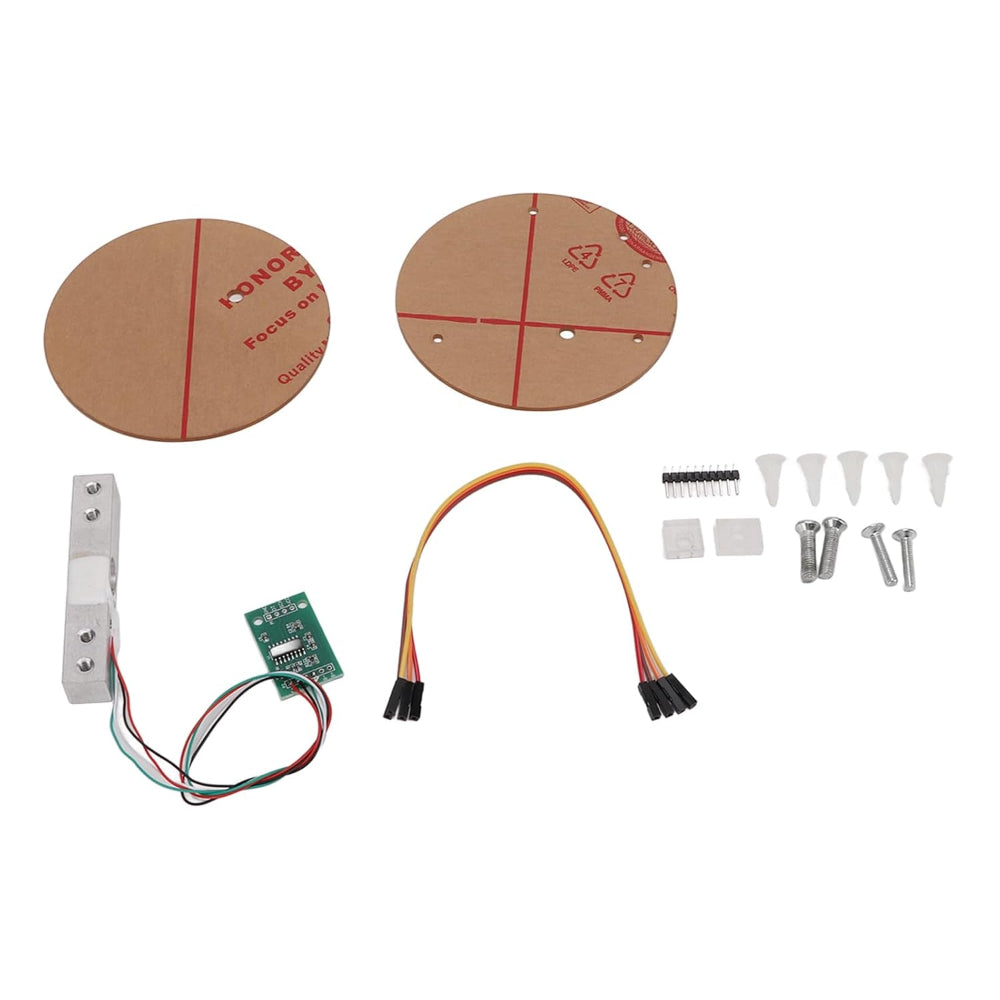

  • 1 x 10kg Load Cell Weight Sensor with HX711 ADC Converter
