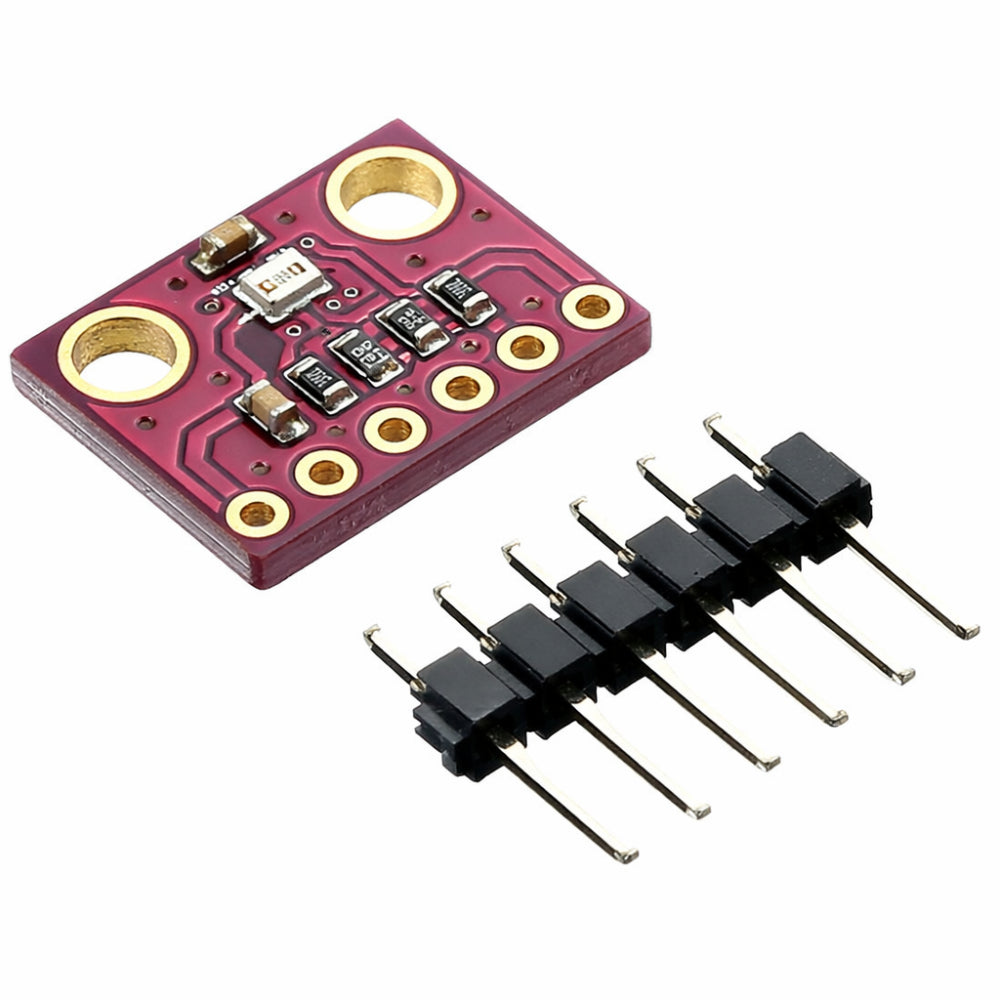

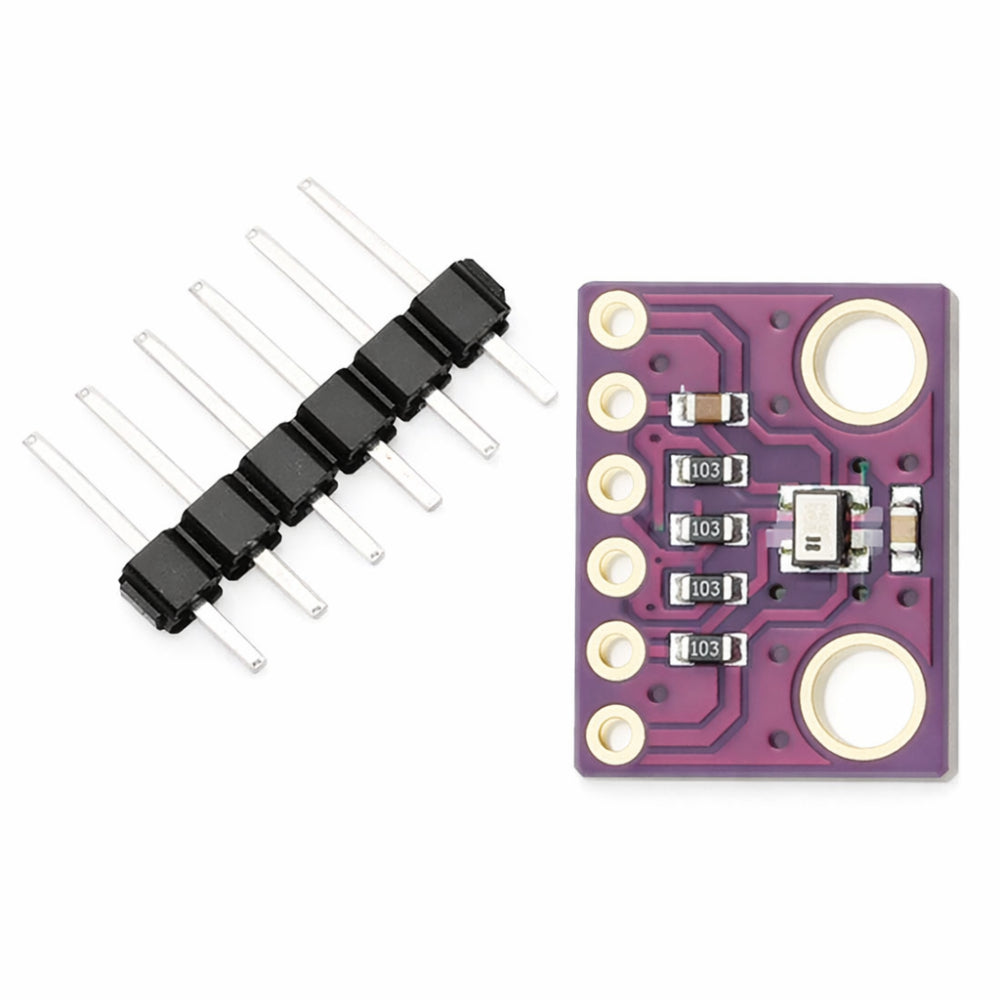

GY-BMP280-3.3 Precision Altimeter Atmospheric Pressure Sensor Module

GY-BMP280-3.3 Precision Altimeter Atmospheric Pressure Sensor Module

Important Note

• The BMP280 does not measure humidity
• It measures temperature, pressure, and altitude only
• If using separate VDDIO (1.8V) and VDD (3.3V), remove the GS1 power rail jumper

Features

• Bosch Sensortec BMP280 pressure and temperature sensor
• High-precision pressure and altitude measurement
• I2C interface up to 3.4 MHz
• SPI interface (3-wire and 4-wire) up to 10 MHz
• Ultra-low power consumption
• Selectable I2C address via solder jumper
• Onboard I2C pull-up resistors

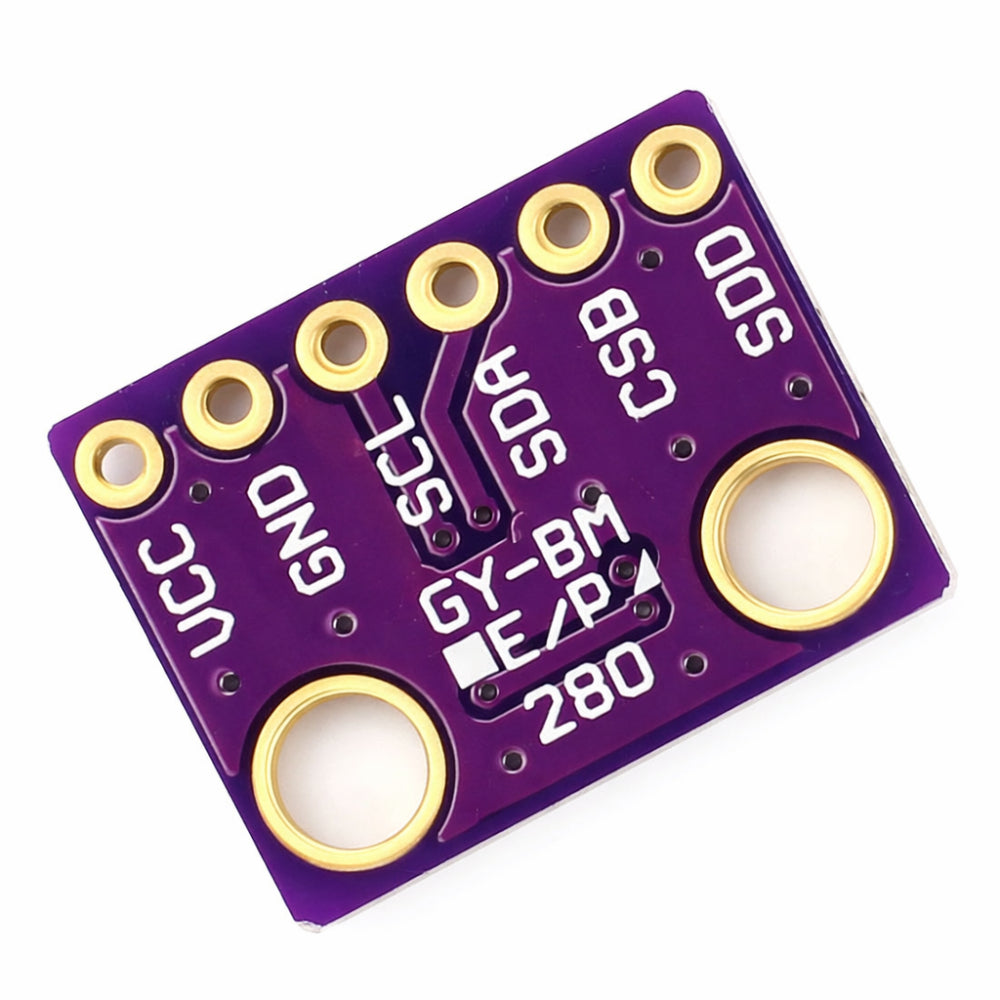

• 7-pin header with 2.54 mm pitch
• Two 3.5 mm mounting holes for easy installation

Technical Specifications

• Chip: BMP280
• Power Supply: 3.3 V to 5 V DC
• Main Supply Voltage (VDD): 1.71 V to 3.6 V
• Interface Voltage (VDDIO): 1.2 V to 3.6 V
• Peak Current: 1.12 mA
• Current Consumption: 2.8 µA at 1 Hz (pressure and temperature)
• Sleep Mode Current: 0.1 µA
• Pressure Range: 300 to 1100 hPa
• Altitude Range: Approximately +9000 m to -500 m
• Pressure Accuracy: ±1 hPa
• Temperature Accuracy: ±1.0 °C
• Altimeter Accuracy: ±1 meter
• Operating Temperature Range: -40 °C to +85 °C
• Digital Interfaces: I2C and SPI

Physical Dimensions

• Length: 15.5 mm
• Width: 12 mm
• Height: 2.4 mm
• Weight: 0.8 g

Applications

• Altimeter and weather monitoring systems
• Drones and UAV altitude measurement
• Environmental monitoring projects
• IoT and embedded sensor applications
• Arduino, ESP32, and Raspberry Pi projects

Package Includes

• 1 x GY-BMP280-3.3 Precision Altimeter Atmospheric Pressure Sensor Module
• 1 x 6-pin Male Header
