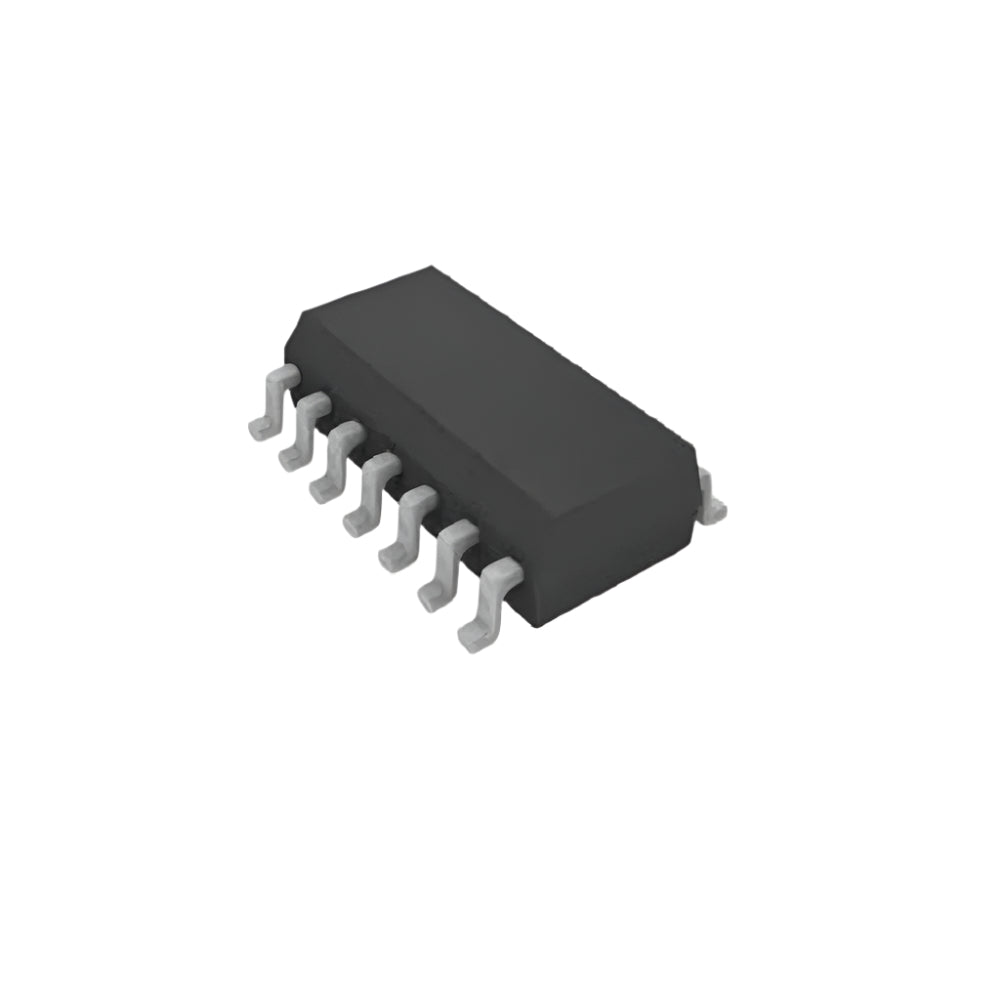

74HC125D Quad Buffer IC in 14-pin SOIC SMD package-1

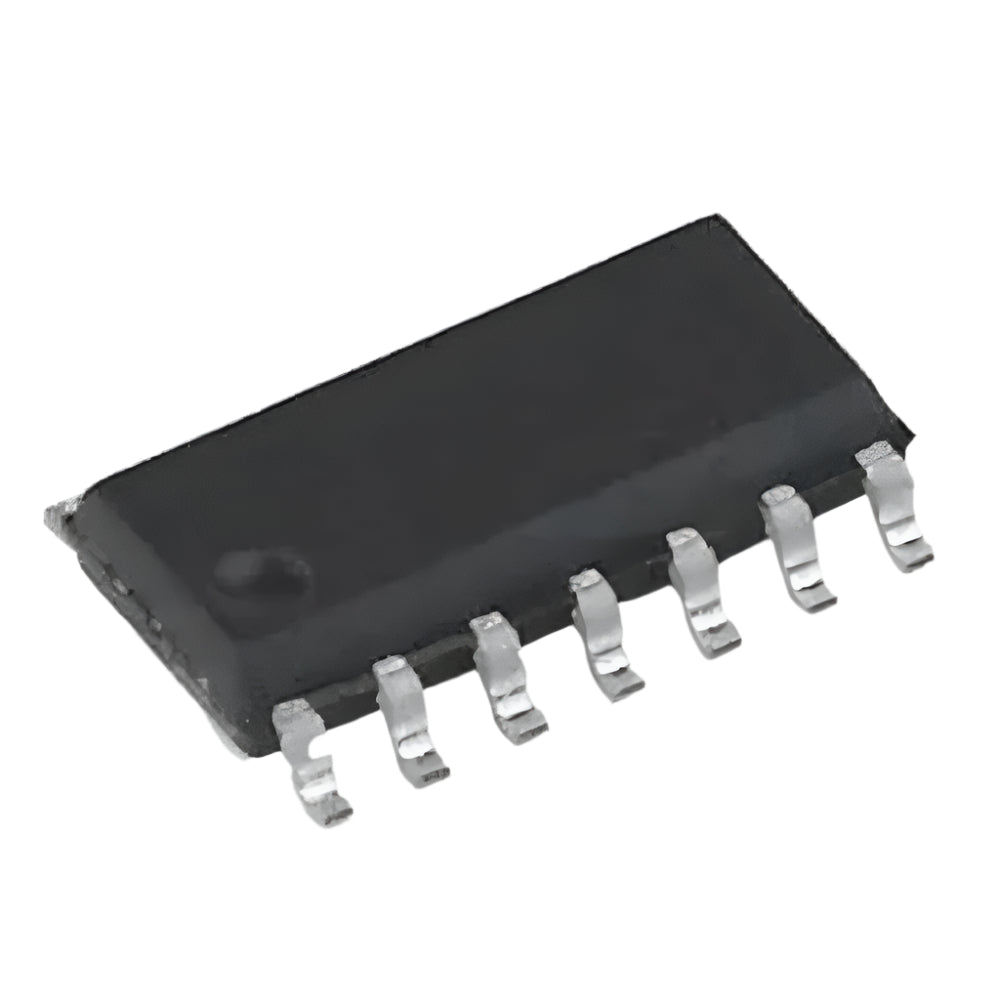

74HC125D Quad Buffer IC in 14-pin SOIC SMD package-2

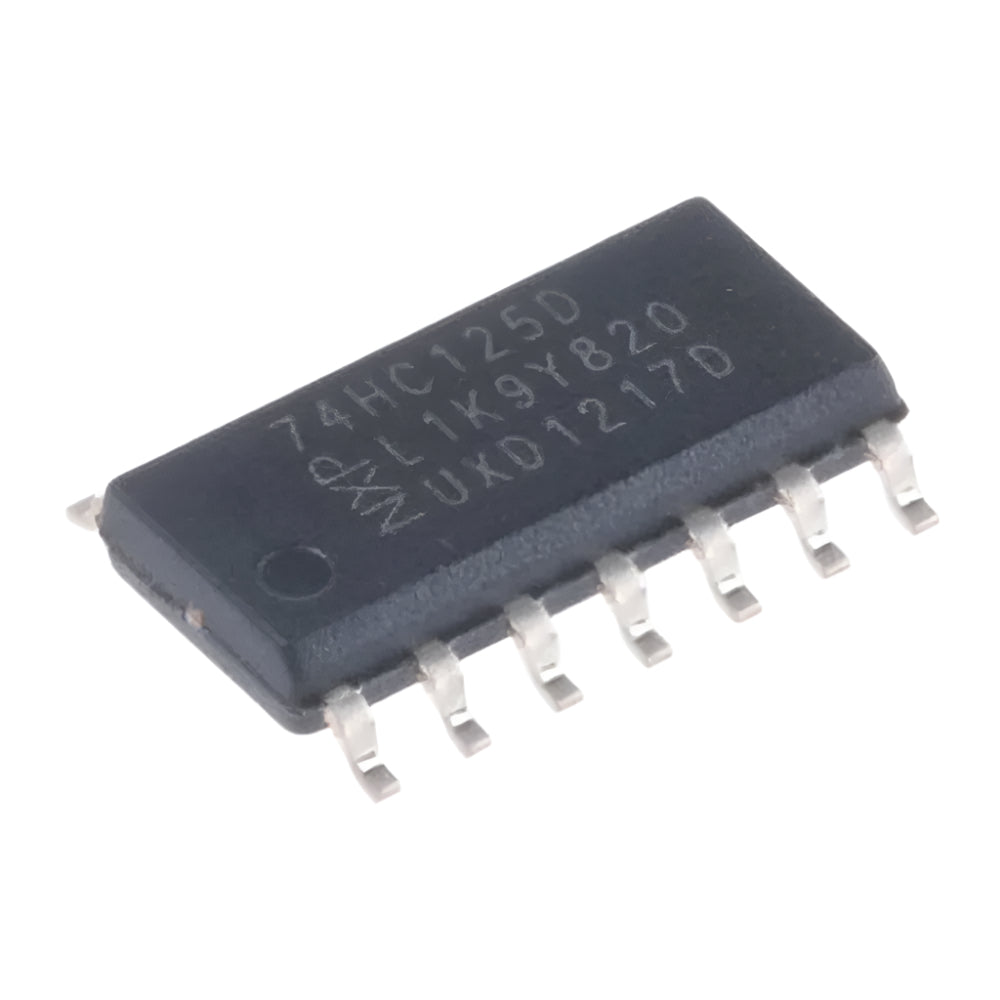

74HC125D Quad Buffer IC in 14-pin SOIC SMD package-3
74HC125D Quad Buffer IC in 14-pin SOIC SMD package-1
74HC125D Quad Buffer IC in 14-pin SOIC SMD package-2
74HC125D Quad Buffer IC in 14-pin SOIC SMD package-3

74HC125D Quad Buffer IC – High-Speed CMOS Logic, 14-Pin SMD

Available:In Stock
  • Product SKU: INTEG335
Wishlist
₹ 12 ₹ 19
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Quad non-inverting buffer
  • High-speed CMOS logic
  • 3-state outputs
  • 14-pin SOIC package
  • Wide voltage range: 2V–6V
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36H-170A

Secure

Specification

Description

74HC125D Quad Buffer IC – High-Speed CMOS Logic, 14-Pin SMD :

The 74HC125D is a quad buffer/line driver with 3 state outputs controlled by output-enabled inputs in 14 pin SOIC package. A HIGH on output enables inputs to cause outputs to assume a high impedance OFF state. Inputs include clamp diodes. This enables the use of current-limiting resistors to interface inputs to voltages in excess of VCC.

Technical Details

  • Logic Device Type: Buffer / Line Driver, Non-Inverting
  • Logic Family / Base Number: 74HC125
  • Case/Package: SOIC
  • No. of Pins: 14
  • Min Supply Voltage: 2V
  • Max. Supply Voltage: 6V
  • Logic IC Family: 74HC
  • Logic IC Base Number: 74125
  • Operating Temperature: -40°C

Features

  • Supply voltage ranges from 2V to 6V
  • Complies with JEDEC standard JESD 7A
  • CMOS level input
  • Ambient temperature ranges from -40°C to 125°C
  • Features ESD protection

Applications

Digital Logic Circuits – Ideal for basic digital processing tasks

Arithmetic Logic Units (ALUs) – Used in performing binary calculations

Signal Processing – Suitable for encoding and decoding operations

Embedded Systems – Common in microcontroller-based logic design

Physical Attributes

  • Dimensions: ~19.3mm x 6.4mm x 4.5mm (L x W x H)
  • Weight: ~1g

Package Includes

  • 1 x 74HC125D Quad Buffer IC – High-Speed CMOS Logic, 14-Pin SMD
