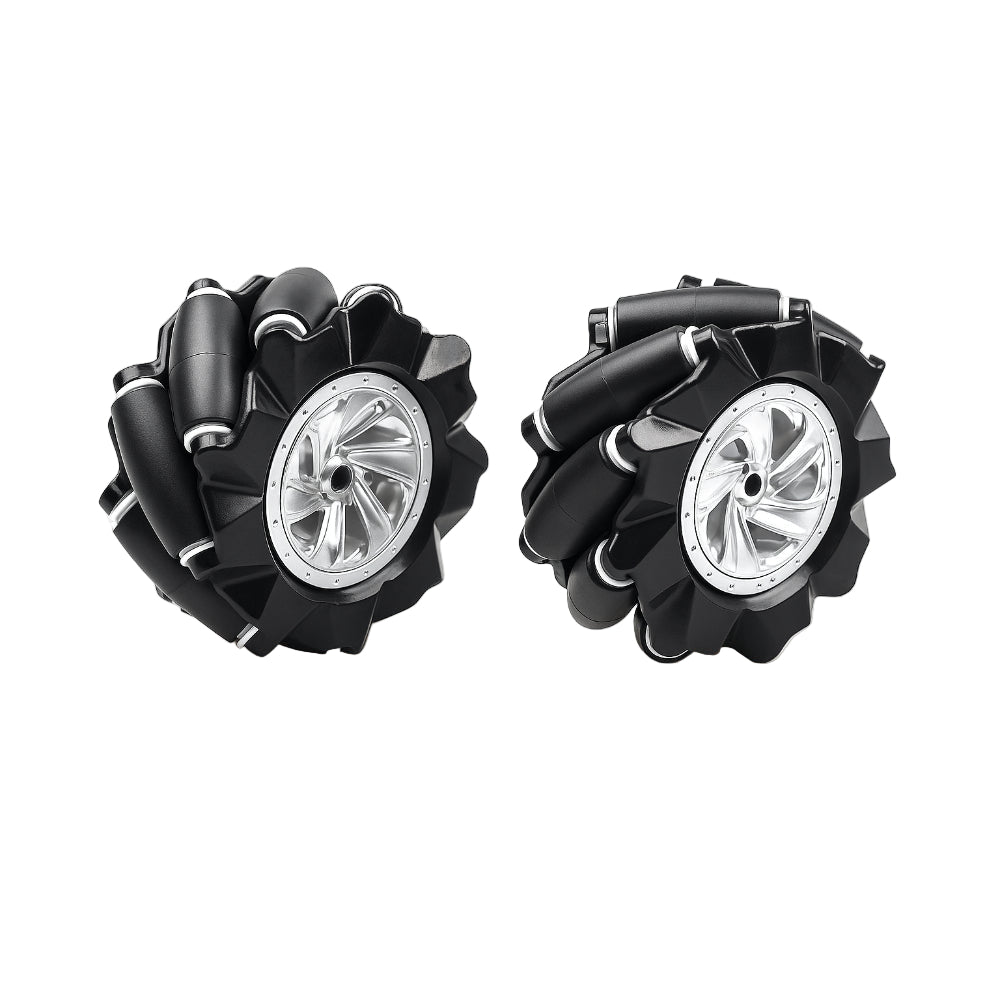

80mm Mecanum Wheel Omnidirectional Left and Right Pair Black

80mm Mecanum Wheel – Description

The 80mm Mecanum wheel pair is engineered for smooth multi-directional control, making it ideal for an omnidirectional wheels robot used in labs, classrooms, and prototype systems. Its angled roller layout supports motion testing for mecanum wheels arduino platforms while also offering value-focused performance for makers comparing mecanum wheel price options. This compact pair provides reliable traction and excellent maneuverability, helping users build stable omnidirectional wheels robot projects.

Designed for research, AGV training, and STEM learning, the black Mecanum wheel set integrates seamlessly with common motor hubs. Whether you are upgrading a mecanum wheels arduino build or experimenting with vector movement, this setup supports consistent testing for omnidirectional wheels robot development and motion-control algorithms.

Technical Details

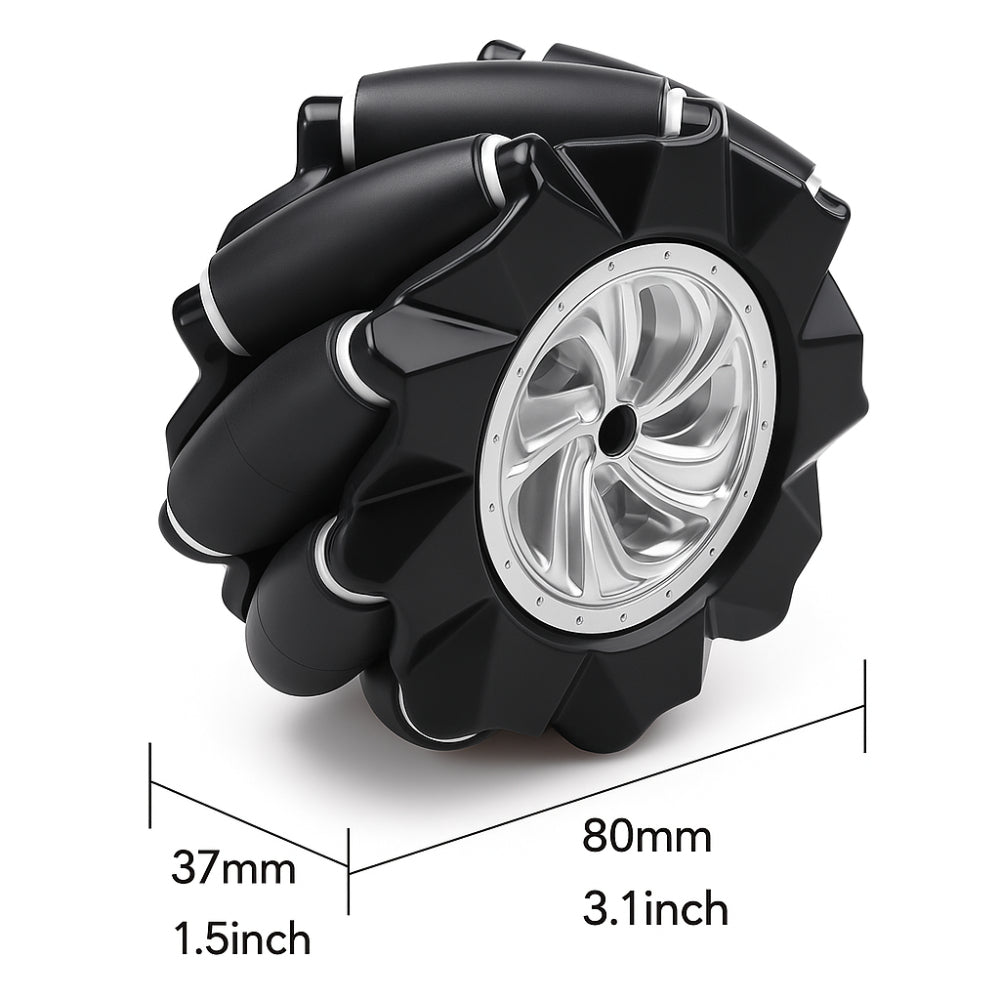

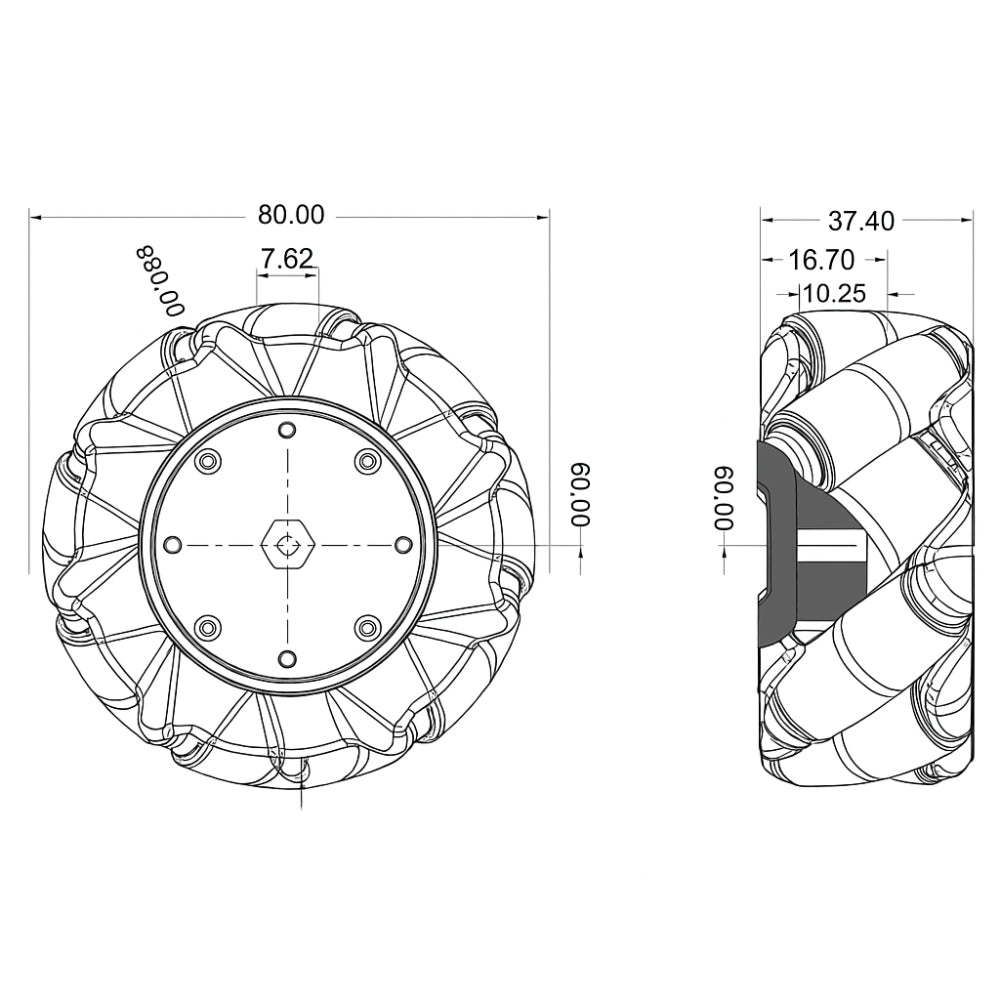

• Diameter: 80 mm
• Width: 37 mm
• Wheel Body: ABS / Polycarbonate
• Rollers: Rubber / Polyurethane (45° orientation)
• Axle & Bearings: Stainless steel hardware
• Recommended Load: ~5–10 kg per wheel
• Mounting Hub: Compatible with standard motor shaft hubs
• Hex hole Parallel (flat-to-flat) distance = 6.66 mm
• Number of Rollers: 9

Features

• True omnidirectional movement for any omnidirectional wheels robot
• Precise vector drive with matched left & right orientation
• Low-skid roller geometry suitable for mecanum wheels arduino projects
• Easy hub mounting and excellent mecanum wheel price performance
• Durable structure optimized for repeated classroom and lab demonstrations

Applications

• STEM and educational robotics kits
• Mobile platforms for omnidirectional wheels robot research
• AGVs and warehouse prototype vehicles
• R&D systems using mecanum wheels arduino drive control
• Budget-friendly builds requiring optimal mecanum wheel price performance

Physical Attributes

• Color: Black
• Roller Angle: 45°
• Surface: High-grip rollers
• Finish: Molded wheel body with reinforced hub support
• Weight: 201g

Package Includes

• 1 × Left Mecanum Wheel (80 mm, Black)
• 1 × Right Mecanum Wheel (80 mm, Black)
• 2 × Hex Couplings
• 2 × Screws
