Pneumatic Punching Machine

The Pneumatic Punching Machine is a mechanical project that shows how to use compressed air to punch and press things. This machine uses a pneumatic cylinder to turn pneumatic energy into linear mechanical motion. It is good for light-duty industrial and educational uses.

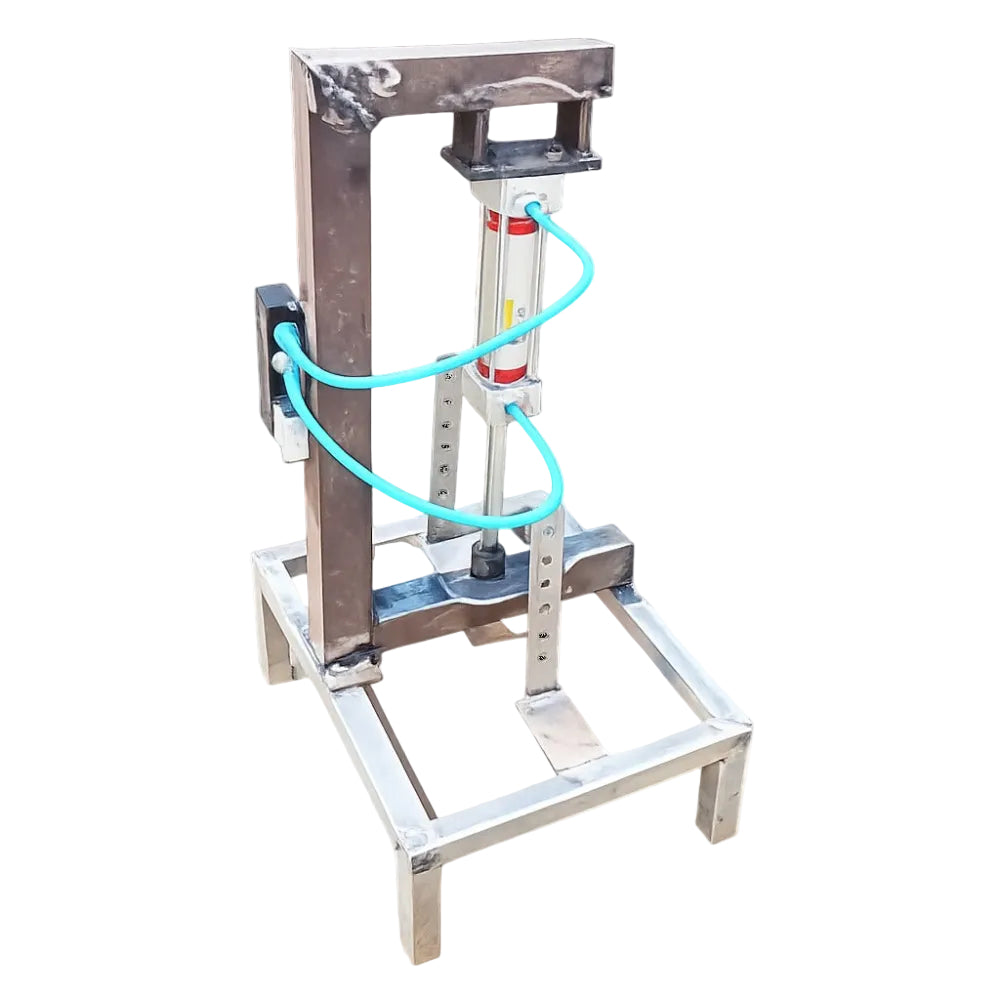

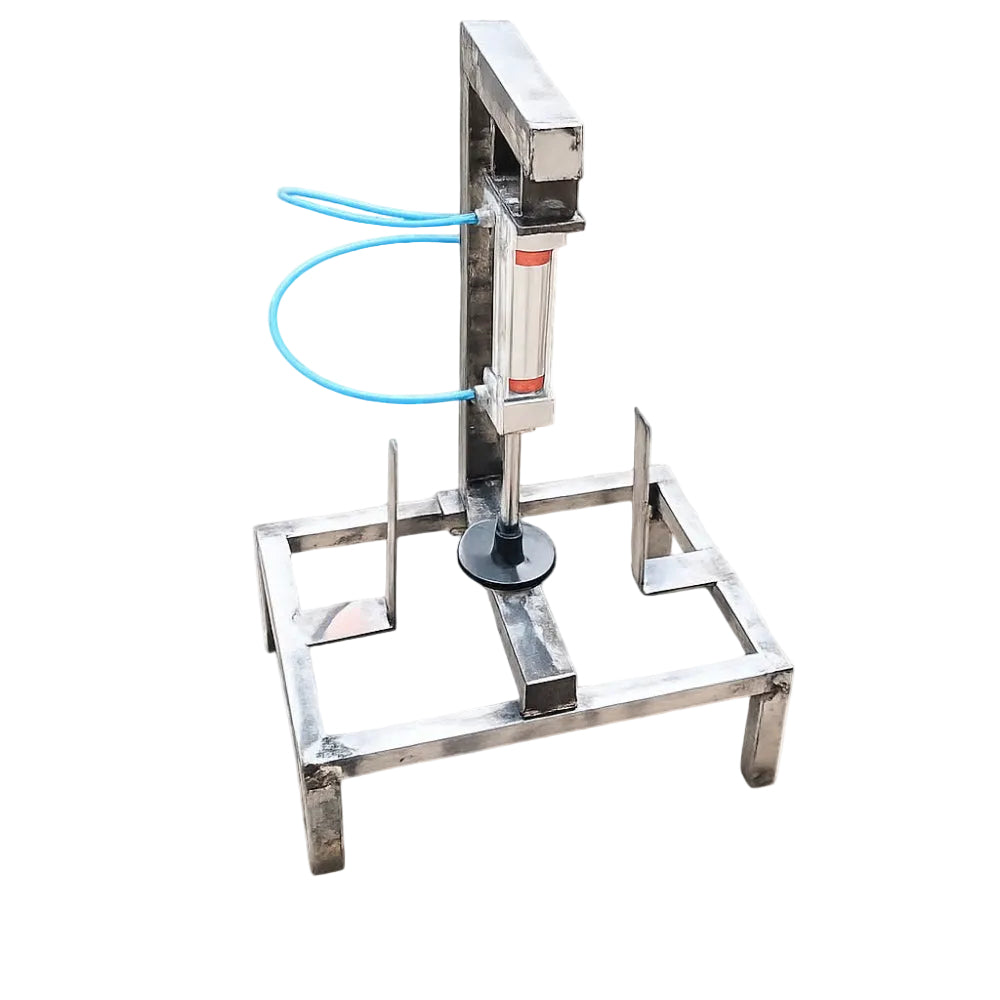

The structure is built with a strong, rigid metal frame that keeps it stable and strong while it is working. At the bottom of the frame, a punch tool is connected to a vertical pneumatic cylinder. When compressed air is sent to the piston, it moves down with force and punches the workpiece that is on the base platform. The piston can go back to its original position when the air is let out.

This project shows how good pneumatic systems are because they are easy to build, work quickly, need little maintenance, and are safe to use. In many industries, pneumatic punching machines are used to punch sheet metal, make holes, mark things, and do light pressing work.
