Scotch Yoke Multi Operation Machine

The Scotch Yoke Multi Operation Machine is a new mechanical project that uses the Scotch yoke mechanism to turn the crank's rotary motion into linear motion that is exact and can be repeated. This setup shows how different types of industrial automation systems and reciprocating machines work.

There is a polished steel shaft that slides through a guided block, and the machine has a rotating disc attached to it. The yoke moves the shaft as the disc turns, which makes a smooth linear reciprocation. This simple but very effective mechanism makes the project perfect for doing several engineering tasks, like cutting, filing, shaping, and slotting, with the same level of accuracy every time. Changing rotary motion to linear motion The Scotch yoke mechanism changes rotary motion into precise reciprocating linear motion in an efficient way.

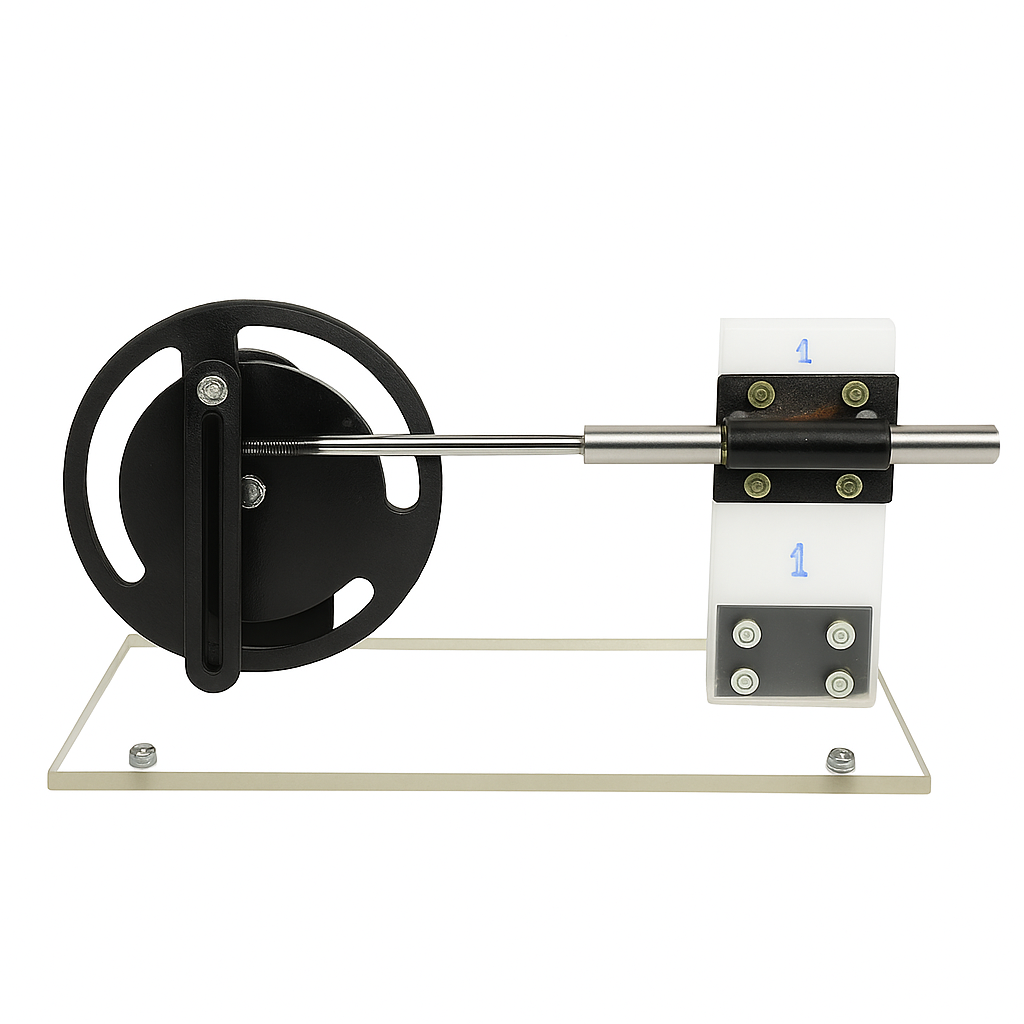

NOTE: The picture is only meant to show what it looks like. The final product's size may be a little different. The color of the input materials may also change depending on what is available, but the variation does not affect how the product works. The final product won't look as good as the picture since it's just for the student project.
