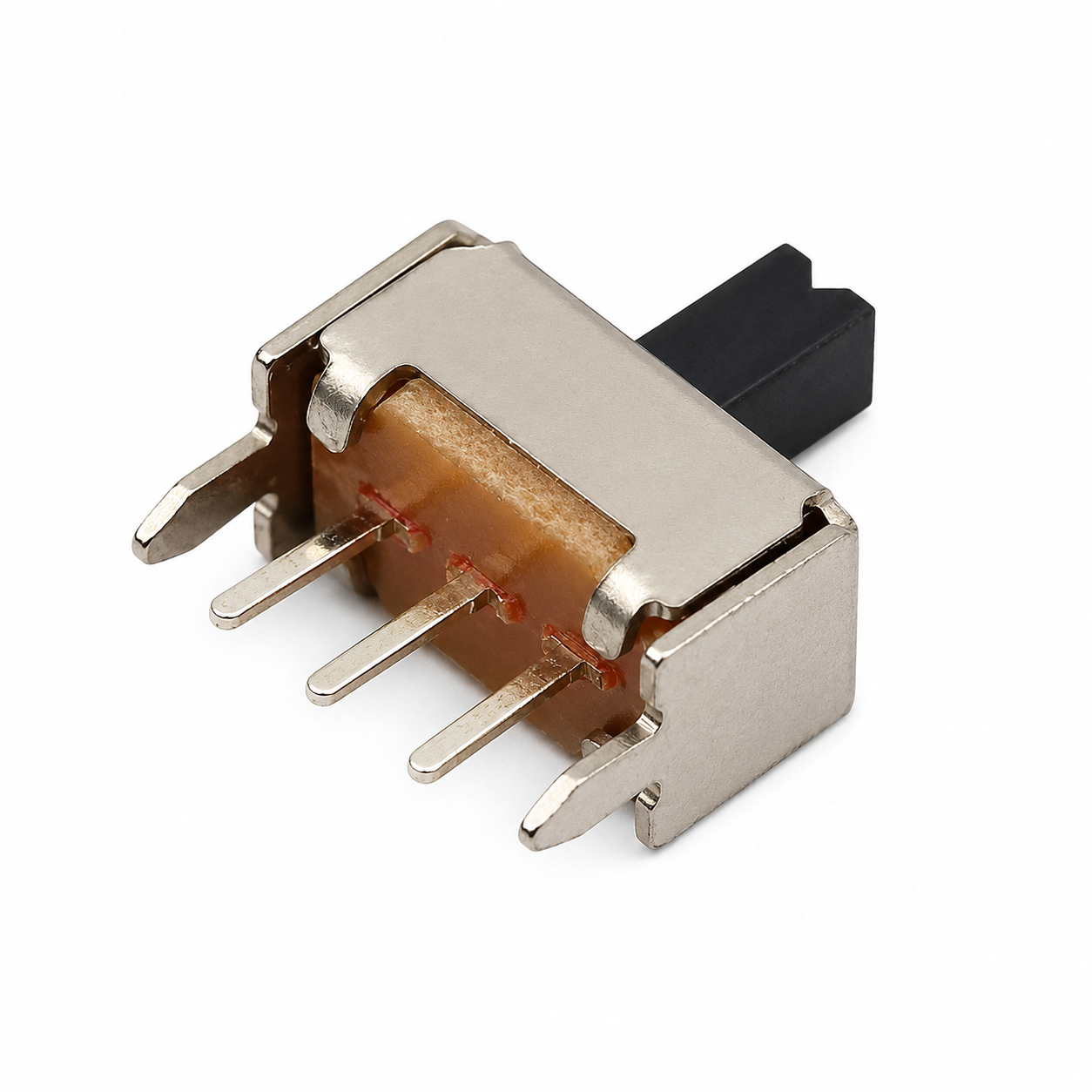

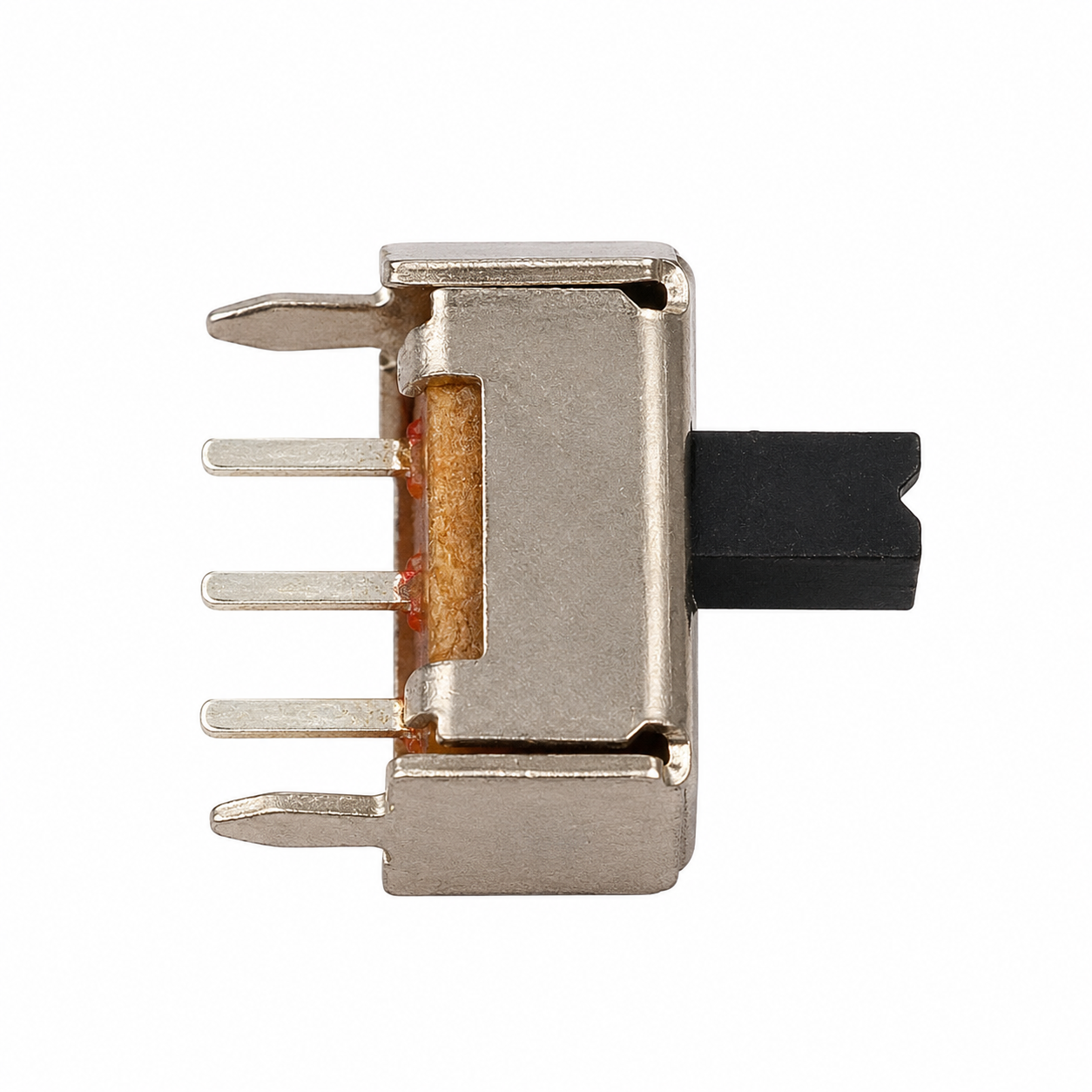

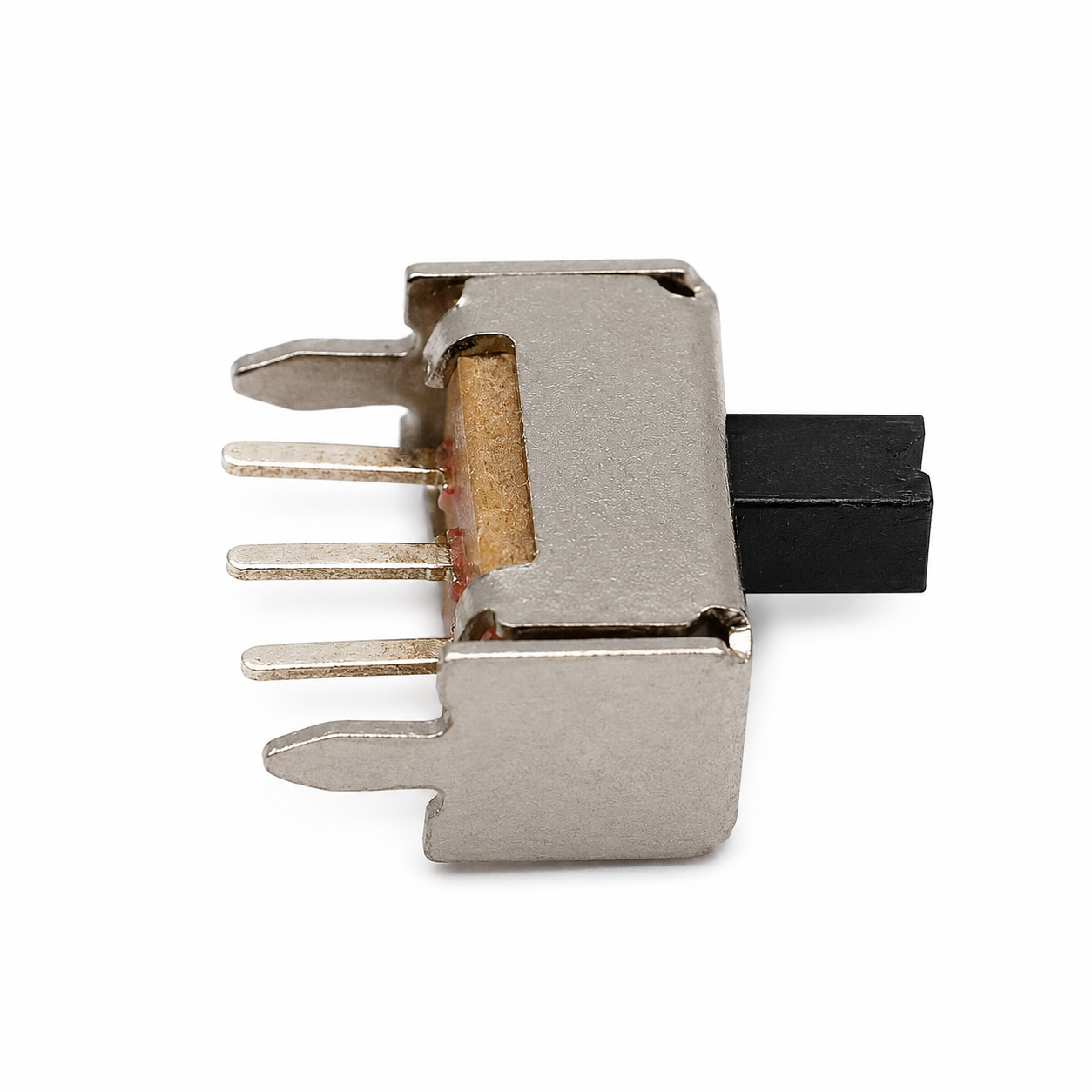

4mm 1P2T SPDT Slide Switch On-Off 3-Pin 0.3A

4mm 1P2T SPDT Slide Switch On-Off 3-Pin 0.3A-1

4mm 1P2T SPDT Slide Switch On-Off 3-Pin 0.3A-2

4mm 1P2T SPDT Slide Switch On-Off 3-Pin 0.3A

Available:In Stock

Product SKU: SWITC007

Wishlist

₹ 7 ~~₹ 9~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

Shipping Details

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

Warehouse Details 36E-127R

Specification

Description

The SPDT (Single Pole Double Throw) Slide Switch with On-Off functionality is a switch with three pins and the ability to connect one common terminal to either of two other terminals.

Switching Configuration:

Common (COM): Connects to either NC (Normally Closed) or NO (Normally Open) depending on the switch position.

Normally Open (NO): Connected to COM when the switch is in the ON position.

Normally Closed (NC): Connected to COM when the switch is in the OFF position.

Functionality:

On Position (Switch Closed): Common (COM) is connected to Normally Open (NO).

Off Position (Switch Open): Common (COM) is connected to Normally Closed (NC).

Current Rating: Typically rated for a specific maximum current, often denoted in amperes (A).

Key Features:

Slide Switch Design: Operated by sliding a lever or actuator between two or more positions.

On-Off Functionality: Provides a simple ON-OFF control for the connected circuit.

SPDT Configuration: Offers the flexibility to connect to one of two terminals.

Compact Size: Suitable for applications with limited space.

Applications:

Electronics Projects: Commonly used in hobbyist and DIY electronic projects.

Consumer Electronics: Found in devices such as radios, flashlights, and small appliances.
