4×1.5mm Electret Condenser Microphone with Soldering Feet – Mini Mic Capsule
![4×1.5mm Electret Condenser Microphone with Soldering Feet – Mini Mic Capsule]()
![4×1.5mm Electret Condenser Microphone with Soldering Feet – Mini Mic Capsule_1]()
![4×1.5mm Electret Condenser Microphone with Soldering Feet – Mini Mic Capsule_drawing]()
![4×1.5mm Electret Condenser Microphone with Soldering Feet – Mini Mic Capsule]()
![4×1.5mm Electret Condenser Microphone with Soldering Feet – Mini Mic Capsule_1]()
![4×1.5mm Electret Condenser Microphone with Soldering Feet – Mini Mic Capsule_drawing]()
Equipped with soldering feet for reliable mounting, this mic is perfect for discreet voice pickup in applications like spy devices, medical instruments, compact sensors, and micro audio projects. Despite its tiny size, it offers consistent signal quality and can be integrated into various portable and embedded systems where space and performance are critical.
Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
-25%
4×1.5mm Electret Condenser Microphone with Soldering Feet – Mini Mic Capsule
Available:In Stock
- Product SKU: MIC006
₹ 29
₹ 39
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
4×1.5mm Electret Condenser Microphone with Soldering Feet – Mini Mic Capsule
The 4×1.5mm Electret Condenser Microphone is a super-miniature mic capsule ideal for ultra-compact electronic applications. With a diameter of just 4mm and a slim 1.5mm height, this microphone is designed for integration into the smallest devices without compromising on audio quality. Its electret condenser design provides stable performance, low noise, and high sensitivity for clear sound capture in confined environments.Equipped with soldering feet for reliable mounting, this mic is perfect for discreet voice pickup in applications like spy devices, medical instruments, compact sensors, and micro audio projects. Despite its tiny size, it offers consistent signal quality and can be integrated into various portable and embedded systems where space and performance are critical.
Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
Technical Details
- Type: Electret Condenser Microphone

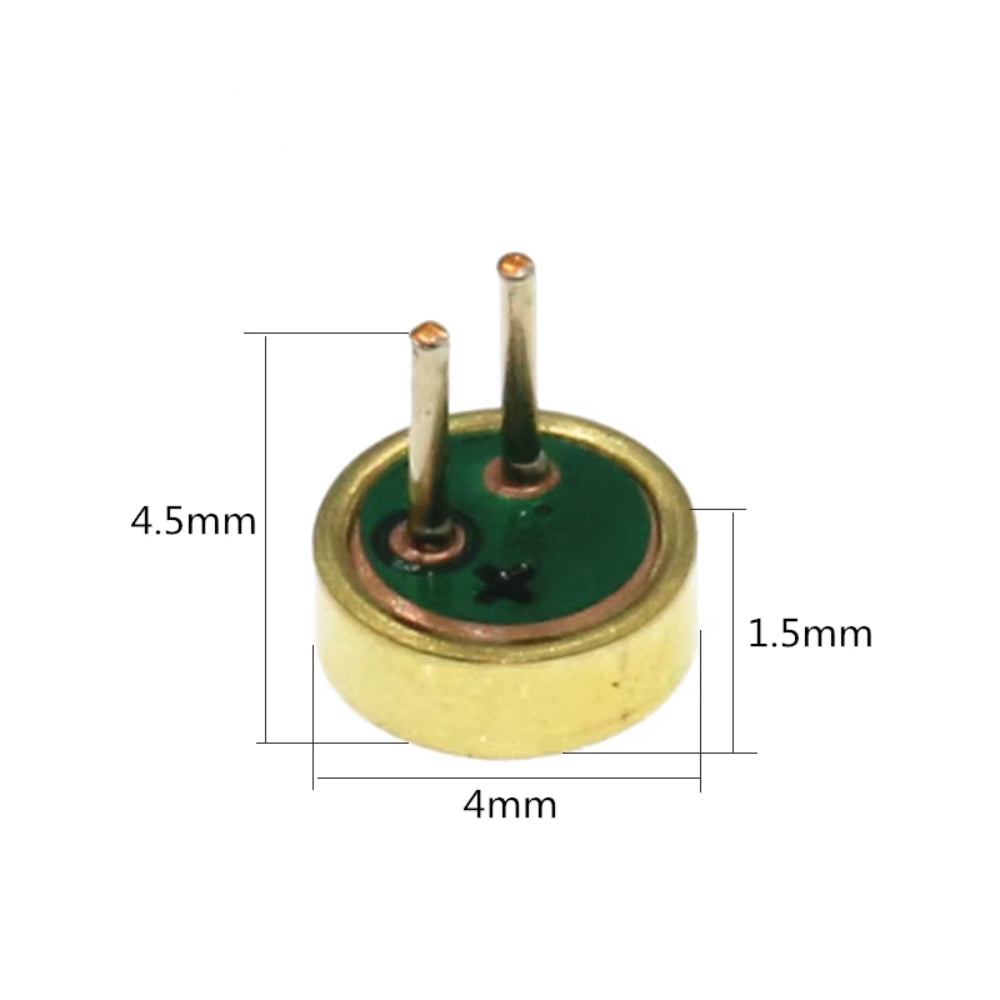

- Size: 4mm × 1.5mm
- Directionality: Omnidirectional
- Impedance: ≤ 2.2 KΩ
- Current Consumption: ≤ 0.5mA
- Standard Operating Voltage: 2VDC
- Operating Voltage Range: 1 ~ 10VDC
- Sensitivity: –
- Signal to Noise Ratio: ≥ 40dB
- Environmental Noise: ≤ 36dB
- Operating Temperature: -25℃ ~ +70℃
- Relative Humidity: 35% ~ 85% RH
- Atmospheric Pressure: 86 ~ 106 kPa
- Mounting: Soldering Feet
- Weight: ~0.2g
Features
- Ultra-compact size: 4×1.5mm
- Omnidirectional sound pickup
- Wide operating voltage: 1V to 10VDC
- Low current consumption: ≤ 0.5mA
- Good signal-to-noise ratio: ≥ 40dB
- Operates in -25℃ to +70℃ temperature range
- Reliable performance under high humidity (35% ~ 85% RH)
- Soldering feet for easy integration
Applications :
- Mobile phones and smart devices
- Miniature sound recording equipment
- IoT voice-activated systems
- Hearing aids and wearable devices
- Audio surveillance and security
- Voice recognition modules
- Educational electronics kits
- DIY and maker projects
Physical Attributes
- Size: 4mm × 1.5mm
- Weight: Approx. 0.2g
Package Includes
- 1 x 4×1.5mm Electret Condenser Microphone with Soldering Feet – Mini Mic Capsule
