52dB Electret Condenser Microphone 4.5×2.2mm
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

52dB Electret Condenser Microphone 4.5×2.2mm

Available:In Stock
  • Product SKU: MIC005
Wishlist
₹ 29 ₹ 39
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Compact size: 4.5×2.2mm
  • Sensitivity: -38dB
  • Low power: 0.5mA max
  • Wide voltage: 1–10VDC
  • Omnidirectional
  • Good SNR: ≥ 40dB
  • Temp range: -25℃ ~ +70℃
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36G-156O

Secure

Specification

Description

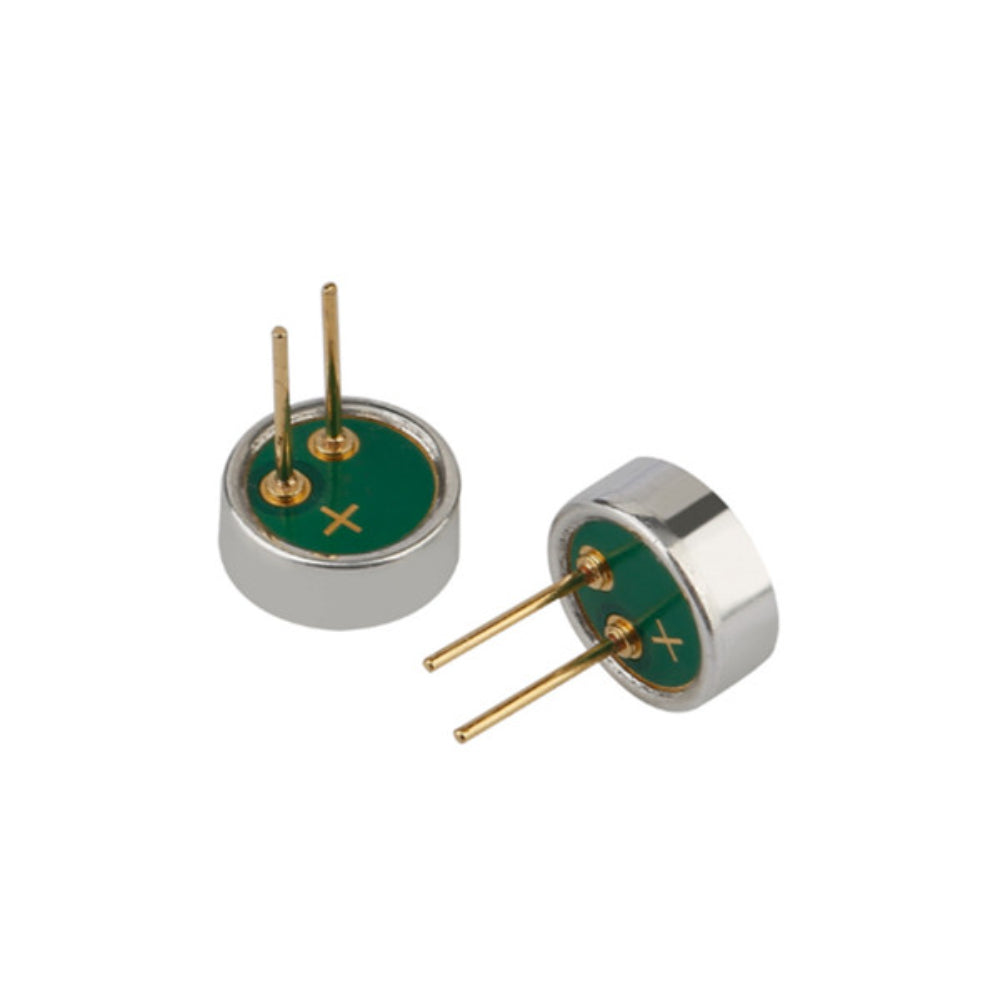

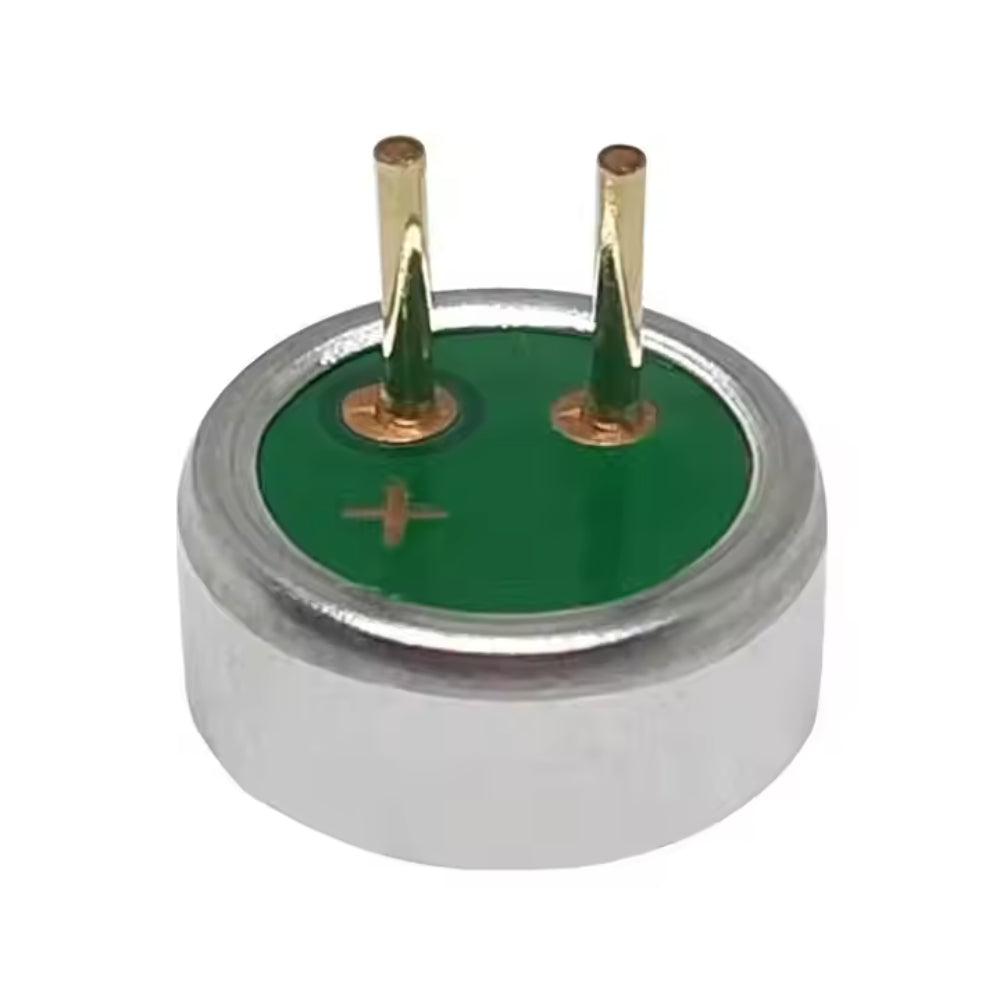

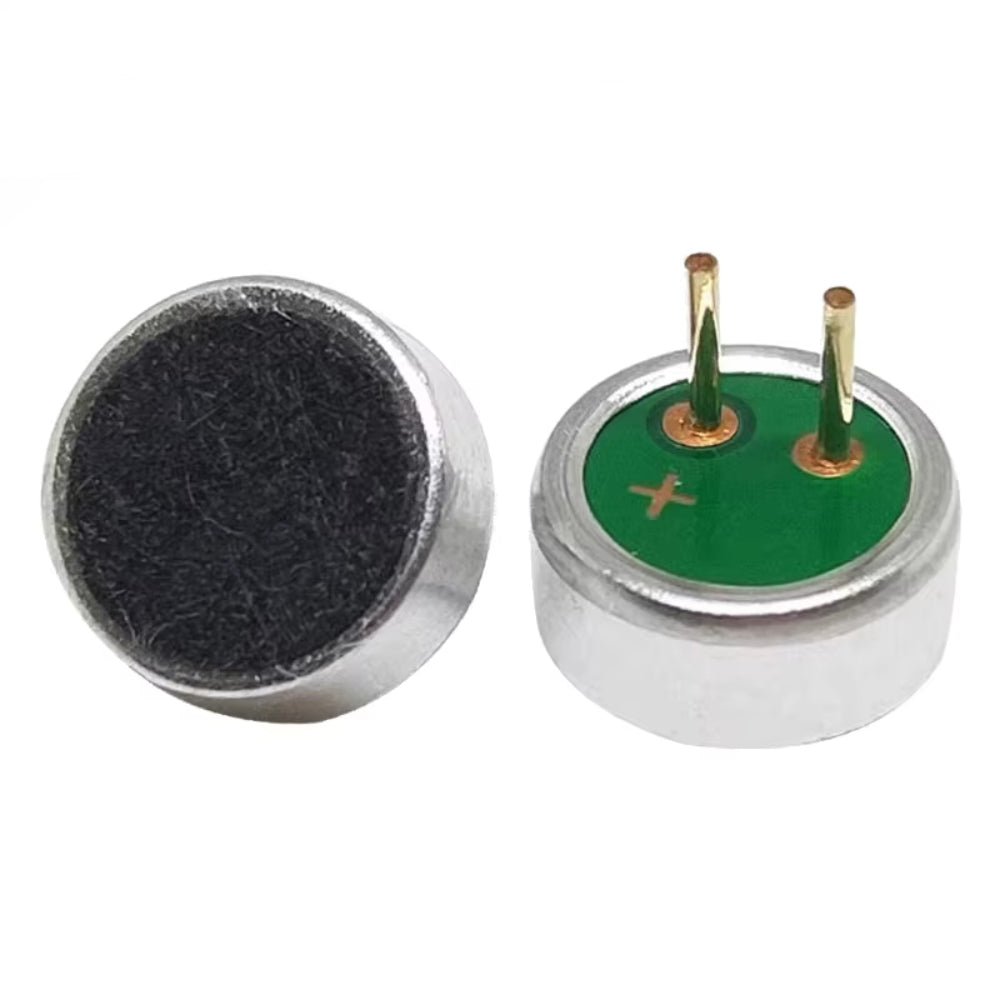

52dB Electret Condenser Microphone 4.5×2.2mm

The 52dB Electret Condenser Microphone (4.5×2.2mm) is a miniature, high-sensitivity microphone designed for ultra-compact audio applications. With a diameter of 4.5mm and a height of just 2.2mm, this microphone is perfect for use in devices where space is extremely limited. It utilizes electret condenser technology to deliver clear and accurate sound capture, and its 52dB sensitivity rating ensures excellent response even to low-volume audio sources.

Ideal for wearable electronics, hearing aids, voice-activated systems, and miniature recording devices, this microphone supports a wide range of low-power applications. The dual-lead configuration allows for easy soldering onto PCBs or integration into circuit boards. Despite its small size, it offers reliable performance, low noise, and energy-efficient operation, making it a great choice for compact and sensitive audio detection solutions.

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

  • Type: Electret Condenser Microphone
  • Operating Voltage Range: 1 ~ 10VDC
  • Reference Voltage: 3VDC (Typical)
  • Impedance: ≤ 2.2 KΩ
  • Current Consumption: ≤ 0.5mA
  • Sensitivity: -38 ± 3dB
  • Directionality: Omnidirectional
  • Signal to Noise Ratio: ≥ 40dB
  • Operating Temperature: -25℃ ~ +70℃

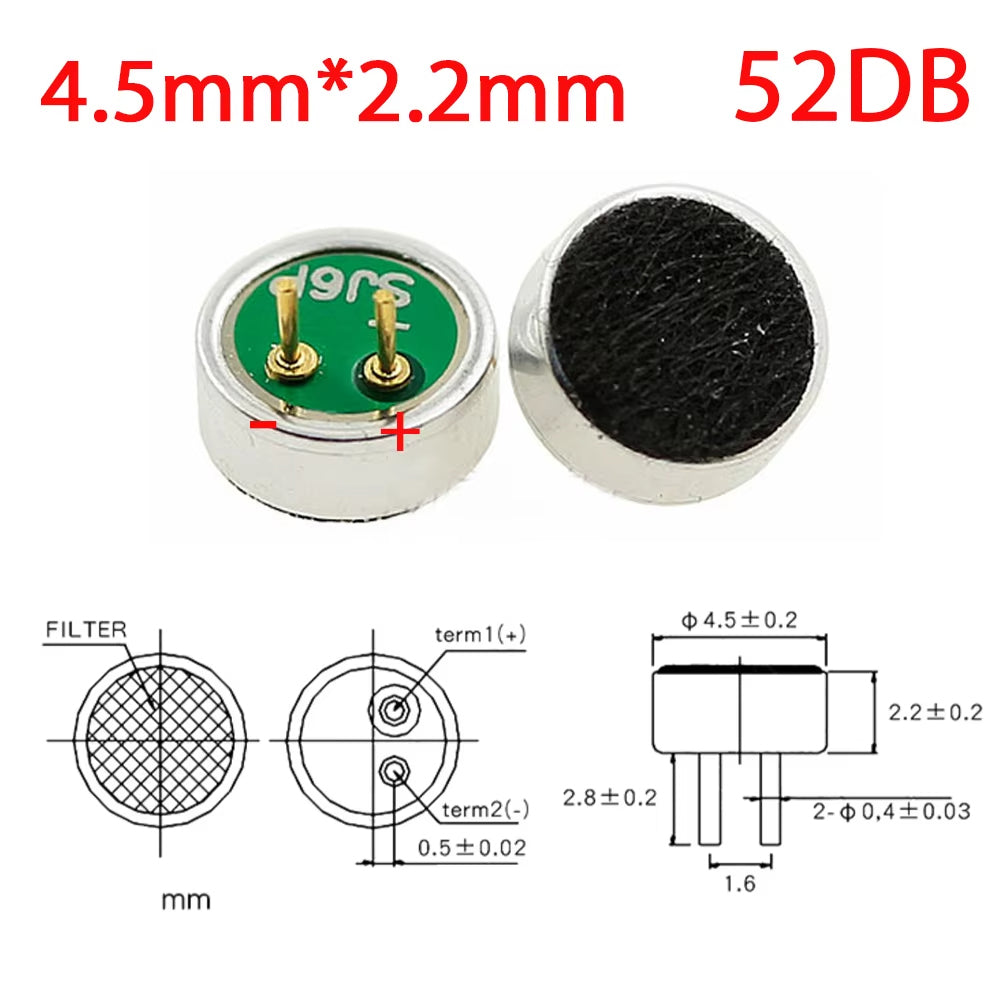

  • Size: 4.5mm × 2.2mm
  • Weight: Approx. 0.3g

Features

  • Compact and lightweight design (4.5×2.2mm)
  • High sensitivity: -38 ± 3dB
  • Omnidirectional pickup pattern
  • Wide operating voltage range: 1 ~ 10VDC
  • Low current consumption: ≤ 0.5mA (max)
  • Good signal-to-noise ratio: ≥ 40dB
  • Operates in a wide temperature range: -25℃ ~ +70℃

Applications :

  • Portable audio devices and recorders
  • Voice recognition and communication systems
  • Smart gadgets and wearable electronics
  • IoT devices and sensor applications
  • Surveillance and security equipment
  • DIY audio and electronics projects

Physical Attributes

  • Size: 4.5mm × 2.2mm
  • Weight: Approx. 0.3g

Package Includes

  • 1 x 52dB Electret Condenser Microphone 4.5×2.2mm
